1. Before You Start
2. Hardware Installation .........................................................................
3.
.................................................................................
Configure the Router .........................................................................
Installation Requirements
Application
Package Contents
1. Before You Start
English
1
?
?
?User's Guide CD-ROM
?1 x RJ-45 Ethernet Cable
?Power Adapter (5V, 2.5A)
T
Quick Installation Guide
W100-BRF114
?
?Web Browser: Internet Explorer (5.0 or higher) or Netscape Navigator
(4.7 or higher)
?Broadband Internet
?Installed Cable or DSL Modem
A computer with a wired network adapter properly installed.
10/100Mbps
Cable/DSL 4-Port Firewall Router
(TW100-BRF114)
Workstation with
PCI Adapter
(TE100-PCIWN)
Wireless Access Point
(TEW-630APB)
Notebook with
PC Card
(TE100-PCBUSR)
Cable/DSL
Modem
1-Port 10/100Mbps Multi-Function
USB 2.0 Print Server
(TE100-MP1U)
Internet
English
2

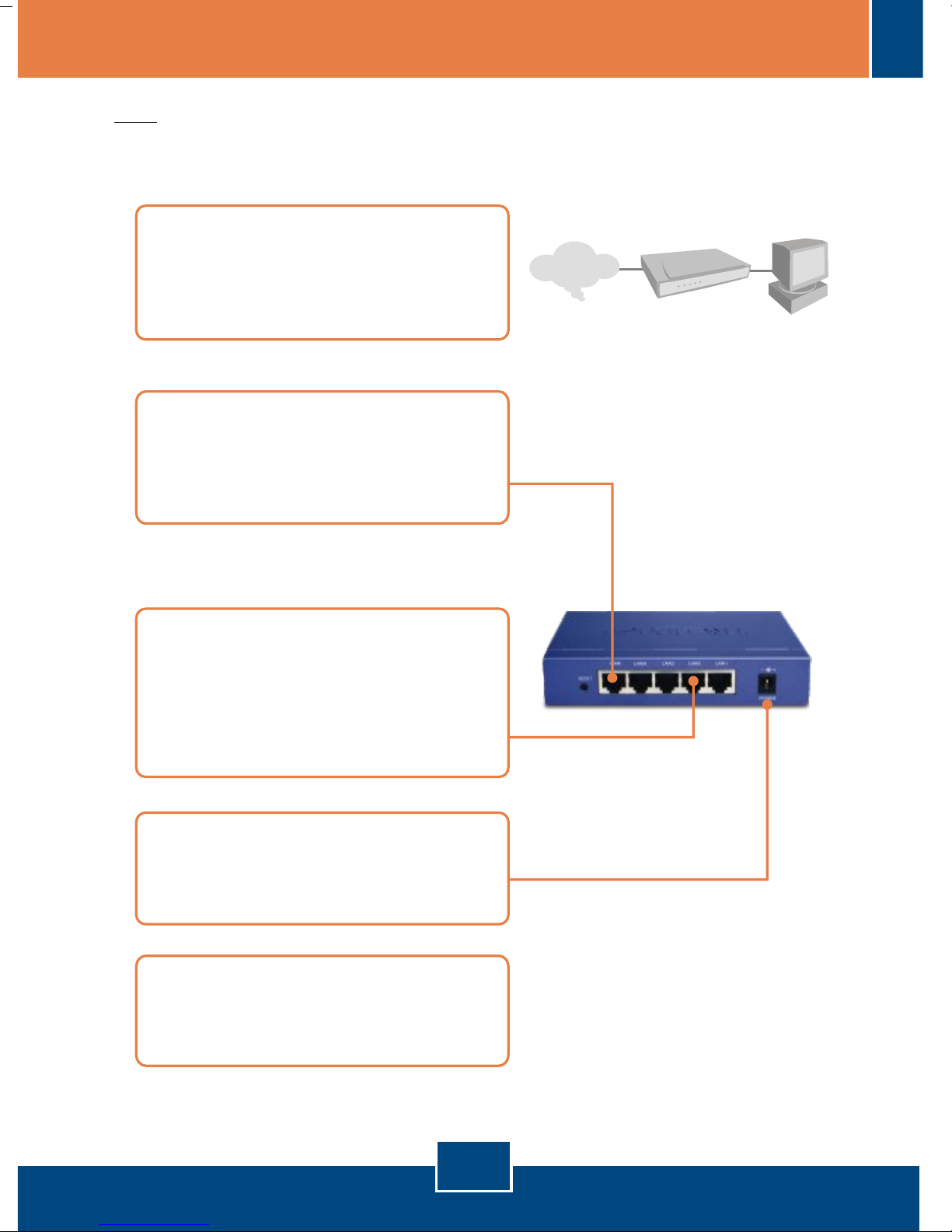

2. Hardware Installation
4. Connect the AC Power Adapter to
the TW100-BRF114 and then to a
power outlet.
5. Verify that the following panel lights
are on: Power, LINK/Act and
WAN.
Note: Gather all information related to your Internet Connection before you
start. If necessary, contact your Internet Service Provider (ISP).
1. Verify that you have an Internet
connection when connecting your
computer directly to the Cable or
DSL modem.
Cable/DSL Modem
Internet
2. Connect one end of a RJ-45 cable
to the TW100-BRF114's WAN
port. Connect the other end of the
cable to your modem.
3. Connect one end of a RJ-45 cable
to one of the TW100-BRF114's
LAN ports. Connect the other end
of the cable to the computer's
Ethernet port.
English
3
3. Configure the Router
1. Open your web browser, type
http://192.168.0.1 in the
Address bar, and press Enter.
4. Select the type of Internet access
that you have and then click Next.
2. Click Setup Wizard.
3. Click Next.
English
4
Your configuration is now complete.
For detailed information regarding the TW100-BRF114's configuration and
advanced settings, please refer to the Troubleshooting section, User's Guide
CD-ROM, or TRENDnet's website at http://www.trendnet.com.
5. Configure the settings based on
information provided by your ISP.
Follow the wizard instructions to
complete the configuration.
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet
5
Troubleshooting
Q1:
A1:
I typed http://192.168.0.1 in my Internet Browser's Address Bar, but an error message
says “The page cannot be displayed.” How can I get into the TW100-BRF114's web
configuration page?
First, check your hardware settings again by following the instructions in Section 2.
Second, make sure the LINK/ACT light for the LAN port is lit. Third, make sure your TCP/IP
settings are set to Obtain an IP address automatically (see the steps below).

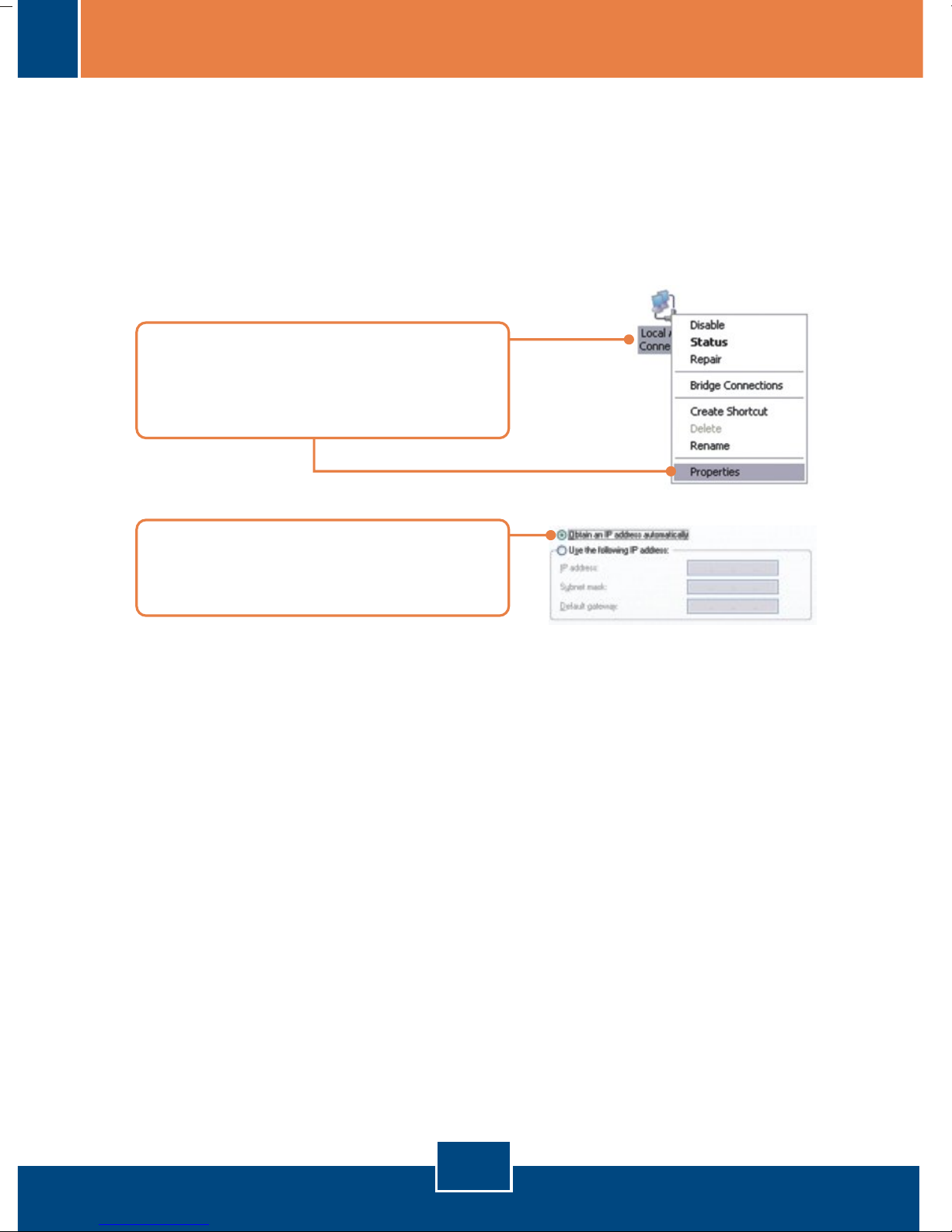

1. Go into the Control Panel and double-click
the Network Connections icon, right-click
the Local Area Connection icon and then
click Properties.
2. Click Internet Protocol (TCP/IP) and then
click Properties. Then click on Obtain an
IP address automatically.
Fourth, press on the factory reset button for 15 seconds.
I am not sure what type of Internet Account Type I have for my Cable/DSL connection.
How do I find out?
Contact your Internet Service Provider's (ISP) support service for the correct
information.
I went through the Setup Wizard, but I can not get onto the Internet. What should I do?
First, verify that you can get onto the Internet with a direct connection into your modem.
Second, contact your ISP and verify all the information that you have in regards to your
Internet connection settings is correct. Third, power cycle your modem and router. Unplug
the power to the modem and router. Wait 30 seconds, and then reconnect the power to the
modem. Wait for the modem to fully boot up, and then reconnect the power to the router.
If you still encounter problems or have any questions regarding the TW100-BRF114, please contact
TRENDnet’s Technical Support Department.
Q2:
A2:
Q3:
A3:
Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may
cause undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
Waste electrical and electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with you Local
Authority or Retailer for recycling advice.
ADVERTENCIA
En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de
alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al
mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador
de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria
existente en el pais o zona de instalación.
Copyright ©2007. All Rights Reserved. TRENDnet.
20675 Manhattan Place
Torrance, CA 90501
USA
Product Warranty Registration
Please take a moment to register your product online.
Go to TRENDnet’s website at http://www.trendnet.com/trendnet
TRENDnet Technical Support
US Canada
24/7 Tech Support
Toll Free Telephone: 1(866) 845-3673
Europe (Germany France Italy Spain Switzerland UK)
English/Espanol - 24/7
Francais/Deutsch - 11am-8pm, Monday - Friday MET
English/Espanol - 24/7
Francais/Deutsch - 11am-8pm, Monday - Friday MET
Worldwide
Telephone: +(31) (0) 20 504 05 35
Toll Free Telephone: +00800 60 76 76 67
.
. . . . .
