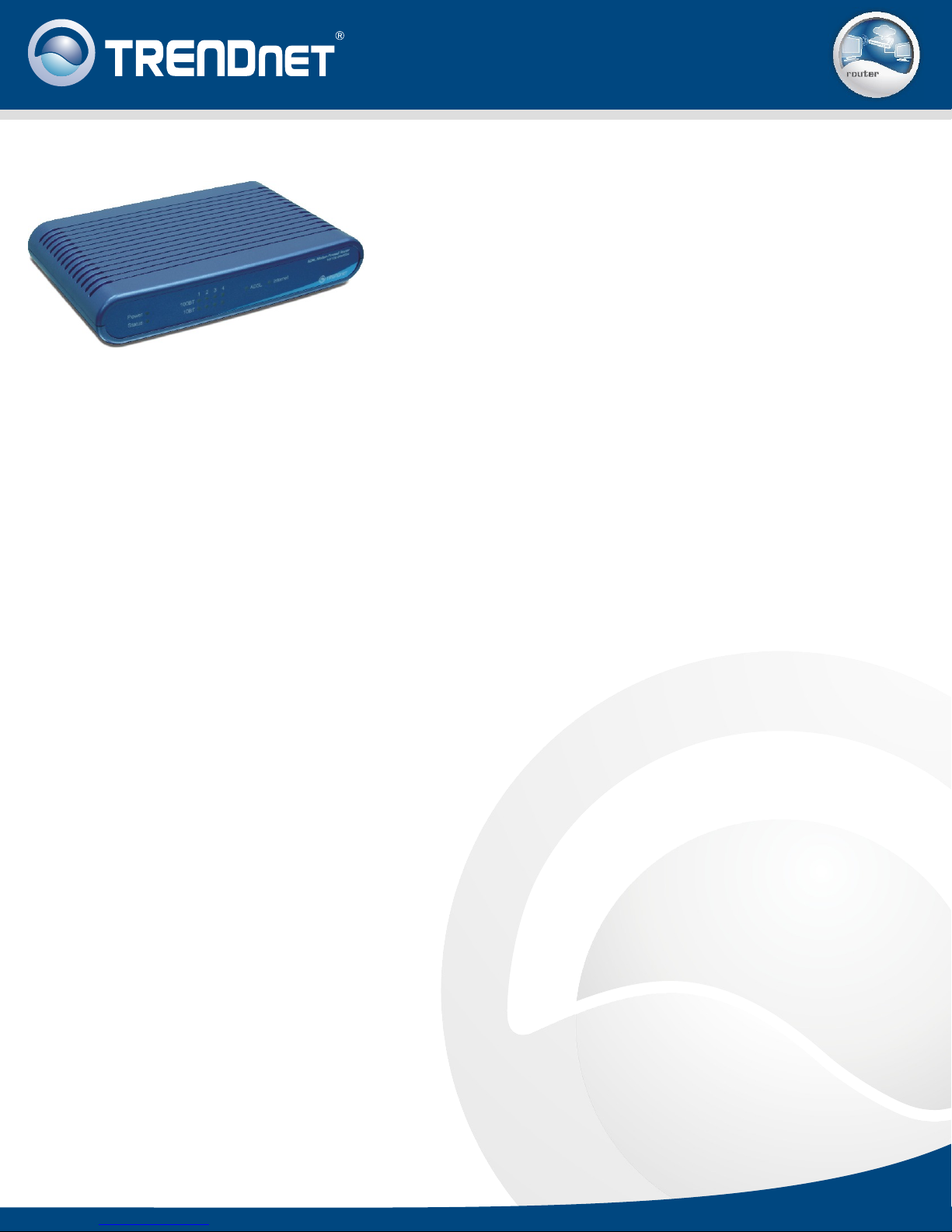

TRENDnet TW100-BRM504 Manuale utente

TW100-BRM504 includes an ADSL/ADSL2/ADSL2+ Modem, SPI

Firewall, Router, and 4-Port Switch ALL-IN-ONE box. Simply plug it

into your DSL phone line and you have a high-performance network

for your home or small office. Security includes a Stateful Packet

Inspection Firewall (SPI), Denial of Service Attack prevention, VPN

pass-through, and advanced Rule-Based Firewall, while the

Application Level Gateway (ALG) and Port Forwarding features add

flexibility so designated programs such as gaming and web-

conferencing programs can work around the Firewall. Set-up is

easy with UPnP support and a Quick Install Wizard.

TW100-BRM504 (c1)

4-Port ADSL Modem Firewall Router

TW100-BRM504(c1)

rev:04.03.2007

FEATURES

• Supports Router (Router+Modem) or Modem (Modem only) Mode

• Compliant with ADSL, ADSL2, ADSL2+ on G.dmt, G.lite and T1.413 Multi-Mode PSTN Environments

• Compliant with PPPoE, PPPoA or IPoA Connection Types

• Supports Filtering by URL, MAC Address, Services and Date/Time

• Supports Virtual DMZ, Virtual Servers (Port Forwarding) and Firewall Rules

• Supports RIP/Static Routing and Dynamic DNS Service

• §Supports up to 100 VPN Pass-Through sessions for PPTP, IPSec or L2TP connections

• NAT/NAPT, Rule-Based and SPI Firewall protect against DoS (Denial of Service) attacks

• Real-Time email alert and logs when attack/unauthorized Internet activity occurs

• DHCP Server feature supports up to 253 Users

• Supports UPnP (Universal Plug & Play) and ALGs Support Internet applications such as Email, FTP, Gaming, MSN Messenger,

Yahoo Messenger, PING, Telnet, and more

• Supports most operating systems, such as Windows 95/98/ME/NT/2000/XP, Unix, and Mac

• Easy Configuration and Remote Management with Web Browser (HTTP)

• Built-in Flash memory for firmware upgrade

• 5-year Warranty

Protocols

Firewall

Security

VPN Pass Through

ATM

Management

LAN Port

Reset Button

Power

Weights

Humidity

Temperature

Certification

LED

Dimensions (L x W x H)

• IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX

• Complies with G.dmt (G.992.1) Annex A

• DHCP Client Server (LAN)

• ITU G.992.3 Annex A ADSL2, ITU G.992.5 Annex A ADSL2+

• Power, Status, 4x100LAN, 4x10LAN, ADSL, Internet

• 280g (9.9 oz)

• NAT

• URL Filter, Access Control, Local Password

• PPTP, IPSec, L2TP (up to 100 sessions)

• Support UBR/CBR/VBR, VPI Range (0-255) and VCI range (32-65535), Support 4PVCs, Support OAM F4/F5 loop back

• 4 x 10/100Mbps Auto-MDIX and Auto-Negotiation RJ-45 Port

• Web-Based Management (HTTP) • Remote Management via WAN port

• Payload Encapsulation

- RFC2684 (RFC 1483 / 2684), multi-protocol over ATM

- RFC2684 (RFC 1483 / 2684), Bridge mode

- RFC2225 (RFC 1577), IPoA

- RFC2364, PPP over ATM (CHAP and PAP supported)

- RFC2516, PPPoE (PPP over Ethernet) over ATM

• 12V DC 1A External Power Adapter

• Reset to Factory Default

• 175 x 115 x 30mm (6.9 x 4.5 x 1.2 inches)

• Operating: 10 ~ 90% RH , Storage: 5 ~ 95% RH

• CE, FCC

• Operation: 0°C~ 40°C (32°F~104°F), Storage: -20°C~ 70°C (-4°F~158°F)

WAN Port (ADSL line Interface)

Standards

Hardware

4-Port ADSL Firewall Modem Router

TW100-BRM504 (c1)

SPECIFICATIONS

DRAM • 16Mbytes

Flash • 4Mbytes

• Up to 8 Simultaneous IPSec Tunnels

• Throughput 1.5Mbps • DES/3DES

VPN IPSec Client

• Cross Segment Static Route

• RIP1, RIP2

Routing

• Support auto-detection for VPI/CVI (VPI: 0~10, VCI: 32~90) and multiplexing method (VC-based, LLC-based)

• Attack Alert (Email) and Log

• Denial of Service (SPI)

• Access Control

• Fort Forwarding

• Port Range Forwarding

• Schedule-Based URL Content Filtering

• SMTP

• NTP (Network Time Protocol)

• DHCP Client (WAN)

• Complies with G.lite (G.992.2) and T1.413 Annex A

• Connector: RJ-11

• Line Impedance: 100 Ù

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

4-Port ADSL Firewall Modem Router

TW100-BRM504 (c1)

RELATED PRODUCTS

PACKAGE CONTENTS

TW100-BRM304

TEW-435BRM

TW100-BRM204 Cable/DSL VPN Firewall Router

• CD-ROM (User's Guide)

• 1 x 1.5m (5ft.) Cat.5 Cable

• Power Adapter (12V DC 1A)

Cable/DSL Advanced VPN Firewall Router

• TW100-BRM504

54Mbps 802.11g ADSL Firewall Modem Router

• Quick Installation Guide

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

NETWORKING SOLUTIONS

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com

10/100Mbps

Phone Jack

4-Port ADSL Modem

Firewall Router

(TW100-BRM504)

Workstation with10/100Mbps

Fast Ethernet PCI Adapter

(TE100-PCIWN)

Internet

ADSL Account Ready Line

Notebook with 10/100Mbps

CardBus PC Card

(TE100-PCBUSR)

• 1 x RJ-11 Telephone Cable
