TRENDnet TEW-P1U1P Manuale utente

Table of Contents

Chapter 1 Introduction 1

Features................................................................................................................................... 1

Safety Instructions .................................................................................................................. 2

Package Contents.................................................................................................................... 3

Description.............................................................................................................................. 3

LED Indicators 4

Diagnostic Push Button 4

Chapter 2 LAN Installation 5

Procedure ................................................................................................................................ 5

Chapter 3 Wireless Print Server Configuration 6

Overview ................................................................................................................................ 6

Using the Windows Wizard.................................................................................................... 6

Procedure 6

Wireless Configuration ........................................................................................................... 8

Chapter 4 Client PC Configuration 9

Overview ................................................................................................................................ 9

Printing Methods 9

Which printing method should I use? 10

Checking your Network Protocols (Windows 9x) 10

Windows Peer-to-peer Printing............................................................................................. 12

Windows 2000/XP Setup 12

Windows 9x/ME Setup 16

PTP Printer Port Setup 17

Windows SMB Printing........................................................................................................ 20

Printing from MS-DOS Programs 21

Windows with Server-based Print Queues............................................................................ 23

Macintosh (AppleTalk)......................................................................................................... 24

Software Requirements 24

AppleTalk Setup 24

Printing 24

Advanced Setup and Management 24

Macintosh OS X ................................................................................................................... 25

LPR printing Setup 25

Page i

Chapter 5 BiAdmin Management Utility 26

Requirements ........................................................................................................................ 26

Installation ............................................................................................................................ 26

Operation .............................................................................................................................. 26

Main Screen 26

Menus 29

Configuration 29

Chapter 6 Web-Based Management 39

Overview .............................................................................................................................. 39

Preparation............................................................................................................................ 39

Connecting to the Wireless Print Server ............................................................................... 40

Configuration Screens...........................................................................................................40

AppleTalk 40

NetBEUI 41

TCP/IP 42

Configure Server 43

Wireless Configuration 44

Other Screens 46

Chapter 7 Special Features 47

Overview .............................................................................................................................. 47

Internet Printing Protocol (IPP) ............................................................................................ 47

IPP Server Configuration 47

IPP Client Setup - Windows 95/98/Me/NT 4.0/XP 48

IPP Client Setup - Windows 2000/XP 50

Using IPP Printers 51

Internet Mail Printing............................................................................................................ 52

System Requirements 52

Internet Mail Printing Configuration 53

User Software 54

Using the new Port 55

Checking the Printer Driver 56

Printing through the Internet................................................................................................. 56

Chapter 8 Troubleshooting 57

Overview .............................................................................................................................. 57

Hardware & LAN Problems ................................................................................................. 57

AppleTalk (Macintosh)......................................................................................................... 58

Windows Printing Problems ................................................................................................. 60

Page ii

Appendix A Specifications 64

General Specifications ..........................................................................................................64

Parallel Port Pin Assignments 64

Protocol Support 65

Feature Support 65

Appendix B Network Server Configuration 66

Windows NT4.0 Server ........................................................................................................ 66

Adding TCP/IP Printing Support 66

Adding a TCP/IP Remote Printer 66

Windows 2000/2003 Server.................................................................................................. 67

Unix Systems ........................................................................................................................ 68

Wireless Print Server IP Address Configuration 68

Other Wireless Print Server Configuration 68

LPD Configuration 69

Netware Systems .................................................................................................................. 74

Page iii

Page 1

Chapter 1

Introduction

This chapter provides an overview of your Wireless Print Server's features.

Features

Congratulations on the purchase of your new TEW-P1U1P Wireless Print Server. Your

Wireless Print Server was designed to provide a simple and efficient network printing solution.

It is packed with features, including:

 Versatility. The Wireless Print Server supports up to four protocols: TCP/IP, SMB

(Service Message Block), AppleTalk (EtherTalk), and NetBEUI. It features one or two

Ethernet interface ports and operating system support includes Unix, NetWare (NDPS

LPR printing), and Microsoft Windows.

 Easy Installation. The Wireless Print Server makes adding printers or plotters to your

network simple. The auto-sensing feature on the LAN interface means that there is no need

to set jumpers or perform software configuration to select the network interface used.

 Easy Setup. A number of utility programs are supplied to simplify setup. For Windows

95/98/Me/NT/2000/XP users, the BiAdmin program makes it easy to configure the

Wireless Print Server for a variety of network and server configurations.

 Web-based Interface. The Web-based interface provides an easy method of

configuration in TCP/IP networks to every model.

 Compact Size. This allows the Wireless Print Server to be used even where space is

limited.

 Remote Management Tools. A variety of software tools are provided. In most

environments, both the Wireless Print Server and attached bi-directional printers can be

configured remotely.

 Internet Printing Protocol (IPP) Support. The Wireless Print Server can act as an

IPP (Internet Printing Protocol) Server, allowing clients, suppliers, colleagues and others

to print to your printer from anywhere on the Internet. Windows IPP Client software is

also supplied.

 Wireless LAN Support. Wireless stations supporting the IEEE 802.11b standard can

interoperate with the Wireless Print Server. Both LAN and WLAN users can print to the

attached printer.

Safety Instructions

For your own safety, and to protect your Wireless Print Server, please observe the following

safety advice.

1. Unplug this device from its power source before cleaning. Use only a slightly dampened

cloth for cleaning. Do not use liquid or aerosol cleaners.

2. Avoid using this product near water. Exposure to water poses an electric-shock hazard.

3. Do not place the Wireless Print Server on an unstable surface. The device may fall causing

serious damage to the device.

4. This device should only be used with the power supply type specified on the marking

label. If you are not sure of type of your local power supply, consult your dealer or the

local power company.

5. Do not pinch, crimp or otherwise damage the power cord. If exposed to foot traffic,

ensures that the cable is properly shielded and does not pose a tripping hazard.

6. If using an extension cord, makes sure the total ampere rating of the products using the

cord does not exceed the extension cord's ampere rating.

7. Do not attempt to service this device, as opening or removing casing may expose you to

dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

8. The Wireless Print Server should be serviced by qualified service personnel under the

following conditions:

• The power cord is damaged or frayed.

• Liquid has been spilled onto the product.

• The product has been exposed to rain or water.

• The product does not operate normally in accordance with the operating instructions.

• The device has been dropped or the casing has been damaged.

Page 2

Package Contents

You should find the following items packaged with your Wireless Print Server. If any items are

missing, contact your dealer immediately.

• The Wireless Print Server

• Power Adapter

• One CD-ROM containing all support programs and this manual

• Quick Install Guide

Description

TEW-P1U1P Wireless Print Server

• 1 USB Printer Port

• 1 Parallel Printer Port

• IEEE 802.11b Wireless Station

• 10/100BaseT LAN connection

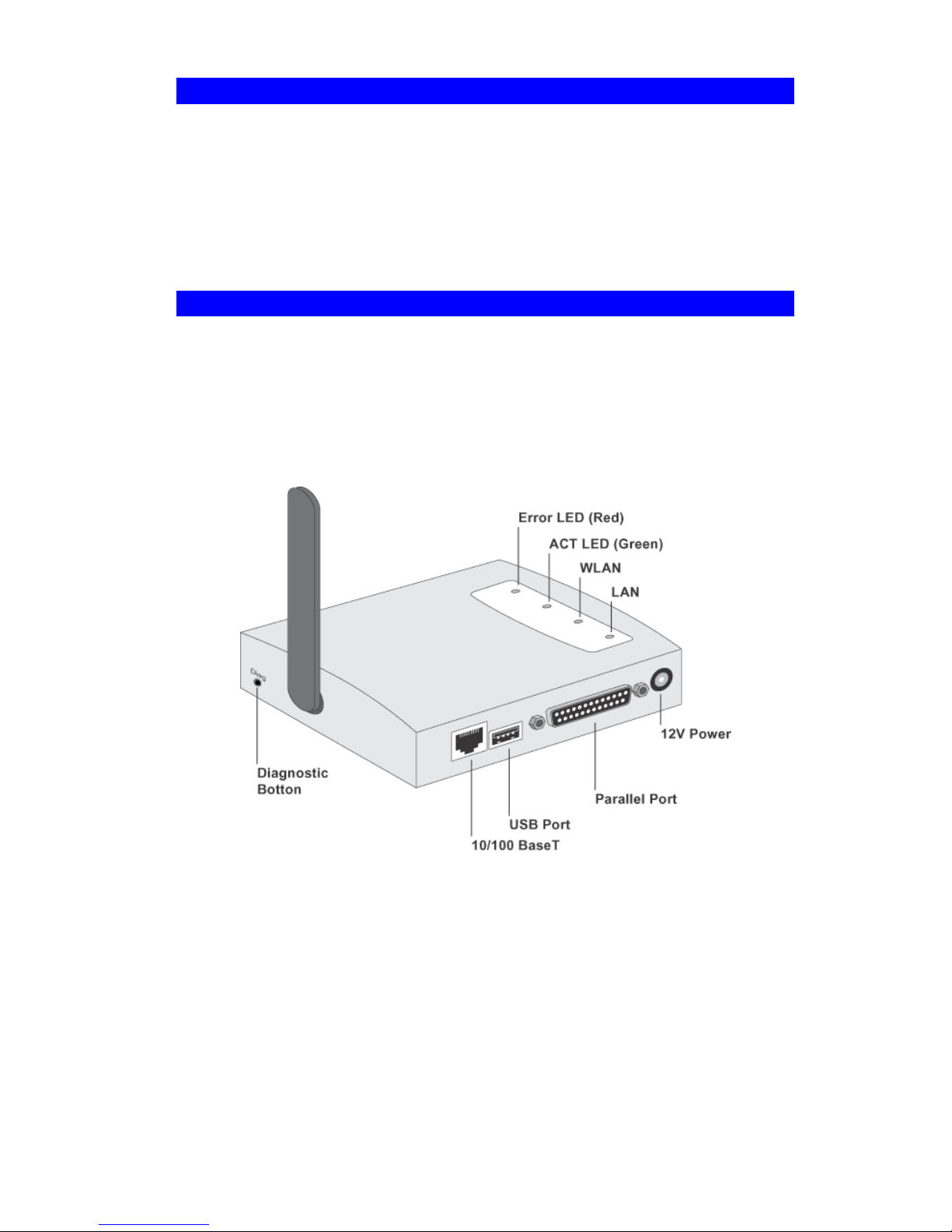

Figure 1 TEW-P1U1P Wireless Print Server

Page 3

LED Indicators

The Error LED is red. The Status indicator LED is green. The LED indicator modes are

described in the following table.

ACT LED

(Green)

ERR LED

(Red)

Status Description

Off Off No power.

On Off Normal operation - Idle.

Flashing Off Normal operation - transmitting or receiving

packets from the network.

On On Hardware error.

Flashing Flashing Firmware upgrade in progress.

LED Description

WLAN ACT Off - No Wireless connection available.

On - Wireless connection available.

Flashing - Transmitting or receiving data via the Wireless LAN.

LAN ACT Off - No LAN connection

On - LAN connection available.

Flashing - Transmitting or receiving data via the wired LAN.

Diagnostic Push Button

The Wireless Print Server is fitted with a Diagnostic Push Button. The button is recessed; a pin

or paper clip can be used to press it. This button has 2 functions:

• Restore the factory default settings

• Print a test page containing all current settings.

To restore the factory default settings:

1. Turn the Wireless Print Server OFF.

2. Press and hold the diagnostic button. While pressing the button, switch the Wireless Print

Server ON.

3. If you continue pressing the button for 10 seconds, a diagnostic page will be printed,

showing the new (default) settings.

To generate a Diagnostic print out

1. Ensure that both the Wireless Print Server and the printer attached to port 1 (parallel port)

are ON.

2. Press the diagnostic button, and hold it in for 2 seconds.

3. The test page, containing the current settings, will be printed.

Note:

PostScript printers are unable to print this page. If you have a PostScript printer on Port 1,

the test page will not be printed.

Page 4

Page 5

Chapter 2

LAN Installation

This chapter describes how to install the Wireless Print Server in your LAN.

Procedure

1. Preparation

• Ensure the power is OFF.

• Find the Default Server Name for your Wireless Print Server. The Default Server Name is

shown on a sticker on the base of the device. It consists of 8 letters and/or digits. Record

this name; it may be needed during configuration.

2. Connect the Printer or Printers

Connect the printer or plotter cables to the appropriate port on the Wireless Print Server unit.

Parallel port cables should be less than 3 meters long.

3. Connect to the Network

• For Wired Networks

Use a standard RJ-45 LAN cable to connect the LAN port on the Print Server to a

10/100Base-TX hub or switch.

If the LAN port is not connected to a functioning network device, the

LAN port is disabled. To enable the LAN port, please power off the

Print Server, connect the LAN port to a working network device and

then power on the Print Server.

• For Wireless Networks

Change your PC's Wireless settings to match the Print Server's default settings:

• Mode: Ad-hoc

• SSID: ANY

• Channel: 11

• WEP: Disabled

In Infrastructure mode, you can use EITHER the Wireless OR the

LAN interface on the Print Server, but not both

4. Power Up and check the LED

Connect the supplied Power Adapter, power up both the Printer and Print Server, and check the

Error LED on the Print Server.

• It should flash, then go off.

• It will remain On if there is a hardware problem.

Use only the Power Supply unit provided with the device. Power Supply units for

different models are not interchangeable.

Page 6

Chapter 3

Wireless Print Server

Configuration

This chapter provides an overview of the configuration process.

Overview

The Wireless Print Server is designed to support many different platforms, and the

configuration required would depend upon the environment in which it is installed.

• The Wireless Print Server usually requires configuration, but if there's a DHCP server on

your network, then the device is just plug-and-play. A Windows-based setup Wizard is

also provided on the CD-ROM to simplify this task.

• PCs wishing to use the printer attached to the Wireless Print Server always require

configuration. See Chapter 4- Client Configuration for details.

• If you wish to use a queue-based printing system using Windows NT Server/Windows

2000/Windows XP, the Network Server must be configured as detailed in Appendix B -

Network Server Configuration. However, it is not necessary to use a Network Server-based

queue; client PCs can print directly to the Wireless Print Server using the Peer-to-peer

Printing installed by the User setup option on the CD-ROM.

Configuration Methods

The following methods are available to perform the required Print Server configuration:

• Windows-based Wizard - see below for details.

• BiAdmin management utility program - see Chapter 8 for details.

• Web-based setup - see Chapter 6 for details.

Advanced Configuration and Management

The BiAdmin management utility is provided for advanced configuration and management.

This program is installed by default when the Administrator install option is chosen. See

Chapter 5 for details on using BiAdmin.

Using the Windows Wizard

The Windows-based Wizard is supplied on the CD-ROM, and runs on Windows 95, 98,

NT4.0, ME, Windows 2000 and Windows XP.

Using this Wizard is the recommended method to configure the Print Server.

It can be used configure the Wireless Print Server for your Network environment, even if the

Print Server does not have a valid IP address.

Procedure

1. Insert the supplied CD-ROM into your drive. If the setup program does not start

automatically, run AutoRun.exe in the root folder.

2. On the first screen, shown below, click Setup Wizard.

Altri manuali per TEW-P1U1P

Indice

Altri manuali TRENDnet Server di stampa

TRENDnet

TRENDnet TEW-P1U1P Manuale di istruzioni

TRENDnet

TRENDnet TEW-PS3 Manuale di istruzioni

TRENDnet

TRENDnet TEW-P1PG SHEETS Manuale utente

TRENDnet

TRENDnet TEW-MP1U Manuale utente

TRENDnet

TRENDnet TE100-MFP1 Manuale utente

TRENDnet

TRENDnet TE100-PS3 Manuale utente

TRENDnet

TRENDnet TE100-P1U Manuale utente

TRENDnet

TRENDnet TEW-PS3 Manuale utente

TRENDnet

TRENDnet TE100-P1U Manuale utente

TRENDnet

TRENDnet TE100-MP1UN Manuale utente

TRENDnet

TRENDnet TE100-P1U Manuale utente

TRENDnet

TRENDnet TEW-MP1U Manuale di installazione e funzionamento

TRENDnet

TRENDnet TEW-P1PG SHEETS Manuale utente

TRENDnet

TRENDnet TE100-P1P - Parallel Print Server Manuale utente

TRENDnet

TRENDnet TE100-P1U Manuale utente

TRENDnet

TRENDnet TEW-PS1U Manuale di istruzioni

TRENDnet

TRENDnet TE100-P21 Manuale utente

TRENDnet

TRENDnet TEW-P1PG SHEETS Guida all'installazione

TRENDnet

TRENDnet TEW-MP2U - Wireless Multi-Function Print... Manuale utente

TRENDnet

TRENDnet TE100-P1P - Parallel Print Server Manuale utente

TRENDnet

TRENDnet TE100-PIP Manuale utente

TRENDnet

TRENDnet TE100-P11 Manuale utente

TRENDnet

TRENDnet TE100-P1U Manuale utente

TRENDnet

TRENDnet TW100-P1W1 Manuale utente

Manuali Server di stampa popolari di altre marche

Digitus

Digitus DN-13003-1 Manuale utente

Edimax

Edimax PS-1206PWg Manuale utente

Intellinet

Intellinet 509077 Manuale utente

Atlantis Land

Atlantis Land NETSERVER A02-PSU_GX02 Manuale utente

Buffalo

Buffalo LPV4-U2-300S Manuale utente

Zonet

Zonet ZPS1000 Manuale utente

Axis

Axis 140 BJC Manuale utente

HP Jetdirect 280m - 802.11b Wireless Print... Manuale utente

MicroNet

MicroNet SP766W Manuale utente

NETGEAR

NETGEAR PS104 - Hub - EN Manuale utente

Axis

Axis AXIS 1610 Manuale utente

Buffalo

Buffalo LPV4-U2-300S Manuale utente

Axis

Axis 5600+ Manuale utente

LevelOne

LevelOne WPS-9123 Manuale utente

NETGEAR

NETGEAR PS105 Manuale utente

Xerox

Xerox FreeFlow Print Server V9 SP3 Manuale utente

SEH

SEH primos Manuale utente

D-Link

D-Link DP-101P+ Manuale utente
