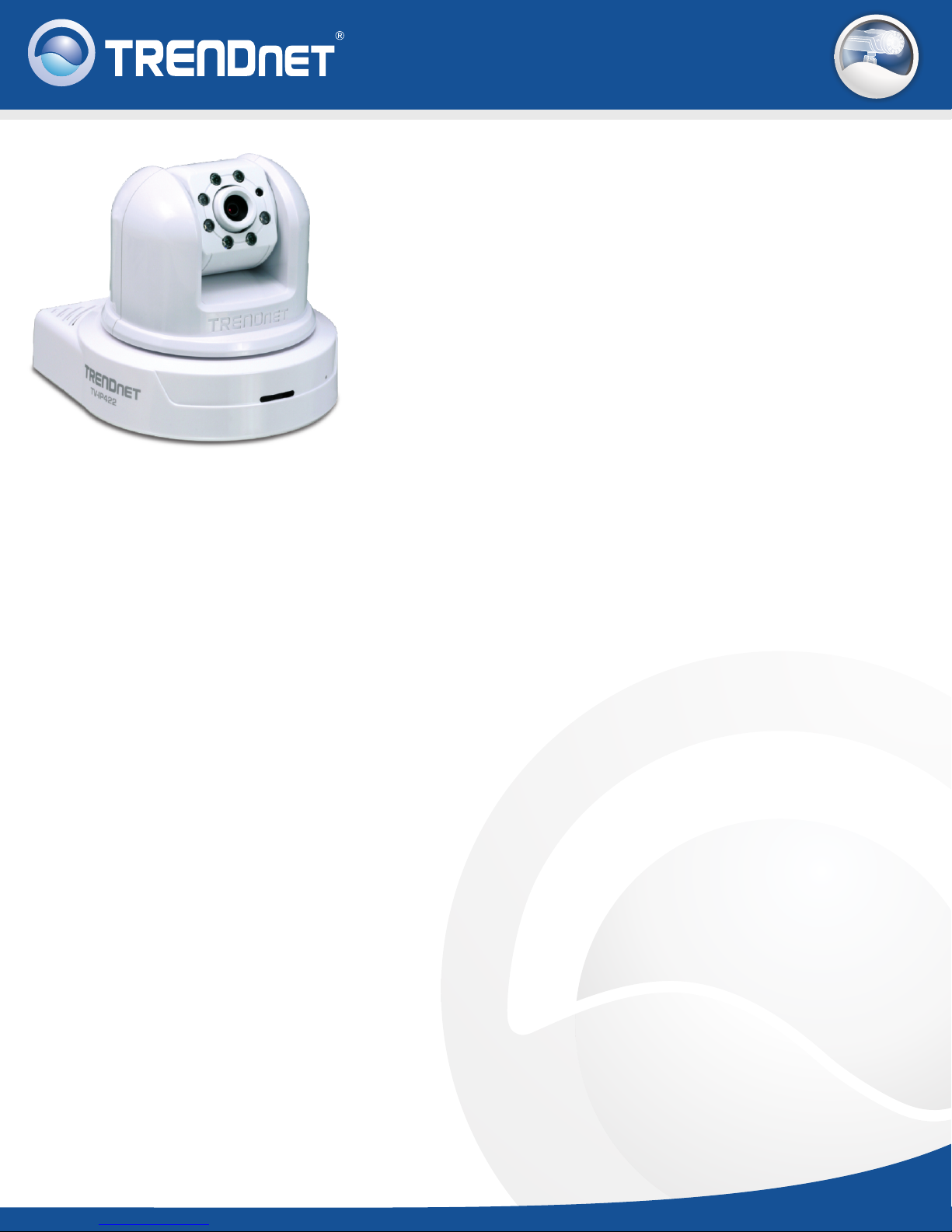

TRENDnet TV-IP422 Manuale utente

The Day/Night Pan/Tilt Internet Camera Server with Audio provides day

and night security over a large area. See, hear and talk to people in your

camera's viewing field day or night from any Internet connection.

Secure a larger area with pan and tilt Internet cameras. Pan the camera

side-to-side a remarkable 330° and tilt up-and-down 105°.

The TV-IP422 provides high quality video streams over a secure remote

connection. Advanced intuitive software includes motion detection

recording, email alerts and scheduled recordings. This camera's brilliant

image quality, pan/tilt functionality, day/night recording capabilities and

built-in 2-way audio make it ideal for home, small office and business use.

TV-IP422 (A1.0R)

SecurView Day/Night Pan/Tilt/Zoom

Internet Camera

TV-IP422

rev: 07.20.2010

FEATURES

• Night visibility of up to 5m (16.4ft)

• Secure a greater area with pan and tilt

• Pan 330° side-to-side and tilt 105° up-and-down from any Internet connection

• Program motion detection recording and email alerts with complimentary software

• Pan 330° side-to-side and tilt 105° up-and-down from any Internet connection

• High quality MPEG-4 and MJPEG video recording with up to 30 frames per second

• Hear and talk to people in your camera's viewing area through your computer

• Built-in USB port allows you to store still images directly onto a USB flash or hard drive*

• Infrared lens enables day and night vision (night visibility up to 5 m)

• Supports TCP/IP networking, SMTP Email, HTTP, Samba and other Internet protocols

• Record streaming video to your computer and network storage devices

• Sends image snapshots to FTP, email and flash drives

• Motion detection email alerts

• Two adjustable motion detection windows with just-in-time snapshot and time stamp overlay

• Quick Universal Plug and Play (UPnP) installation

• Complimentary SecurView™ software: view and record up to 16 cameras simultaneously **

• 3-Year limited Warranty

* USB port supports up to 500mA power device with FAT16/32 format

**Monitoring multiple cameras may require a high performance CPU

internet

cameras

TV-IP422 (A1.0R)

SecurView Day/Night Pan/Tilt/Zoom Internet Camera

SPECIFICATIONS

Resolution

Compression Ration Setting

Fixed Lens

Microphone Input

Audio Output

Format

Resolution

Digital Zoom

Flip Images

Image Setting

• ¼” Color CMOS Sensor

• 5 Levels

• 640 x 480 pixel

• 640 x 480, 320 x 240, 160 x 120

• Vertical / Horizontal

• f: 4.0 mm, F: 1.8 (IR Lens)

• Internal Omni-Directional • Sensitivity: -48dB 3dB • Response Frequency: 50 ~ 16000Hz+

• 3.5mm Speaker Output Jack

• Adjustable brightness, contrast, saturation

• PCM/AMR (Mono)

• 30fps @VGA, QVGA, QQVGA

Image Frame Rate

Frame Rate Setting

Audio

Video/Image

Sensor

Image Sensor

• 1 ~ 30fps (frames per second)

RAM

Tilt Range

Control

CPU

Memory Size

Resolution

• ARM9 base

• +165°~ -165°

• 32Mbyte SDRM

• +90°~ -15°

• Linux

• Up, down, left, right, center

• Pentium III 350MHz or above

• 128MB or above

• 800 x 600 or above

System Requirement (Web Configuration)

CPU

Pan Range

System

Pan/Tilt

Minimum Illumination • 0.5Lux

Viewing Angle • 64 Degree

Light Frequency • 50Hz, 60Hz or Outdoor

• 10/100Mbps Auto-MDIX

• TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, RTP, RTSP, RTCP

Exposure Control, White Balance,

Gain Control • Automatic

• 3 x

Video Format • MPEG4(Simple Profile), MJPEG

ROM

Preset Positions

• 8Mbyte Nor Flash

• 8 positions

Browser • Internet Explorer 6.0 or above

Supported OS • Windows 2000/XP/Vista

Communication

LAN

Protocol

TV-IP422

rev: 07.20.2010

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

To Order Please Call:

1-888-326-6061

ORDERING INFORMATION

RELATED PRODUCTS

PACKAGE CONTENTS

• Multi-Language Quick Installation Guide

• GPIO adapter

• Mounting kit

• TV-IP422

• CD-ROM (Utility and User's Guide)

• Cat.5 Ethernet cable (1.8 m / 5.9 ft)

TV-IP312

TV-IP312W

TV-IP422W SecurView Wireless Day/Night Pan/Tilt/Zoom Internet

Camera

SecurView Day/Night Internet Camera

SecurView Wireless Day/Night Internet Camera

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com

Dimension

Weight

Power Consumption

LEDs

USB Port

GPIO

IR Sensor

Power

Temperature

• xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

• 115 x 110 x 105 mm (4.53 x 4.33 x 4.13 in)

• 330g (11.6oz.)

• 1 input and 1 output

• Up to 500mA power device with FAT16/32 format

• USB 1.1 (Type A)

• Normal mode: 2.5 Lux • Night mode: 0.5 Lux on

• IR LED enabled: 0 Lux light sensor activates the IR LED on/off: 5 Lux

• 10 Watts (Max)

• Operating: 0ºC ~ 45ºC (32ºF ~ 113ºF); Storage : -10ºC ~ 60ºC (14ºF ~ 140ºF)

• 12VDC, 1.5A External Adapter (3.5mm)

• Power (Orange), Link (Green) • LED enable/disable support

Physical/Environmental

SPECIFICATIONS

NETWORKING SOLUTIONS

• Power adapter (12VDC, 1.5A)

Other

TV-IP422 (A1.0R)

SecurView Day/Night Pan/Tilt/Zoom Internet Camera

Family Monitoring

(TV-IP422)

Business Monitoring

(TV-IP422W)

Property Monitoring

(TV-IP422W)

Cable/DSL

Modem

Internet

Home Monitoring

(TV-IP422)

Wireless N Gigabit Router

(TEW-633GR)

CPU

Memory Size

Resolution

• Pentium 4 1GHz or above

• 512MB or above

• 1024 X 768 or above

System Requirement (SecurView™ Software)

Supported OS • Windows 2000/XP/Vista
