TRENDnet TV-IP322P - V1.01 QUICK Manuale utente

Quick Installation Guide

TV-IP322P

1.01

Table of Contents

Version 04.14.2011

English 1

1. Before You Start

2. Hardware Installation 2

3. Configure the IP Camera 4

4. Mounting the TV-IP322P 7

Troubleshooting 9

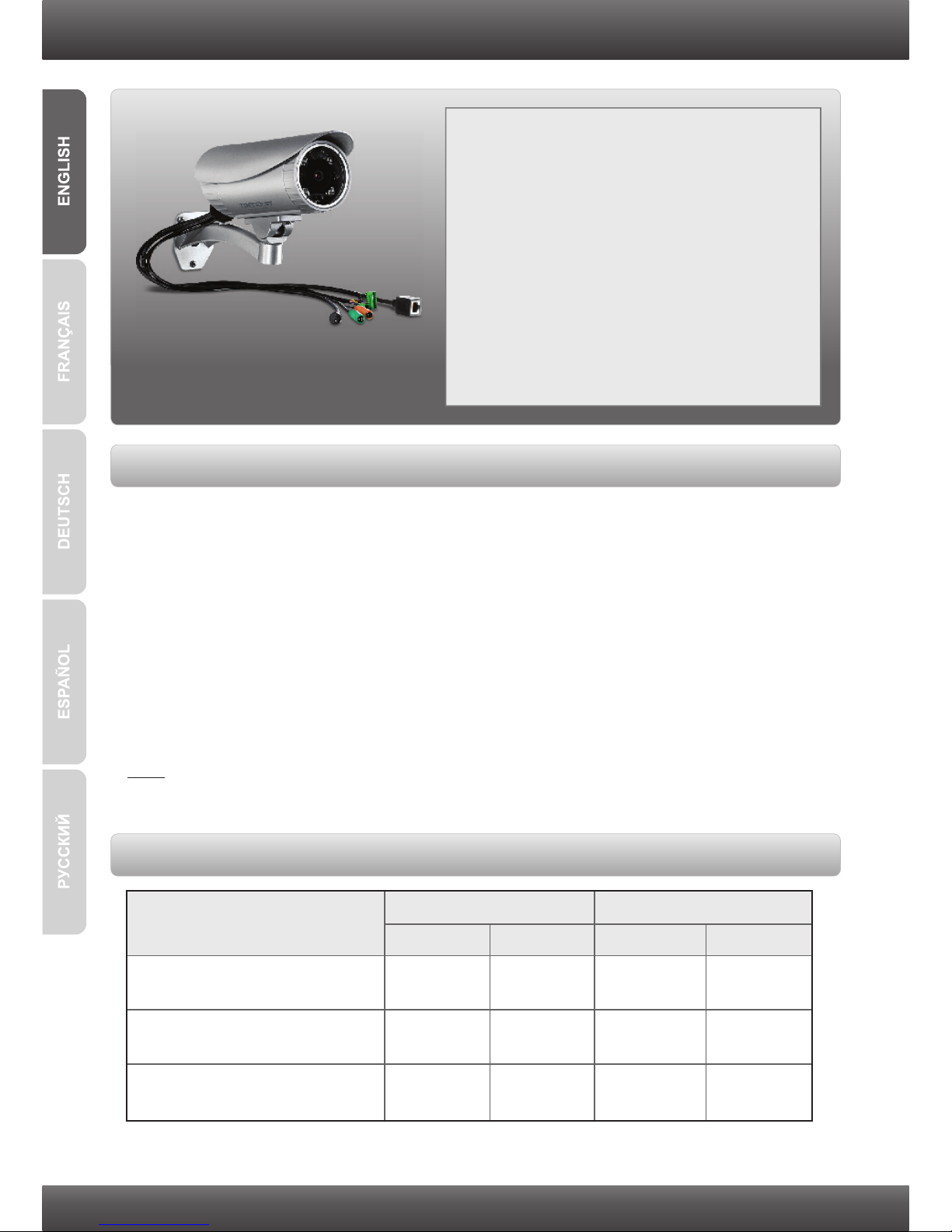

1. Before You Start

ŸCD-ROM Drive

ŸVGA Resolution: 800 x 600 or above

ŸWeb Browser: Internet Explorer (6.0 or higher)

ŸPhillips Screwdriver

ŸInternet Router (Optional)

ŸAn available DHCP Server – routers usually have a built-in DHCP server (Optional)

ŸPower over Ethernet (PoE) Switch (e.g. TPE-80WS) (Optional)

ŸInjector (e.g. TPE-111GI ) (Optional)

A computer with a wired network adapter properly installed

Package Contents

System Requirements

ŸCD-ROM (Utility and User's Guide)

ŸPower Adapter (12V DC, 1.5A)

TV-IP322P

Multi-Language Quick Installation Guide

Network Cable (1.5m / 5ft)

Camera Mounting Bracket

GPIO Connector

Sun Visor

Spiral Cable Wrap

Supported Operating Systems CPU

1-8 Cameras

CPU

Memory Memory

9-32 Cameras

Windows 7 (32/64-bit)

Windows Vista (32/64-bit)

Windows XP (32/64-bit)

Intel Core

2 Duo

Intel Core

2 Quad

4GB RAM

or above

Intel Core

2 Duo

Intel Core

2 Quad

4GB RAM

or above

Intel Core

2 Duo

Intel Core

2 Quad

4GB RAM

or above

2GB RAM

or above

2GB RAM

or above

2GB RAM

or above

SecurView Pro Requirements

Note:

The TV-IP322P only works with Power over Ethernet (PoE) devices that follow the IEEE 802.3af

standard.

2. Hardware Installation

Note:

If you do not wish to use the PoE function of this camera, connect the provided power

adapter to the IP Camera and then to a power outlet. Then connect the provided

network cable from a router or switch on your network to the network port on the IP

camera.

Using the TV-IP322P with a PoE switch

Power + Data (PoE)

TV-IP322P TPE-80WS TEW-639GR

Data

Power Power

Jack

Internet

Cable/DSL

Modem

1. Connect the provided network cable from the

Power over Ethernet switch (e.g. TPE-80WS) to

the network port on the IP Camera. Then,

follow the steps in Section 3: Configure the IP

Camera.

Using the TV-IP322P with an Injector (TPE-111GI)

Power + Data (PoE)

TV-IP322P TPE-111GI TEW-639GR

Data

Power Power

Jack

Internet

Cable/DSL

Modem

4. Follow the steps in Section 3: Configure the IP

Camera.

1. Connect one end of the Power Cord to the

Injector. Then connect the other end of the

Power Cord to an outlet.

2. Connect a network cable from a switch or router

to the TPE-111GI's DATA IN port.

3. Connect a network cable from the TV-IP322P to

the TPE-111GI's DATA OUT port.

3. Configure the IP Camera

1. Insert the Utility CD-ROM into your CD-ROM

drive.

4. Follow the Installation Wizard instructions.

2. Click Run autorun.exe (Windows 7/Vista only).

5. Once installation is complete click Close.

3. Click IP Setup.

6. Click the Start (Windows XP) or Windows

(Windows 7/Vista ) icon.

7. Go to Programs Ž TRENDnet Ž

IPSetup and click IPSetup.

Note:

By default, the IP setting on the TV-IP322P is set to DHCP. If you want to give the

TV-IP322P a static IP address, please refer to the User's Guide on the Utility CD-ROM.

9. Enter the User name and Password, and then

click OK. By default:

User Name: admin

Password: admin

10. Right click on the information bar and select

Install This Add-on for All Users on This

Computer… (Internet Explorer 8) or Install

ActiveX Control (Internet Explorer 6/7).

8. Double click the IP Camera to access the

browser configuration. Verify that the MAC

address listed matches the MAC address on

your IP camera. The MAC address is listed on

the bottom of the TV-IP322P. Click Search if no

cameras are detected.

11. Click Install.

Your configuration is now complete

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

1. For detailed information regarding the ’s configuration and advanced settings,

please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website

at http://www.trendnet.com.

2. If you would like to use SecurView Pro software, please install the software by clicking

SecurView Pro in the Autorun window and refer to the User's Guide on the CD for more

information.

TV-IP322P

12. Live video will now appear.

4. Mounting the TV-IP322P

Note:

The camera's connectors are not waterproof. Please have all of the cable connectors

protected by the waterproof housing.

1. Use the provided spiral cable wrap to secure

the cables.

4. Place the mounting bracket against the wall

and mark each of the three holes with a pencil.

5. Drill holes for the provided screw anchors at

each marked position. Make sure the drill bit

matches the size of the provided screw anchors.

2. Connect the provided screws to the top of the

TV-IP322P.

3. Connect the sun visor to the TV-IP322P using

the provided screws and washers.

10. Use the provided Allen wrench to secure the

position of the swivel.

9. Move the swivel on the mounting bracket to the

desired position.

8. Secure the TV-IP322 to the mounting bracket

using the provided screws and a Phillips screw

driver.

7. Align the mounting bracket with the screw

anchors, and then use the provided wood

screws to secure it.

6. Insert the provided screw anchors into the

holes.
