Thank you for purchasing the TV-IP300W. This Internet Camera will allow you

to view live images from internal and external networks.

This guide will help you set up and configure your Internet Camera. Following

the installation instructions should be quick and easy. If you run into problems,

please refer to the Troubleshooting section or the more detailed installation

procedures on the CD User's Guide. If you need further technical support,

please visit www.trendnet.com or call our technical support department by

phone.

Verify Package Contents

Please make sure you have everything in the box:

1. Prepare for Installation

English QIG

English

System Requirement

1. 10/100Mbps Ethernet

2. CD-ROM Drive

3. CPU: Intel Pentium III 350MHz or above

4. Memory: 128MB or above

5. Web Browser: Microsoft Internet Explorer 5.0 or above

6. VGA Resolution: 800 x 600 or above

TV-IP300W

CD-ROM Quick Installation Guide

AC Power Adapter Metal Stand

TRENDnet

TRENDware, USA

What's Next in Networking

TV-IP300W

Version 1.11.05

Advanced Day/Night Internet Camera Server

Quick Installation Guide

Guide d'installation rapide pour le

Internet Caméra Serveur Avancée Jour et Nuit

Anleitung zur Schnellinstallation des

Infrarot Nachtsicht Farb IP Kamera Server

Guía de Instalación Rápida para

Servidor Avanzado De la Cámara fotográfica Del Internet De Dia/Noche

2. Install Hardware

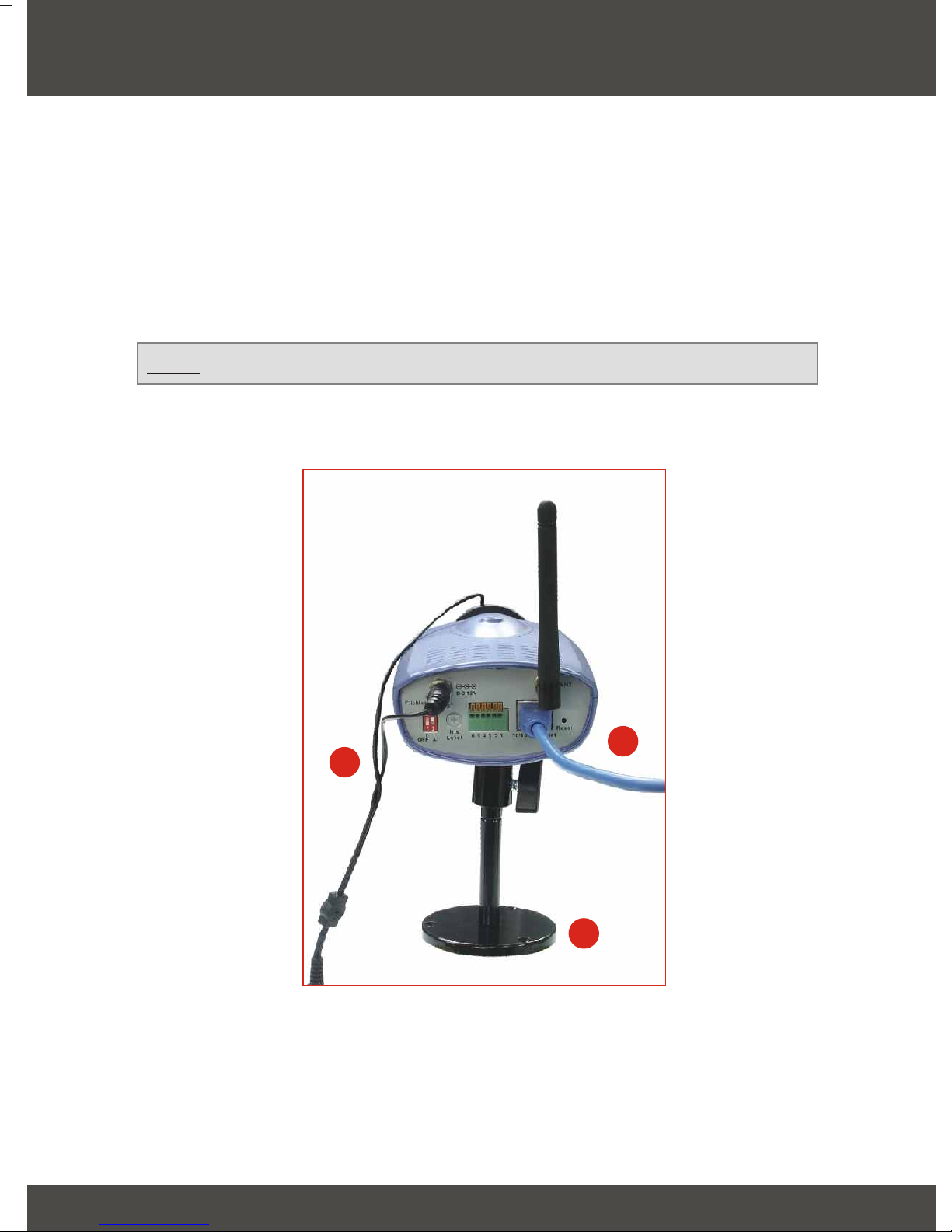

1. Position the metal stand, and mount the Internet Camera to the stand.

2. Connect the RJ-45 network cable to the Internet Camera then connect the

other end of the network cable to a switch or hub.

3. Connect the power adapter to the Internet Camera. Make sure to use the

power adapter supplied with the Internet Camera.

English

TV-IP300W

Note: Using a different power adapter may damage the unit.

3English

Special I/O Ports Features

1. I/O Connector

The Internet Camera provides the I/O connectors on the rear panel, which

provide the physical interface to send and receive digital signals to variety of

external alarm devices.

2. DIP Switch

AES/AI Switch: When using the Auto Iris Lens, please switch to AI position

Flicker less/Off: If the power frequency used (in NTSC area) is 50Hz, please

switch to Flicker less position.

3. Iris Level

This is used only when the DC-Iris lens is connected to the camera.

4. Reset Button

This resets all the settings in the camera to default factory settings.

Power

Reset switch

RJ-45

Connector

Iris level

I/O connector

DIP switch

1. Open Internet Browser Window and enter <http://192.168.0.30> (camera's

default IP address)

2. Click on System Administration to access the configuration page.

3. Enter an IP address, Subnet mask, and Default gateway that corresponds

with your existing network for the camera. Then click on Save button to keep

the changes.

English

3. Configure the Internet Camera

Note: The PC's IP (Example 192.168.0.50) address must correspond

with the Internet Camera's IP address (Default IP: 192.168.0.30) in the

same segment for the two devices to communicate.

Note: If you need to access the configuration remotely, it is

recommended to enter a static IP address and the Internet DNS IP

address.

5English

4. Using the Internet Camera Wirelessly

1. Scroll down in the System Administration configuration page until you see

the Wireless Interface heading.

2. Type in the same SSID of your wireless Access Point or Router into the

ESSID field. Set Wireless Mode to Infrastructure and make sure that the

channel is the same as your wireless Access Point or Router. If your

wireless Access Point or Router has WEP encryption enabled, select Data

encryption and make sure that the Auth mode, Key length, Key format,

and Default key are the same as your wireless Access Point or Router.

6English

3. Scroll down to the bottom of the page and Click Save.

4. Disconnect the CAT5 cable and the power adapter connector from the TV-

IP300W.

5. Reconnect the power adapter connector to the TV-IP300W. Allow 5-10

seconds for the TV-IP300W and the wireless Access Point to communicate

wirelessly. Then type the IP Address that you assigned to the TV-IP300W in

your web browser for verification.

Q1.

A1.

Q2.

A2.

Q3.

A3.

Q4.

A4.

The image is blurry, how do I fix this?

You can adjust the Internet Camera's focus by rotating the lens.

Can I replace the camera lens?

The Internet Camera's Lens is replaceable with a standard CS-Mount

type lens.

How do I view the Internet Camera's live images within my Local

Network?

Open a web browser (Internet Explorer or Netscape), type your

Wireless Internet Camera's IP address (i.e.: 192.168.0.30) in the Address

bar, and then hit the Enter key. The Welcome page of the Internet Camera

will appear.

When I enter the IP address of the camera, the image does not load,

why?

Please make sure all the Active X features are enabled for your

Internet Explorer.

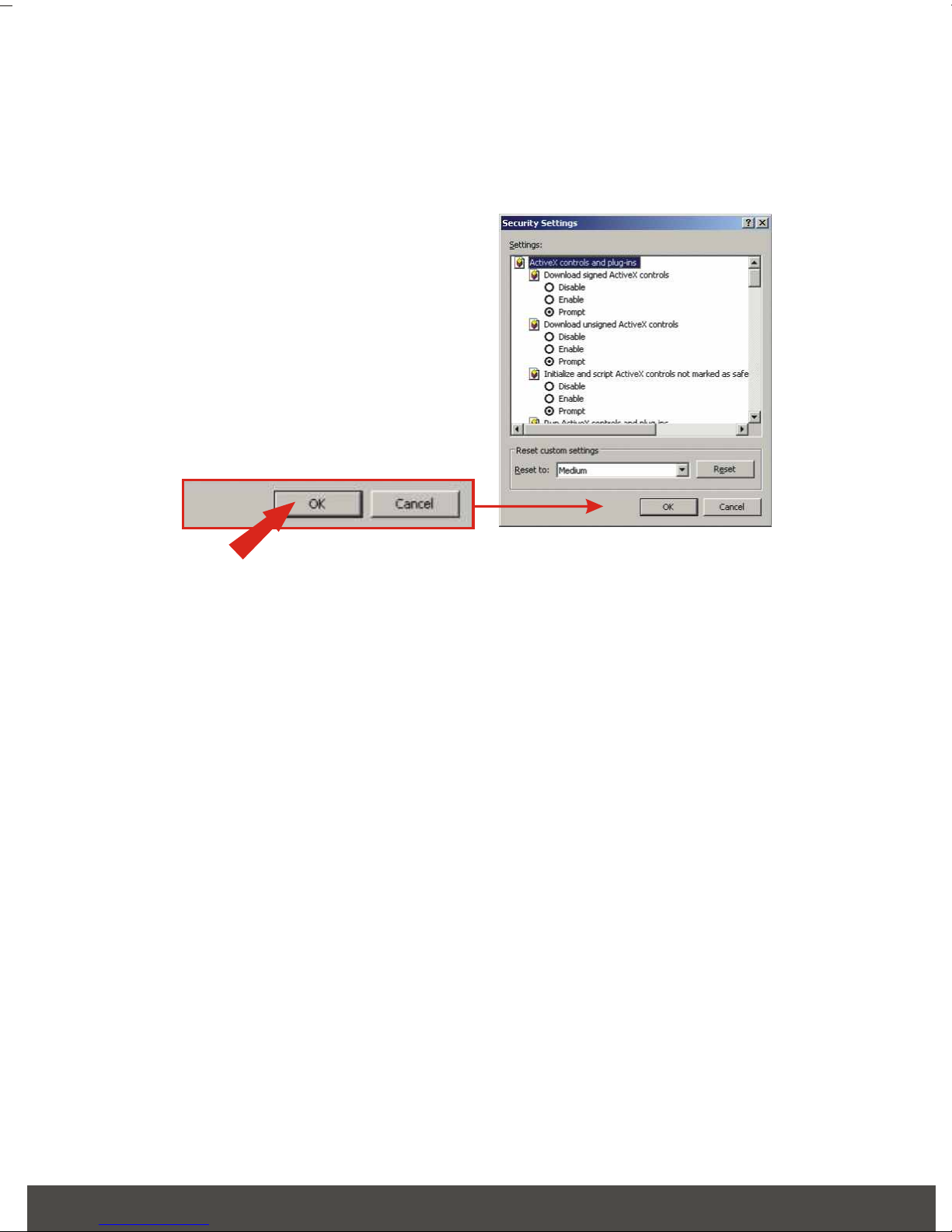

1. Go to Tool (on the Tool bar) > Internet options > Security

Troubleshooting

2. Click on Custom Level and make sure all ActiveX controls are set to

"Enable" and click OK.

3. Once you save the settings, the browser will load again and the image

should appear.
