TRENDnet TV-IP200 Manuale di istruzioni

Q: How can I configure my TV-IP200 (w) through the web-based configuration?

Q: What is the default IP address of my TV-IP200 (w)?

Q: How can I view the TV-IP200 (w) remotely if it’s behind a router or firewall?

Open your web browser and type the IP address of the TV-IP200 in the address bar. The default IP

address is 192.168.0.20.

The default IP address is 192.168.0.20

Each camera behind a firewall or router will need one port forwarded for the video streaming. The

default port is: 80 (TCP) HTTP Port.

If you are installing multiple cameras you must change the port on the additional cameras.

Example: Camera 1 is using the default port 80 (TCP). Camera 2 must use a different port. For

example: ports 81 (TCP) and 8482 (TCP).

You can change the port on the camera on the System Administration tab in the web-configuration

page.

Step 1. Open your web browser and type the IP address of the TV-IP200 (w) in the address

bar. The default IP address is 192.168.0.20.

Step 2. Click on “System Administration”.

TV-IP200/TV-IP200W F.A.Q.

Step 3. Click on the “System" at the top of the page.

Q: How do I make the camera wireless?

A:Step 1. Open your web browser and type the IP address of the TV-IP200 (w) in the address

bar. The default IP address is 192.168.0.20.

Step 2. Click on “System Administration”.

TV-IP200/TV-IP200W F.A.Q.

Step 3. Click on “System” at the top of the screen.

Step 4. Input the ESS-ID, Channel and if you have Encryption setup on our network, you will

need to input that information as well, the click “Save”.

Step 5. After saving the information, unplug the Ethernet cable from the back of the camera,

next, unplug the power from the back of the camera for 10 seconds.

Step 6. Plug the power back into the camera and wait for 30 seconds.

Step 7. Open your web browser and type the IP address of the TV-IP200 (w) in the address bar.

The default IP address is 192.168.0.20.

Note: All information has to match

that of your wireless router or access point.

TV-IP200/TV-IP200W F.A.Q.

Step 3. Motion Configuration-1

This setting provides the commands for motion detection control. Before configuring,

you should select one camera from the pull-down menu.

Step 4. Detect Region field:

• Full picture – When you select this option, the camera will monitor the whole area.

• Custom region – Click Add Region and then use your mouse to draw an area in the

view screen. When motion is detected within the area, the camera starts recording

automatically. You can set multiple areas in the view screen. Click Delete Region to r

remove the area selected. Click Clear All Regions to remove all areas in the view

screen.

Step 5. Sensitivity Level: Move the slide bar to adjust the sensitivity level for detecting motion to

record video.

Note: The Sensitivity rating determines the amount of motion in the created window(s) to activate

motion. Setting it too high or too low may produce unexpected results. .

Q: How do I configure the camera to record motion?

A:Step 1. Start the IPView Pro Program by going to Start>Programs>IPView Pro>IPView Pro.

Step 2. Click on “System Configuration”.

SYSTEM CONFIGURATION

TV-IP200/TV-IP200W F.A.Q.

Step 6. Click “Save”.

Motion Configuration-2

The Motion Configuration-2 setting allows you to configure the alarm and e-mail settings.

- Invoke Alarm: Select this option to enable an alarm when motion is detected by the system.

Note: Invoke Alarm requires that you have a trigger installed on the camera.

TV-IP200/TV-IP200W F.A.Q.

Q: How do I configure my email settings?

A:Step 1. Start the IPView Pro Program by going to Start>Programs>IPView Pro>IPView Pro.

Step 2. Click on “System Configuration”.

SYSTEM CONFIGURATION

Step 3. Click on “Mailing Configuration” and enter in your settings.

Mail Server: Mail Server IP or Name.

Mail From: E-Mail Address of sender.

Mail To: E-Mail Address of receiver.

Subject: Can be any information to high light the message.

User Name: Enter the user name in this field.

Password: Enter the user password in this field to login receiver's mail server.

Interval Time: The time interval to send the next E-Mail.

Then click “Save”.

TV-IP200/TV-IP200W F.A.Q.

Q: How do I upgrade the firmware of my camera?

A:Step 1. Start the IPView Pro Program by going to Start>Programs>IPView Pro>IPView Pro.

Step 2. Click on “System Administration”.

Step 3. Click “System” then “Tools”.

Step 4. Click “Browse” and locate the firmware file and click open.

Step 5. Click “Upgrade”.

Firmware upgrade over wireless connection may damage the product. Please perform firmware

upgrade with "wired" network connection only.

“Warning”: DO NOT upgrade firmware on any TRENDnet product using wireless connection.

Q: Can my TV-IP200 (w) series camera use Power over Ethernet?

A:No. However, with the use of a TRENDnet TPE-102S you could power the unit via PoE.

Note: You must have a PoE injector for the TPE-102S. You could use either an existing PoE

switch or a TPE-101I.

TV-IP200/TV-IP200W F.A.Q.

Step 1. Start the IPView Pro Program by going to Start>Programs>IPView Pro>IPView Pro.

Step 2. Click on the “System Configuration” button.

Step 3. Click on “Mailing Configuration”.

Q: How can I email snapshots based on motion from my camera?

Step 4. Enter your mail settings and click “Save”.

Mail Server: Mail Server IP or Name.

Mail From: E-Mail Address of sender.

Mail To: E-Mail Address of receiver.

Subject: Can be any information to high light the message.

User Name: Enter the user name in this field.

Password: Enter the user password in this field to login receiver’s mail server.

Interval Time: The time interval to send the next E-Mail.

SYSTEM CONFIGURATION

TV-IP200/TV-IP200W F.A.Q.

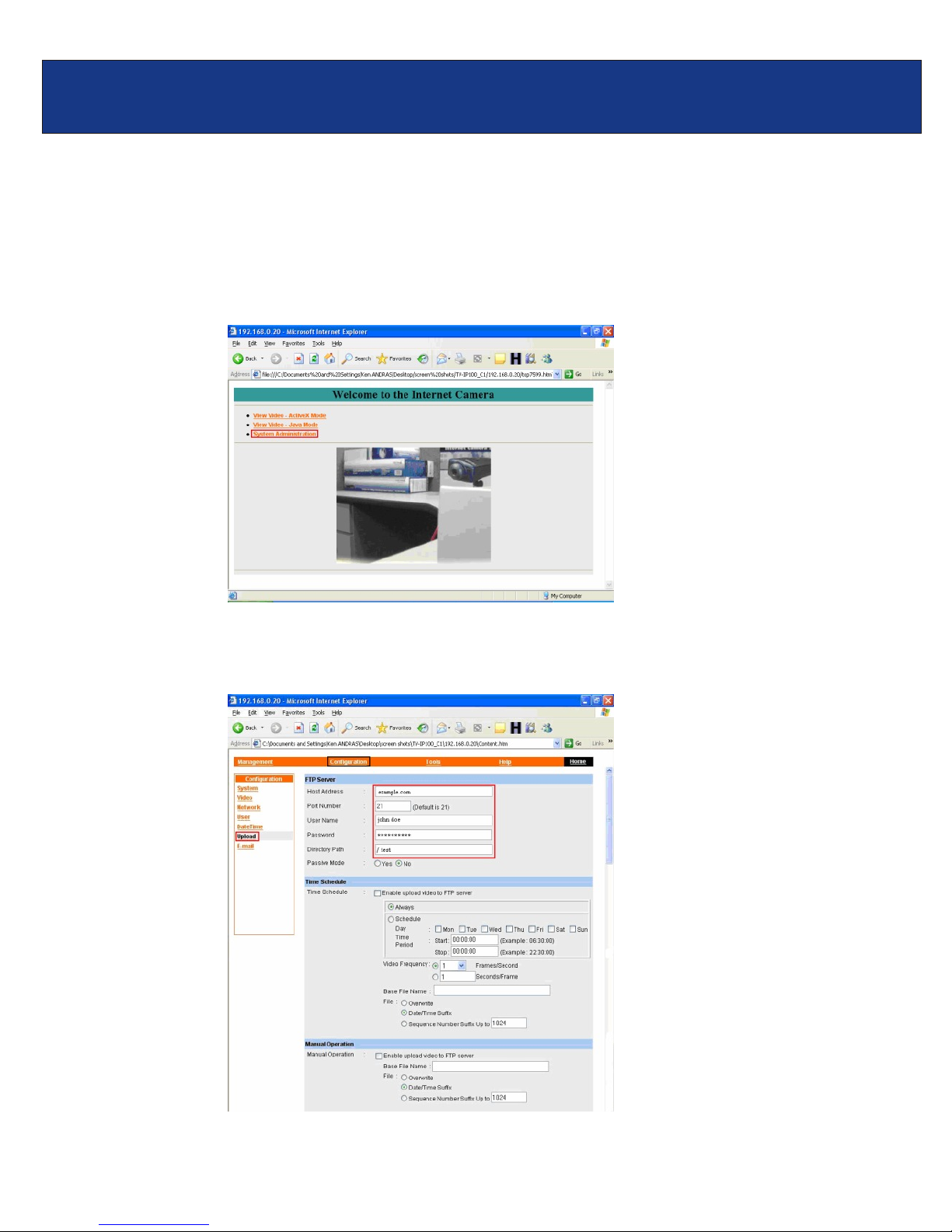

Q: How do I configure my TV-IP200 (w) series cameras to upload snapshots to an

FTP server?

A:Step 1. Open your web browser and type the IP address of the TV-IP200 (w) in the address

bar. The default IP address is 192.168.0.20.

Step 2. Click on “System Administration”.

Step 3. Click on “Upload” on the top of the screen. Fill in the FTP section and then click

“Save”.

TV-IP200/TV-IP200W F.A.Q.

Step 4. Enter in a schedule or configure a manual upload. To initiate the manual upload do the

following.

a) Open your web browser and type the IP address of the TV-IP200 (w) in the address bar. The

default IP address is 192.168.0.20.

b) Click on either Active X mode or Java mode.

c) To start the manual upload, click “On” next to “Image upload”.

TV-IP200/TV-IP200W F.A.Q.
