TRENDnet TV-IP400 Manuale utente

TV-IP400

TV-IP400W

Quick Installation Guide

Table of Contents

English ......................................................................................................

Troubleshooting ........................................................................................

1. Before You Start

2. Hardware Installation .........................................................................

3. Configure the Internet Camera ..........................................................

.................................................................................

Table of Contents

Version 10.24.2006

System Requirements

Application

TV-IP400/TV-IP400W

Quick Installation Guide

Mounting plate

Utility CD-ROM

AC Power Adapter

CD-ROM Drive

10/100Mbps Ethernet

CPU: 1GHz or above

Memory: 256MB or above

VGA Resolution: 800 x 640 or above

Web Browser: Internet Explorer 5.0 or above

Package Contents

1. Before You Start

English

1 x 2dBi Detachable Antenna

(TV-IP400W)

Parking

Monitoring

(TV-IP400W)

Warehouse

Monitoring

(TV-IP400W)

Firewall Router

(TW100-BRF114)

Workstation with

PCI Adapter

(TE100-PCIWN)

Wireless Access Point

(TEW-430APB)

Cable/DSL

Modem

Internet

Office

Monitoring

(TV-IP400)

Front Gate

Monitoring

(TV-IP400)

2. Hardware Installation

English

1. Place the camera on a flat, level

surface.

2. Attach the Antenna. (TV-IP400W)

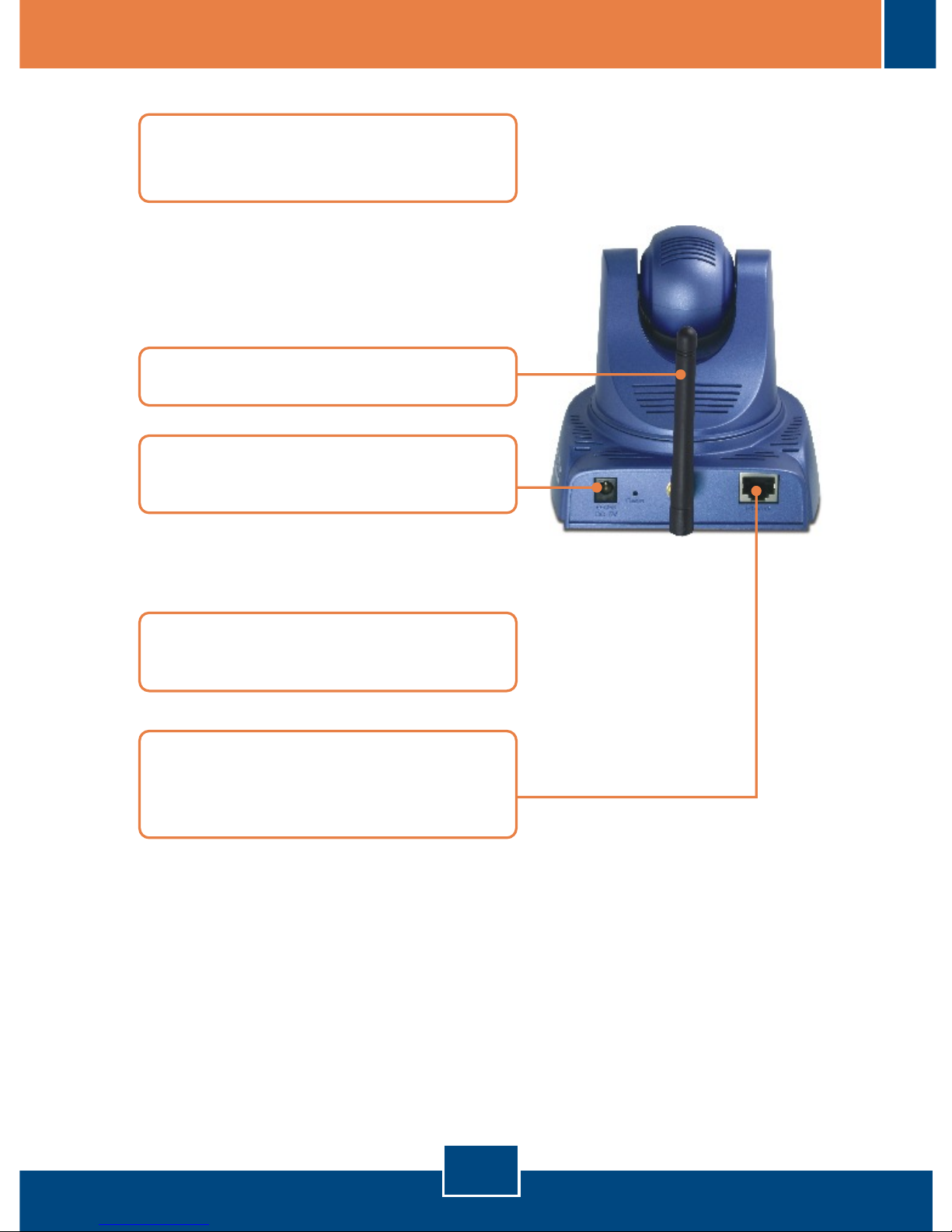

3. Connect the AC Power Adapter to

the back of the camera.

4. Connect the AC Power Adapter to

a power outlet.

5. Connect a RJ-45 network cable

from a Switch/Hub to the Ethernet

port of the Internet Camera.

English

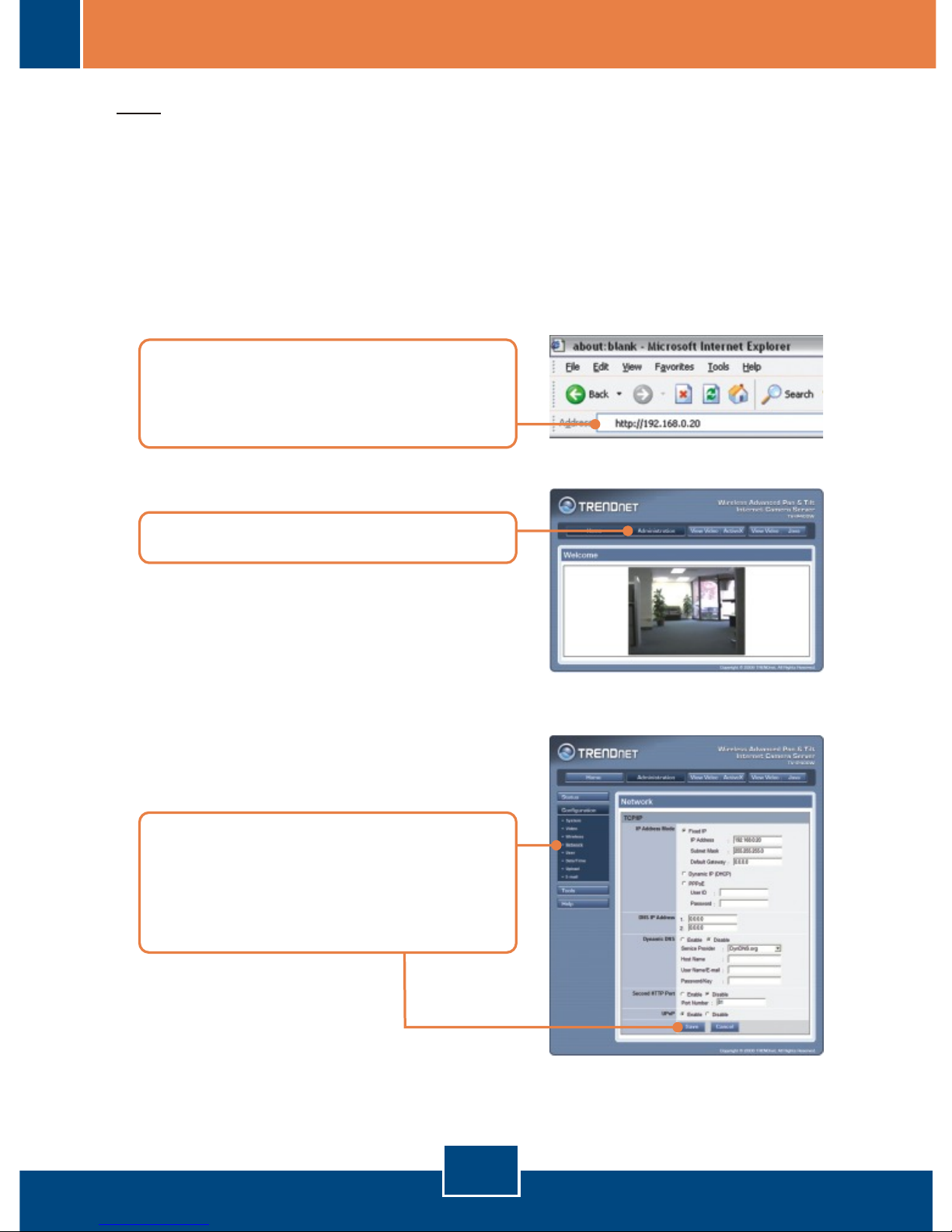

1. Open your web browser, type

http://192.168.0.20 in the Address

bar, and press Enter.

3. Configure the Internet Camera

Note: It is recommended that you configure the Internet Camera from a wired

computer. Before the Internet Camera can be configured, a Static IP address

must be assigned on your computer's network adapter in the subnet of

192.168.0.x. Since the Internet Camera's default IP address is 192.168.0.20,

make sure no other network devices are assigned an IP address of

192.168.0.20. (Refer to the Troubleshooting section on how to configure

TCP/IP settings on your PC.)

2. Click Administration.

3. Click Configuration and then click

Network. Configure the network

settings to be in the same subnet

as your network. Then click Save.

English

4. Click Wireless. Configure your

wireless settings to match your

wireless network's settings and

then click Save. (TV-IP400W only)

5. Click ActiveX or Java Mode.

Note: For detailed information regarding the TV-IP400/TV-IP400W

configuration and advanced settings, please refer to the Troubleshooting

section, User's Guide on the Utility CD-ROM, or TRENDnet's website at

http://www.trendnet.com.

Your installation is now complete.

Troubleshooting

Q1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

How do I configure TCP/IP settings on my computer?

When I click on ActiveX or Java, the image does not load?

First, make sure that you are using a browser that supports ActiveX or Java.

Second, make sure that ActiveX or Java is installed and enabled.

How do I connect the TV-IP400W to my wireless router or access point?

Make sure that you configure the camera to have the same SSID, encryption

mode and key (if enabled). Follow the instructions in section 2 to configure the

camera with the SSID and encryption key.

After I successfully configured the TV-IP400/TV-IP400W to match my wireless

network settings, I can not connect to the camera.

First, verify that the wireless settings match your wireless network settings.

Second, verify that the LINK LED is lit orange. Third, press on the reset button

using a paper clip for 15 seconds, then let go. Then reconfigure the camera.

If you still encounter problems or have any questions regarding the

TV-IP400/TV-IP400W, please contact TRENDnet's Technical Support Department.

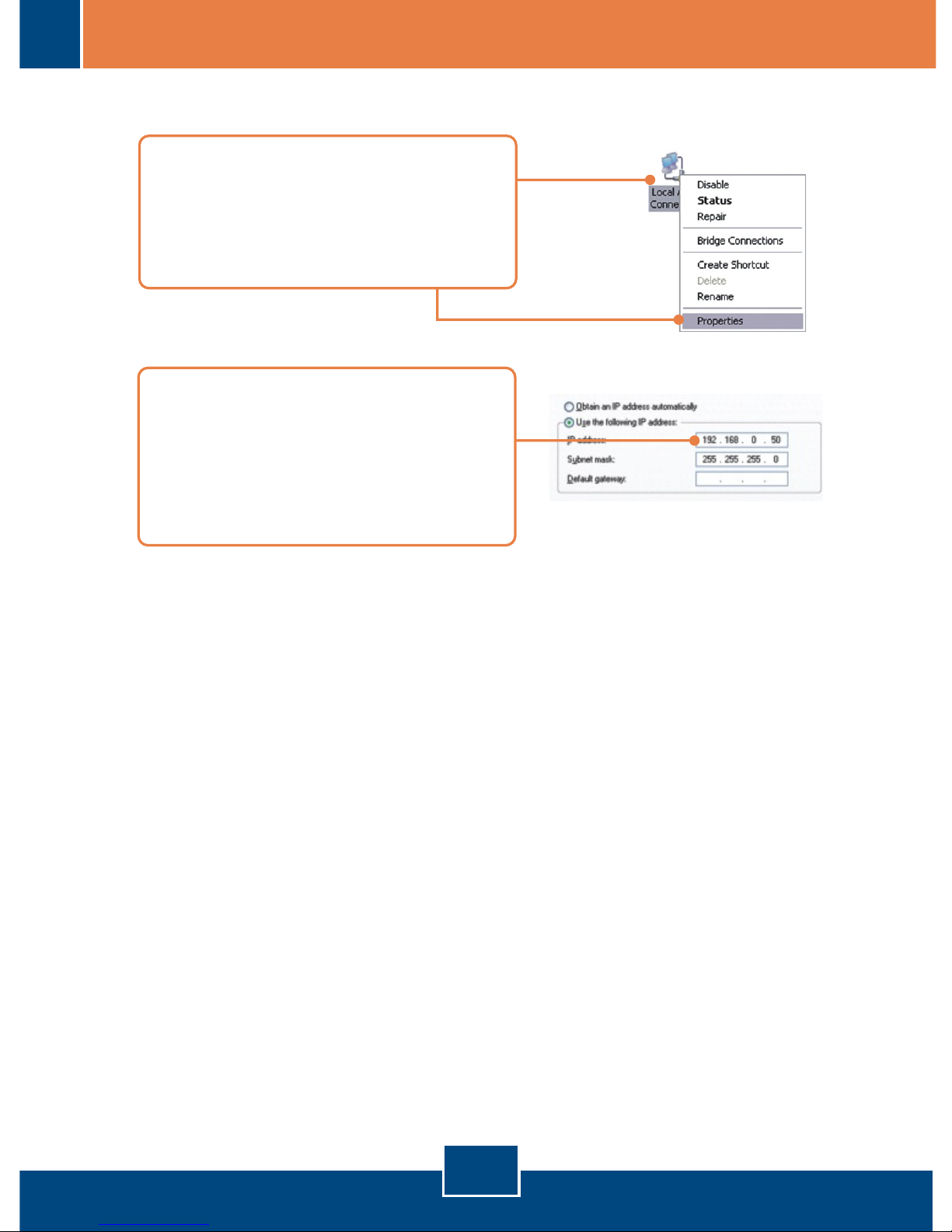

1. Go into the Control Panel and double-

click the Network Connections icon,

and then right-click the Local Area

Connection icon and then click

Properties.

2. Click Internet Protocol (TCP/IP) and

then click Properties. Then click on

Use the following IP address, and

make sure you assign your network

adapter an IP address in the subnet of

192.168.0.x.

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

ADVERTENCIA

En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de

alimentacón necesario para su funcionamiento. El uso de un adaptador distinto al

mencionado puede producir daños fisicos y/o daños al equipo conectado. El adaptador

de alimentación debe operar con voltaje y frecuencia de la energia electrica domiciliaria

existente en el pais o zona de instalación.

Product Warranty Registration

Please take a moment to register your product online.

Go to TRENDnet’s website at http://www.trendnet.com

TRENDnet Technical Support

US Canada

24/7 Tech Support

Toll Free Telephone: 1(866) 845-3673

Europe (Germany France Italy Spain Switzerland UK)

English/Espanol - 24/7

Francais/Deutsch - 11am-8pm, Monday - Friday MET

English/Espanol - 24/7

Francais/Deutsch - 11am-8pm, Monday - Friday MET

Worldwide

Telephone: +(31) (0) 20 504 05 35

Toll Free Telephone: +00800 60 76 76 67

. . . . .

20675 Manhattan Place

Torrance, CA 90501

USA
