TRENDnet TV-IP110WN Manuale utente

- 1 -

PREFACE

Thank you for purchasing the TV-IP110WN Wireless N Internet Camera

Server, a powerful and high-quality image network camera. The camera

can be installed asa standalone system within your application

environment easily and quickly, and supports remote management

function so that you can access andcontrol it using a Web browser on your

computer.

This guide will provide you more information of instruction and

illustrations on how to use your camera, which includes:

Chapter 1 Introduction to Your Camera describes the featuresof the

camera. You will also know the components and functions of

the camera.

Chapter 2 Hardware Installation helps you install the camera according

to your application environment. You can use thiscamera at

home, at work, at any where you want.

Chapter 3 Accessing the Camera letsyou start using yourcamera

without problem. The camera can be set up easily and work

within your network environment instantly.

Chapter 4 Configuring the Camera guides you through the configuration

of the camera using the web browser on your PC.

Chapter 5 SecurView™ Pro showsyou the detail instructions on

operating SecurView™ Pro software.

Chapter 6 How to Access the Camera Behind a Router provides the

instruction how to setup your DDNS.

Chapter 7 Appendix provides the specification of the camera and some

useful information for using your camera.

NOTE: The illustrations and configuration values in this guide are for reference

only. The actual settings will depend on your practical applicationof the

camera.

- 2 -

Contents

PREFACE...........................................................................1

CHAPTER 1.......................................................................4

INTRODUCTION TO YOUR CAMERA...........................4

1.1 CHECKING THE PACKAGE CONTENTS..............................................4

1.2 GETTING TO KNOW YOUR CAMERA...............................................5

1.3 FEATURES AND BENEFITS ............................................................7

1.4 SYSTEM REQUIREMENT...............................................................8

CHAPTER 2.......................................................................9

HARDWARE INSTALLATION .........................................9

2.1 INSTALLING THE CAMERA STAND ..................................................9

2.2 CONNECTING THE CAMERA TO LAN............................................10

2.3 APPLICATIONS OF THE CAMERA..................................................11

CHAPTER 3.....................................................................12

ACCESSING THE CAMERA...........................................12

3.1 USING IPSETUP......................................................................12

3.2 ACCESSING TO THE CAMERA ......................................................17

3.3 CONFIGURING THE IPADDRESS OF THE PC...................................20

CHAPTER 4.....................................................................21

CONFIGURATION OF THE CAMERA..........................21

4.1 USING THE WEB CONFIGURATION ..............................................21

4.2 USING SMART WIZARD.............................................................22

4.3 BASIC SETUP...........................................................................27

4.4 NETWORK SETTINGS ................................................................31

4.5 SETTING UP VIDEO...................................................................40

4.6 EVENT SERVER CONFIGURATION.................................................43

4.7 MOTION DETECT.....................................................................47

4.8 EVENT CONFIG........................................................................49

4.9 TOOLS ...................................................................................54

- 3 -

4.10 INFORMATION ........................................................................56

CHAPTER 5.....................................................................57

SECURVIEW™ PRO SOFTWARE .................................57

5.1 INSTALLATION .........................................................................58

5.2 USING SECURVIEW™PRO.........................................................61

CHAPTER 6.....................................................................92

HOW TO ACCESS THE CAMERA BEHIND A ROUTER..........92

CHAPTER 7.....................................................................98

APPENDIX ......................................................................98

A.1 SPECIFICATION ........................................................................98

A.2 GLOSSARY OF TERMS..............................................................100

LIMITED WARRANTY......................................................109

- 4 -

CHAPTER 1

INTRODUCTION TO YOUR CAMERA

1.1 Checking the Package Contents

Check the items contained in the packagecarefully. You should have the

following:

1 x TV-IP110WN

1 x CD-ROM (Utility& User’s Guide)

1 x Multi-Language Quick Installation Guide

1 x External antenna

1 x 5V 2.5Apower adapter

1 x Network Cable

1 x Camera Stand

NOTE: If there is any item damage or missing, please contact your local

authorized dealer for replacement.

- 5 -

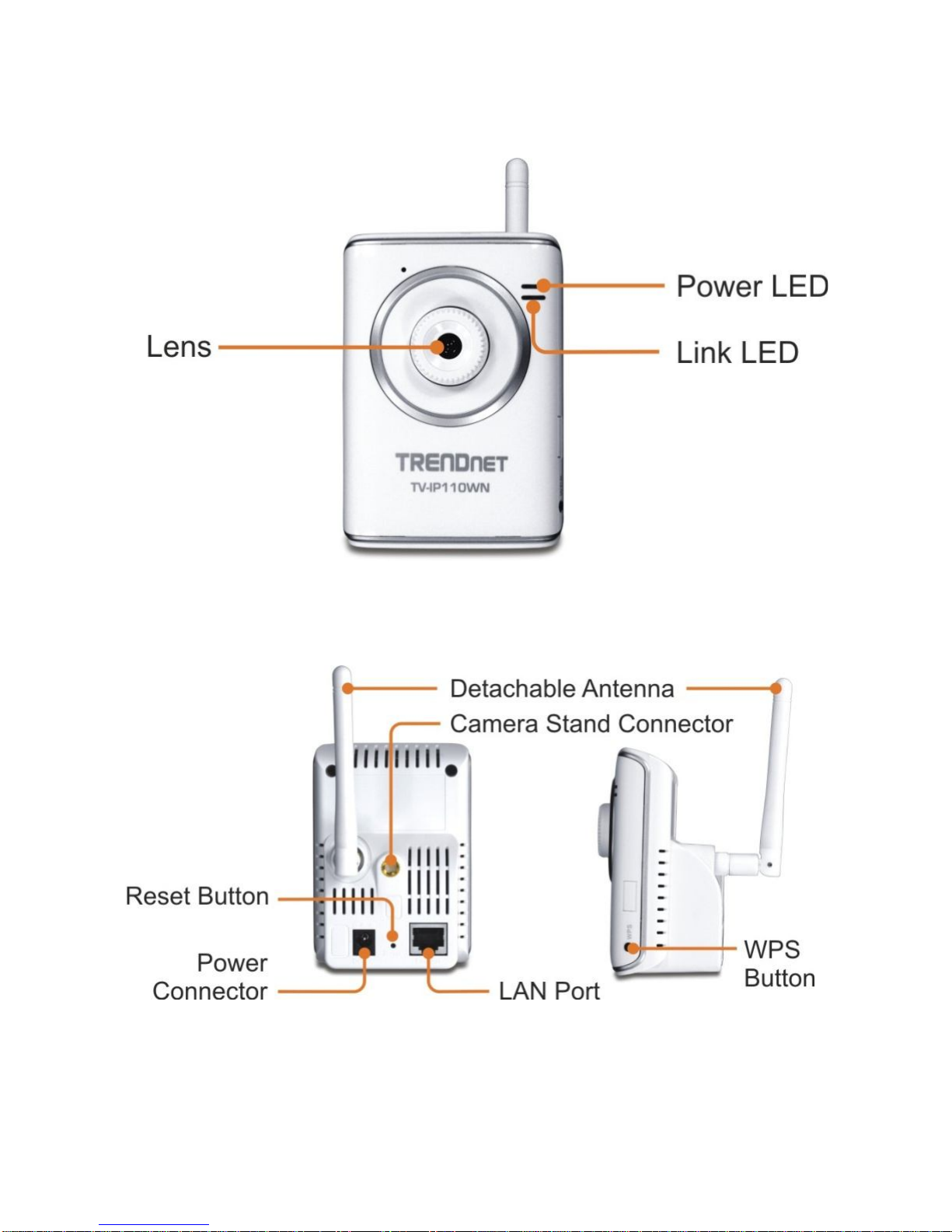

1.2 Getting to Know Your Camera

- 6 -

-Power LED: A steady orange light indicatesthe camera is powered

on.

-Link LED: A flash green light indicates the camera’s network

connection correctly.

-Lens: Adjust the focus by rotate outside of the Lens.

-WPS button: A quick connection button to your encrypted

wireless network

-Detachable Antenna:

Adjust the antenna position toget the maximum signal.

-Camera Stand Connector: Connects the camera with the camera

stand.

-Power Connector: Connects the power adapter in order to supply

the power to the camera.

-LAN Port: Connects one end of the Network cable to LAN port and

connect the other end cable to your network

-Reset Button: Press the reset button once to reset the current

setting. Press the reset button continuously for 5 seconds to

restore the camera to factory default setting.

- 7 -

1.3 Features and Benefits

Surveillance Supported

The camera supports “nightshot mode” to deliver clearer images in

the dark environment. Enablemotion detection and setup automated

email alerts and upload the still image into FTP.

Remote Control Supported

By using a standard Web browser or the included SecurView Pro

software application, the administrator can easily change the

configuration of the camera via Intranet or Internet. In addition, the

camera can be upgraded remotely when a new firmware is available.

The users are also allowed to monitor the image and take snapshots

via the network.

Multiple Platforms Supported

The camera supports multiple network protocols, includingTCP/IP,

SMTP e-mail*, HTTP, and other Internet related protocols. Therefore,

you can use the camera in a mixed operating system environment,

such as WindowsVistaand Windows7.

Multiple Applications Supported

Through the remote access technology, you can use the cameras to

monitor various objects andplaces for your own purposes.

For example, babies athome, patientsin the hospital, offices and

banks, and more. The camera can capture both still imagesand video

clips, so that you can keep the archives and restore them at any time.

WPS Supported

WPS (Wi-Fi Protected Setup) standard is a new solution that simplifies

the process of configuring Wi-Fi security settings, allowing you to

establish a secure wireless network by simply pressing a button.

Note: Support SSL with complimentary software

- 8 -

1.4 System Requirement

Networking

LAN: 10Base-T Ethernet or 100Base-TX Fast Ethernet,

Auto-MDIX

WLAN: Based on IEEE 802.11n technology,IEEE 802.11g/b

Accessing the Camera using Web Browser

Platform: Microsoft® Windows® 7/Vista/XP

CPU: Intel Pentium III 800MHz or above

RAM: 512MB

Resolution: 800x600 or above

User Interface: Microsoft® Internet Explorer 6.0or above

Accessing the Camera using SecurView Pro

Platform: Microsoft® Windows® 7/Vista/XP

Hardware Requirement:

1 ~ 8 cameras: Intel Core 2 Duo; 2GB RAM

9 ~ 32 cameras: Intel Core 2 Quad; 4GB RAM

NOTE: It is higher recommended that using a high performance computer

to monitor multiple cameras.

- 9 -

CHAPTER 2

HARDWARE INSTALLATION

2.1 Installing the Camera Stand

The camera comes with acamera stand,whichuses a swivel ball screw

head to lock to the camera’s screw hole. When the camera stand is

attached, you can place the camera anywhere by mounting the camera

through the three screw holes located in the base of the camera stand.

The Camera Stand
