TRENDnet TV-IP343PI Manuale utente

TV-IP343PI

ŸOutdoor 2MP Full HD PoE Day/Night Network Camera

ŸQuick Installation Guide (1)

TV-IP343PI (V1) /05.22.2014

1. Before You Start

Package Contents

ŸTV-IP343PI

ŸCD-ROM (Utility and User's Guide)

ŸMulti-Language Quick Installation Guide

ŸMounting kit

ŸPower adapter (12 V DC, 1A)

Minimum Requirements

ŸPower over Ethernet (PoE) switch (e.g. TPE-S44) or PoE Injector (e.g. TPE-103I optional)

ŸA computer with an Ethernet port and web browser

ŸCD-ROM Drive

ŸWired network

ŸNetwork cable

Note: The TV-IP343PI works with Power over Ethernet (PoE) devices that follow the IEEE

802.3af standard.

Supported Operating

Systems

1-8 Cameras

CPU CPU

9-32 Cameras

Memory Memory

Windows 8.1 /

Windows 8 /

Windows 7 /

Windows Server 2008 /

Windows Vista /

Windows Server 2003 /

Windows XP

2GHz 2GHz2GB RAM

or above

4GB RAM

or above

Free Management Software: TRENDnetVIEW Pro Requirements

Supported Operating Systems

Android (version 2.3.3 or above)

iOS (version 5.1.1 or above)

Free Mobile App: TRENDnetVIEW Pro Requirements

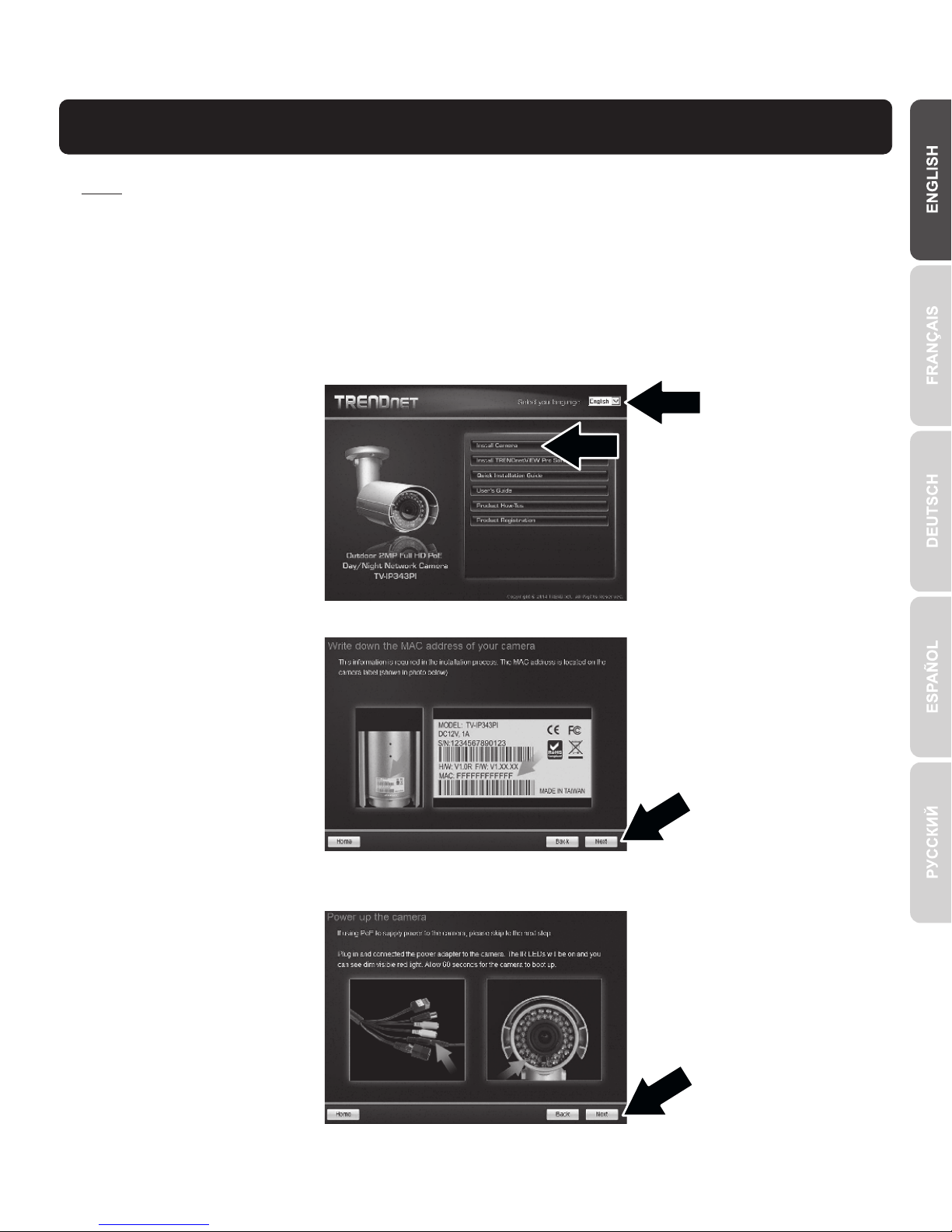

2. Hardware Installation and Configuration

1. Do not install or mount the IP camera until after you complete the installation steps below.

Temporarily place the IP camera next to your computer.

2. Insert the Utility CD-ROM into your CD-ROM drive.

3. Select language from the drop down menu.

4. Click Install Camera.

5. Write down the MAC address of your camera. Then click Next.

Note: To download the latest version of the Autorun installation software, please go to

http://www.trendnet.com/support.

6. Plug in and connect the power adapter to the camera. The IR LEDs will turn on and show a dim

visible red light. Allow 60 seconds for the camera to boot up.

7. Connect a network cable to the camera's network port and then to your PoE Switch. Then click

Next.

8. Select your camera. Click Next and follow the instructions.

9. Enter a new password, confirm the new password and then click Next.

10. Initial Setup is complete! Your camera is now connected to your network. Click the hyperlink

to confirm access to the management page. This will open up a web browser. To resume

installation, minimize the web browser and then click Next.

11. Congratulations! Your camera is now ready to be installed in its final location. Scan the QR

code to download a free mobile app to view the camera from your mobile device. Click Finish

to exit the installation wizard.

Note

ŸSee User's Guide for advanced management functions

ŸTwo User's Guides are included – one for the camera and one for the complementary

management software.

ŸWhen viewing live video, you may be required to install plug-ins.

ŸIt is recommended that you setup a dynamic DNS service in order to view your cameras

remotely. See your router's manual and the camera product how-tos for instructions.

12. To manage multiple cameras and for more advanced features, please install the

TRENDnetVIEW Pro software. Install the software by clicking Install TRENDnetVIEW Pro in

the Autorun window and refer to the TRENDnetVIEW Pro User's Guide on the CD for more

information.

Using the TV-IP343PI with a PoE switch (TPE-S44)

ŸConnect the provided network cable from the Power over Ethernet switch (e.g. TPE-S44) to

the network port on the IP Camera.

ŸConnect the switch to your network.

13. Install the camera in the desired location. To connect the IP camera to your network with PoE,

please use one of the following methods:

TPE-S44

PoE

Internet

Using the TV-IP343PI with an Injector (TPE-103I)

ŸConnect the power adapter to the TPE-103I and then to a power outlet.

ŸConnect a network cable from the TV-IP343PI to the TPE-103I's PWR+DATA OUT (PoE)

port.

ŸConnect a network cable from a switch or router (e.g. TEW-818DRU) to the TPE-103I's DATA

IN (Non-PoE) port.

TV-IP343PI

TPE-103I

PoE

Non-PoE

Internet

Note: For tips on capturing appropriate camera viewing angle, please refer to the user's guide.

Mounting the camera

1. Loosen the adjustable nut and manually position the camera as desired.

2. Place the provided template label on the wall or ceiling.

3. Drill holes at each marked position on the template. Make sure the drill bit matches the size of

the holes on the template.

4. Insert the provided screw anchors into the holes.

Ceiling Mounting

Hole

HoleHole

5. Insert the cables through the hole in the wall or ceiling.

7. Manually adjust the zoom and focus. Using the free app, confirm the zoom and focus matches

installation requirements.

Zoom

Focus

6. Align the mounting bracket with the screw anchors, and then use the provided screws to

secure the camera to the mounting surface.

Company Information:

Company Name:

TRENDnet, Inc.

Company Address:

20675 Manhattan Place

Torrance, CA 90501

USA

Product Information:

Product Description:

Outdoor 2MP Full HD PoE Day/Night Network Camera

Model Number:

TV-IP343PI

Brand Name:

TRENDnet

Technical Standards:

EN 55022: 2010 Class A

EN 61000-3-2: 2006 + A1: 2009 + A2: 2009

EN 61000-3-3: 2008

EN 50130-4: 2011

EN 60950-1: 2006+ A11: 2009 + A1: 2010 + A12: 2011

Declaration:

I hereby declare that the products and devices mentioned above are consistent with the

standards and provisions of the guidelines.

This product is herewith confirmed to comply with the Directive of 2004/108/EC and

2006/95/EC.

Sonny Su

Name

Date

Director of Technology

Title

Signature

May 13, 2014
