TRENDnet 15-AH28B Manuale utente

Copyright ©2005. All Rights Reserved. TRENDware International, Inc.

TRENDnet

TRENDware, USA

What's Next in Networking

15AH28B

Version 09.23.05

User’s Guide

Table of Contents

English ......................................................................................................

Troubleshooting ........................................................................................

1

1

2

9

1. Prepare for Installation ......................................................................

2. Install Hardware ................................................................................

Thank you for purchasing the TRENDnet 15AH28B Outdoor Internet Camera

Server Housing with Fan/Heater.

This guide will help you set-up your Outdoor Internet Camera Server Housing.

Following the installations should be quick and easy. If you run into problems,

please refer to the Troubleshooting section. If you need further technical

support, please visit www.TRENDNET.com or call technical support by phone.

Verify Package Contents

Please make sure you have everything in the box:

1

1. Prepare for Installation

English UG

English

15AH28B

BNC plug to open end

cable (60cm) DC plug to open end

cable (60cm)

Dual open end cable (20cm)

Cable glands

Screws, washers, and

wall mount screws

Screwdriver

Camera mounting screws

and yellow wire connectors

Camera attachment guide

2

2. Install Hardware

1. Depress the levers to unlatch the roof of the camera enclosure, and pull the

roof upward.

2. Unscrew the metal bracket from the camera enclosure.

3. Use the following screw to mount the metal bracket onto the base of the IP

Camera.

English

3English

4. Take the assembly in step 3, and mount the assembly inside the camera

enclosure.

6. Use a precision knife or a sharp object to split the wire in two halves.

5. Caution: Before cutting any power cord, make sure that the power cord is

NOT PLUGGED into an electrical source. Now take a power cord

with a two-prong plug and cut the wire.

4English

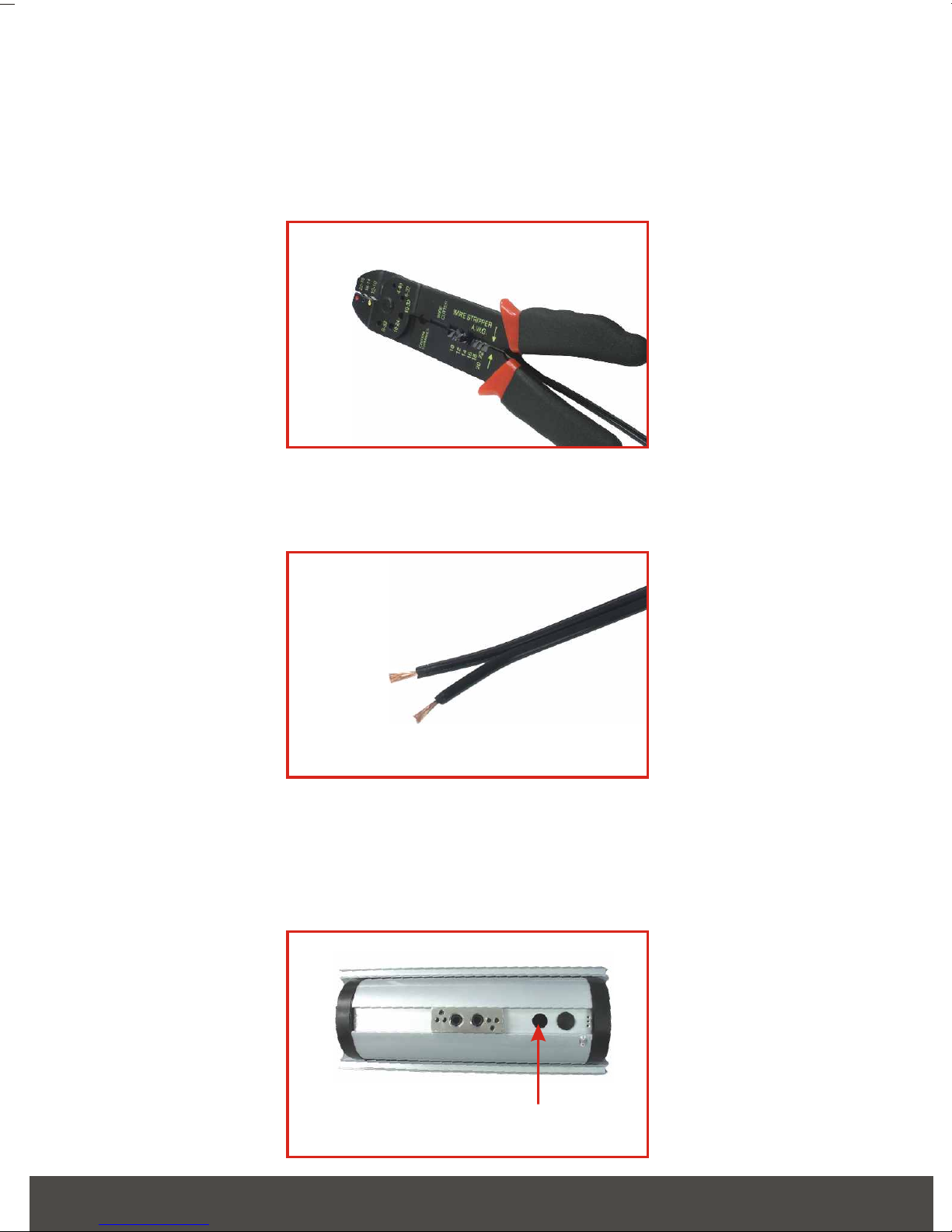

7. Peel the plastic sheath to expose the copper wiring. It is recommended that

you use a wire stripper to remove the plastic sheath effectively.

8. You should have two halves of exposed copper wire as shown below.

9. Turn the camera enclosure upside down to remove one of the rubber

stoppers. This will give you an opening for your power cord, antenna cable,

or network patch cable.

Exposed opening for wires

5English

10. Run your power cord, network patch cable or antenna cable through the

opening of the camera enclosure.

Note: For security purposes, attach the metal arm assembly to the

camera enclosure and run the wires through the metal arm assembly.

Please refer to the camera enclosure's attachment for setup details.

11. Pair one half of the power cable with the red terminal of the enclosure's

power supply.

6English

12. Place the yellow wire connector over the assembly in step 11, and twist the

wire connector clockwise to secure the contact between the wired pair.

13. Pair the other half of the power cable with the black terminal of the

enclosure's power supply.

14. Place the yellow wire connector over the assembly in step 13, and twist the

wire connector clockwise to secure the contact between the wired pair.

7English

15. Take the DC plug and connect the terminals into the DC box of the camera

enclosure.

16. Turn the screw counter-clockwise to insert the DC Plug's terminal into the

DC box. Insert one end of the DC plug terminal into the positive side of the

DC box. Insert the other end of the DC plug terminal into the negative side

of the DC box.

8English

18. Connect the DC plug with the IP Camera's power connector.

19. Make sure all internal wires are inside the camera enclosure, and carefully

close the lid. Then plug in the two-prong cord into any power outlet. The

camera's LEDs should immediately turn on.

Your hardware installation is now complete.

17. Secure the contact between the DC plug terminal and DC box by turning

the screw clockwise.
