TRENDnet TV-IP422 Manuale utente

TV-IP422

TV-IP422W

H/W: A1.0R

Quick Installation Guide

Table of Contents

English ...................................................................................................... 1

1. Before You Start

2. Hardware Installation .........................................................................

3. Configure the Internet Camera ..........................................................

.................................................................................

Table of Contents

Version 02.17.2009

Troubleshooting ........................................................................................

System Requirements

Package Contents

1. Before You Start

English

?Utility CD-ROM

?1 x 2dBi Detachable Antenna

(

?GPIO Adapter

?Mounting Kit

?AC Power Adapter (12V, 1.5A)

TV-IP422 / TV-IP422W

Quick Installation Guide

TV-IP422W)

RJ-45 Cable

?Wireless router or access point (TV-IP422W)

10/100Mbps Ethernet

CPU: 1GHz processor or above

Memory: 256MB RAM or above / 512MB RAM or above (Windows Vista)

Windows 2000/XP/Vista

VGA Resolution: 800 x 600 or above

Web Brower: Internet Explorer (6.0 or higher)

Application

English

Family Monitoring

(TV-IP422W)

Business Monitoring

(TV-IP422)

Property Monitoring

(TV-IP422)

Cable/DSL

Modem

Internet

Home Monitoring

(TV-IP422W)

Wireless N Gigabit Router

(TEW-633GR)

Family Monitoring

(TV-IP422)

Business Monitoring

(TV-IP422W)

Property Monitoring

(TV-IP422W)

Cable/DSL

Modem

Internet

Home Monitoring

(TV-IP422)

Wireless N Gigabit Router

(TEW-633GR)

2. Hardware Installation

English

3. Connect the AC Power Adapter to

the Internet Camera Server and

then to a power outlet.

2. Connect a RJ-45 network cable

from a Switch/Router to the

Ethernet port of the Internet

Camera Server.

1. Attach the Antenna. (TV-IP422W)

4. Verify the Power and Link LEDs

are on.

English

3. Configure the Internet Camera

Note:

1. It is recommended that you configure the Internet Camera from a wired

computer.

2. If you would like to use SecurView software, please refer to the User's Guide

on the CD for more information.

2. Follow the IPSetup Setup Wizard

instructions and then click Next.

3. Click Close.

4. Go to Start -> Programs ->

TRENDnet -> IPSetup and click

IPSetup.

1. Insert the Utility CD-ROM into your

CD-ROM drive and then click IP

Setup.

English

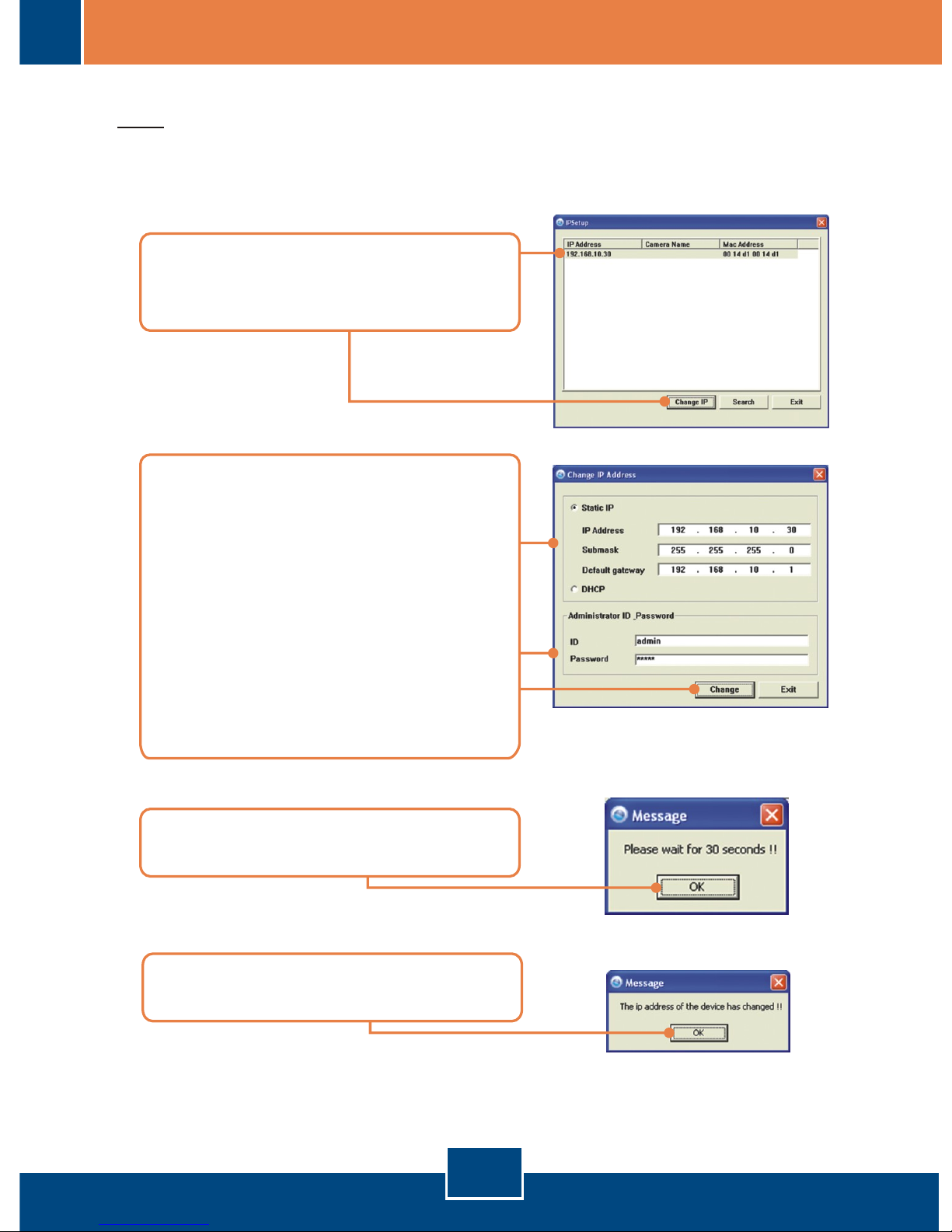

5. Select the camera server and click

Change IP.

6. Configure the desired IP address

to be in the same subnet as your

network, type in the Administrator

ID and Password and click

Change.

By default:

ID: admin

Password: admin

7. Click OK and wait 30 seconds.

8. Click OK.

Note: By default, the IP setting on the TV-IP422/TV-IP422W is set to DHCP.

Please skip to step 9. If you want to give the TV-IP422/TV-IP422W static IP

address, continue on to step 5.

11. Right click and select Install

ActiveX Control.

12. Click Install.

English

10. Enter the User name and

Password, and then click OK.

By default:

User Name: admin

Password: admin

Note: If you have the TV-IP422W, continue on to step 13. If you have the

TV-IP422, skip to step 16.

9. Double click the camera server to

access the browser configuration.

15. Disconnect the RJ-45 cable and

unplug the power. Then plug the

power back in (TV-IP422W).

English

14. Click Site Survey. Select your

wireless network. If encryption

is enabled, select the proper

Authentication type, enter the

Pre-Shared Key and then click

apply. (Example shows

WPA2-PSK. If your wireless

network does not support WPA,

select open or shared instead.

Contact your network

administrator for more

information) (TV-IP422W only).

16. Verify the Power and Link LEDs

are on.

Note: The TV-IP422W will not work wirelessly until you disconnect the Ethernet

cable from the back of the camera.

13. Click Setup, Network and then

click Wireless.

(TV-IP422W only).

17. Click Live View.

English

Your installation is now complete.

Note: For detailed information regarding the TV-IP422/ 422W configuration

and advanced settings, please refer to the Troubleshooting section, User's Guide

on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com.

TV-IP

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet
