TRENDnet TV-IP400 Manuale utente

TRENDnet

TRENDware, USA

What's Next in Networking

TV-IP400

TV-IP400W

Version 09.08.05

Quick Installation Guide

Table of Contents

English ......................................................................................................

Troubleshooting ........................................................................................

1. Prepare for Installation ......................................................................

2. Install Hardware ................................................................................

3. Configure the Internet Camera ..........................................................

4. Using the Internet Camera Wirelessly (TV-IP400W only) .................

Thank you for purchasing the TV-IP400/TV-IP400W. This Internet Camera will

allow you to view live images from internal and external networks.

This guide will help you set up and configure your Internet Camera. Following

the installation instructions should be quick and easy. If you run into problems,

please refer to the Troubleshooting section or the more detailed installation

procedures on the CD User's Guide. If you need further technical support,

please visit www.trendnet.com or call our technical support department by

phone.

Verify Package Contents

Please make sure you have everything in the box:

1. Prepare for Installation

English QIG

English

System Requirement

1. 10/100Mbps Ethernet

2. CD-ROM Drive

3. CPU: Intel Pentium III 450MHz or above

4. Memory: 128MB or above

5. Web Browser: Microsoft Internet Explorer 5.0 or above, Netscape

Navigator 6.0 or above

6. VGA Resolution: 800 x 600 or above

TV-IP400/TV-IP400W

Utility CD-ROM

Quick Installation Guide AC Power Adapter

TRENDnet

TRENDware, USA

What's Next in Networking

TV-IP400

TV-IP400W

Version 09.08.05

Quick Installation Guide

2. Install Hardware

1. Place the camera on a flat, level surface.

2. Connect the RJ-45 network cable to the Internet Camera then connect the

other end of the network cable to a switch or hub.

3. Connect the power adapter to the Internet Camera. Make sure use the

power adapter supplied with the Internet Camera.

English

TV-IP400W

Note: Using a different power adapter may damage the unit.

TV-IP400

3English

1. Open Internet Browser Window and enter <http://192.168.0.20> (camera's

default IP address)

2. Click on System Administration to access the configuration page.

3. Configure the Internet Camera

Note: The PC's IP (Example 192.168.0.50) address must correspond

with the Internet Camera's IP address (Default IP: 192.168.0.20) in the

same segment for the two devices to communicate.

4English

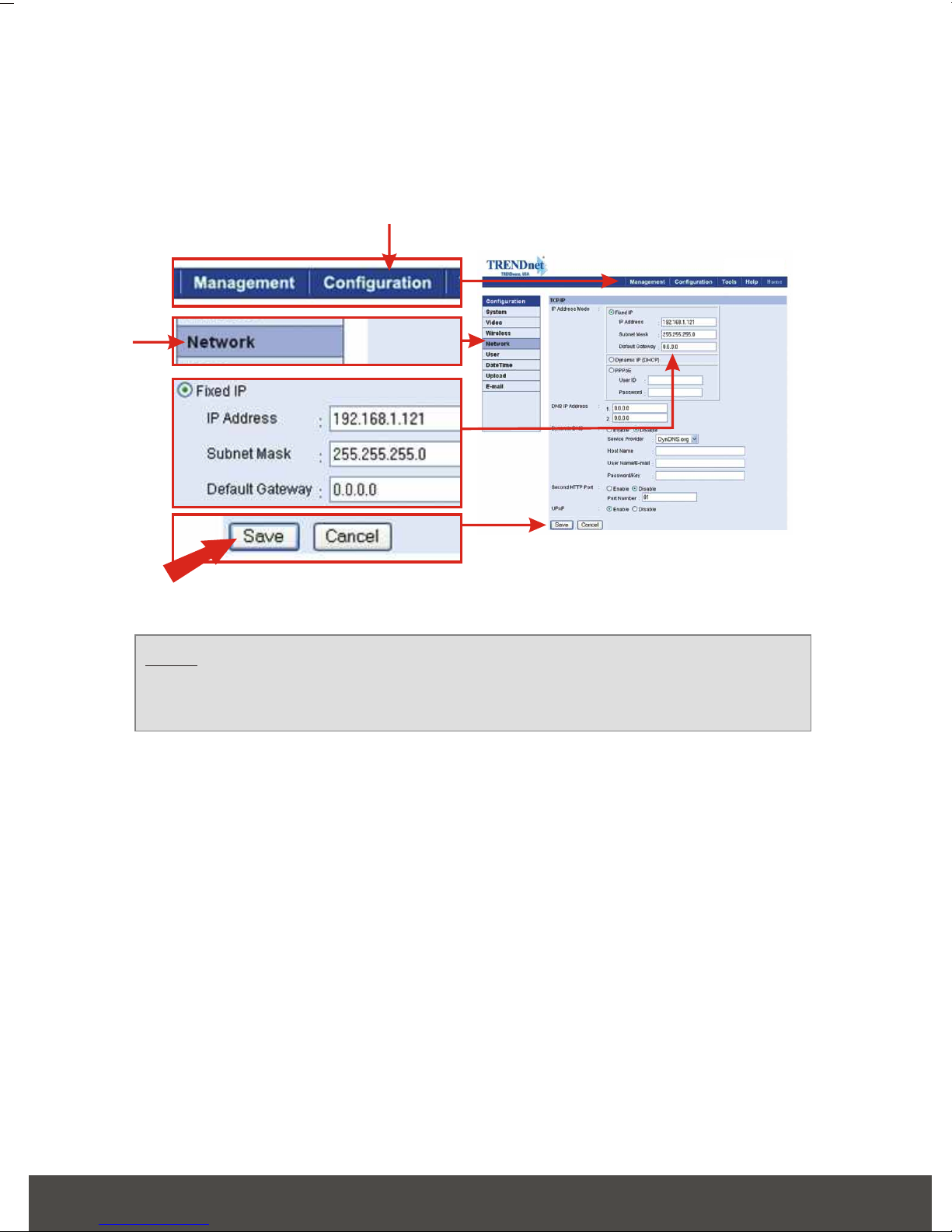

3. Click Configuration and click Network. Enter an IP address, Subnet mask,

and Default gateway that corresponds with your existing network. Then click

the Save button to keep the changes

Note: If you need to access the configuration remotely, it is

recommended to enter a static IP address and the Internet DNS IP

address.

5English

4. Using the Internet Camera

Wirelessly (TV-IP400W only)

1. Click Configuration and click Wireless.

2. From the pull-down menu, select the SSID that matches your wireless

access point and set Connection Mode to Infrastructure.

6English

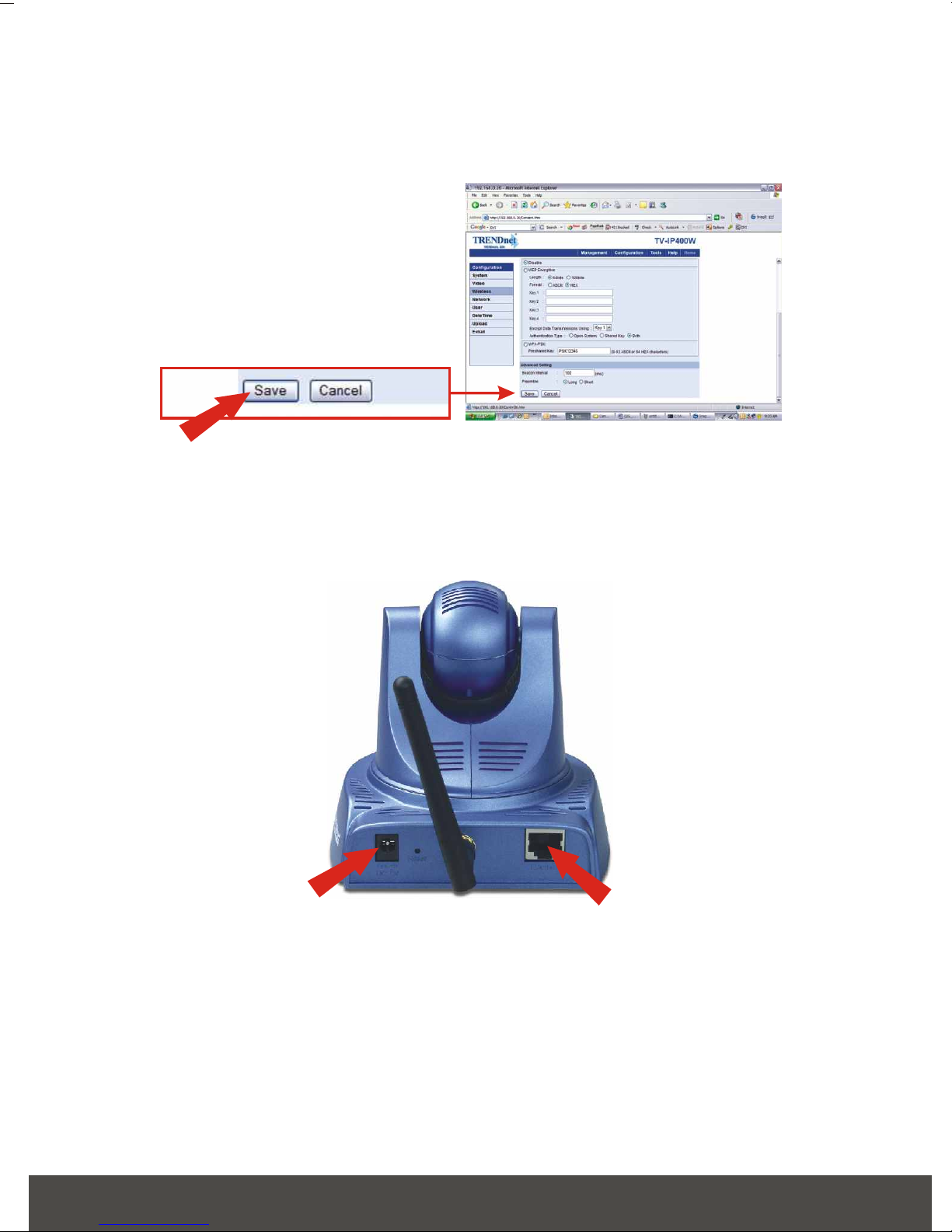

3. Scroll down to the bottom of the page and Click Save.

4. Disconnect the CAT5 cable and the power adapter connector from the

TV-IP400W.

5. Reconnect the power adapter connector to the TV-IP400W. Allow 5-10

seconds for the TV-IP400W and the wireless Access Point to communicate

wirelessly. Then type the IP Address that you assigned to the TV-IP400W in

your web browser for verification.

Q1.

A1.

Q2.

A2.

Q3.

A3.

The image is blurry, how do I fix this?

You can adjust the Internet Camera's focus by rotating the lens.

How do I view the Internet Camera's live images within my Local

Network?

Open a web browser (Internet Explorer or Netscape), type your

Wireless Internet Camera's IP address (i.e.: 192.168.0.20) in the Address

bar, and then hit the Enter key. The Welcome page of the Internet Camera

will appear.

When I enter the IP address of the camera, the image does not load,

why?

Please make sure all the Active X features are enabled for your

Internet Explorer.

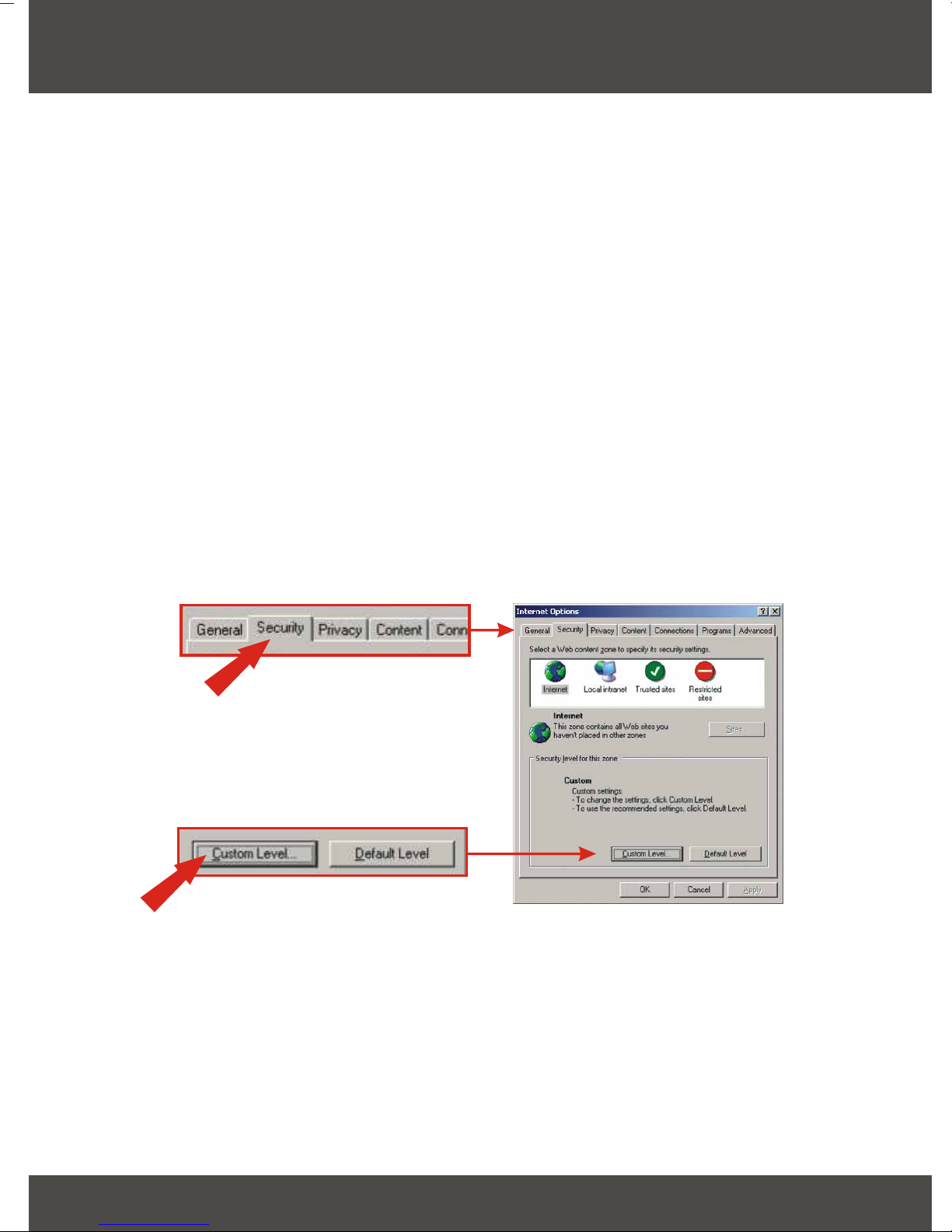

1. Go to Tool (on the Tool bar) g Internet options g Security

Troubleshooting

2. Click on Custom Level and make sure all ActiveX controls are set to

"Enable" and click OK.

3. Once you save the settings, the browser will load again and the image

should appear.
