TRENDnet TV-IP110 - SecurView Internet Surveillance... Manuale utente
TV-IP110
TV-IP110W
H/W: A1.0R
Quick Installation Guide
Table of Contents
English ...................................................................................................... 1
1
4
3
9
1. Before You Start
2. Hardware Installation .........................................................................
3. Configure the Internet Camera ..........................................................
.................................................................................
Table of Contents
Version 06.11.2008
Troubleshooting .........................................................................................
System Requirements
Package Contents
1. Before You Start
English
1
?
?
?
?1 x 2dBi Detachable Antenna
(
?AC Power Adapter (5V, 2.5A)
TV-IP110/TV-IP110W
Utility CD-ROM
Quick Installation Guide
TV-IP110W)
?
?
?
?
?
?
10/100Mbps Ethernet
CPU: 1GHz processor or above
Memory: 256MB RAM or above/ 512MB RAM or above (Windows Vista)
Windows 2000/XP/Vista
VGA Resolution: 800 x 600 or above
Web Browser: Internet Explorer (6.0 or higher)
Application
English
2

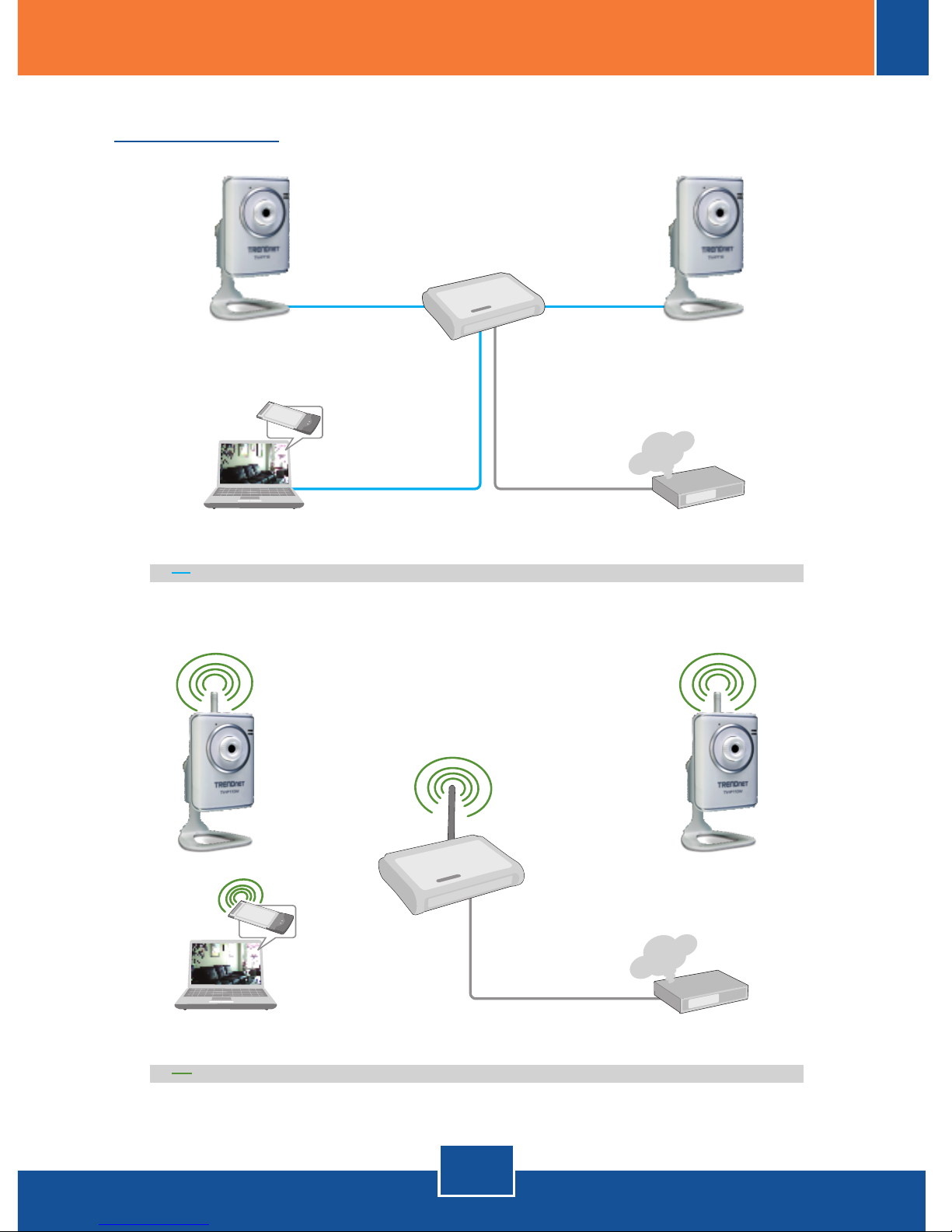

Modem
Internet Camera Server
(TV-IP110)
Cable/DSL 4-Port
Broadband Router
(TW100-S4W1CA)
Notebook with PC Card
(TE100-PCBUSR)
Internet
10/100Mbps
Wireless Internet Camera Server
(TV-IP110W)
Wireless G Firewall Router
(TEW-432BRP)
54Mbps
Modem
Notebook with
Wireless G PC Card
(TEW-421PC)
Internet
2. Hardware Installation
English
3

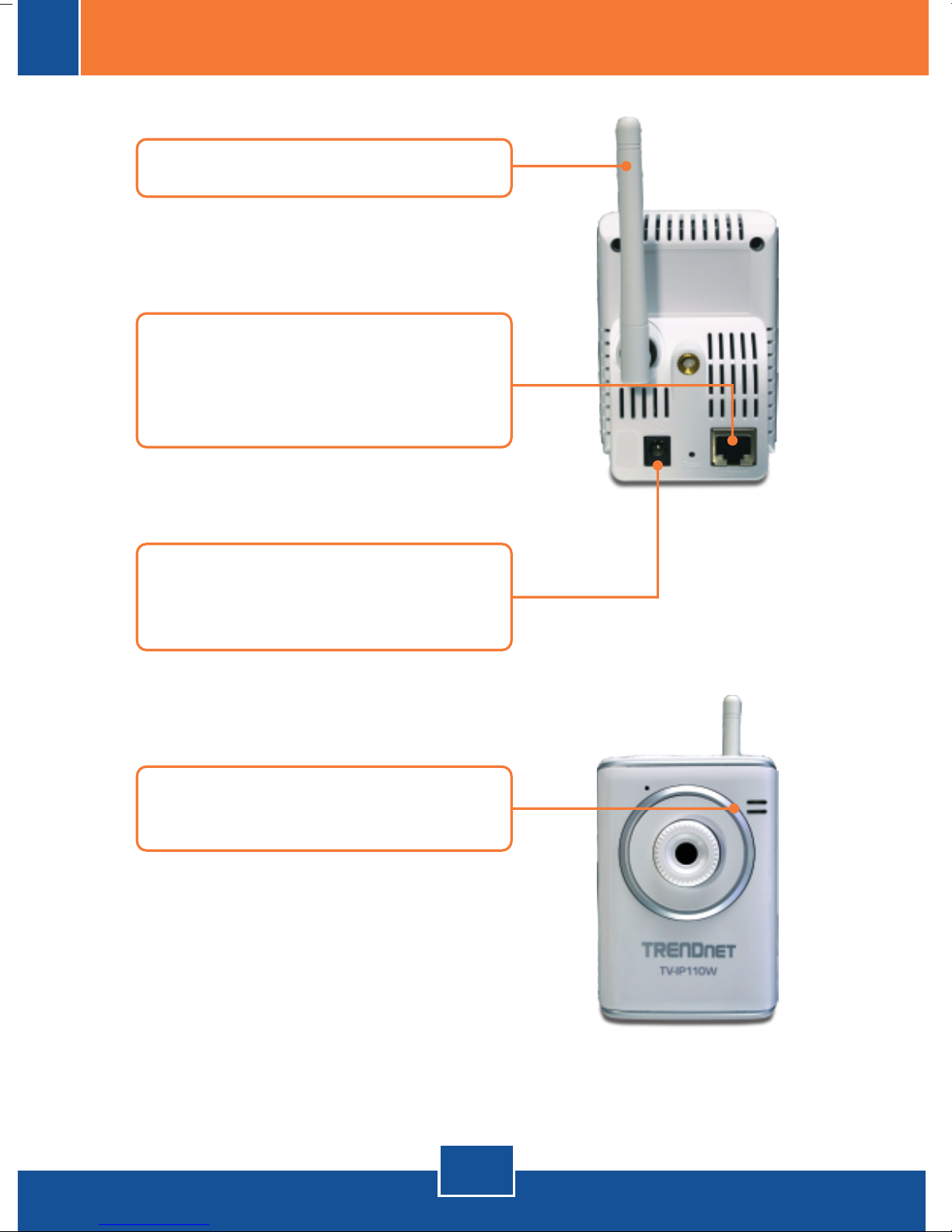

1. Attach the Antenna. (TV-IP110W)
3. Connect the AC Power Adapter to
the Internet Camera Server and
then to a power outlet.
4. Verify the Power and Link LEDs
are on.
2. Connect a RJ-45 network cable
from a Switch/Router to the
Ethernet port of the Internet
Camera Server.
English
4
3. Configure the Internet Camera
3. Go to Start -> Programs ->
TRENDnet -> IPSetup and click
IPSetup.
4. Select the Internet Camera and
click Change IP.
Note:
1. It is recommended that you configure the Internet Camera from a wired
computer.
2. If you would like to use SecurView software, please refer to the User's Guide
on the CD for more information.

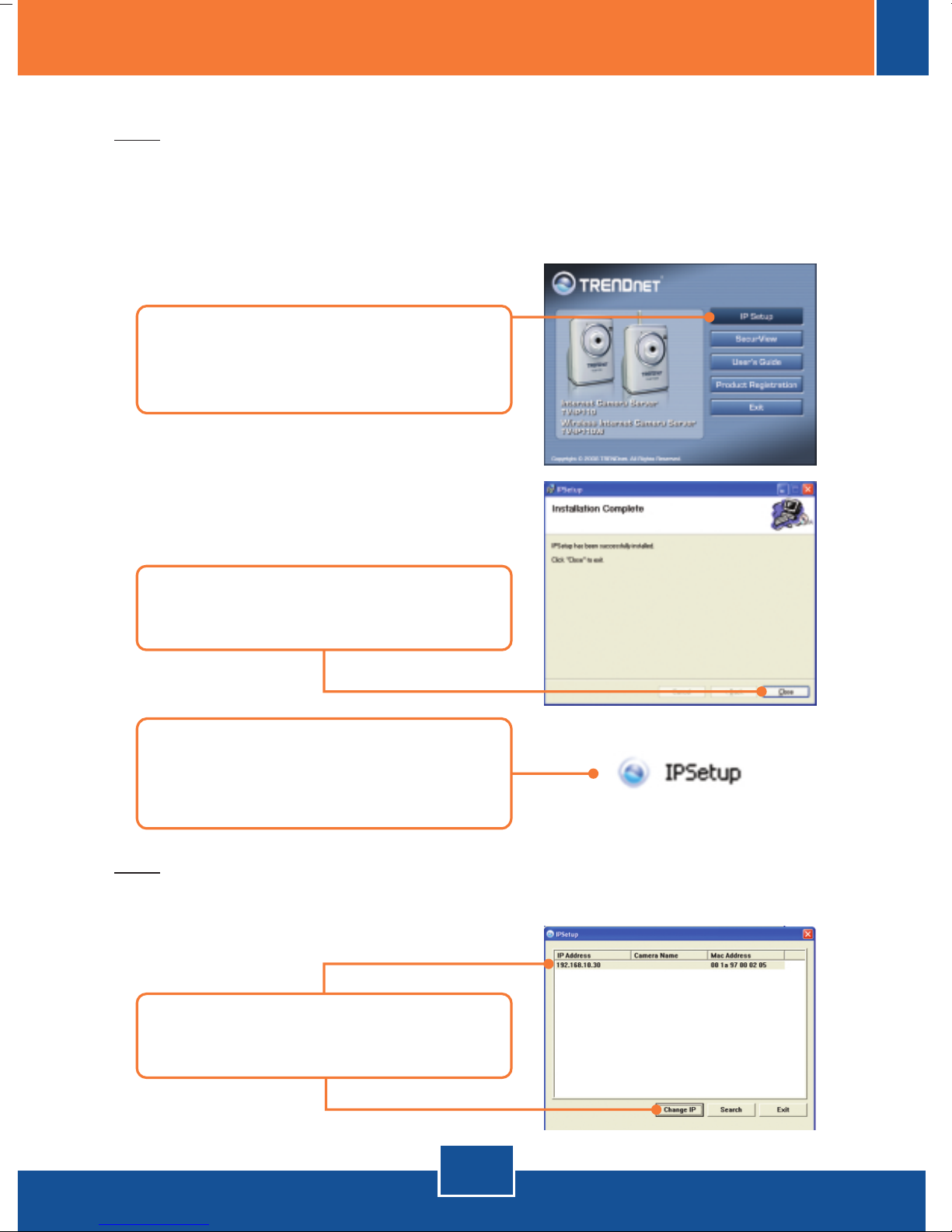

1. Insert the Utility CD-ROM into your
CD-ROM drive and then click IP
Setup.
2. Follow the Installation Wizard
instructions and then click Close.
Note: By default, the IP setting on the TV-IP110/TV-IP110W is set to DHCP.
Please skip to step 8. If you want to give the TV-IP110/TV-IP110W static IP
address, continue on to step 4.
English
5
6. Click OK and wait 30 seconds.

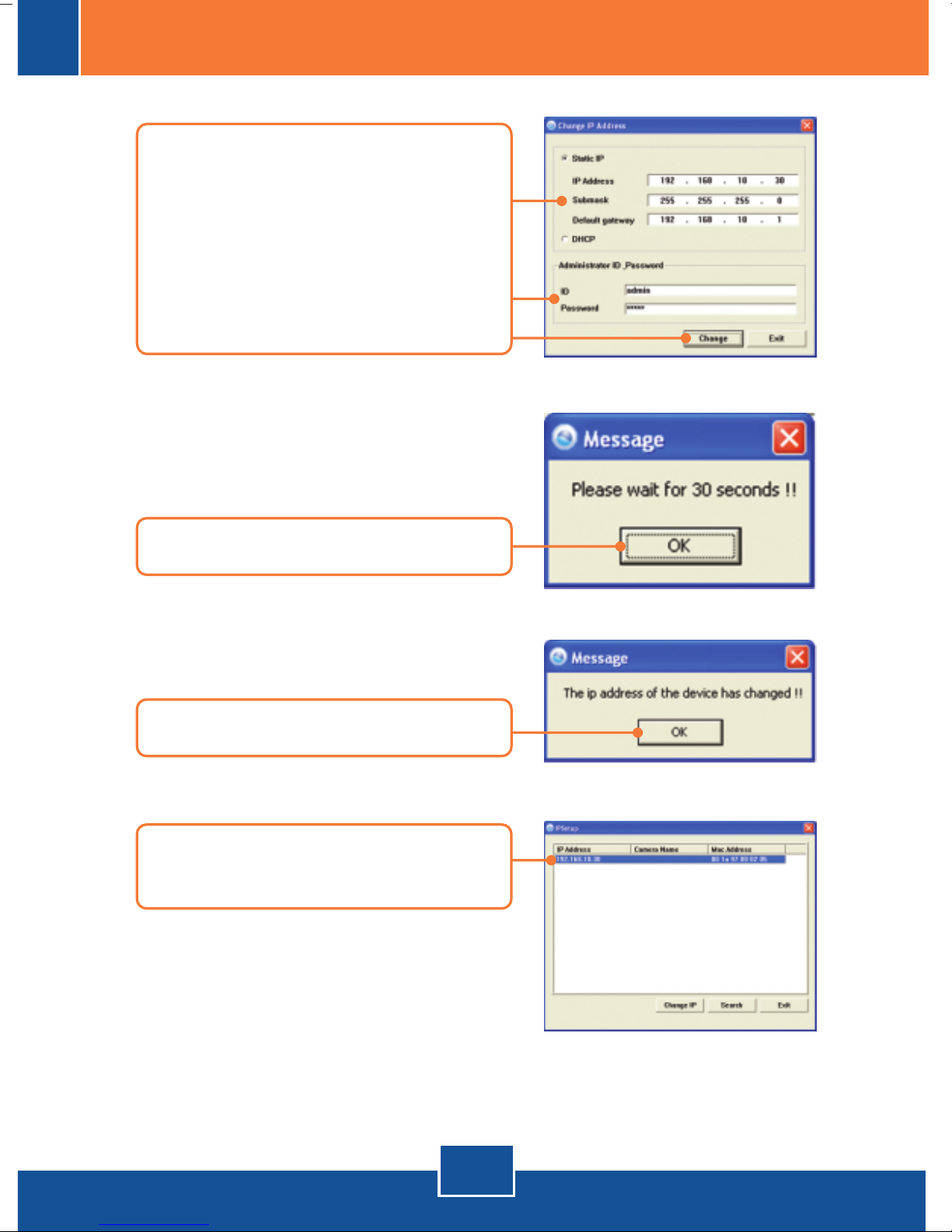

5. Configure the IP address to be in
the same subnet as your network,
type in the Administrator ID and
Password and click Change. By
default:
ID: admin
Password: admin
7. Click OK.
8. Double click the IP Camera to
access the browser configuration.
11. Click Install.

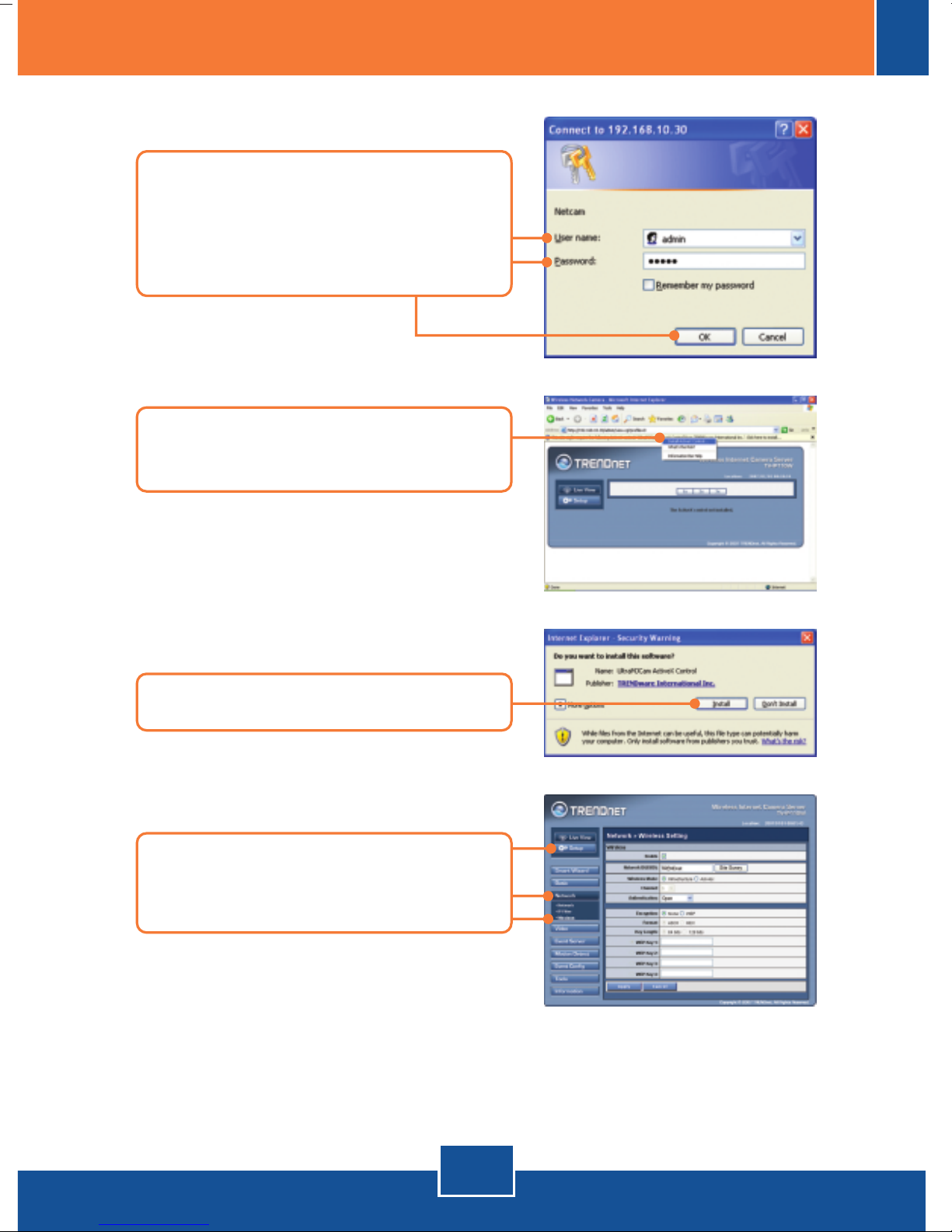

9. Enter the User name and
Password, and then click OK.
User Name: admin
Password: admin
10. Right click and select Install
ActiveX Control.
12. Click Setup, Network and then
click Wireless. (TV-IP110W only)
English
6
English
7
15. Verify the Power and Link LEDs
are on.
14. Disconnect the RJ-45 cable and
unplug the power. Then plug the
power back in (TV-IP110W).
Note: The TV-IP110W will not work wirelessly until you disconnect the Ethernet
cable from the back of the camera.

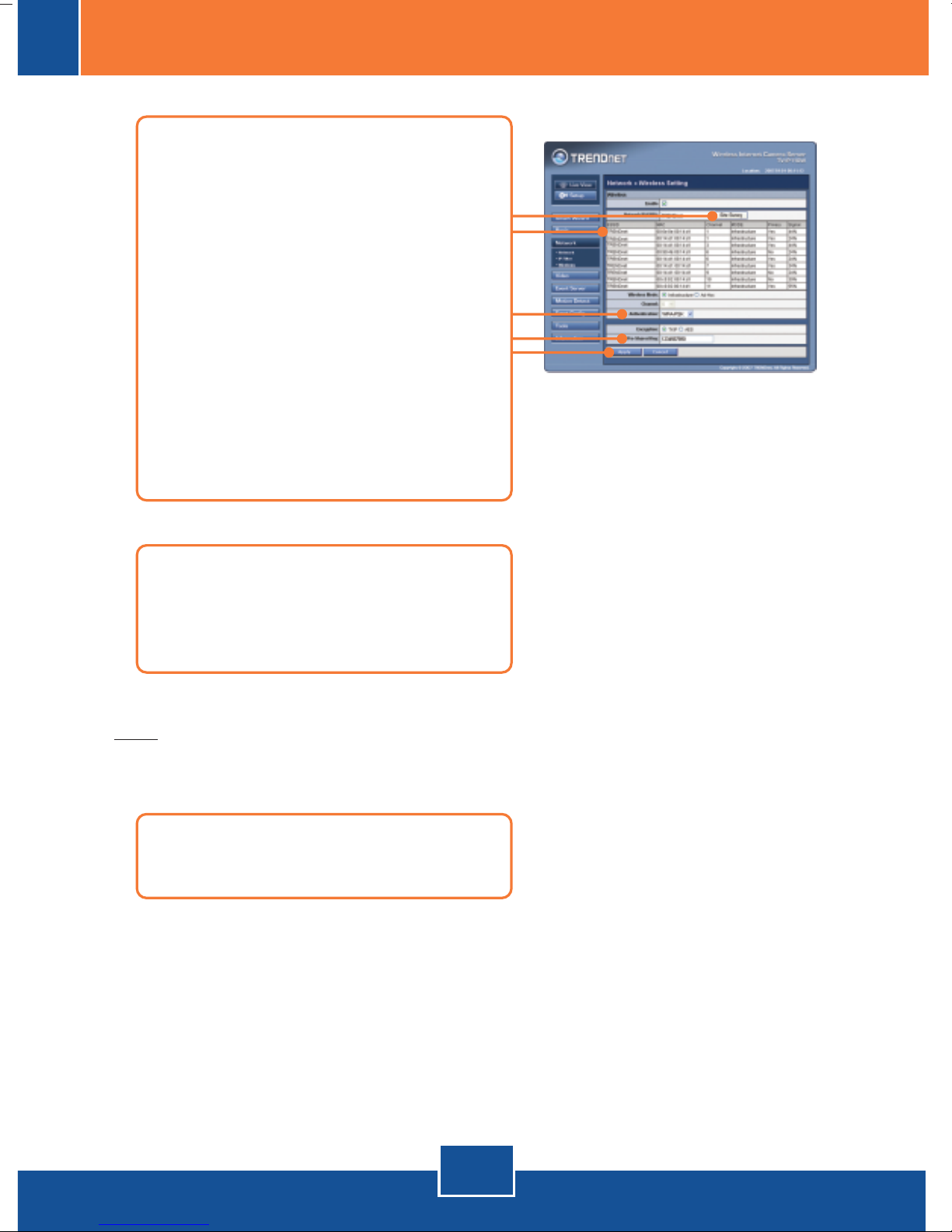

13. Click Site Survey. Select your
wireless network. If encryption is
enabled, select the proper
Authentication type, enter the
Pre-Shared Key and then click
Apply. (Example shows WPA2-
PSK. If your wireless network
does not support WPA, select
open or shared instead. Contact
your network administrator for
more information) (TV-IP110W
only).
English
8

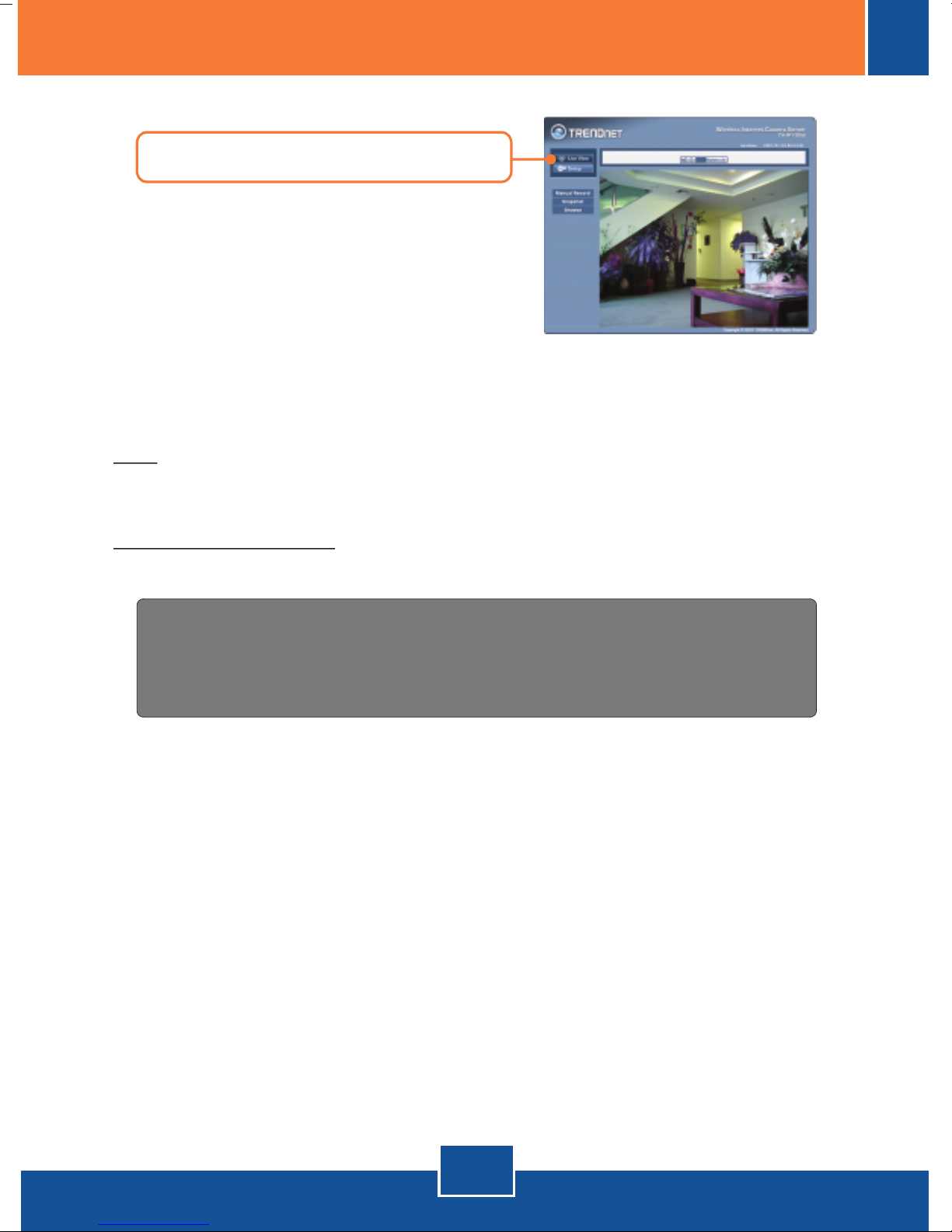

16. Click Live View.
Note: For detailed information regarding the TV-IP110/ 110W configuration
and advanced settings, please refer to the Troubleshooting section, User's
Guide on the Utility CD-ROM, or TRENDnet's website at
http://www.trendnet.com.
TV-IP
Your installation is now complete.
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet
