TRENDnet TV-IP201 Manuale utente
1
TABLE OF CONTENTS
ABOUT THIS GUIDE...........................................................3
1. INTRODUCTION..............................................................4
FEATURES AND BENEFITS .........................................................5
UNPACKING THE PACKAGE .......................................................7
SYSTEM REQUIREMENT.............................................................8
PHYSICAL DESCRIPTION............................................................9
2. HARDWARE INSTALLATION.................................14
A
TTACHING THE
C
AMERA TO THE
S
TAND
...............................14
CONNECTING THE ETHERNET CABLE ......................................15
ATTACHING THE POWER SUPPLY............................................15
3. SECURITY.........................................................................16
4. APPLICATION OF THE CAMERA ........................17
5. USING THE CAMERA .................................................20
WEB CONFIGURATION UTILITY...............................................20
SYSTEM ADMINISTRATION......................................................22
VIEW IMAGE –ACTIVEXMODE..............................................42
VIEW IMAGE –JAVA MODE.....................................................45
2
6. IPVIEW PRO ....................................................................47
INSTALLATION.........................................................................47
GETTING STARTED ..................................................................51
USING IPVIEW PRO .................................................................54
CONFIGURING THE SYSTEM.....................................................60
7. APPENDIX.........................................................................75
A. FREQUENTLY ASKED QUESTIONS.......................................75
B. PING YOUR IP ADDRESS....................................................77
C. TROUBLE SHOOTING...........................................................78
D. TIME ZONE TABLE..............................................................82
E. ADJUST INTERNET CAMERA FOCUS....................................84
F. I/O TERMINAL APPLICATION...............................................85
G. SPECIFICATION....................................................................87
H. GLOSSARY OF TERMS .........................................................90
3
ABOUT THIS GUIDE
This manual provides instructions and illustrations on how to use
your Internet Camera, includes:
zChapter 1, Introduction, provides the general information
on the camera.
zChapter 2, Hardware Installation, describes the hardware
installation procedure for the camera.
zChapter 3, Security, explains the security feature of the
camera.
zChapter 4, Application of the Camera, provides the
illustrations of the camera’s applications.
zChapter 5, Using the Camera, guides you through the
configuration using the web browser.
zChapter 6, IPView Pro, helps you to install and use the
software.
zChapter 7, Appendix.
Please note that the illustrations or setting values in this manual
are FOR YOUR REFERENCE ONLY. The actual settings and
values depend on your system and network. If you are not sure
about the respective information, please ask your network
administrator or MIS staff for help.
4
1
INTRODUCTION
Thank you for purchasing the Internet Camera, a camera device
that can be connected directly to an Ethernet or Fast Ethernet
network. Compared to the conventional PC Camera, the Internet
Camera features a built-in CPU and web-based solutions that can
provide a cost-effective solution to transmit real-time high-quality
video images and sounds for monitoring. The Internet Camera
can be managed remotely, accessed and controlled from any
PC/Notebook over the Intranet or Internet via a web browser.
The simple installation procedures and web-based interface allow
you to integrate it into your network easily. With comprehensive
applications supported, the Internet Camera is your best solution
for remote monitor, high quality, and high performance video
images.
5
Features and Benefits
Simple to Use
The Internet Camera is a standalone system with built-in CPU
requiring no special hardware or software such as PC frame
grabber cards. The Internet Camera supports both ActiveX mode
(for Internet Explorer users) and Java mode (for Internet Explorer
and Netscape Navigator users). Therefore, all that is required is a
web browser software such as Internet Explorer 5.0 or above or
Netscape 6.0 or above. Just plug and view the picture from your
Internet Camera with a valid IP Address.
Support Variety of Platforms
The Internet Camera supports TCP/IP networking, SMTP e-mail,
HTTP and other Internet related protocols, and can be utilized in
a mixed operating system environment such as Windows, Unix,
and Mac. It can be integrated easily into other www/Intranet
applications.
Web Configuration
Applying a standard web browser, the administrator can configure
and manage the Internet Camera directly from its own web page
via the Intranet or Internet. Up to 32 users name and password are
permitted with privilege setting controlled by the administrator.
RS-485 Support
The pin 1 & 2 of the I/O connectors are used for RS-485 data
transmission. You can connect a special featured device (such as
6
an external camera stand with rotation function) to meet you
needs. When the external device is connected, you could
configure the settings and control the device from the RS485
window of Web Configuration Utility.
Remote Utility
The powerful IPView Pro application assigns the administrator
with a pre-defined user ID and password, allowing the
administrator to modify the Internet Camera settings from the
remote site via Intranet or Internet. When new firmware is
available, you can also upgrade remotely over the network for
added convenience. Users are also allowed to monitor the image,
and take snapshots.
Broad Range of Applications
With today’s high-speed Internet services, the Internet Camera
can provide the ideal solution for live video images over the
Intranet and Internet for remote monitoring. The Internet Camera
allows remote access from a web browser for live image viewing
and allows administrator to manage and control the Internet
Camera anywhere and any time in the world. Apply the Internet
Camera to monitor various objects and places such as homes,
offices, banks, hospitals, child-care centers, amusement parks and
other varieties of industrial and public monitoring. The Internet
Camera can also be used for intruder detection; in addition, it can
capture still images for archiving and many more applications.
7
Unpacking the Package
Unpack the package and check all the items carefully. In addition
to this User’s Guide, be certain that you have:
One TV-IP201
One Installation CD-ROM
One Quick Installation Guide
One AC power adapter suitable for your country’s electric
power
One Camera Stand
One RJ-45 Ethernet Cable
If there is any content is damaged or missing, please contact your
local dealer immediately. Also, keep the box and packing
materials in case you need to ship the unit in the future.
8
System Requirement
Networking
10Base-T Ethernet or 100Base-TX Fast Ethernet.
Accessing the Camera
For Web Browser Users
Operating System: Microsoft® Windows® 98SE/ME/2000/
XP
CPU: Intel Celeron 1.1GHz or above (Intel Pentium 4 is
preferred)
Memory Size: 128MB or above
Resolution: 800x600 or above
Microsoft® Internet Explorer 5.0 or above
For IPView Pro Application Users
Operating System: Microsoft® Windows® 98SE/ME/
2000/XP.
CPU: Intel Celeron 1.1GHz or above (Intel Pentium 4 is
preferred)
Memory Size: 128 MB or above
Resolution: 800x600 or above
9
Physical Description
This section describes the externally visible features of the
Internet Camera.

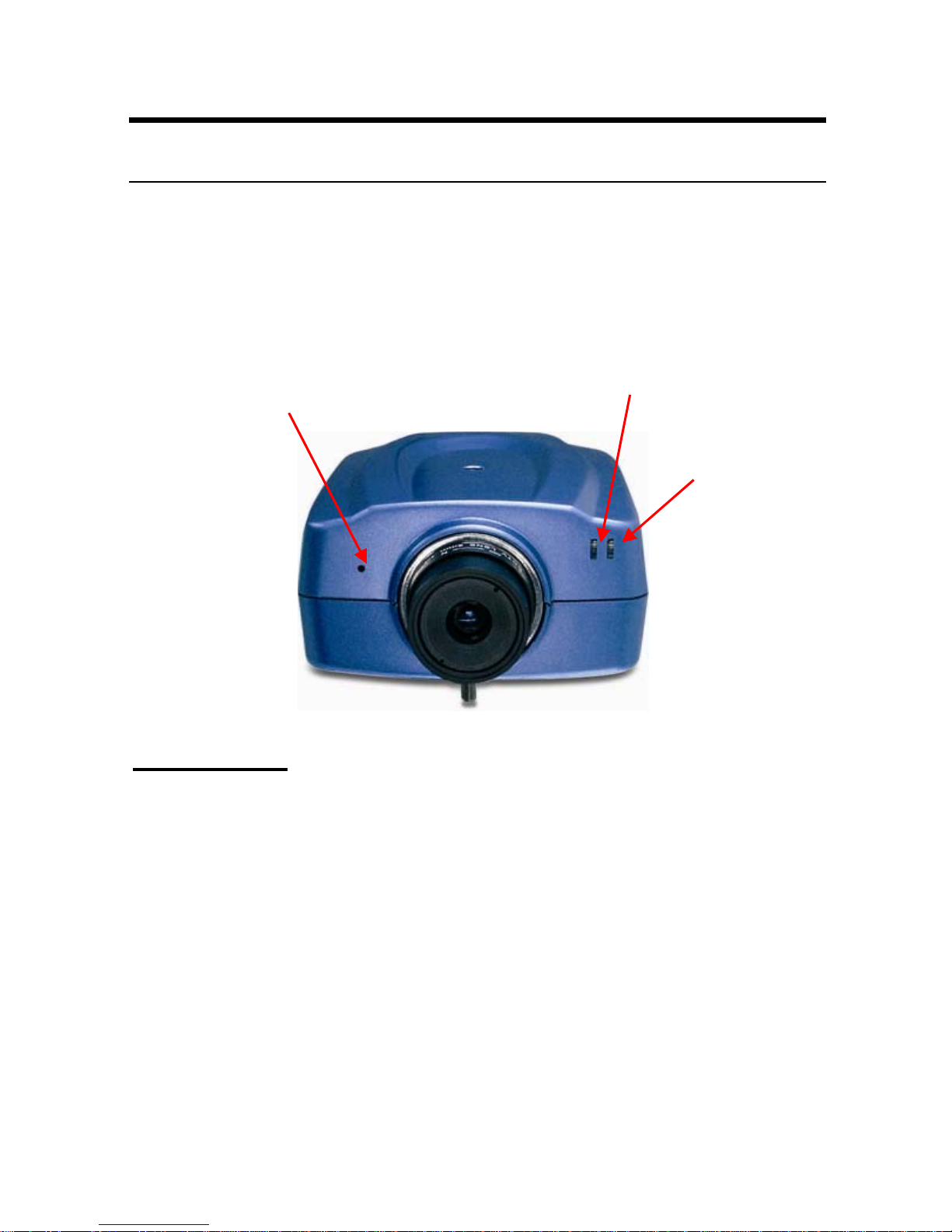

Front Panel
1. Link LED
The Link LED is positioned on the right side of the Internet
Camera’s lens while facing the Internet Camera.
It is located to the left of the Power LED
A steady ORANGE light confirms that the camera has good
connection to LAN connectivity.
Dependent on the data traffic the LED will begin to flash to
indicate that the Internet Camera is receiving/sending data
from/to the network.
2. Power LED
1. Link LED
3. Internal MIC
