TRENDnet User’s Guide TV-IP252P

Product Overview

TV-IP252P

Package Contents

TV-IP252P

Multi-Language Quick Installation Guide

CD-ROM (Utility, Software &User’s Guide)

Network cable (1.5m / 5ft)

Power adapter (12V DC, 1.5A)

Camera mounting kit

If any package contents aremissing or damaged, please contact the retail store, online

retailer, or reseller/distributor that the item was purchased.

Features

The PoE Dome Internet Camera (model TV-IP252P) is designed for indoor enterprise

class security surveillance applications. View and manage the tamper resistant dome IP

camera from any Internet connection.

Manually pan the camera side-to-side 350 degrees and tilt it up-and-down 160 degrees

to fix itsfinal viewing angle. No needto install this cameranear apowersource, power

and data are received through a single Ethernet cable using Power over Ethernet (PoE)

technology.

Manage up to 32 TRENDnet cameras with the included complimentary camera

management software. Advanced features include motion detectionrecordingwith two

motion detection windows, email alerts, scheduledrecording sessions, Samba client

saves video to network storage devices, dual streaming MPEG-4/MJPEG image

compression, two-way audio support (microphone and speaker sold separately),

Input/Output ports, digital zoom and an analog BNC video-out connector. A wall/ceiling

mounting kit is included and the off-white IP camera housing blends into most

environments.

* TRENDnet’s Mobile APP supports iPhone®, iPad®, iPod® Touch and

Android. Search for SecurView Mobile from iTunes® or Google Play™.

For future updates, please check www.trendnet.com/Appfor details.

** Monitoring multiple cameras may required a high performance CPU

TRENDnet User’s Guide TV-IP252P

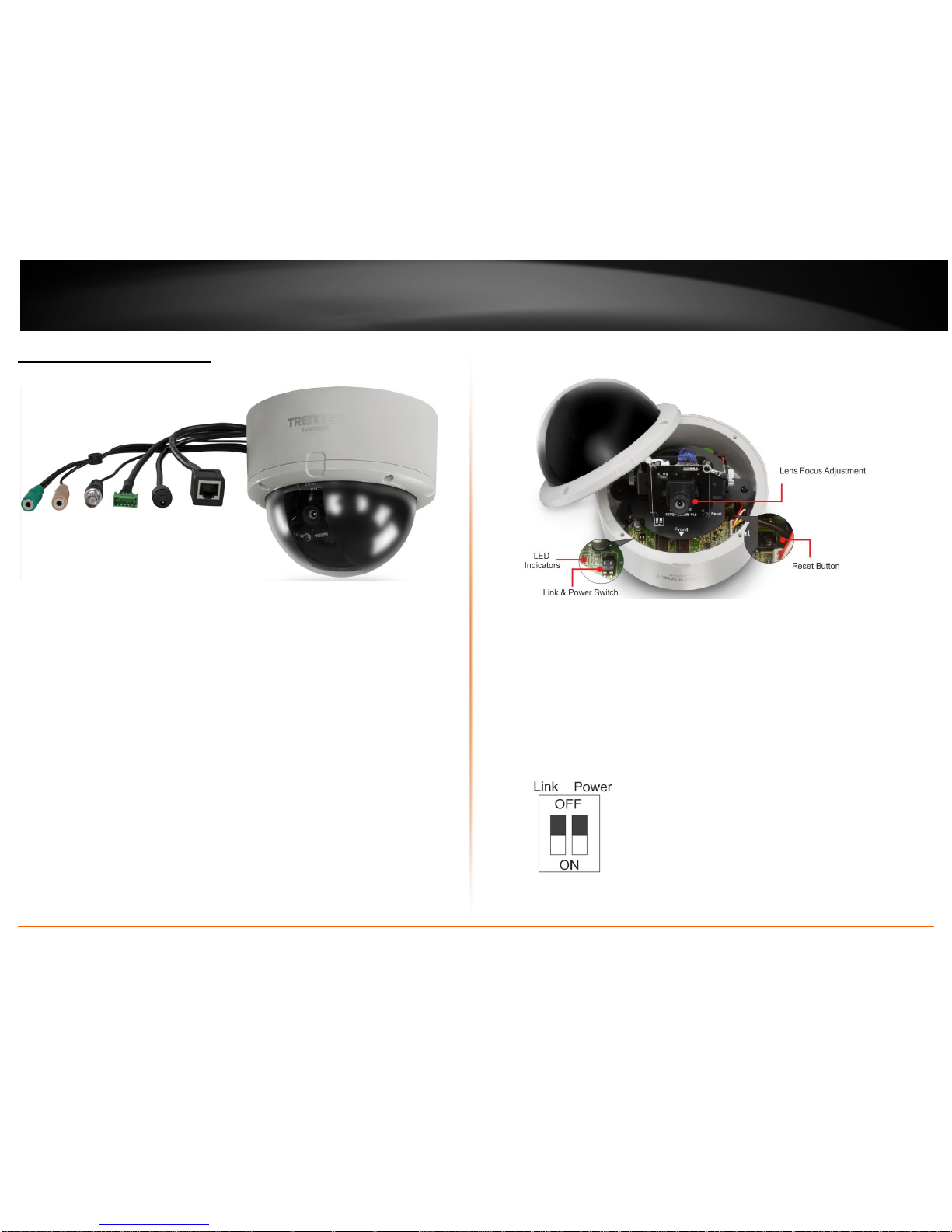

Product Hardware Features

Ethernet/PoE Port: Connect the provided network cable (RJ-45 type). The

connector supports Power over Ethernet standard (PoE), enabling the camera to

be powered by the Ethernet.

Power: Connect the provided power adapter to supply power to the camera if

not using PoE.

GPIO: Connected the provided external GPIO connector to the device, and

then connect the external device (such asmotion detection, event triggering or

alarm system) to GPIO adapter.

BNC connector:Connect the external monitor to BNC connector

Mic In: Connect an external microphone.

Speaker Out: Connects an external speaker.

Inside Component

Lens Focus Adjustment: Adjust the focus either clockwise or counter

clockwise.

Reset button: Press the button to restart the camera. Press and hold the

button for five seconds, the camera will resume the factory default settings.

LED indicators: Indicates the camera is powered on with the steady

amber light and the link activity with blinking green light

Link & Power switches:

The two switches allow you to manually turn of the LED indicators.

TRENDnet User’s Guide TV-IP252P

Application Diagram

Installation

Hardware Installation

The camera can be mounted to the ceiling surface directly by following the steps below:

1. Remove the Dome cover by unscrewing the four screws.

2. Use the includeddrill template to drill three mounting holes on the desire location

and hammer the plastic anchors into the holes.

TRENDnet User’s Guide TV-IP252P

3. Secured the camera to the location with three screws.

4. Before put the Dome cover back, adjust the lens assembly by the following steps:

Tilt the camera lens to a proper position by loosing the screws () and then

swinging the adjustable base ().

Rotate the camera lens by turning the base pedestal () in either clockwise or

counter clockwise direction.

Adjust the lens focus by turning the lens ring slowly () in either clockwise or

counter clockwise direction.

NOTE:You can reviewthe image quality fromthe Web browserwhen you complete the

installation. If the image quality is poor, you haveto disassemble the Dome cover to

adjust the lens focus until the desired image appears clearly.

5. Put the Dome cover back and secure with four screws.

Camera Installation

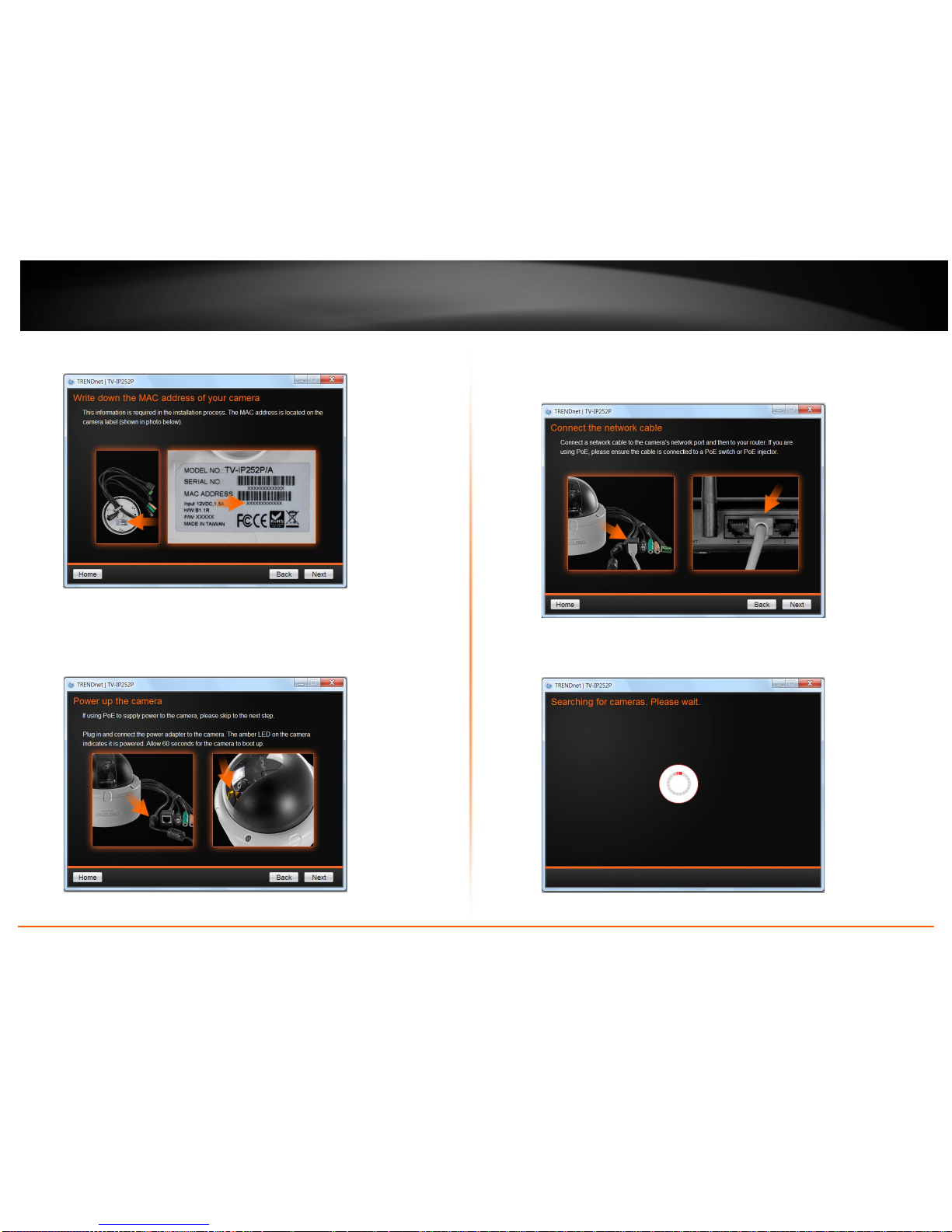

1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate

the Auto-Run program.

2. Click the Install Camera.









TRENDnet User’s Guide TV-IP252P

3. Write down the MACID of the camera

4. If you are using PoE to supply power to camera, please skip to the next step.

To power up the camera, plug in and connected the power adapter to the

camera. You can verify the power connection by checking the amber LED on

the camera.

5. Connect a network cable to the camera’s network port and then to your router.

If you are using the PoE, please ensure the cable is connected to a PoE switch

or PoE injector.

6. Wait while the utility is searching the cameras.

TRENDnet User’s Guide TV-IP252P

7. The founded cameras will show on the screen. The camera already selected by

default if you have only one camera installed. If you have more than one

camera in the same Network, you will need to identify the camera by the MAC

ID.

8. Type in the Password. The password is “admin” by default. We strongly

suggested changing the camera’s password. The Change Password option is

enable by default.

9. Click here on the screen to access the camera now or click Next buttonfor later

accessing.

10. Click Finish to exit the program or click Home return to the main screen.

TRENDnet User’s Guide TV-IP252P

Starting Camera Finder (IPSetup)

The camera comes with a conveniently utility, IPSetup,which isincludedin the

Installation CD-ROM, allowing you to search the camera on your network easily.

1. Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate

the Auto-Run program.

2. Click the Camera Finder (IPSetup) from the Auto-Run menu screen.

3. Click the IPSetup from the Auto-Runmenu screen. Then the IPSetup Wizard

will appear. Click Install to install the utility.

4. When the Completing theIPSetup Setup Wizard appears, click Finish.

TRENDnet User’s Guide TV-IP252P

5. After installing the IPSetup utility, the application is automatically installed to

your computer,and creates a folder in Start\Program\TRENDnet\IPSetup.

6. Click Start>Programs>TRENDnet>IPSetup, and then click IPSetup.

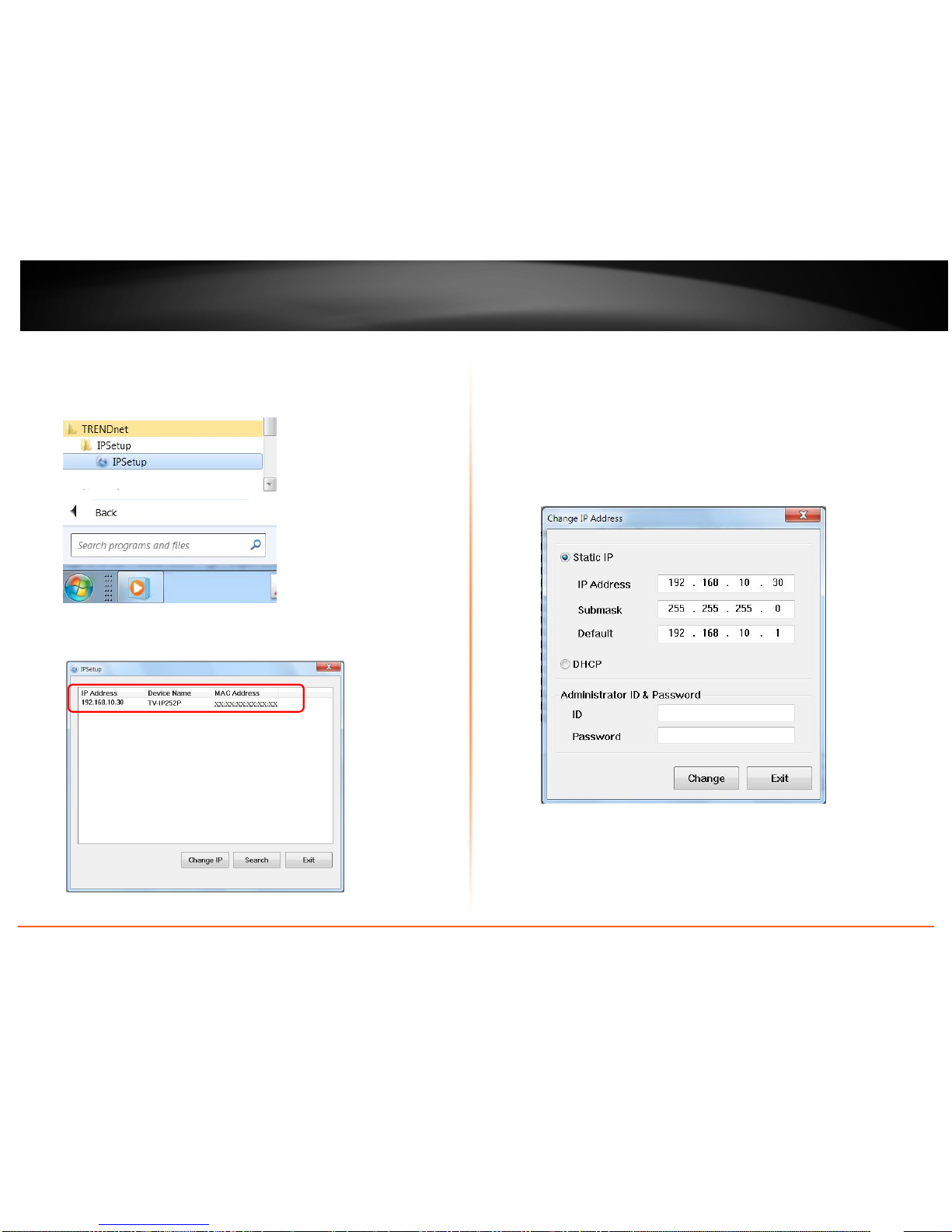

7. The IPSetup window will appear. It will search for the camera within the same

network.

-Camera Display Area: Bydefault, theIP settingon the Camera is set to DHCP.

If you have DHCP server, the camera will automatic get the IP address from

DHCP server. If you do not have DHCP server on your network, it will show the

default IP as 192.168.10.30. Double click the IP address; it will link to Camera’s

Web Configuration page.

-Change IP: Clickthis button to bring up the following window. It allowsyou to

change the IP Address. You can select either Static IP or click DHCP. Then,

enter the Administrator ID & Password. By default the ID/Password is: admin.

When complete,click Change.

-Search: Click this button to search the connected camera in the same network

-Exit: Click this button toexit the program.

Camera Display Area
