TRENDnet TV-IP121W Manuale utente

Quick Installation Guide

TV-IP121W

H/W: A1

Table of Contents

English ...................................................................................................... 1

1. Before You Start

2. Hardware Installation .........................................................................

3. Configure the Internet Camera ..........................................................

.................................................................................

Table of Contents

Version 05.13.2009

Troubleshooting ........................................................................................

System Requirements

Package Contents

1. Before You Start

English

?Utility CD-ROM

?Multi-Language Quick Installation

Guide

?1 x 2dBi DetachableAntenna

?AC PowerAdapter (5V, 2.5A)

?Camera

?RJ-45 Cable

TV-IP121W

Stand

?CPU: 350MHz or above / 800MHz (Windows Vista)

?Memory: 256MB RAM or above / 512MB RAM or above (Windows Vista)

?Windows 2000/XP/Vista

?VGAResolution: 800 x 600 or above

?Web Browser: Internet Explorer (6.0 or higher)

?Wireless Router orAccess Point

?AnAvailable DHCPServer –routers usually have a built-in DHCP server

10/100Mbps EthernetAdapter

CD-ROM Drive

54Mbps

SecurView Wireless Day/Night

Internet Camera

(TV-IP121W)

Wireless G Firewall Router

(TEW-432BRP) Modem

Notebook with Wireless G PC Card

(TEW-421PC)

Internet

English

Application

2. Hardware Installation

English

3. Connect theAC PowerAdapter to

the IP Camera and then to a power

outlet.

2. Connect a RJ-45 network cable

from a Switch/Router to the

Ethernet port on the IP Camera.

1. Attach the Antenna.

4. Verify the Power and Link LEDs

are on.

English

3. Configure the Internet Camera

Note:

1. It is recommended that you configure the IP Camera from a wired computer.

2. If you would like to use SecurView software, please refer to the User's Guide

on the CD for more information.

2. Follow the Installation Wizard

instructions and then click Close.

3. Go to Start -> Programs ->

TRENDnet -> IPSetup and click

IPSetup.

1. Insert the Utility CD-ROM into your

CD-ROM drive and then click

IP Setup.

Note: By default, the IP setting on theTV-IP121W is set to DHCP. Please

skip to step 8. If you want to give the TV-IP121W a static IP address, continue

on to step 4.

English

4. Select the IP camera and click

Change IP.

5. Configure the IP address to be in

the same subnet as your network,

type in the Administrator ID and

Password and click Change.

By default:

ID: admin

Password: admin

6. Click OK and wait 30 seconds.

7. Click OK.

11. Click Install.

English

9. Enter the User name and

Password, and then click OK.

By default:

User Name: admin

Password: admin

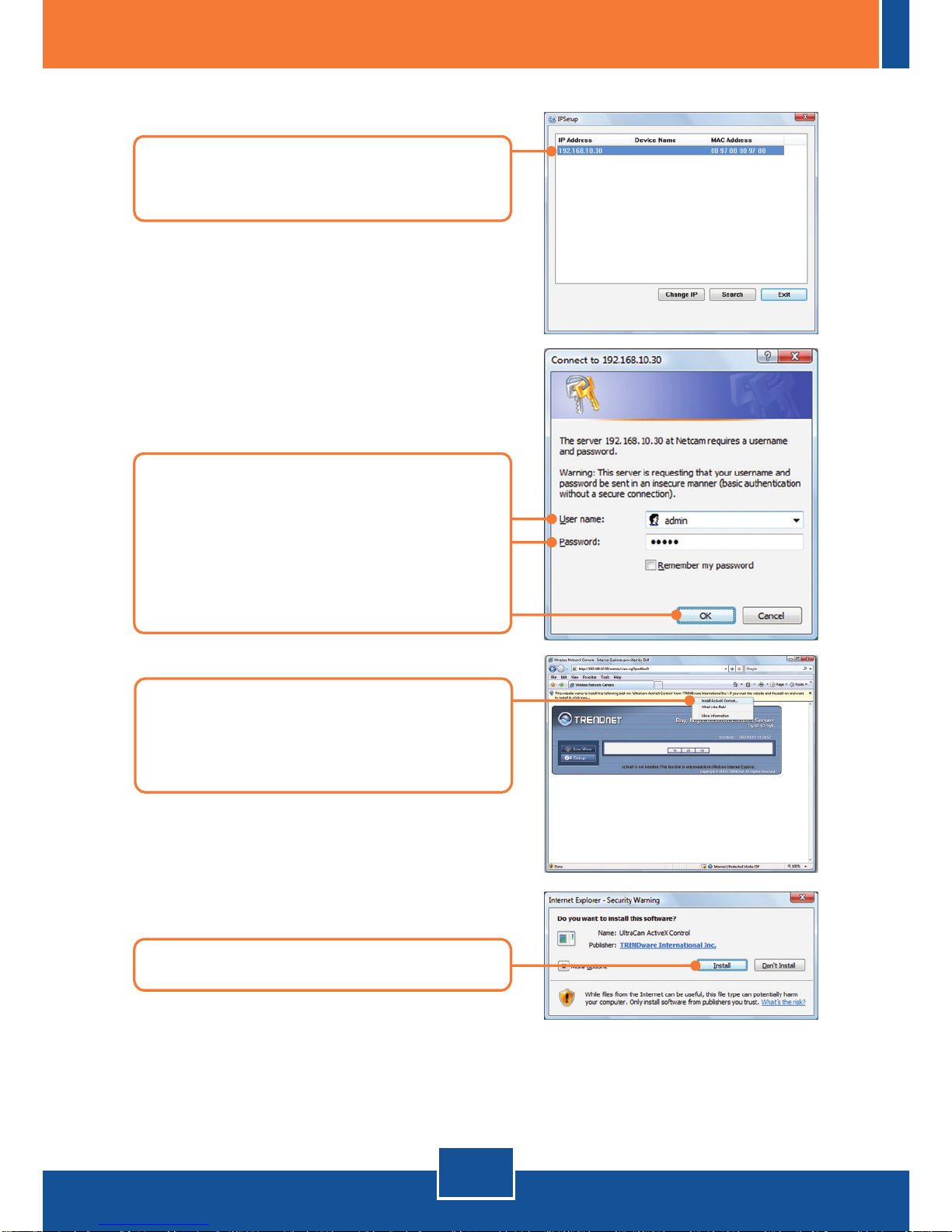

8. Double click the IP camera to

access the browser configuration.

10. Right click on the Internet

Explorer Information Bar and

select Install ActiveX Control.

14. Disconnect the RJ-45 cable and

unplug the power.Then plug the

power back in.

English

13. Click Site Survey. Select your

wireless network. If encryption

is enabled, select the proper

Authentication type, enter the

Pre-Shared Key and then click

Apply. (Example shows

WPA2-PSK. If your wireless

network does not support WPA,

select open or shared instead.

Contact your network

administrator for more

Note: The TV-IP121W will not work wirelessly until you disconnect the Ethernet

cable from the back of the camera.

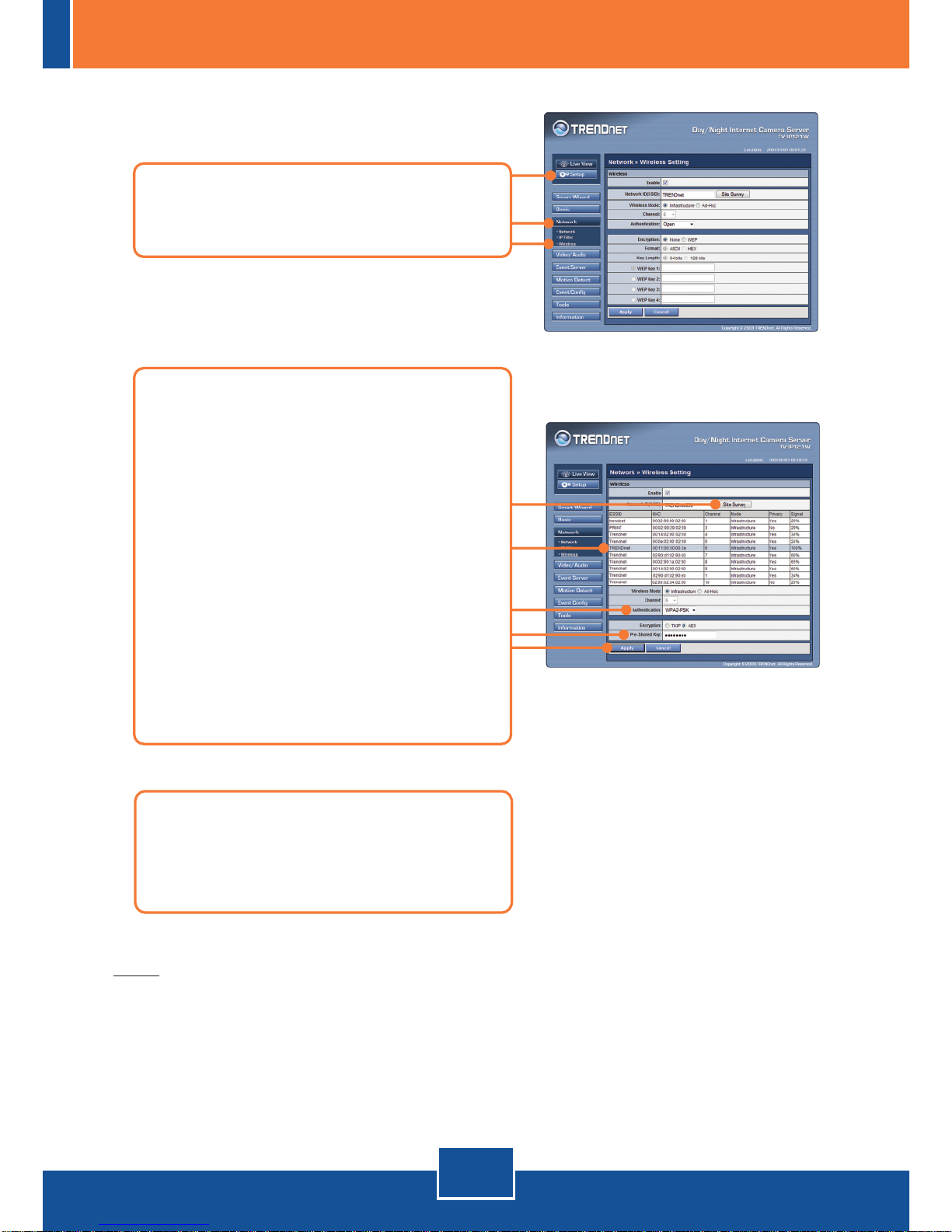

12. Click Setup, Network and then

click Wireless.

16. Click Live View.

English

Your installation is now complete.

Note: For detailed information regarding the TV-IP121W configuration and

advanced settings, please refer to the Troubleshooting section, User's Guide

on the Utility CD-ROM, or TRENDnet's website at http://www.trendnet.com.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

15. Verify the Power and Link LEDs

are on.
