TRENDnet TV-IP501W Manuale utente

TV-IP501P

TV-IP501W

1.01

Quick Installation Guide

Table of Contents

English ...................................................................................................... 1

1. Before You Start

2. Hardware Installation and Configuration .............................................

3. Power over Ethernet (PoE) Installation (TV-IP501P only) ..................

.................................................................................

Troubleshooting .........................................................................................

Version 07.08.2009

1. Before You Start

English

System Requirements

Package Contents

?CD-ROM (Utility & User's Guide)

?Multi-Language Quick Installation

Guide

?Cat. 5 Ethernet cable (3m/ 9.8ft.)

?Power adapter (5V, 2.5A)

?Camera mounting Kit

TV-IP501P/TV-IP501W

?CD-ROM Drive

?Wireless router or access point (TV-IP501W)

?An available DHCP Server –routers usually have a built-in DHCP server.

?Power over Ethernet (PoE) Switch (e.g. TPE-S80WS) (TV-IP501P only)

(Optional)

?Injector (e.g TPE-111GI) (TV-IP501P only) (Optional)

10/100Mbps Ethernet Adapter

CPU: 2GHz processor or above

Memory: 256MB RAM or above / 512MB RAM or above (Windows Vista)

Windows XP/Vista

VGA Resolution: 800 x 600 or above

Web Brower: Internet Explorer (6.0 or higher)

Application

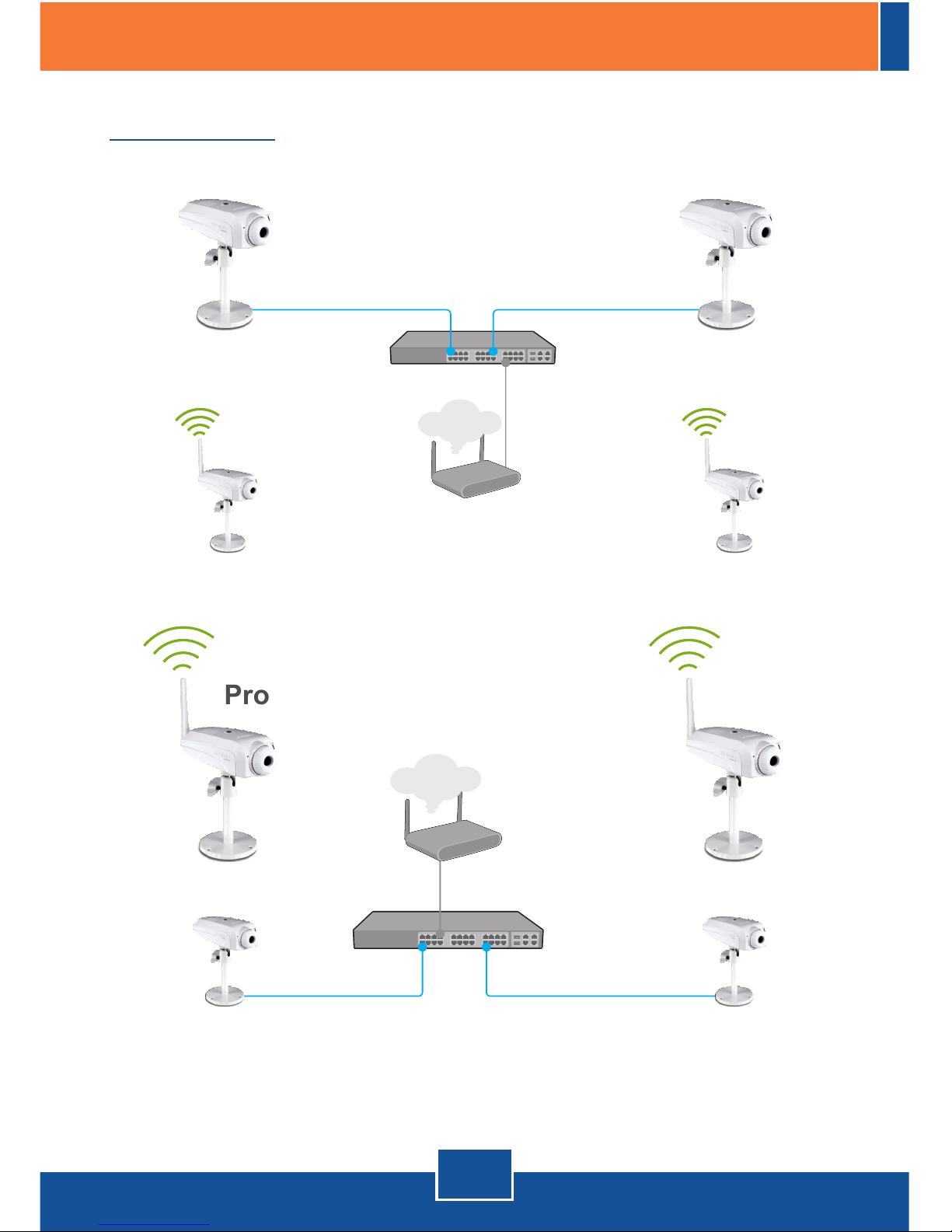

Power + Data (PoE)Power + Data (PoE)

ProView Internet Camera

(TV-IP501P)

300Mbps Wireless N

ADSL2/2+ Modem Router

(TEW-635BRM)

24-Port 10/100Mbps Web Smart PoE switch

with 4 Gigabit Ports and 2 Mini-GBIC Slots

(TPE-224WS)

Internet

ProView Wireless Internet Camera

(TV-IP501W)

ProView Wireless Internet Camera

(TV-IP501W)

ProView Wireless Internet Camera

(TV-IP501W)

ProView Internet Camera

(TV-IP501P)

Power + Data (PoE)

300Mbps Wireless N

ADSL2/2+ Modem Router

(TEW-635BRM)

Internet

24-Port 10/100Mbps Web Smart PoE switch

with 4 Gigabit Ports and 2 Mini-GBIC Slots

(TPE-224WS)

ProView Internet Camera

(TV-IP501P)

English

2. Hardware Installation and Configuration

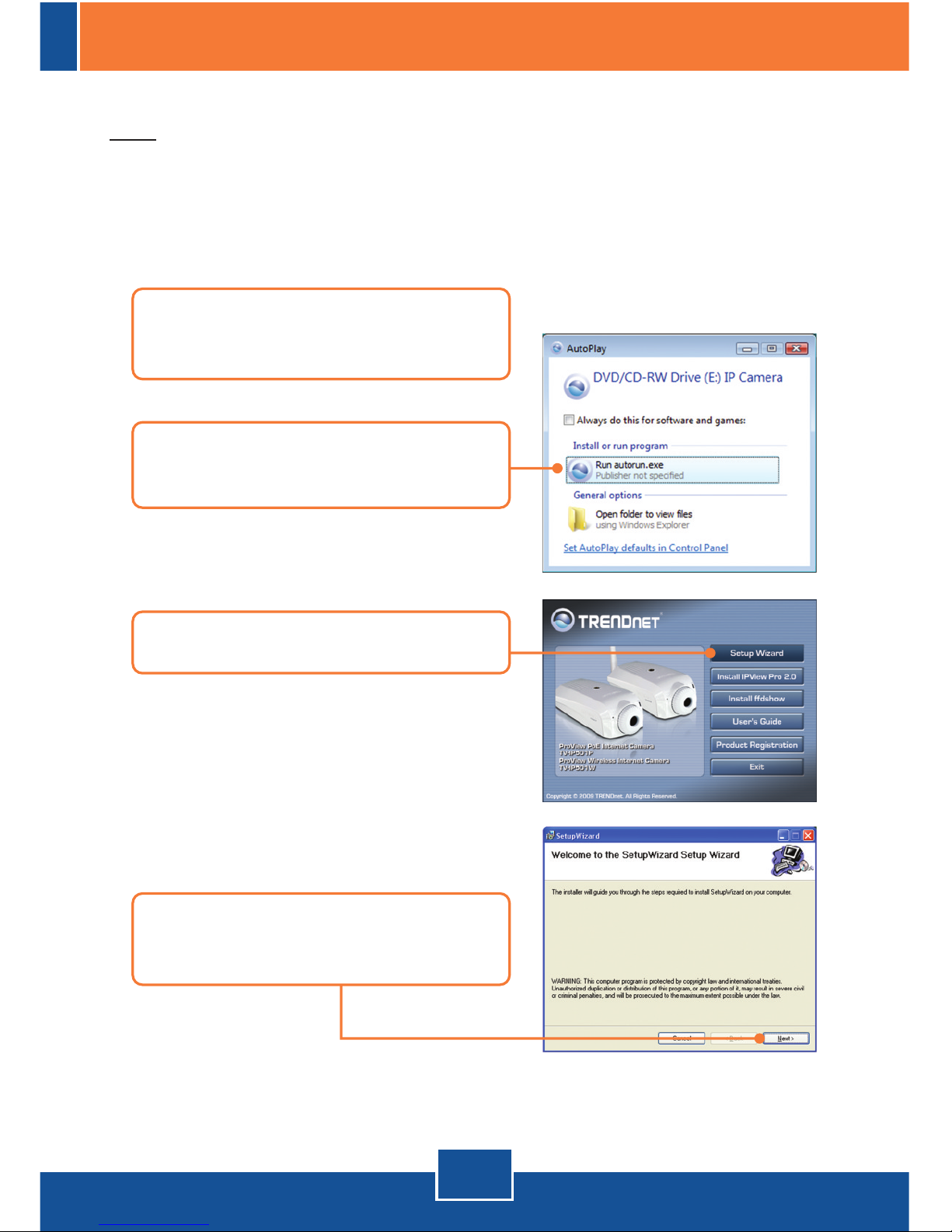

2. Click Run autorun.exe

(Windows Vista only)

3. Click Setup Wizard.

1. Insert the Utility CD-ROM into your

CD-ROM drive.

Note:

1. It is recommended that you configure the IP Camera from a wired computer.

2. If you would like to use IPViewPro 2.0 software, please install the software

by clicking the Install IPView Pro 2.0 in the Autorun window and refer to the

User's Guide on the CD for more information.

4. Click Next. Then follow the Setup

Wizard instructions.

English

8. Connect the AC Power Adapter to

the IP Camera and then to a power

outlet.

6. Double click on the SetupWizard

icon on your desktop.

5. Click Close.

9. Click Next.

7. Connect a RJ-45 network cable

from a Switch/Router to the

Ethernet port on the IP Camera.

10. Select the IP camera and click

Next.

English

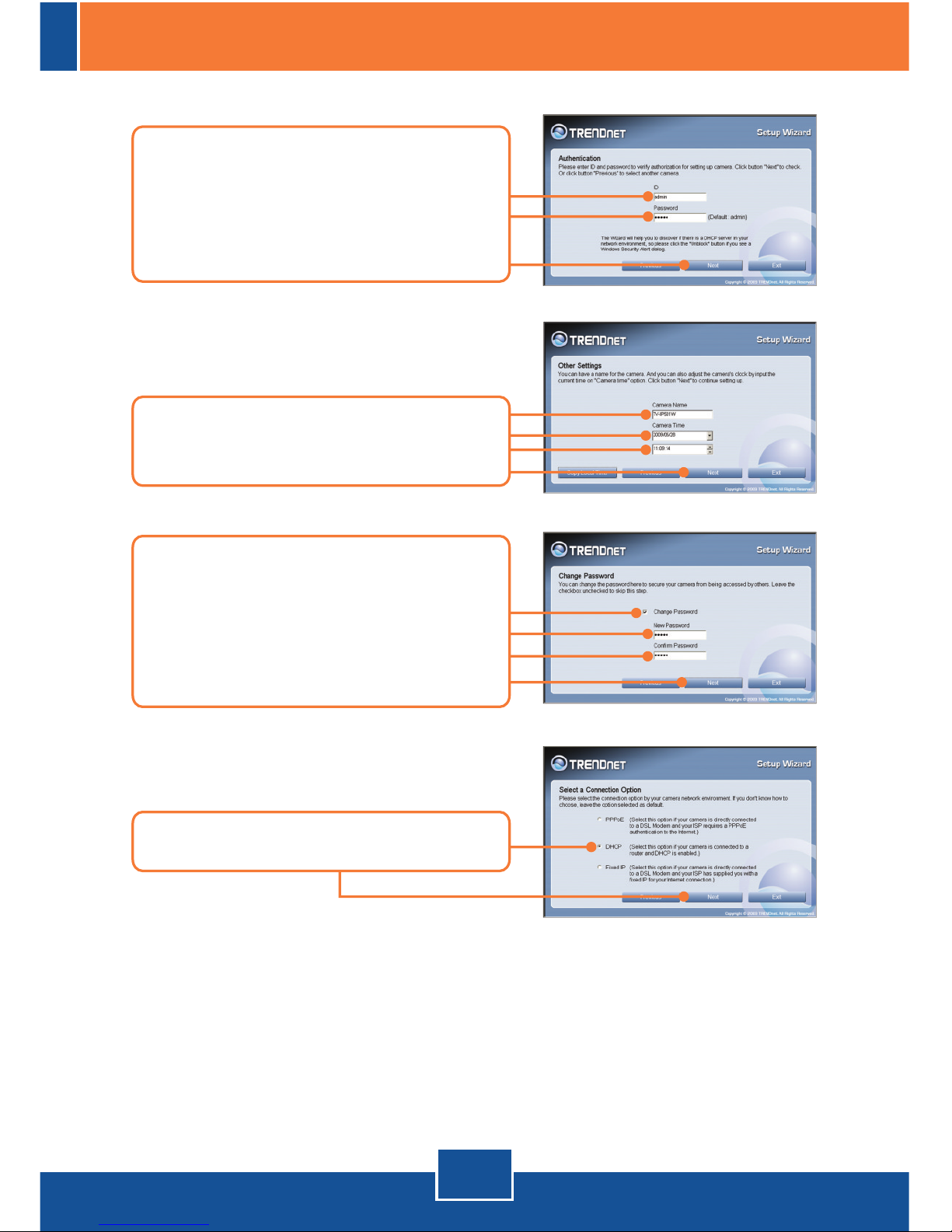

11. Enter your ID and password.

Then click Next. By default:

ID: admin

Password: admin

12. Configure the Camera Name and

Camera Time. Then click Next.

13. If you would like to change the

administrator password, click

Change Password, enter a new

password, retype the new

password and then click Next.

14. Select DHCP and then click Next.

English

16. Select your wireless network from

the dropdown list. The correct

wireless settings will be

automatically configured. If you

have Encryption enabled, please

enter your Encryption Key. Then

click Next.

17. Click Next.

18. Please wait while the settings on

your cameras are being saved.

Note: If you have the TV-IP501P, please skip to step 17. If you have

the TV-IP501W, continue on to step 15.

15. Click I want to use wireless for

the camera and then click Next.

English

20. Disconnect the RJ-45 cable. Wait

a minute and then click Next.

Note: The TV-IP501W will not work wirelessly until you disconnect the

Ethernet cable from the back of the camera

22. Click on the following URL or click

Link to open up the browser

configuration.

21. Please wait a minute while the

TV-IP501W connects to your

wireless router or access point.

19. Select By Using Wireless and

then click Next.

Note: If you have the TV-IP501P, please skip to step 22. If you have

the TV-IP501W, continue on to step 19.

English

24. Click View Video | Active X or

View Video | Java.

25. If you clicked on View Video |

Active X, right click on the

Internet Explorer Information Bar

and select Install ActiveX

Control.

26. Click Install.

23. Enter the User name and

Password, and then click OK.

By default:

User Name: admin

Password: admin
