TRENDnet TE100-H16R Manuale utente

The TE100-H16R is an IEEE 802.3u compliant 100Mbps Fast

Ethernet Class II Stackable Hub. It is designed to overcome

the inherent limitation of two 100Base-TX repeater counts.

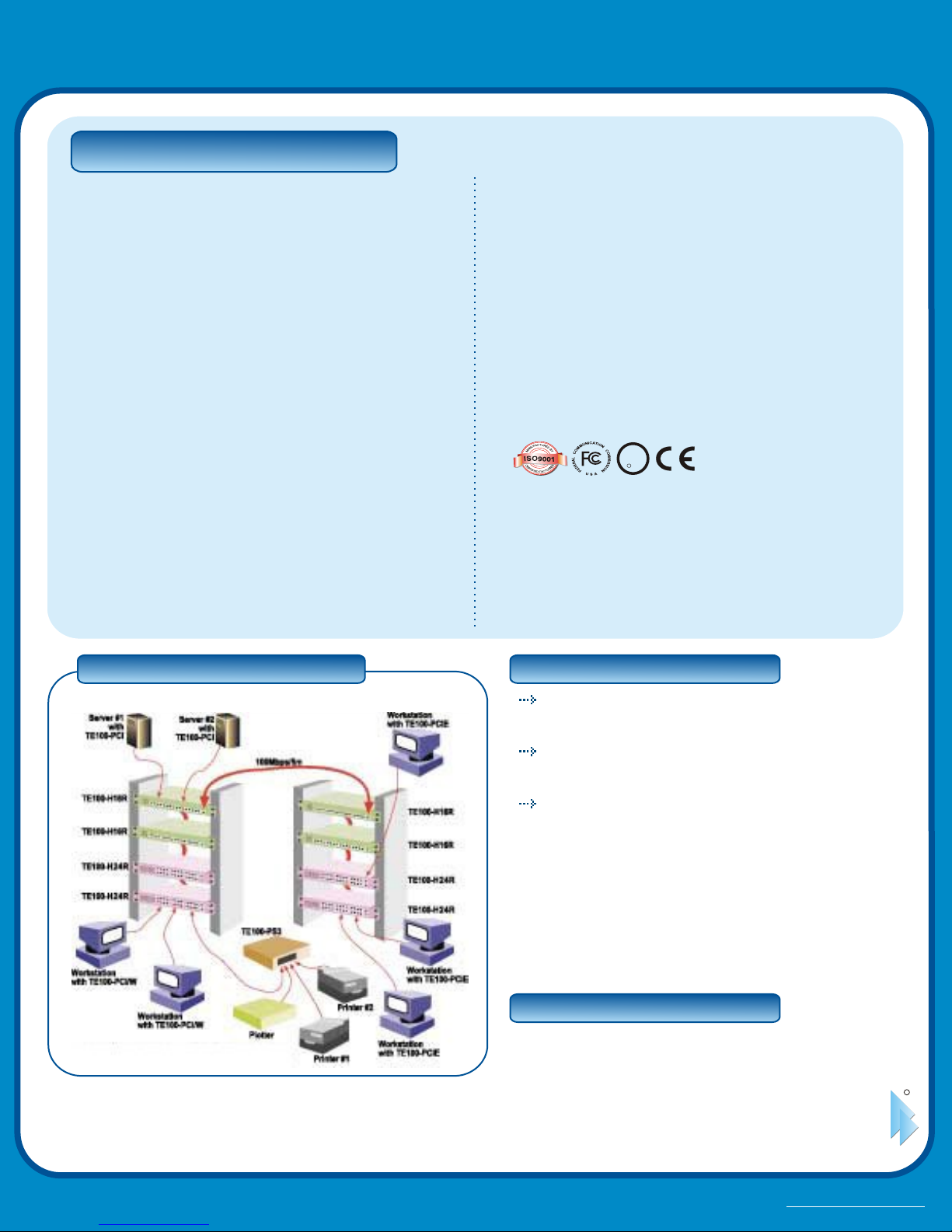

The Fast Ethernet network can be easily expanded by

stacking a total of four TE100-H16R, four TE100-H24R, or any

combination of the two together to increase the number of

ports. The network can be further expanded by linking two hub

stacks together using CAT5 UTP/STP cable or 100BaseFX

SC Multi-Mode Fiber cable with optional Fiber Module. The

TE100-H16R is an excellent choice for the ability to scale

expansion. Users can start with just one hub, then gradually

add in units on a per-needed basis without disturbing the

existing network structure.

TE100-H16R

16-Port 100Base-TX Stackable Fast Ethernet Hubs

Complies with IEEE 802.3u 100Base-TX standard

Supports 16 100Base-TX server/workstation connections

An uplink port (shared with port 16) for easy cascading to

another 100Base-TX device.

Slide-in slot for optional 100Base-FX SC Multi-Mode fiber-

optic module

Per port Activity, Collision LEDs for diagnostic indication

Sturdy all metal housing

19" EIA/IEC Rack-Mountable

100V to 240V, 50~60Hz, automatic voltage selection

5 Year Warranty

FEATURES BENEFITS

Expandable:

Flexible:

Cost Effective:

Versatility:

Performance:

Stack up to 96 users per stack.

16 port model can stack with 24 port

model. Optional Fiber Module connects

network to distance as far as 412 meter.

Low per port price makes Fast Ethernet

affordable.

Can be installed using STP or UTP

cabling.

Full 100Mbps connectivity significantly

boosts network performance.

OPTIONS

Slide-in module for 100Base-FX connections.

TE100-H16R (11-17-2002)

TRENDnet

TRENDware, USA

What's Next in Networking

PRODUCT INFORMATION

To Order Please Call:

1-888-326-6061

TE100-H16R: 16-port 100Mbps Stackable

Fast Ethernet hub

TE100-H24R: 24-port 100Mbps Stackable

Fast Ethernet hub

TE100-HDFXM: Slide-in Multi-mode fiber SC

type module

NETWORKING SOLUTIONS

SPECIFICATIONS

TE100-H16R

16-Port 100Base-TX Stackable Fast Ethernet Hubs

TE100-H16R

16-Port 100Base-TX Stackable Fast Ethernet Hubs

Standards:

• IEEE 802.3µ, 100Base-TX,

IEEE802.3µ, 100Base-FX

Protocol:

• CSMA/CD

Cabling:

• CAT 5, UTP/STP 62.5/125 micron

multimode fiber (half-duplex, 412 Meters)

LED’s:

• Per Hub: Power, FX Link/RX, Activity,

Collision

• Per Port: Link/Rx

Power:

• Internal Power Supply,

(100 - 240V, 50/60Hz)

Dimensions:

• 440 x200 x 44 mm /

17.30" x 7.87" x 1.73" (L x W x H)

Weight:

• 2.33 kg / 5.12 lb

Temperature:

• Operating: -10° to 40° C / 14° to 104° F

• Storage: -20° to 70° C / -4° to 158° F

Humidity:

• Operating: 10% to 90% (non-condensing)

• Storage: 5% to 90% (non-condensing)

Certification:

• FCC, UL, CE

TRENDnet is a registered treademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this

document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit

____________________

http://www.TRENDNET.com.

TRENDware International, Inc.

3135 Kashiwa Street

Torrance, CA. 90505. USA

Tel: 310-891-1100

Fax: 310-891-1111

Web:

Email: [email protected]

www.trendnet.com

ORDERING INFORMATION

TRENDnet

TRENDware, USA
