TRENDnet THA-103AC Manuale utente

ŸHome Smart Switch (with Wireless Extender)

THA-103AC

ŸQuick Installation Guide (1)

THA-103AC (V1) /06.08.2015

1

1. Before You Start

ŸTHA-103AC

ŸQuick Installation Guide

ŸCD-ROM (User’s Guide)

Minimum Requirements

Package Contents

ŸExisting Wireless AC or N network

ŸMobile device (e.g. Smartphone, Tablet) with Android (version 2.3 or higher) or iOS

(version 6.1 or higher)

2

2. WPS Setup with iOS Device

1. For the initial installation, plug the THA-103AC into a power outlet near your router

or access point. Toggle the power switch down to the “On” position, and wait 30

seconds while the unit boots up.

2. Press and hold the WPS button on your router for 5 seconds.

0:05

WPS

3

4. Enable the WiFi settings on your iOS mobile device, and connect to your home

wireless network.

5. Go to the Apple App Store, and search for the TRENDnet Smart Home app, then

install the app. Or, scan the QR code below to download and install the app.

3. Press and hold the WPS button on the THA-103AC. To connect to a 2.4GHz

network, press and hold the button for three seconds and the WPS LED will flash.

To connect to a 5GHz network, press and hold the button for seven seconds, the

WiFi LED will flash. When the LED turns solid, the unit is connected.

2.4GHz

WPS

0:07 5GHz

0:03

6. Open the TRENDnet Smart Home app.

4

7. Tap the Add (+) icon

8. Click LAN Search.

5

9. Select the THA-103AC smart switch.

10. Enter the default password: admin.

11. Tap Done to save the changes.

6

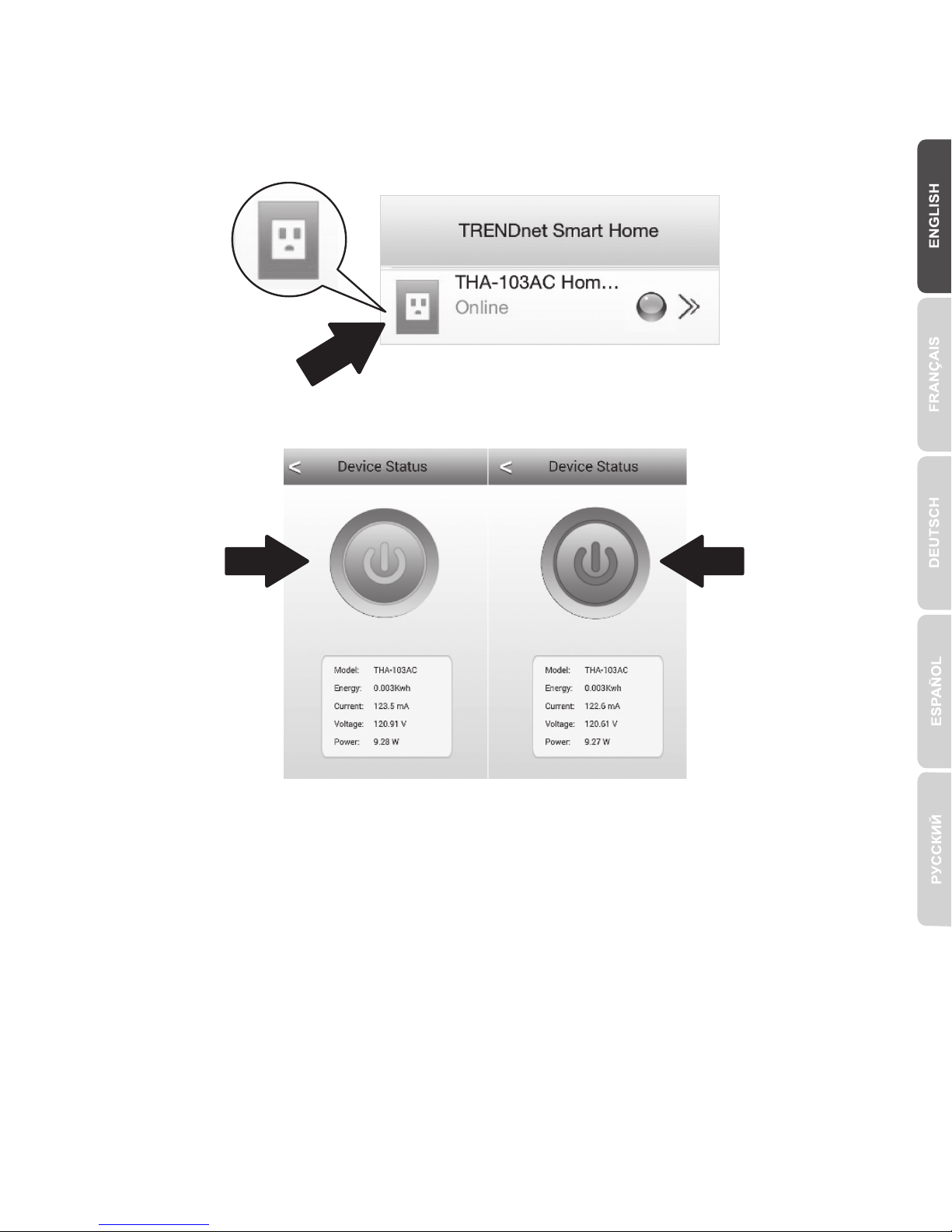

12. Tap on the THA-103AC.

13. Tap the power icon to verify the outlet will turn on/off.

Blue ON Red OFF

14. Wireless extender’s setup is also finished. The THA-103AC can be moved to its

final location. To project the strongest signal from the built-in wireless extender, put

the unit in an area where your mobile device has at minimum three signal bars

from your wireless network.

7

15. Installation is now complete! For detailed configuration information and advanced

settings, Please refer to the User's Guide CD-ROM. Visit www.trendnet.com for

product updates and online support.

Note:

It is recommended that you change your password to ensure your device is secure. To

change the password, open the TRENDnet Smart Home app, and locate your device.

Click on the Device Settings icon, then select Advanced Settings. It is also

recommended that you change your wireless passwords. To do so, please login to the

device's configuration page and adjust your settings under the wireless section.

3. Manual Setup with iOS Mobile Device

8

1. To project the strongest signal from the built-in wireless extender, put the

THA-103AC in an area where your mobile device has at least three signal bars from

your wireless network. Toggle the power switch to the “On” position, and wait 30

seconds while the unit boots up.

2. Go to the Apple App store, and search for the TRENDnet Smart Home app, then

install the app. Or, scan the QR code below to download and install the app.

Note:

Ÿ Manual Setup uses TRENDnet's free app to connect the THA-103AC to your

wireless network.

Ÿ If you have an Android mobile device, skip to the next section, WPS Setup with

Android Device, or Section 5, Manual Setup with Android Device.

9

3. Enable the Wi-Fi settings on your iOS mobile device, and connect to the

THA-103AC.

4. Enter the wireless password and tap Join. The default password is password.

5. Open the TRENDnet Smart Home app.

6. Tap the Add (+) icon
