TRENDnet TK-214i Manuale utente

Quick Installation Guide

TK-214i

1.01

Table of Contents

Version 11.02.2010

English 1

1. Before You Start

2. How to Install 2

3. Operation 3

4. Using the KVM Utility 4

Technical Specifications 10

Troubleshooting 11

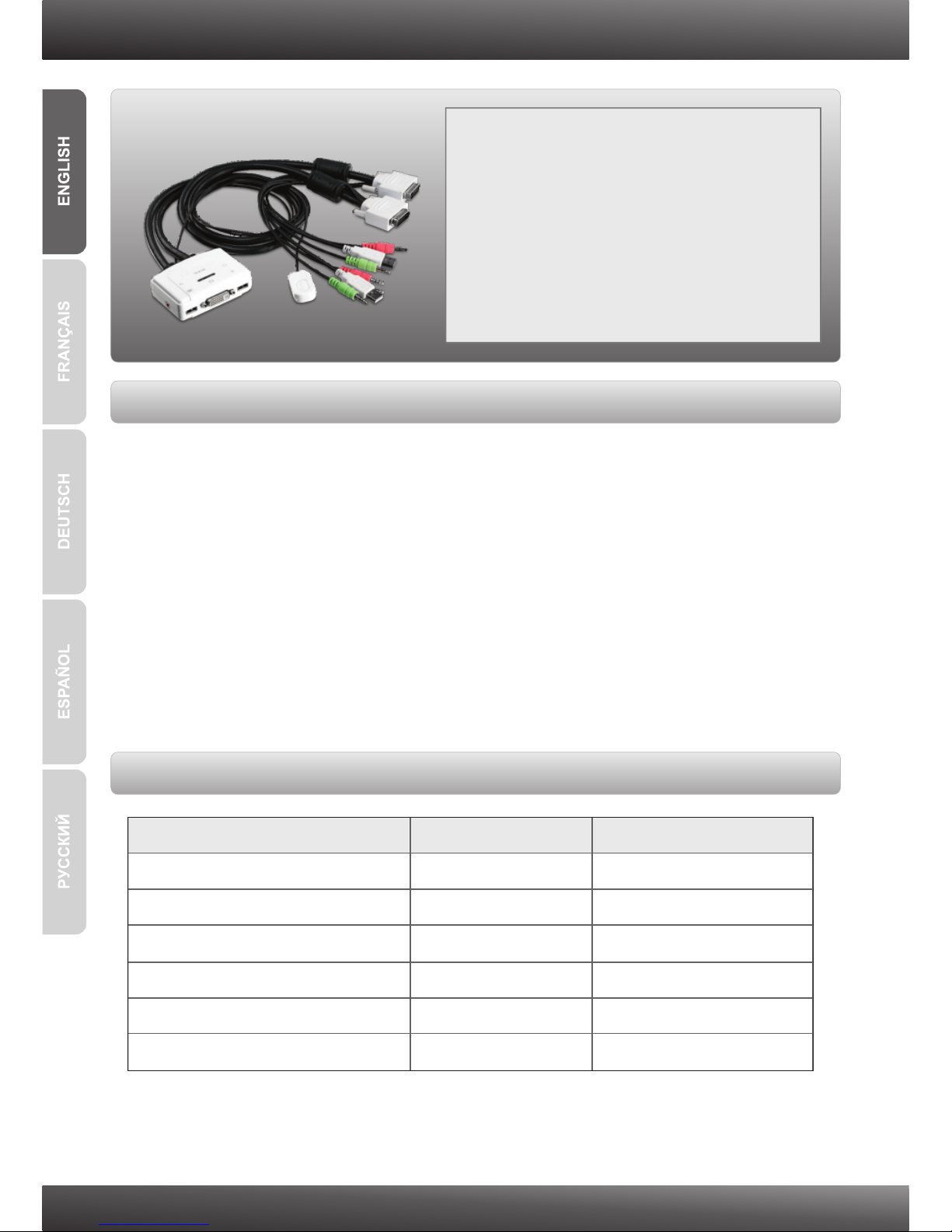

1. Before You Start

ŸUSB Mouse

ŸDVI Compatible Monitor

ŸComputers with DVI-I port

ŸComputers with USB Ports

ŸComputers with 3.5mm audio and microphone connections (optional)

ŸSpeakers (Optional)

ŸMicrophone (Optional)

ŸWindows 7(32/64-bit)/Vista (32/64-bit)/XP (32/64-bit)/2000/2003

Server/ME/98SE, Linux, and Mac OS.

USB Keyboard

Package Contents

ŸMulti-Language Quick Installation Guide

ŸCD-ROM (Utility)

TK-214i

System Requirements

Software Utility Requirements

Supported Operating Systems CPU Memory

Windows 7 (32/64-bit)

Windows Vista (32/64-bit)

Mac OS X (10.6)

Mac OS X (10.4)

Windows XP (32/64-bit)

Mac OS X (10.5)

1GHz or above

800MHz or above

Intel Processor

333MHz or above

300MHz or above

867MHz or above

1GB RAM or above

512MB RAM or above

1GB RAM or above

256MB RAM or above

512MB RAM or above

256MB RAM or above

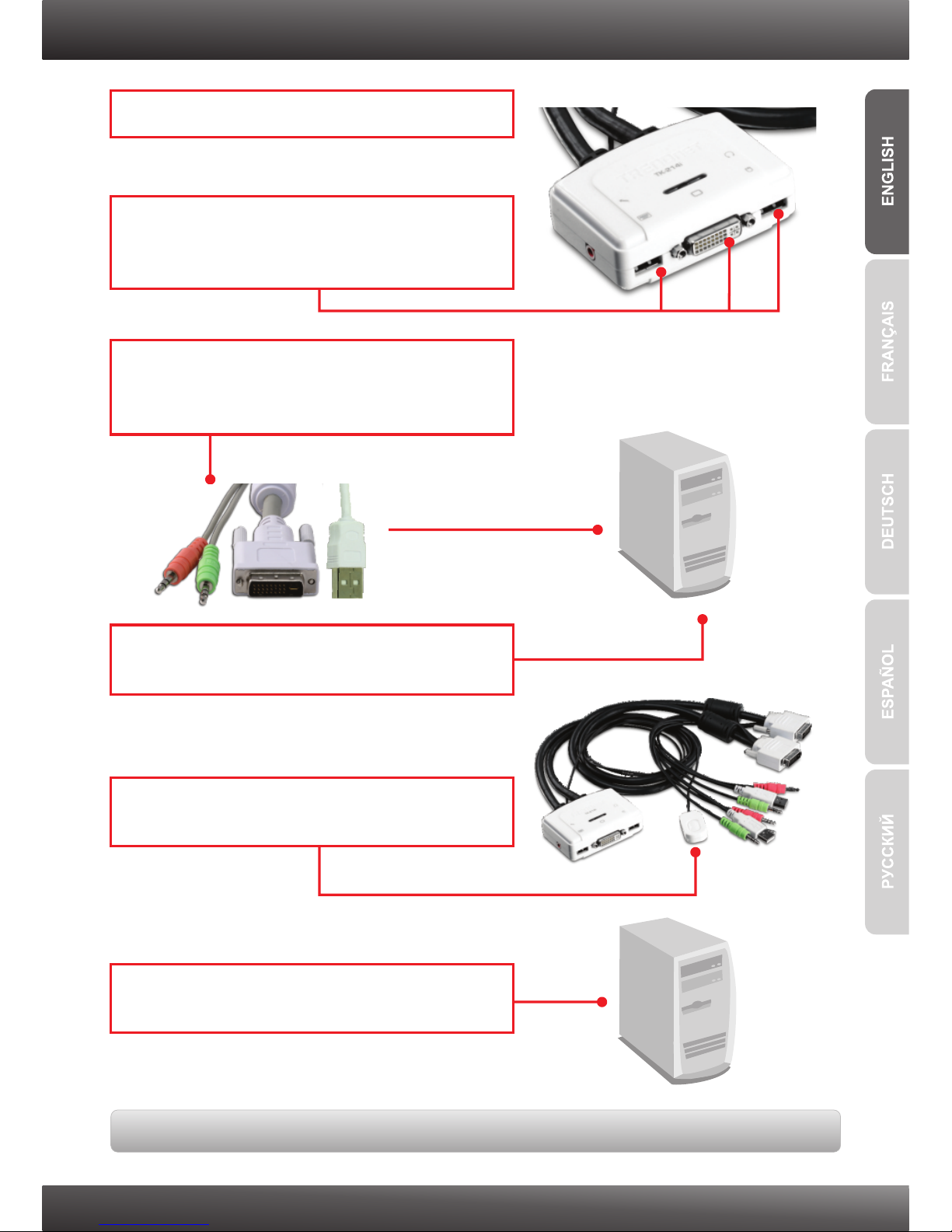

2. How to Installation

1. Properly turn OFF your computers and monitors.

4. Turn ON the first computer and wait until

startup completes.

2. Connect the shared keyboard, monitor, mouse,

speakers (optional) and microphone (optional)

to the KVM Switch's console ports.

To Computer

Computer 1

Computer 2

3. Use the integrated KVM cables and

Audio/Microphone cable (Optional) to connect

your Computer to the KVM Switch.

5. Press the push button on the remote switch to

select the second computer (Optional).

6. Turn ON the second computer and wait until

startup completes.

Your installation is now complete

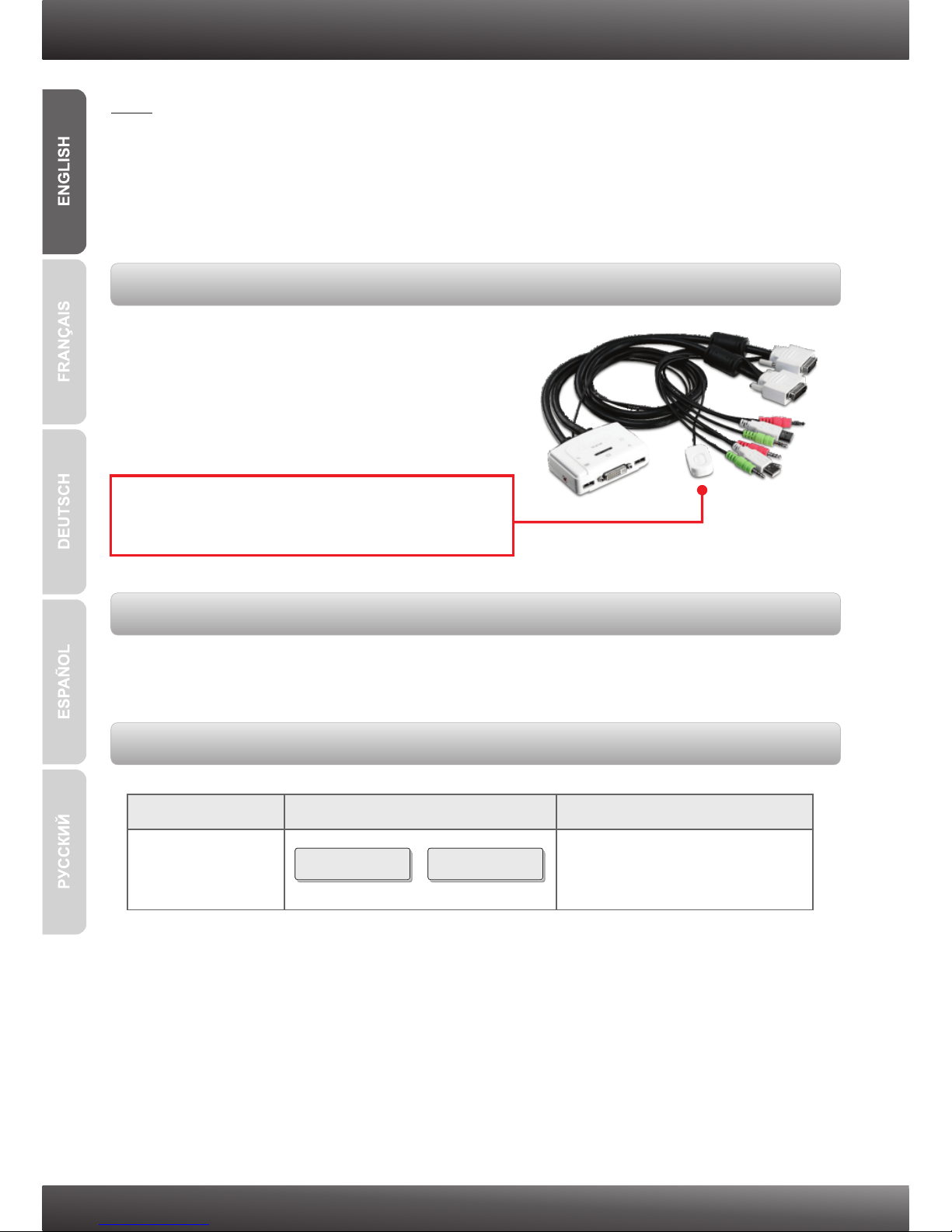

3. Operation

Note:

1.The TK-214i KVM Switch does not require any drivers or software (optional).

2.For Computer switching, you can use the push button switch, a Hot-Key command

sequence via keyboard, or the KVM utility (Windows / Mac OS X (10-.4~10.6) only).

For more information on the KVM utility, please see section 4, Using the KVM Utility.

Installing and using the KVM utility is optional.

Push button switch

Hot-Key Command Sequence

Universal Hot-Key Command

Press the push button switch to swich to the other

computer.

After pressing the Scroll Lock key, you have 2 seconds to press the Scroll Lock key

again. If you do not press a key within 2 seconds, the switch will exit hot-key mode.

Command Hot-Key Description

Select Computer Switch to the other computer

Scroll Lock Scroll Lock

For Windows Users

4. Using the KVM Utility

1. Insert the Utility CD-ROM into your CD-ROM

Drive.

2. Click Run AUTORUN.EXE

(Windows 7/Vista Only)

3. Click Install Utility.

4. Click Next. Then follow the Setup Wizard

instructions.

5. Click Finish.

6. Double click on the USB KVM Switcher icon.

11. Right click on the KVM utility icon in the

system tray. If your computer is connect to

computer 1 port, you should see an icon with

the number 1. If your computer is connected

to computer 2, you should see an icon with

the number 2.

8. Click on the check box for Fix Audio to a port

and then select the port from the dropdown list.

9. Select a desired Auto Scan period (10~60).

Options are in increments of 5 seconds.

10. Once you made all desired changes, then

click OK.

13. Click Start Auto-Scan to start Auto-Scan.

Right click the KVM Utility icon and select

Stop Auto-Scan to stop Auto-Scan.

12. Select the PC that you want to switch to.

7. If you would like to modify the hot key, type in a

character. You can enter any number, letter or

symbol. Control keys such as Alt, Ctrl, Shift,

CAPS LOCK, Tab, Esc, and Num Lock and

function keys cannot be used.

Example: CTRL + ALT + A.

For Mac OS X (10.4~10.6) Users

1. Insert the Utility CD-ROM into your CD-ROM

Drive.

2. Double-click on the TK-214i CD-ROM icon on

your desktop.

3. Double-click on the Macintosh folder.

4. Double-click on on TrendnetUSBKVM

Switcher.pkg.

5. Click Continue.

6. Select a destination and then click Continue.

10. Double click on the Macintosh HD icon.

8. When the Authenticate screen appears, enter

the Name and Password for your computer

and then click OK.

7. Click Install.

9. Click Close.

11. Double click on the Applications icon.

12. Click on Trendnet USB-KVM Switcher.

14. If you would like to modify the hot key, type in

a character. You can enter any number, letter

or symbol. Control keys such as Alt, Ctrl, Shift,

CAPS LOCK, Tab, Esc, and Num Lock and

function keys can not be used.

Example: CTRL + ALT + A.

18. Right click on the KVM Utility icon in the dock.

If your computer is connect to computer 1

port, you should see an icon with the number

1. If your computer is connected to computer

2, you should see an icon with the number 2.

15. Click on the check box for Fix Audio to a port

and then select the port from the dropdown

list.

16. Select a desired Auto Scan period (10~60).

Options are in increments of 5 seconds.

17. Once you made all desired changes, then

click OK.

13. Double click on the USB-KVM Switcher icon in

the Dock. If your computer is connect to

computer 1 port, you should see an icon with

the number 1. If your computer is connected

to computer 2, you should see an icon with

the number 2.
