TRENDnet TK-407K - KVM Switch - USB Manuale utente

TK-207K

TK-407K

Quick Installation Guide

Table of Contents

Deutsch .....................................................................................................

Troubleshooting ........................................................................................

1. Bevor Sie anfangen ...........................................................................

2. Installation .........................................................................................

3. Bedienung .........................................................................................

Table of Contents

Version 03.09.2006

Anwendung

TK-207/TK-407

Anleitung zur Schnellinstallation

Programm-CD

USB-A Tastatur

USB-A Maus

VGA- oder SVGA-kompatibler Monitor

Windows 98SE/ME/2000/XP/2003 Server/Vista, Linux oder Mac OS

Packungsinhalt

Systemanforderungen

1. Bevor Sie anfangen

Deutsch

2 Sätze (TK-207) oder 4 Sätze

(TK-407) USB-KVM-Kabel

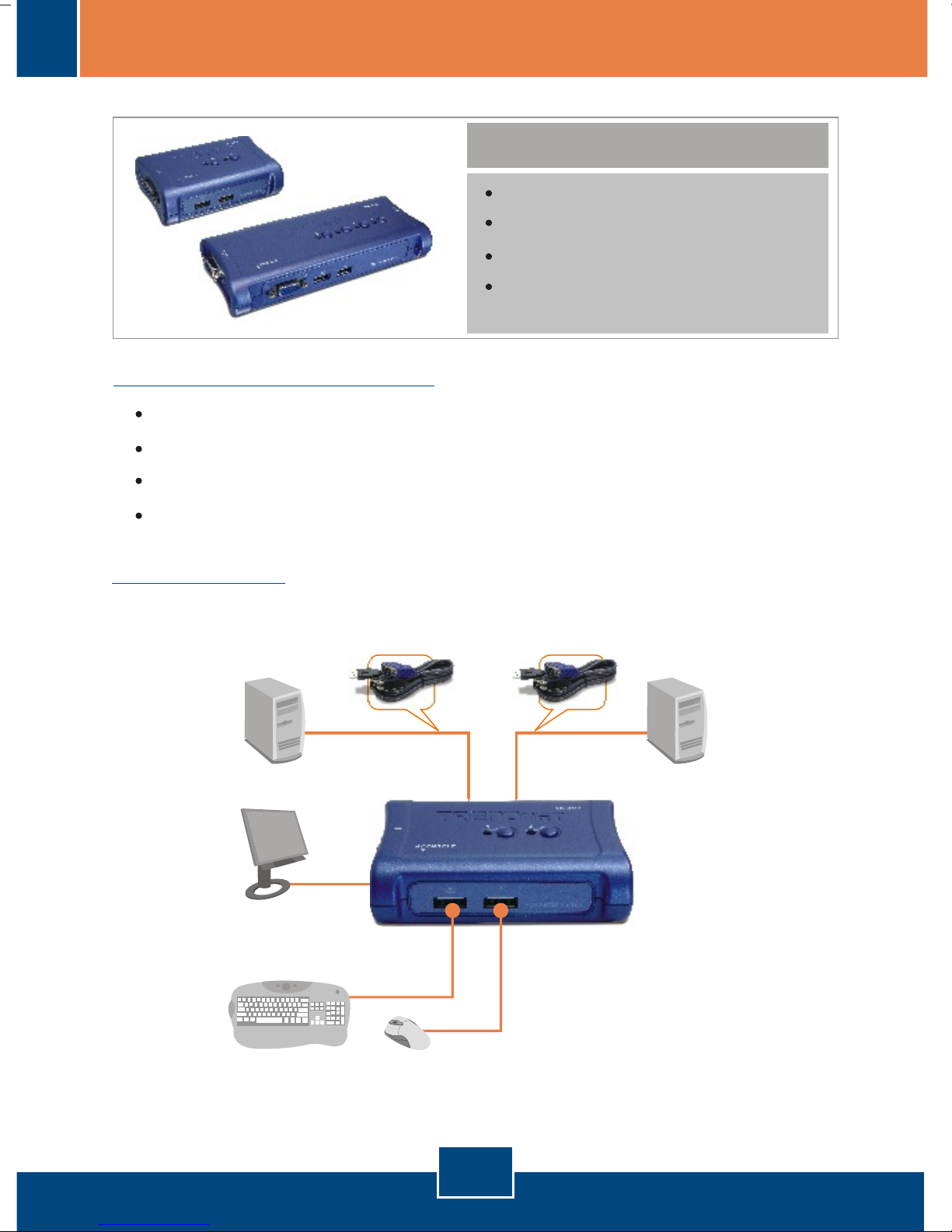

PC 1 PC 2

CableCable

LCD Monitor

USB Keyboard

2/4-Port USB

KVM Switch Kit

(TK-207K/TK-407K)

USB Mouse

PC 1

2. Installation

Deutsch

1. Schalten Sie beide Computer und

die Peripheriegeräte aus und

trennen Sie alle

Stromversorgungskabel ab.

3. Verbinden Sie Ihren PC über die

mitgelieferten KVM-Kabel mit

Ihrem KVM-Umschalter.

2. Verbinden Sie die gemeinsam

genutzte Tastatur, den Monitor und

die Maus mit dem Konsolen-Port

des KVM-Umschalters.

Hinweis: Der USB-KVM-Umschalter TK-207/TK-407 benötigt weder spezielle

Treiber noch eine eigene Software.

4. Schalten Sie den ersten Computer

EIN und warten Sie, bis der

Systemstart abgeschlossen ist.

Deutsch

5. Drücken Sie die Taste auf der

Vorderseite des KVM-Umschalters,

um zum zweiten Computer zu

wechseln. (Optional)

PC 2

6. Schalten Sie den zweiten

Computer EIN und warten Sie, bis

der Systemstart abgeschlossen ist.

Ihre Installation ist beendet!

Registrieren Sie Ihr Produkt

Nehmen Sie sich bitte einen Moment Zeit und registrieren Sie Ihr Produkt online, so

dass Sie unsere umfassenden Support- und Kundendienstleistungen in Anspruch

nehmen können: www.TRENDnet.com/register

Vielen Dank für den Kauf eines TRENDnet-Produkts

Deutsch

3. Bedienung

Hinweis: Zum Umschalten zwischen den PCs können Sie die Tasten auf der

Vorderseite des KVM-Umschalters, eine Tastenkombination auf der Tastatur

oder das Umschaltprogramm (nur mit Windows) verwenden. Weitere

Informationen zum Umschaltprogramm finden Sie in der Bedienungsanleitung

auf der CD.

Sobald Sie die ScrLk-Taste (ROLLEN-Taste) gedrückt haben, müssen Sie die

Taste innerhalb von 2 Sekunden nochmals drücken. Wenn Sie innerhalb von 2

Sekunden keine Taste drücken, wird die Tastenkombination nicht wirksam.

Tasten auf der Vorderseite des Umschalters

Tastenkombination

Drücken Sie auf die entsprechende

Taste auf der Vorderseite, um den

gewünschten PC auszuwählen.

Allgemeine Tastenkombination

Befehl Tastenkombination Beschreibung

PC auswählen ScrLk ScrLk

+Wählt den aktiven PC-Kanal aus:

PC-Kanal 1 oder PC-Kanal 2.

Troubleshooting

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

Q5:

A5:

Where is the power supply? I did not find one in the box.

The TK-207 or TK-407 do not require a power supply. It draws power from your

computer’s USB connections. As long as your KVM switch is connected to the USB port, it

will receive the necessary power to function.

I have the KVM switch connected properly, but my keyboard and mouse don’t work.

First, make sure your computer’s USB port is working properly by testing it with your

other USB devices. Second, once you confirm that the computer’s USB port is functional,

please reboot all computers, and try to use the KVM switch again. Third, if your computer is

running Windows 98SE, you may need to download and install the USB hot fix. Please go to

this link for download and installation instructions: http://support.microsoft.com/kb/q240075.

Once the hot fix is installed, follow the installation instructions in Section 2.

Can I connect and disconnect the USB cables while the computers are turned on?

Yes, you can connect or disconnect the USB cables while the computers are turned on,

because the USB interface is Plug-and-Play and Hot-Pluggable.

Will the KVM switch remember the keyboard settings between computers?

Yes, the KVM switch will remember the keyboard settings when switching between your

computers. (i.e.: Cap lock, Num Lock, etc.)

How do I switch from one computer to another with the KVM switch?

PC User: Push Buttons, Universal Hot-Key Commands or Client Switching Software

Mac User: Push Buttons

Linux User: Push Buttons, Universal Hot-Key Commands

If you still encounter problems or have any questions regarding the TK-207K/TK-407K, please

contact TRENDnet’s Technical Support Department.

Limited Warranty

TRENDnet warrants its products against defects in material and

workmanship, under normal use and service, for the following lengths of

time from the date of purchase.

TK-207K/TK-407K - 2-Year Warranty

If a product does not operate as warranted above during the applicable

warranty period, TRENDnet shall, at its option and expense, repair the

defective product or part, deliver to customer an equivalent product or

part to replace the defective item, or refund to customer the purchase

price paid for the defective product. All products that are replaced will

become the property of TRENDnet. Replacement products may be new

or reconditioned.

TRENDnet shall not be responsible for any software, firmware,

information, or memory data of customer contained in, stored on, or

integrated with any products returned to TRENDnet pursuant to any

warranty.

There are no user serviceable parts inside the product. Do not remove

or attempt to service the product by any unauthorized service center.

This warranty is voided if (i) the product has been modified or repaired

by any unauthorized service center, (ii) the product was subject to

accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet office within

the applicable warranty period for a Return Material Authorization (RMA)

number, accompanied by a copy of the dated proof of the purchase.

Products returned to TRENDnet must be pre-authorized by TRENDnet

with RMA number marked on the outside of the package, and sent

prepaid, insured and packaged appropriately for safe shipment.

WARRANTIES EXCLUSIVE: IF THE TRENDnet PRODUCT DOES NOT

OPERATE AS WARRANTED ABOVE, THE CUSTOMER'S SOLE

REMEDY SHALL BE, AT TRENDnet'S OPTION, REPAIR OR

REPLACEMENT. THE FOREGOING WARRANTIES AND REMEDIES

ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES,

EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF

LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TRENDnet NEITHER ASSUMES NOR AUTHORIZES ANY OTHER

PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN

CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR

USE OF TRENDnet'S PRODUCTS.

TRENDnet SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS

TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED

DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY

CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT,

IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED

ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE

BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT,

FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW

TRENDnet ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY

LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING

NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT,

SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF

REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF

INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT

OF OR IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION

OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY

TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE

PAID, AT TRENDnet’S OPTION. THIS DISCLAIMER OF LIABILITY FOR

DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED

HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of

the state of California.

AC/DC Power Adapter, Cooling Fan, Cables and Power Supply carry a

1 Year Warranty

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received. Including interference that may

cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Waste electrical and electronic products must not

be disposed of with household waste. Please

recycle where facilities exist. Check with you Local

Authority or Retailer for recycling advice.

ADVERTENCIA

En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de alimentacón

necesario para su funcionamiento. El uso de un adaptador distinto al mencionado puede producir

daños fisicos y/o daños al equipo conectado. El adaptador de alimentación debe operar con voltaje y

frecuencia de la energia electrica domiciliaria existente en el pais o zona de instalación.
