TRENDnet TEW-210APB Manuale utente

TEW-210APB Wireless

Multi-mode AP

User Manual

Version 1.7.4.5 – Apr 2002

No part of this publication may be reproduced, stored in a retrieval system, or

transmitted in any form or by any means, whether electronic, mechanical,

photocopying, recording, or otherwise without the prior writing of the publisher.

Printed in Taiwan, April 2002

1. Contnets

1 Contents........................................................ 2

2 Introduction .................................................. 3

3 Installation .................................................... 4

4 SNMP Features............................................. 5

4.1 How to install and launch the SNMP Manager......6

4.2 How to change the IP Address..............................8

4.3 Managing Security................................................9

4.4 Advanced Setting.................................................10

4.5 Access Control………………………………………12

4.6 Change community string ...................................13

4.7 Reset device …....…………………………………..14

5 Technical Specifications TEW-210APB.... 15

5.1 Standard Specifications ......................................15

5.2 Environmental.....................................................15

5.3 Power Specifications...........................................15

5.4 Radio Specifications ...........................................15

5.5 Specific Features................................................15

5.6 Physical dimensions ...........................................16

2. Introduction

Thank you for purchasing our TEW-210APB Wireless LAN Access Point. This

manual will assist you with the installation procedure.

The package you have received should contain the following items:

• User manual

• TEW-210APB Access Point

• Power adapter

• SNMP utility CD

Note: if anything is missing, please contact your vendor

A wireless LAN is normally used in a predefined environment. In such a

network, Access Points are mounted at assigned places, each covering its

own area in which wireless nodes can operate. TheseAccess Points are

connected to a wired network to communicate with each other and with

servers and clients on that network.

The TEW-210APB Access Point can be connected to a 10/100 Mbps Ethernet

network through a RJ45 (UTP) connector.

Notice:

This version of the TEW-210APB supports AP and Bridging features. The

Client APfeature is not supported. For more information, please contact

Trendware technical support service. Thank you.

3. Installation

1. Mount the Access Point firmly to the wall or proper location that is

determined during the site survey.

2. Make sure the antennas are in a vertical position (if not, rotate over 90

degrees).

3. Insert the power connector.

4. Attach the UTP Ethernet cable to the Access Point.

At the front of the Access Point you will see three LEDs.

If all goes well, the middle LED (power) and the lowermost LED(LINK) will fire

and uppermost LED(ACT) will flash whenever there is traffic on the respective

networks which is at least ten times per second for the wireless LAN because

of so-called ‘beacons’.

You can reset the Access Point’s settings to factory defaults by pushing a

paperclip in the little hole next to the power connector.

4. SNMP Features

You can make use of SNMP utility software for connect TEW-210APB which

you want to manage.

Supported features:

• Restrict the authority of user to access WLAN and this unit.

• Support IEEE 802.11 WEP encryption.

• Optimizing the radio configuration via assign the independent spectrum.

• Access Control and WEP encryption for network security.

• Support powerful multi mode function in a same unit.

• Access control table implemented via import or export with text file.

4.1 How to install and launch the SNMP Manager

There is a CD which enclosed in this product. The SNMP software can be

found on this CD. Please install the SNMP Manager on your pc and change the

IP address of your pc into 192.168.5.xxx subnet for TEW-210APB configuration.

The default IP of TEW-210APB is 192.168.5.100.

To make sure your pc and TEW-210APB whether in a same subnet and the

connection is well, you can do a test via “ ping “ command. For example, you

can employ the following command “ ping 192.168.5.100 “ to check this

connection is ok or not.

After launched the SNMP Manager, Please click the “ Find Access Point ”

which under the “ File “ tab for available AP searching. While find the available

AP then press the “ connect ” button. Below is a figure for a reference.

After completed the modified setting, please remember to save the result via

click the “ Download Changes “ which under the “ File “ tab.

Figure 1

4.1-2

When you got the available AP and press the connect button, there is a pop

out window will come out. You should import the community string and assign

a role for administration. The default community string is “ public “ and the

Authority need to be a “ Administrator “. Please refer to the Figure 2.

Notice: The capital letters and lowercase letters need to be differentiated.

Figure 2

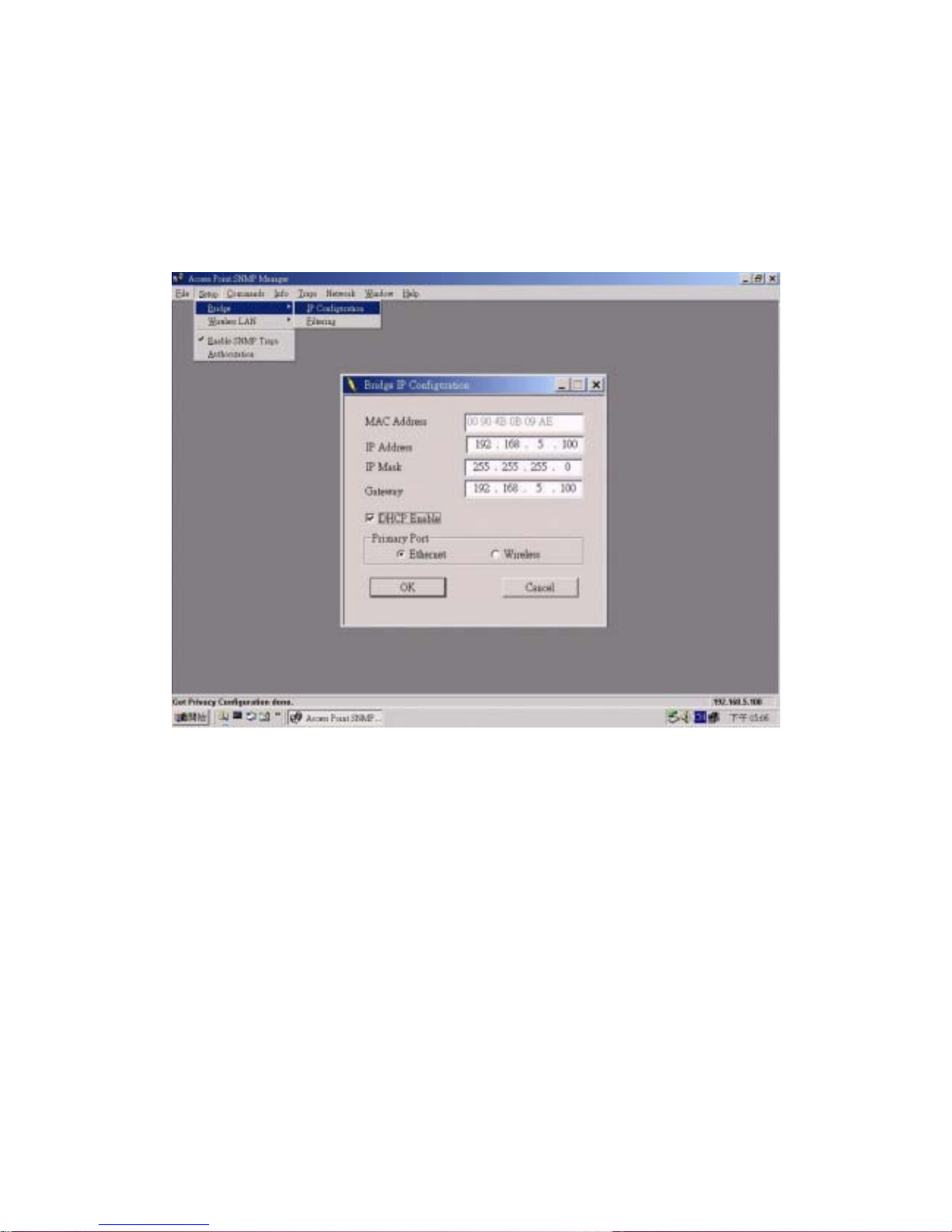

4.2 How to change the IPAddress

If you wish to change the default IP address of TEW-210APB, please click the

tab “ Setup ““ Bridge ““ IP configuration “ as Figure3. With this table,

please change the IP address what you expected.

Figure 3

 IP Address : Please assign an unique IP address for this unit.

 IP Mask : Please specify the proper subnet mask for this unit.

 Gateway : There is a portal for packet incoming or outgoing which need

to routing process.

 DHCP Enable : The preferred method of providing IP addresses for your

Access Points is applying a DHCP server in your network. If you do and

enable this setting, the Access Points will acquire an IP address

automatically from this server.

 Primary Port: The major communication portal for configuration.

4.3 Managing Security

Maintaining security in a wireless LAN environment is somewhat different from

a wired network, because the radio waves do not stop at your office walls.

Eavesdropping or unauthorized access from outside and your building can be

a serious threat.

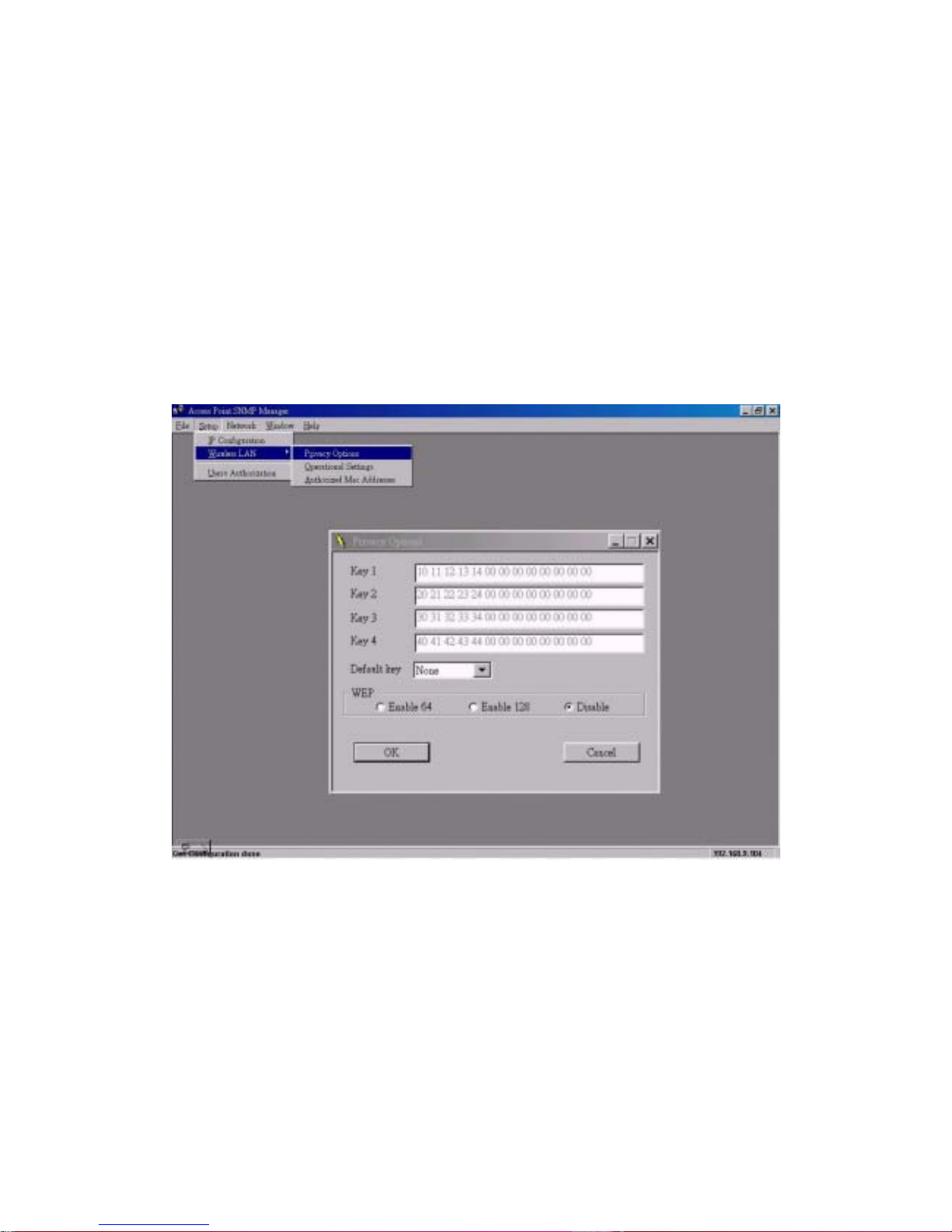

If you wish to enable the Privacy Options function, please click the

“ Setup ““ Wireless LAN ““ Privacy Options “ and choose the encryption

method. The encryption key should follow the hexadecimal format. The

characters are only included “0” to “9” and “a” to “f”.

Figure 4

4.4 Advanced setting

You can change the settings such as ESSID, channel, operational mode and

so on via the advanced setting. To click the “ Setup ” ” Wireless LAN “

“ Operational Settings “ . Regarding the detail setting and parameters, it will

show on the following table. You can assign the proper parameters to this unit

for good performance.

Figure 5

 Access Point Name: The device name.

 ESSID: Extended Service Set Identifier (Wireless Network Identifier) is

the group name that will be shared by every member of your wireless

network. You will only be able to connect with an Access Point , which

has the same ESS ID.

 Channel: The channel selection. Via the setting to assign the proper

channel for AP.

 Fragmentation Threshold: The parameters of fragmentation.(default

value: 2346)

 RTS Threshold: The parameters of RTS setting.(default value: 2346 )

 Authentications Type:

Open System: Open System is the default authentication algorithm.

Open System authentication is not required to be successful while a STA
