TRENDnet TEW-510APB Manuale utente

User’s Guide 1

User’s Guide 2

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means,

whether electronic, mechanical, photocopying, recording, or otherwise without the prior writing of the publisher.

MAY. 2005

User’s Guide 3

Contents

1. Introduction.................................................................................................................4

2. Safety Notification....................................................................................................... 5

3. Hardware Installation.................................................................................................. 6

4. How to Configuring the Dual Band AP........................................................................ 9

4.1 Setup – Network Setup........................................................................................... 10

4.2 Wireless – Wireless Settings....................................................................................11

4.3 Wireless – Wireless Mode....................................................................................... 13

4.4 Wireless MAC Filter ................................................................................................ 14

4.5 Wireless – Wireless Security................................................................................... 15

4.6 Wireless – Advanced Wireless Settings.................................................................. 16

4.7 Administration – Management................................................................................. 19

4.8 Administration – Reboot AP .................................................................................... 20

4.9 Administration – Firmware Upgrade........................................................................ 21

4.10 Administration – Factory Defaults ......................................................................... 22

4.11 Status – Local Network.......................................................................................... 23

4.12 Status – Wireless Network.................................................................................... 24

4.13 Status – Wireless Statistics................................................................................... 25

5. Troubleshooting – Q & A........................................................................................... 26

User’s Guide 4

1. Introduction

Thank you for purchasing your 108Mbps 802.11a/g Wireless Access Point.

This user guide will assist you with the installation procedure.

The package you have received should contain the following items:

Wireless 802.11ag AP

Quick Installation Guide

User Manual CD-ROM

Dual Diversity Antennas

External Power Adapter (5V, 2.5A)

RJ-45 Network Cable

Note: if anything is missing, please contact your vendor

User’s Guide 5

2. Safety Notification

Your Wireless AP should be placed in a safe and secure location. To ensure proper operation, please keep the unit away

from water and other damaging elements. Please read the user manual thoroughly before you install the device.

The device should only be repaired by authorized and qualified personnel.

Please do not try to open or repair the device yourself.

Do not place the device in a damp or humid location, i.e. a bathroom.

The device should be placed in a sheltered and non-slip location within a temperature range of +5 to +40 Celsius

degree.

Please do not expose the device to direct sunlight or other heat sources. The housing and electronic components may

be damaged by direct sunlight or heat sources.

User’s Guide 6

3. Hardware Installation

Front Panel

The front panel provides LED’s for device status. Refer to the following table for the meaning of each feature.

Power The Power LED lights up and will keep while the AP is powered on. When the AP goes through its self-

diagnostic mode during every boot-up, this LED will flash. When the diagnostic is complete, the LED

will be lit continuously.

11a The 11a LED flashes when there is a successful Wireless-A connection.

11g The 11g LED flashes when there is a successful Wireless-G connection.

Ethernet The Ethernet LED lights up when Ethernet port of AP was connected to LAN. When the LED is flashing

that indicates the network activity over that port.

User’s Guide 7

Rear Panel

The rear panel features 1 Ethernet port, Reset button and Power port. Refer to the following table for the meaning of

each feature.

RESET Button The RESET button can restore device to factory default settings by press this button for approx. 10

seconds during device power on status.

Ethernet The port connects the AP to your networked PCs and other Ethernet network devices.

Power The POWER port is where you will connect the power adapter.

AP Default Settings

User

Password admin

IP Address 192.168.1.250

Subnet Mask 255.255.255.0

RF ESSID A band: wlan-a G band: wlan-g

Channel A band: Auto G band: 6

Mode G band: Mixed

Encryption Disabled

DHCP Server Enabled

RESET Ethernet Power

User’s Guide 8

Hardware Installation for Connection to Your local network

1. Power off your network devices.

2. Locate an optimum location for the AP. The best place for the AP is usually at the center of your wireless network,

with line of sight to all of your wireless devices.

3. Adjust the antennas. Normally, the higher location of your AP will get better the performance.

4. Using a standard Ethernet network cable, connect the AP’s Internet port to your broadband modem.

5. Connect your network PCs or Ethernet devices to the AP’s LAN ports using standard Ethernet network cabling.

6. Connect the AC power adapter to the AP's Power port. Then connect the other end to an electrical outlet. Only use

the power adapter supplied with the AP. Use of a different adapter may cause product damage.

7. The Hardware installation is completed, please refer to the following content for AP configuration.

User’s Guide 9

4. How to Configuring the Dual Band AP

START UP & LOGIN

In order to configure the Wireless 11ag AP, you must use web browser and manually input http://192.168.1.250 into the

Address box and press Enter. The Main Page will appear.

In order to configure the Wireless 11ag AP, you must input the password into the Password box and leave blank on the

User Name box. The default password is “admin”.

Once you have logged-in as administrator, it is a good idea to change the administrator password to ensure a secure

protection to the Wireless 11ag AP. The Security Settings section described later in this manual describes how to change

the password.

Once you have input the correct password and logged-in, the screen will change to the Setup page screen.

TURN ON POWER SUPPLY

Quick power cycle would cause system corruption. When power on, be careful not to shut down in about 5 seconds,

because data is writing to the flash.

User’s Guide 10

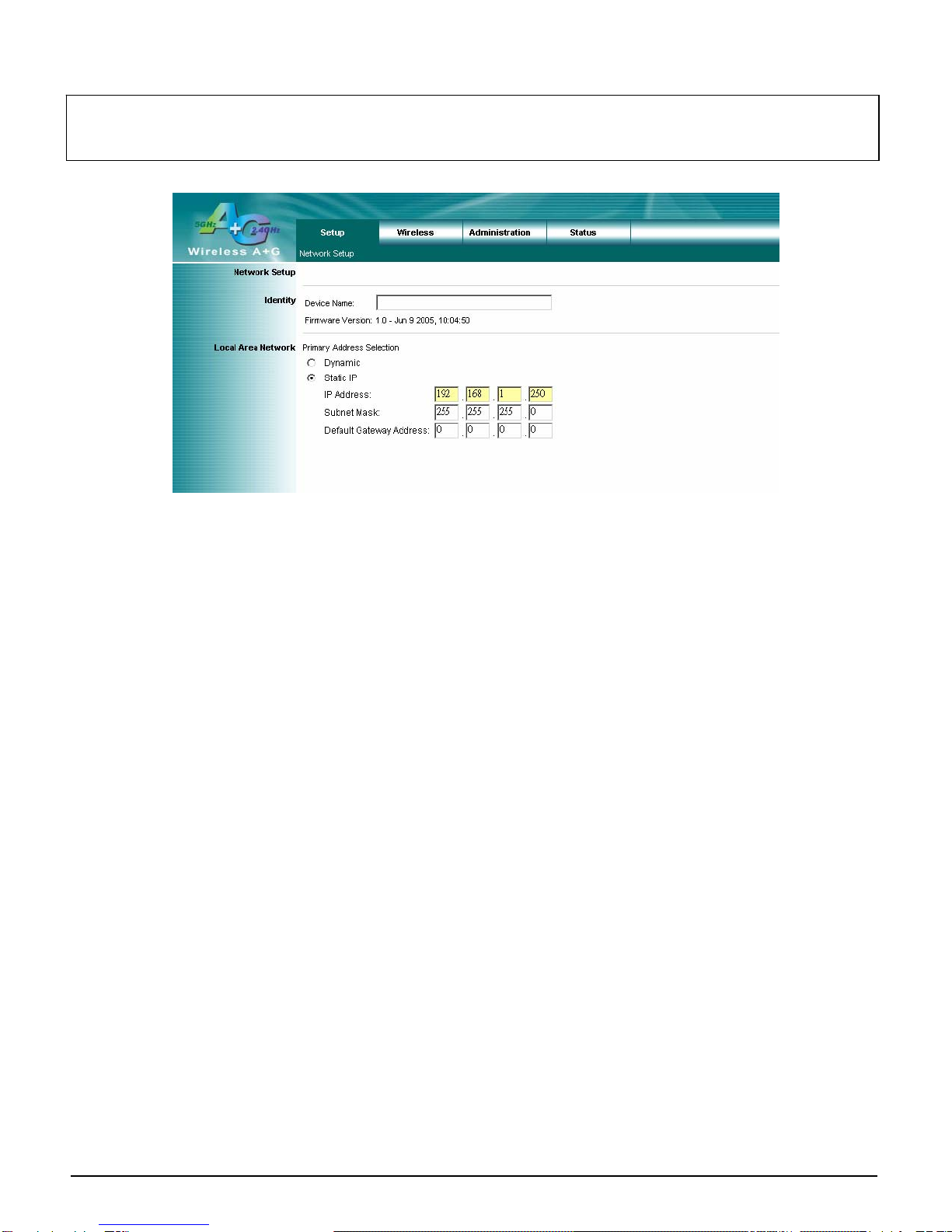

4.1 Setup – Network Setup

This following screen contains all of the AP's basic setup functions.

Most users will be able to configure the AP and get it working properly using the default settings.

Network Setup

Identity

Device Name: These fields allow you to input a host name for the AP.

Local Area Network

♦Dynamic: If your LAN supports DHCP assigning dynamic IP address then please select this type.

♦Static IP:

This is the default connection type. If you are required to use a fixed IP address to connect to the LAN, then

select Static IP.

IP Address: This is the AP’s IP address.

Subnet Mask: This is the AP’s Subnet Mask.

Default Gateway: This is the AP’s Gateway Address.

Those above items can be adjusted that depends on real network architecture if it is necessary.

Change these settings as described here and click the Apply button to apply your changes or click Cancel to cancel your

changes. For additional information, click Help.

MAKE CORRECT NETWORK SETTINGS OF YOUR COMPUTER

To change the configuration, use Internet Explorer (IE) or Netscape Communicator to connect the WEB management

192.168.1.250.
