TRENDnet TEW-411BRP Manuale utente

0 0

English

TEW-411BRP

Wireless 802.11g AP Router

Quick Installation Guide

Version 1.1

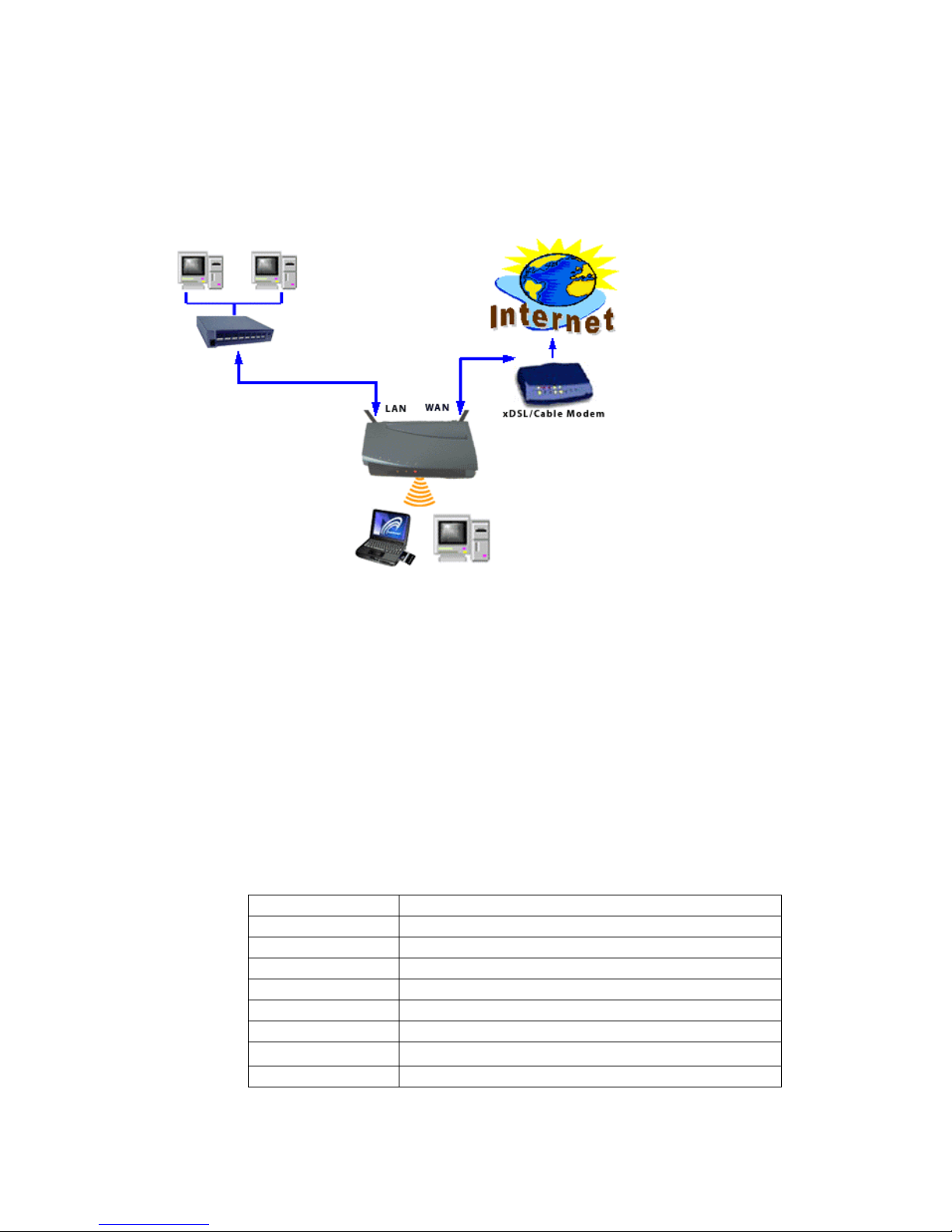

General Wireless AP System Connection

The general function of Wireless AP Router is defined as an “AP + Router”,

and the connection is as following diagram.

Plug in the power supply. The power LED will turn on to indicate power

operation.

User may connect the WAN port to Cable / DSL modem. The WAN LED

will indicate the connection.

Connect the LAN ports to computers that need to link to Intranet (your

network) or Internet. On the AP Router, it provides 4 LAN ports. If more

computers need to join the network, you can connect an Ethernet Switch

to the Router’s LAN port to expand the network capacity.

The Wireless Interface can easily manage 30 wireless clients and

workstations simultaneously.

AP Router’s Default Settings

User Name (no user name)

Password admin

IP Address 192.168.1.1

Subnet Mask 255.255.255.0

ESSID wlan-g

Channel 6

Mode 11b+g

Encryption Disabled

DHCP Server Enabled

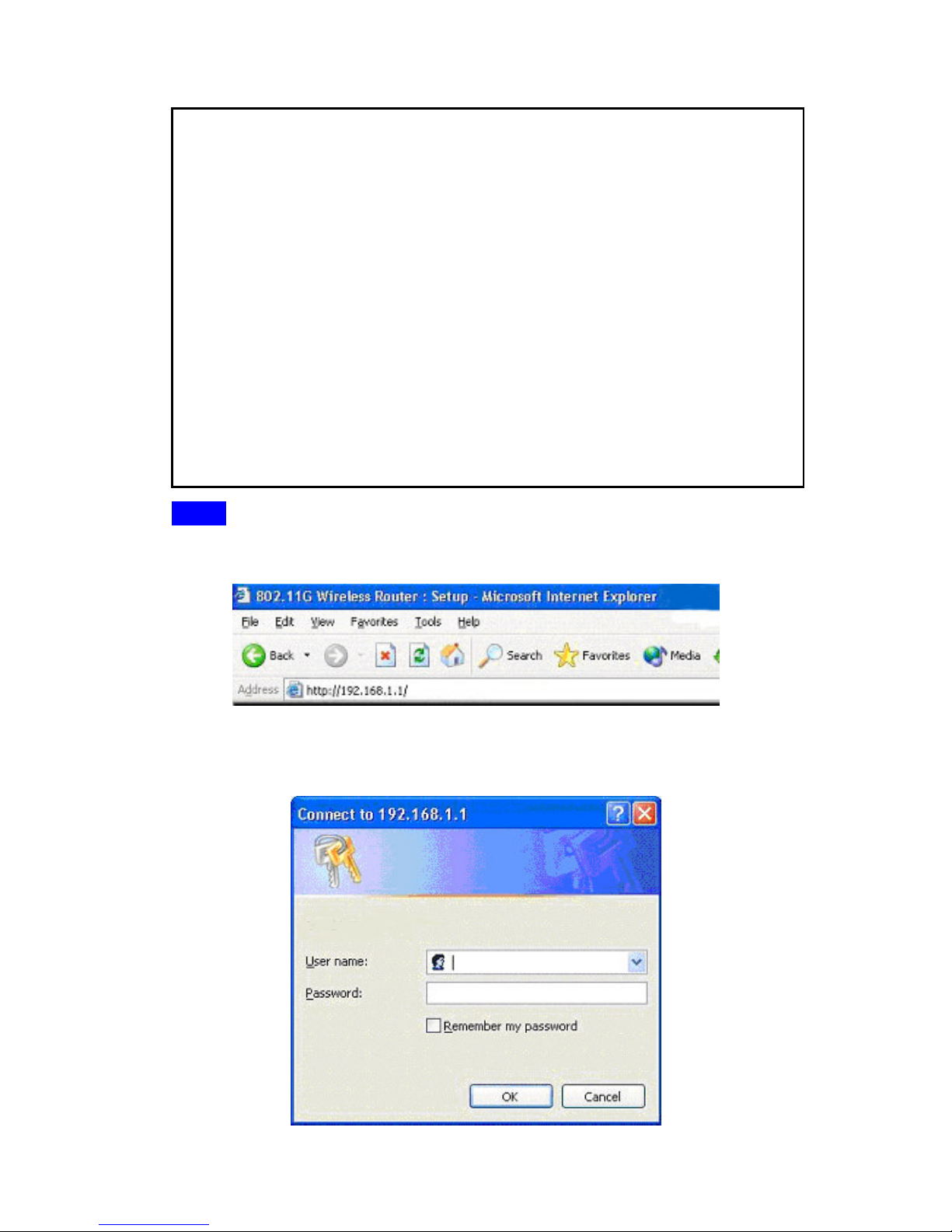

Step1

From the web browser, open address http://192.168.1.1 for AP Router’s

configuration.

When the login screen appears, leave blank in the User Name, type admin

in the Password field and click OK.

Verify your NETWORK SETTINGS before proceeding.

The AP Router default IP configuration class is IP: 192.168.1.x,

subnet mask:

255.255.255.0, and the DHCP service is enabled. P

lease make sure that your

PC’s current IP configurations match the Router’s class or

set the PC’s

network adapter to accept IP addre

ss from the Router. If you already have a

DHCP server on the network, please connect a PC to the Router to configure

the Router’s IP to match your network. Before starting

the Router

configuration, please make sure your computer can get reply from AP Route

while using

“ping” command. For Windows PC, open Command Prompt (C:\

type in ping 192.168.1.1

and hit Enter. If you see “reply from 192.168.1.1…”,

then you are ready to configure the Router.

If you have questions regarding the computer’s IP address set

tings, please

contact our Free Techsupport: Tel: 310-891-1100, Fax: 310-891-1111. E-

mail:

support@trendware.com.

7:30AM ~ 6:00PM, Monday ~ Friday (Pacific Standard Time)

Step2

On the WAN section, please select the “Connection Type”. If your Internet

service provider assigns you a Host Name and/or Domain Name, please enter

them here.

Dynamic IP Setting: for Cable Modem service. Some Service Providers

requires you to report your network adapter’s MAC address to them; you can

report the WAN port MAC address. If you have previously reported your

network adapter’s MAC address to the Service Provider, you can type in that

MAC address here.

Static IP Address: when you have static IP address and the Internet Service

Provider should provide you with IP, subnet mask, gateway, and DNS

addresses.

PPPOE: for DSL service. Service provider should provide you user name,

password and Server IP (when necessary).

PPTP: for DSL service. Service provider should provide you user name,

password and Server IP (when necessary).

Note: For detail information, please refer to the User’s Manual.

DSL Connection

Step3

Here is a Wireless Setting menu. You can setup the Mode, SSID, Channel ,

and Security.

Important Notice

In order to make right use of WPA, please ensure that your current Wireless

Adapter

’

s driver, and Wireless Utility can support it, WPA needs 802.1x

authentication (when RADIUS mode is chosen), though the Operating System

must also support 802.1x protocol. For Microsoft’

s OS family, only Windows XP

has incorporated this by default. The rest of the OS must installed 3er party’

client software such as Funk ODySSey.

SSID: The service set identifier (SSID) or network name. It is case sensitive

and must not exceed 32 characters, which may be any keyboard character.

You shall have selected the same SSID for all the APs that will be

communicating with mobile wireless stations.

SSID Broadcast: “Enable” allow wireless clients to discover the AP Router’s

presence by using “site survey” or similar tool. For added security, select

“Disable”.

Channel: Select the appropriate channel from the list provided to correspond

with your network settings. You shall assign a different channel for each AP to

avoid signal interference.

Security: To enable WEP (Wired Equivalent Privacy) or WPA (Wi-Fi

Protected Access), please click on “Enable” and then click on “Configure

Security”.

Security Mode: Options are WEP, WPA Pre-Shared Key, and WPA RADIUS.

In this guide we will cover WEP setup, for WPA, please refer to the User’s

Guide on the CD-ROM.

WEP: Make sure that all wireless devices on your network are using the same

encryption level and key. WEP keys must consist of the letters "A" through "F"

and the numbers "0" through "9."

Step4

Click “Apply” button to finish the Setup. The follow screen would appear to

notify any changed.

Click “Continue”

Step5

After the AP Router’s reboot procedure is completed, you can start surfing the

Internet.

Technical Support

You can find the most recent software and us

er documentation on the

TRENDware website. TRENDware provides free tech

nical support for all

customers for the duration of the warranty period on this product.

TRENDware Technical Support

Tel: +1-310-891-1100

Fax: +1-310-891-1111

E-mail: [email protected]

www.trendware.com

Support Hours: 7:30AM ~ 6:00PM (

Pacific Standard Time

Monday ~ Friday (except holidays)

Deutsch

TEW-411BRP

Wireless AP-Router 802.11g

Kurzinstallationsanleitung

Version 1.1

Installation des drahtlosen AP-Systems

Das drahtlose AP-System besteht aus mindestens einem AP und einem

Router, die folgendermaßen miteinander verbunden sind (siehe Abbildung):

Verbinden Sie den Netzstecker mit der Netzsteckdose. Wenn die LED-

Anzeige aufleuchtet, ist die Stromverbindung hergestellt.

Verbinden Sie den WAN-Port mit dem Kabel-/DSL-Modem. Wenn die

LED-Anzeige des WAN-Ports aufleuchtet, ist die Verbindung hergestellt.

Wenn Ihre miteinander vernetzten Computer ebenfalls einen Zugang

zum Intra- bzw. Internet haben sollen, verbinden Sie diese mit dem LAN-

Port. Der AP-Router ist mit 4 LAN-Ports ausgestattet. Wenn Sie mehr als

4 Computer anschließen möchten, können Sie den AP-Router ganz

einfach aufstocken (erweitern), indem Sie einen Netzknoten/Verteiler

(Hub/Switch) anschließen.

Mit der drahtlosen Schnittstelle können problemlos bis zu 30 Rechner

gleichzeitig das Netzwerk nutzen.

Default Settings

User Name (no user name)

Password admin

IP Address 192.168.1.1

Subnet Mask 255.255.255.0

ESSID wlan-g

Channel 6

Mode 11b+g

Encryption Disabled

DHCP Server Enabled

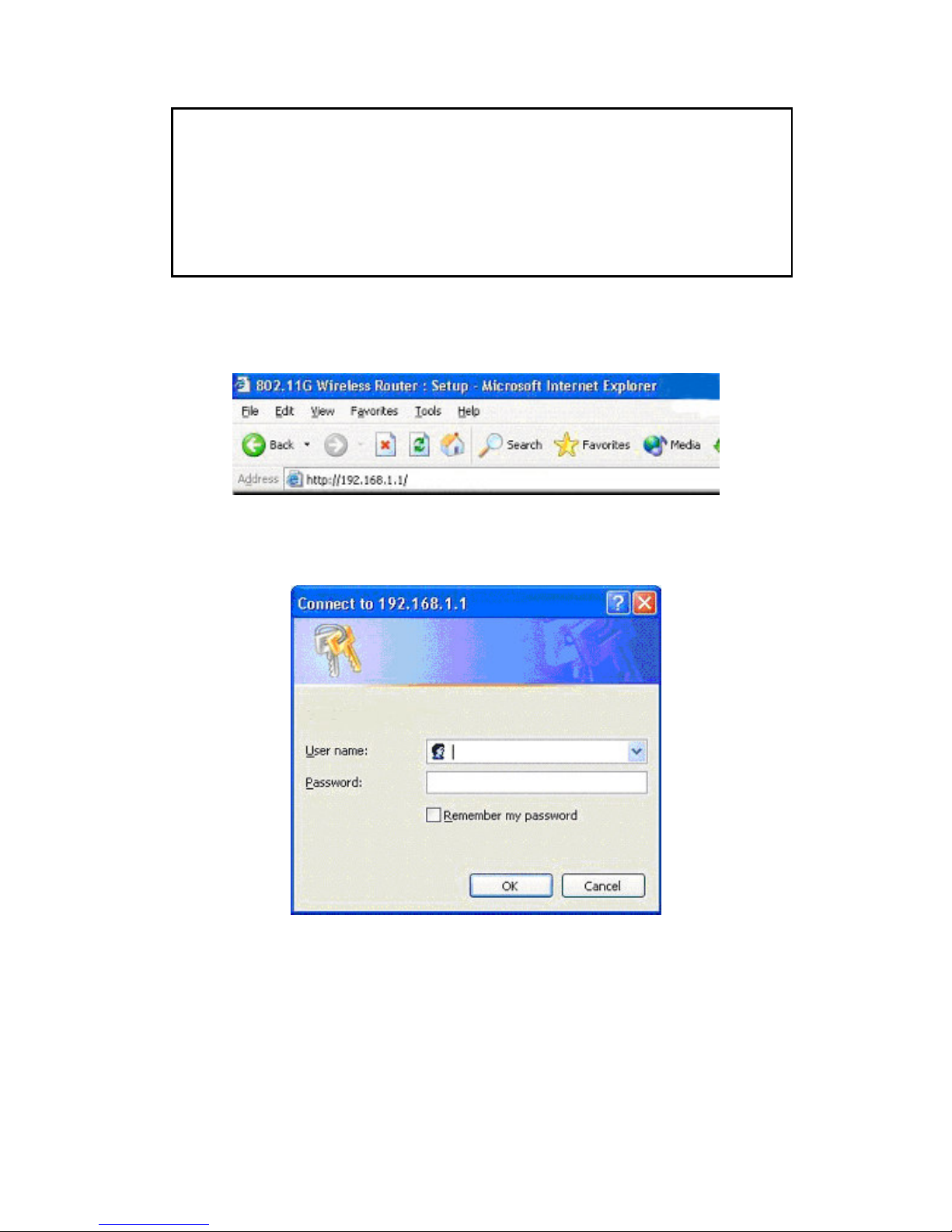

Schritt1

Starten Sie den Internetbrowser und geben Sie http://192.168.1.1 in die URL-

Leiste ein. Sie gelangen auf die Einstellungsseite für den AP Router.

Sobald das Login-Feld erscheint, geben Sie als Passwort admin ein und

lassen Sie das Feld für den Benutzernamen leer. Klicken Sie OK.

Überprüfen Sie Ihre NETZWERKEINSTELLUNGEN, bevor Sie fortfahren.

Die Standard-IP-Einstellung des AP-

Routers lautet 192.168.1.X/255.255.255.0.

Versichern Sie sich, dass Ihre IP

Einstellung dem entspricht oder starten Sie mit

Hilfe der DHCP-Einstellung. Überprüfen Sie mit Hilfe des „Ping-

Befehls“, ob Ihr

Computer auf den AP-Router reagiert, bevor Sie den AP-Router konfigurieren.
