TRENDnet TEW-611BRP Manuale utente

TRENDnet

TRENDware, USA

What's Next in Networking

TEW-611BRP

Version 08.09.05

Quick Installation Guide

Table of Contents

English ................................................................................................................... 1

1. Prepare for Installation ...................................................................................

2. Install Hardware .............................................................................................

3. Configure your AP/Router ..............................................................................

4. Configure your Wireless Networking Adapter ................................................

Troubleshooting ......................................................................................................

Thank you for purchasing the TEW-611BRP. This Wireless AP/Router will allow

you to securely share your Internet connection, files, and other resources with

multiple users.

This guide will help you set up and configure your AP/Router. Following the

installation instructions should be quick and easy. If you run into problems,

please refer to the Troubleshooting section or the more detailed installation

procedures on the User's Guide CD-ROM. If you need further technical

support, please visit www.TRENDNET.com or call technical support by phone.

Verify Equipment

Before installing the AP/Router, you should have:

1. An installed Cable/DSL Modem with an Ethernet Port

2. A Broadband Internet Account

3. A web browser such as Internet Explorer (5.0 or higher) or Netscape

Navigator (4.7 or higher)

4. A network cable for each computer

5. A computer with TCP/IP Protocol and Client for Microsoft Networks

Service installed

Verify Package Contents

Please make sure you have everything in the box:

User’s Guide CD-ROM

TEW-611BRP

1. Prepare for Installation

English QIG

English

AC Power Adapter (5V, 2.5A)

Quick Installation Guide RJ-45 Ethernet (LAN) Cable

TRENDnet

TRENDware, USA

What's Next in Networking

TEW-611BRP

Version 08.09.05

Quick Installation Guide

Collect Account Information from Internet

Service Provider (ISP)

During the installation of your AP/Router, the configuration utility will ask you to

specify your ISP connection type. Therefore, please verify your Cable or DSL

Internet broadband connection with your ISP and ensure you have all the

information for one of the following connection types:

Dynamic IP Cable Connection

Nothing is required. The IP address will be automatically assigned by your ISP.

Static or Fixed IP Cable Connection

Internet IP Address:____.____.____.____ (eg. 215.24.24.129)

Subnet Mask: ____. ____. ____. _____

Gateway IP Address:____.____.____._____

Primary DNS:____.____._____.______

Secondary DNS:_____._____._____.____

PPPoE DSL Connection

Password:________________

PPTP DSL Connection

Internet IP Address:____.____.____.____ (eg. 215.24.24.129)

Subnet Mask: ____.____.____._____

Gateway IP Address:____.____.____._____

PPTP Server IP:____.____._____._____

Password:_________________

L2TP DSL Connection

Internet IP Address:____.____.____.____ (eg. 215.24.24.129)

Subnet Mask: ____.____.____._____

Gateway IP Address:____.____.____._____

L2TP Server IP:____.____._____._____

Password:_________________

English

2. Install Hardware

1. Connect one RJ-45 network cable from the Cable/DSL Modem's Ethernet

port to the WAN port on the AP/Router.

2. Connect a different RJ-45 network cable from one of the AP/Router's LAN

ports to your computer's network port.

3. Turn on your Cable/DSL modem.

4. Connect the included Power Adapter from your AP/Router to a power outlet;

your AP/Router should turn on.

5. Turn on your computer

Verify Hardware Installation

Verify that the following front panel lights are on: Power, Status, WAN, WLAN,

and one LAN port LED for each wired computer connected to the AP/Router.

English

POWER

WAN

WLAN

LAN

TEW-611BRP

3. Configure your AP/Router

English

The following section will help you configure your AP/Router to connect to the

Internet and your PCs. The setup differs and is dependent on the type of

Internet connection you have. If you are not sure what type of connection you

have, please contact your ISP to obtain the required information, which is listed

in the Prepare for Installation section at the beginning of this Quick

Installation Guide.

1. Open your web browser, type http://192.168.0.1 in the Address bar, and

press Enter.

2. Click login.

NOTE: To reset the password on the AP/Router, refer to the User's

Guide CD-ROM.

3. Click Launch Internet Connection Setup Wizard.

5English

4. Click Next.

5. If you want to change your password for your router, then type the new

password in the Password and Verify Password fields. Otherwise, click

Next.

6. Choose the appropriate Time Zone from the pull down menu, and click Next.

English

7. Select your Connection Type [ DHCP Connection (Dynamic IP Address),

Username/Password Connection (PPPoE), Username/Password Connection

(PPTP), Username/Password Connection (L2TP), Static IP Address

Connection] and proceed to appropriate subset of instructions listed below.

8. Select DHCP Connection (Dynamic IP Address) as the Connection Type

and click Next.

DHCP Connection (Dynamic IP Address)

7English

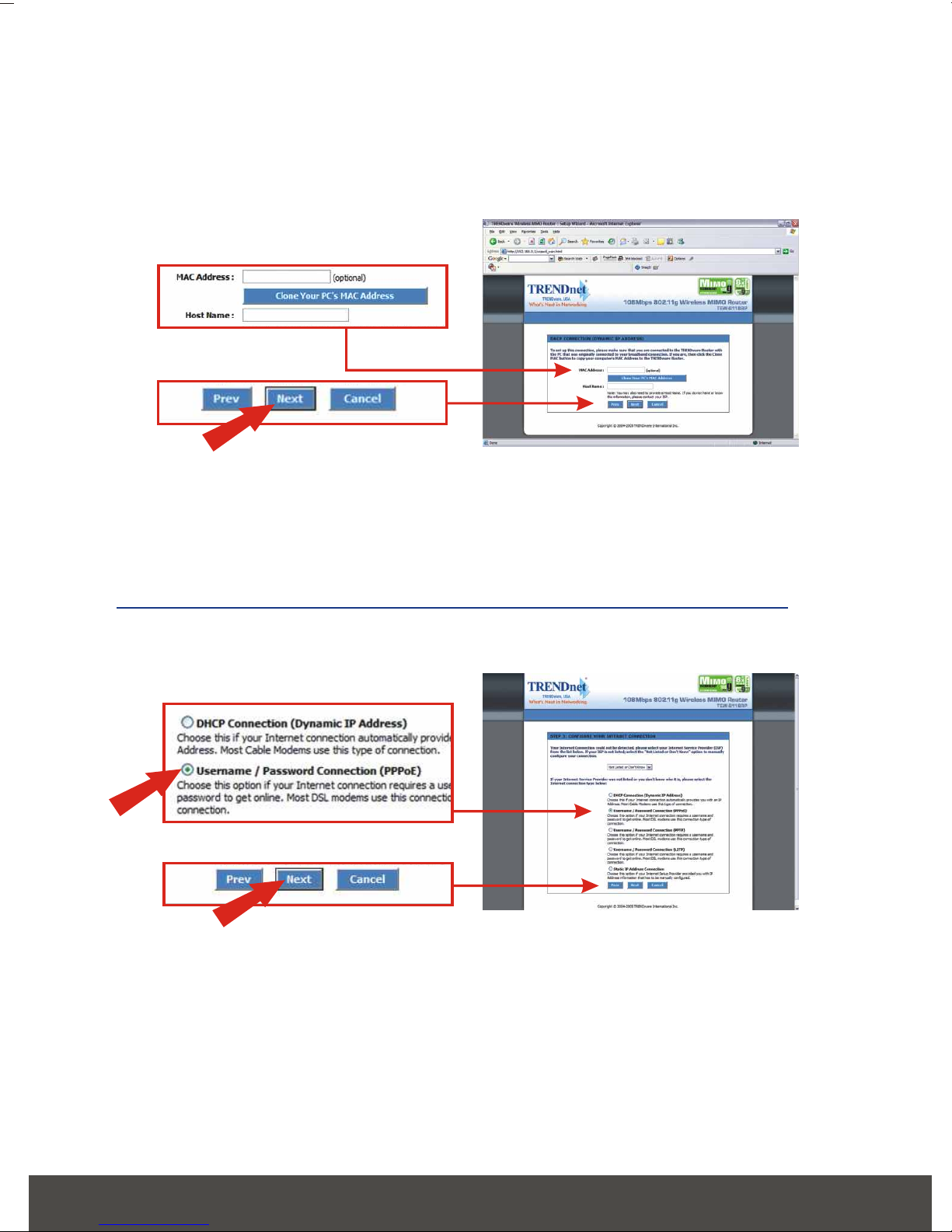

9. If your ISP requires you to enter a MAC Address and Hostname, enter the

information in the appropriate fields. Otherwise, click Next.

10. Go to step 22.

11. Select Username/Password Connection (PPPoE) and click Next.

Username/Password Connection (PPPoE)

12. Type your username and password in the appropriate fields. If you ISP

requires you to enter your Service Name, type the information in the

appropriate field. Otherwise, click Next.

14. Select Username/Password Connection (PPTP) as the connection type

and click Next.

13. Go to step 22.

8English

Username/Password Connection (PPTP)
