OPERATING AND INSTALLATION INSTRUCTIONS

MODEL NO. RE50GC

Voltage: 230/240 Volts AC 50Hz

Wattage: 9.9/10.8kW

Height: 900mm

Width: 500mm

Depth: 600mm

This appliance complies with: European Council Directive 73/23/EEC.

EMC Directive 89/336/EEC.

CE Marking Directive 93/68/EEC.

TECHNICAL DETAILS

Technical Details ................................................................................. 2

Contents ......................................................................................... 3

Preface ........................................................................................... 5

Safety ............................................................................................. 6

Before Installation ........................................................................... 6

During Operation ........................................................................... 6

After Use ................................................................................... 7

General .................................................................................... 7

Introduction ...................................................................................... 8

Rating Plate ................................................................................ 8

Installation .................................................................................. 8

General Notes on Using Your Cooker ........................................................ 9

About Condensation and Steam ............................................................. 9

Oven Indicator Neons ....................................................................... 9

Grill and Oven Furniture ..................................................................... 9

Getting to Know Your Cooker ................................................................... 10

The Control Panel ......................................................................... 10

The Electronic Minute Minder ............................................................... 11

The Ceramic Hob ................................................................................ 13

Recommended Saucepans ................................................................. 13

Hints and Tips ............................................................................. 13

Deep Fat Frying ........................................................................... 14

Preserving ................................................................................. 14

The Grill ......................................................................................... 15

Selecting the Grill .......................................................................... 15

Things to Note ............................................................................. 15

The Grill Pan and Handle ................................................................... 15

Hints and Tips ............................................................................. 16

Grilling Chart .............................................................................. 16

The Top Oven ................................................................................... 17

Uses of the Top Oven ...................................................................... 17

Selecting the Top Oven .................................................................... 17

Things to Note ............................................................................. 17

To Fit the Top Oven Shelf .................................................................. 17

Hints and Tips ............................................................................. 17

The Main Fan Oven .............................................................................. 19

Selecting the Main Fan Oven ............................................................... 19

Things to Note ............................................................................. 19

To Fit the Main Oven Shelves .............................................................. 19

Hints and Tips ............................................................................. 20

Oven Cooking Chart ............................................................................. 21

Roasting Chart .................................................................................. 22

CONTENTS

Defrost Feature .................................................................................. 23

Uses of Defrost Feature .................................................................... 23

Selecting Defrost .......................................................................... 23

Things to Note ............................................................................. 23

Hints and Tips ............................................................................. 23

Care and Cleaning ............................................................................... 24

Cleaning Materials ......................................................................... 24

Cleaning the Ceramic Hob ................................................................. 24

Things To Note ............................................................................ 24

Cleaning the Outside of the Cooker ......................................................... 25

Cleaning the Grill Pan, Grill Pan Grid and Oven Shelves ..................................... 25

Cleaning Inside the Grill/Oven Compartments ............................................... 26

Care of Stayclean Surfaces ................................................................ 26

Hints and Tips ............................................................................. 26

Cleaning the Door Glass ................................................................... 27

Something not Working? ........................................................................ 28

Service and Spare Parts ......................................................................... 29

Customer Service Centres ....................................................................... 30

Guarantee Conditions ........................................................................... 32

CONTENTS

Dear Customer,

Thank you for buying a Tricity Bendix cooker. With our 80 years experience in

developing and manufacturing the very best in U.K. cookers, you can be

assured that you have purchased a hard working, reliable, quality product.

Tricity Bendix cookers comply with British Standard safety and performance

requirements. They have been approved by BEAB (British Electrotechnical

Approvals Board) and are covered by a 12 month parts and labour guarantee.

To get the best from your new Tricity Bendix cooker, we ask that you PLEASE

READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be

made to cooking times and temperatures which may differ from your previous

cooker.

It is most important that this instruction book is retained with the appliance for

future reference. Should the appliance be sold, or if you move house and

leave the appliance, always ensure that the book remains with the appliance.

This will enable the new owner to be acquainted with the functioning of the

appliance and the relevant warnings.

Please read the whole instruction book before attempting to use the appliance

ensuring you follow the recommendations given.

PREFACE

THESE WARNINGS ARE PROVIDED IN

THE INTERESTS OF YOUR SAFETY.

ENSURE THAT YOU UNDERSTAND

THEM ALL BEFORE INSTALLING OR

USING THE COOKER.

PLEASE

READ

CAREFULLY

BEFORE INSTALLATION

This appliance is heavy and care

must be taken when moving it.

Ensure that all packaging, both

inside and outside the appliance,

has been removed before the

appliance is used.

If the cooker is to be placed on a

base, measures must be taken to

prevent the cooker slipping from the

base.

Do not try to move the appliance by

pulling the door handles.

The electrical installation work must

be undertaken by a qualified

electrician/competent person.

It is dangerous to alter or modify

the specifications of the product in

any way.

Do not use the cooker if the ceramic

glass is damaged. If a fault or crack

becomes visible during cooking,

disconnect the cooker immediately

from the electricity supply and

contact the Customer Service

Centre.

After installation, please dispose of

the packaging with due regard to

safety and the environment.

DURING OPERATION

Do not use this appliance if it is in

contact with water. Never operate it

with wet hands.

This appliance is designed to be

operated by adults. Young children

must not be allowed to tamper with

the product or play with the controls.

During use the cooker becomes Hot.

Care should be taken to avoid

touching heating elements inside the

oven.

Accessible parts especially around

the grill area may become hot when

the appliance is in use. Children

should be kept away until it has

cooled.

Take great care when heating fats

and oils as they will ignite if they

become too hot.

This product has been designed for

cooking edible foodstuffs only, and

must not be used for any other

purposes.

Never place plastic or any other

material which may melt in the oven

or on the hob.

Ensure cooking utensils are large

enough to contain foods to prevent

spillages and boil overs.

The handles of saucepans which are

smaller than the heated area on the

hob will become hot. Ensure your

hand is protected before handling the

pan.

Take care to follow the

recommendations given for tending

the food when grilling.

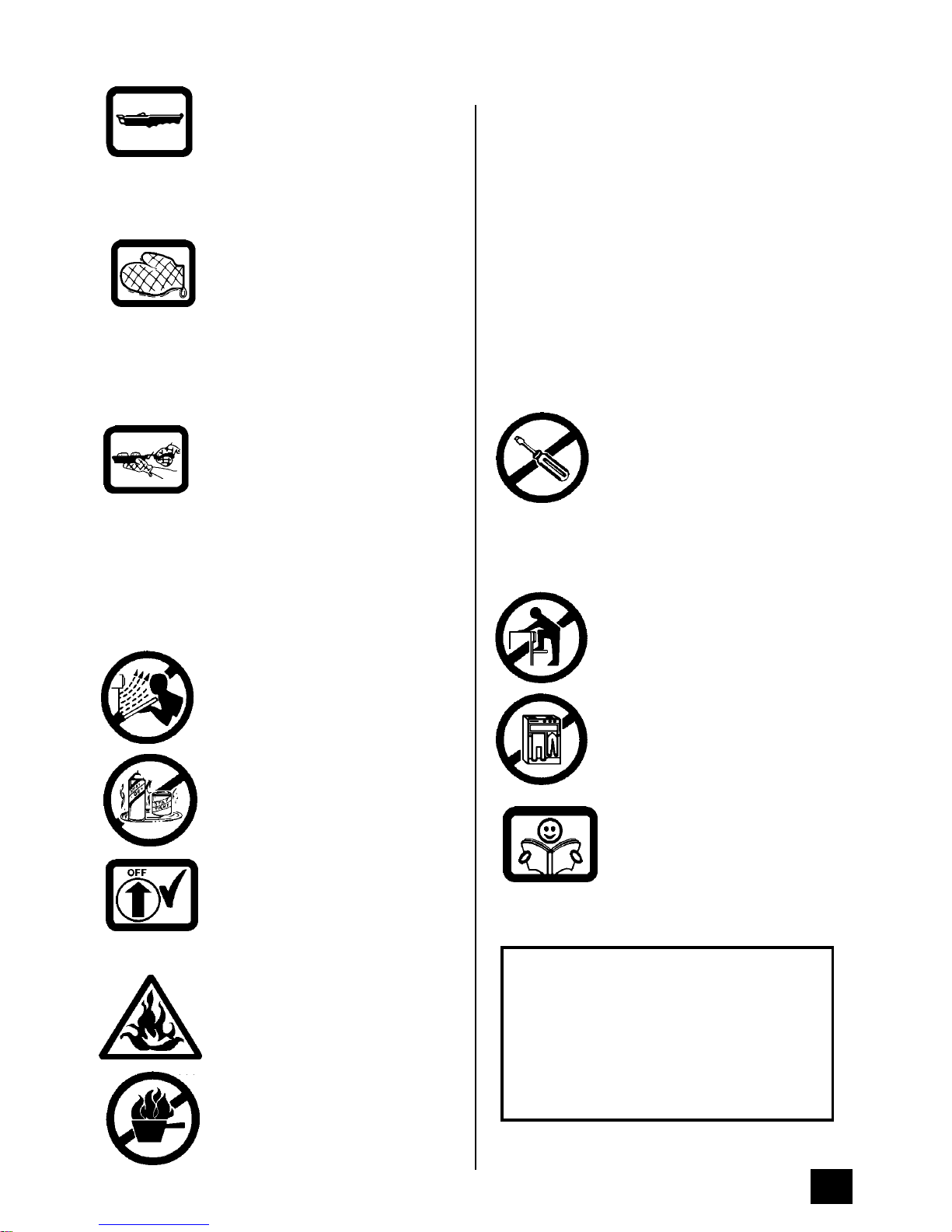

SAFETY

Do not leave the handle in position

when grilling as it will become hot.

Always use oven gloves to remove

and replace food in the oven.

Similarly always use oven gloves to

remove and replace the grill pan

handle when grilling.

given on page 15.

Ensure that you support the grill pan

when it is in the withdrawn or partially

withdrawn position.

Ensure that all vents are left

unobstructed to ensure ventilation of

the oven cavity.

Ensure that the anti-tilt shelves are

put in place correctly. Refer to

instructions on pages 17 and 20.

Never line any part of the appliance

with aluminium foil.

Always stand back from the

appliance when opening the oven

door to allow any build up of steam

or heat to release.

Do not place sealed cans or

aerosols inside the oven. They may

explode if they are heated.

Do not leave the hotplates switched

on for long periods when not covered

by a saucepan. The controls and

cabinets may overheat.

AFTER USE

Ensure that all control knobs are in

the OFF position when not in use.

For hygiene and safety reasons this

appliance should be kept clean at all

times. A build-up of fats or other

foodstuffs could result in a fire,

especially in the grill pan.

Do not leave utensils containing

foodstuffs, e.g. fat or oil in or on the

appliance in case it is inadvertently

switched ON.

Cookers and hobs become very hot,

and retain their heat for a long period

of time after use. Children should be

kept well away from the appliance

until it has cooled.

GENERAL Under no circumstances should

repairs be carried out by

inexperienced persons as this may

cause injury or serious malfunction.

This product should be serviced by

an authorised Service Engineer and

only genuine approved spare parts

should be used. Details of servicing

and repair arrangements are given on

page 29 of this book.

Do not stand on the appliance or on

the open oven door.

Do not hang towels, dishcloths or

clothes from the appliance or its

handles. They are a safety hazard.

Only clean this appliance in

accordance with the instructions

given in this book.

Your safety is of paramount importance.

Therefore, if you are unsure about any of the

meanings of these WARNINGS contact the:

Customer Care Department

Telephone 0870 5 950950

Recommendations

RATING PLATE

Record the model, product and serial numbers on the

back cover of this instruction book, from the rating

plate. This is situated on the lower front frame of the

appliance and can be seen upon opening the top

oven door.

The appliance must be protected by a suitably rated

fuse or circuit breaker. The rating of the appliance is

given on the rating plate.

The rating plate must not be removed from the

oven front frame as this may invalidate the

guarantee.

INSTALLATION

If your cooker has been damaged in transit, contact

your supplier immediately. DO NOT attempt to install

it.

Your cooker left the factory fully packaged to protect

it from damage. If it is delivered without packaging

and damage has occurred, the manufacturer cannot

accept responsibility. Contact your supplier for

advice.

Once the packaging has been removed the cooker

should only be moved by hand. DO NOT use a sack

barrow or any other aid to lift the cooker as damage

may occur.

Connection to the electricity supply must be carried

out by a qualified electrician/competent person.

The electrical connection should be made using a

double pole isolating switch (cooker socket) with at

least 3mm contact separation. The cable must have

conductors of sufficiently high cross-sectional area to

prevent overheating and deterioration.

The cable should be routed away from potentially hot

areas marked by X in the diagram below.

To move the cooker, open the main oven door and

lift the cooker by holding inside the top of the

compartment.

This is a type X appliance which means it is

free-standing and can be fitted with cabinets on one

or both sides. It may also be fitted in a corner setting.

Side walls which are above hob level should be

protected by heat resistant non-combustible material

and MUST NOT be nearer than 40mm to the hob

side.

A nominal air gap of 2mm at either side of the cooker

is required to enable the cooker to be moved into

position. It is recommended that proprietary trims are

fitted to protect the worktops of either side of the

appliance. These are available from most DIY stores.

Aways ensure an air gap is maintained at hotplate

level. Tiles or other forms of deep wall covering

should not obscure this gap.

WARNING: THIS APPLIANCE MUST BE EARTHED

INTRODUCTION

Six square millimetres (6.00mm²) is the recommended

cross-section area.

Air gap

Overhanging surfaces or a cooker hood should be a

minimum of 685mm above the hob.

It is important to ensure that the appliance is level

after installation. Levelling feet are fitted to the front

of the appliance to accommodate uneven floors.

GENERAL NOTES ON USING YOUR

COOKER

We suggest that you run the oven elements for 10 -

15 minutes at 220°C to burn off any residue from

their surfaces.

The procedure should be repeated with the grill for

approximately 5 - 10 minutes.

During this period an odour may be emitted, it is

therefore advisable to open a window for ventilation.

ABOUT CONDENSATION AND STEAM

When food is heated it produces steam similar to a

boiling kettle. The ovens are vented to allow some of

this steam to escape between the wall and the rear

of the appliance. However, always stand back from

the appliance when opening the oven door to allow

any build up of steam or heat to release.

If the steam comes into contact with a cool surface

on the outside of the appliance, e.g. a trim, it will

condense and produce water droplets. This is quite

normal and is not caused by a fault on the appliance.

To prevent discolouration, regularly wipe away

condensation and also soilage from surfaces.

For your safety, wall coverings at the rear of the

appliance should be securely fixed to the wall.

OVEN INDICATOR NEONS

These lights indicate whether the ovens are switched

on. The neons also indicate when the set

temperature has been reached. They will cycle on

and off during use to show that the temperature is

being maintained.

THE COOLING FAN FOR THE CONTROL

The cooling fan will always come on when the grill

and the top oven are switched on. If they are only

used for a short period of time the fan will switch off

when the controls are turned off. If the grill or the top

oven are used for a longer period of time the fan will

run on depending on the temperature, and may cycle

on and off until the cooker has cooled.

In the case of the main oven the cooling fan may not

switch on except when used for a longer period of

time. The cooling fan may run on, and cycle on and

off after the control knobs have been switched off,

until the cooker has cooled. Do not switch the cooker

off at its power point until the fan has cooled the

cooker down.

GRILL AND OVEN FURNITURE

The following items of oven furniture have been

supplied with the cooker:

1 grill pan

1 grill pan handle

1 grill pan grid

1 straight shelf for

grilling and top oven

cooking only

2 straight shelves

for main oven cooking

THE CONTROL PANEL

FEATURES

A - Main Oven Temperature Control

B - Main Oven Indicator Neon

C - Top Oven/Grill Control

D - Top Oven Indicator Neon

E - Hotplate Controls

GETTING TO KNOW YOUR COOKER

A C

B D

Altri manuali per RE50GC

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Tricity Bendix Fornello

Tricity Bendix

Tricity Bendix CSIE317 Guida del prodotto

Tricity Bendix

Tricity Bendix SE545P Manuale utente

Tricity Bendix

Tricity Bendix SI 520 Manuale utente

Tricity Bendix

Tricity Bendix SIE 233 Manuale utente

Tricity Bendix

Tricity Bendix SI 341 Manuale utente

Tricity Bendix

Tricity Bendix SE454 Guida del prodotto

Tricity Bendix

Tricity Bendix BD910 Series Manuale utente

Tricity Bendix

Tricity Bendix SE545P Guida del prodotto

Tricity Bendix

Tricity Bendix SI 250 W Scheda tecnica

Tricity Bendix

Tricity Bendix SE 210 Guida del prodotto

Tricity Bendix

Tricity Bendix L50M2 Manuale utente

Tricity Bendix

Tricity Bendix 1509 Manuale utente

Tricity Bendix

Tricity Bendix 2000S Manuale utente

Tricity Bendix

Tricity Bendix SPLASHBACK SB416 Guida del prodotto

Tricity Bendix

Tricity Bendix SIE504 Scheda tecnica

Tricity Bendix

Tricity Bendix Prince 1009 Manuale utente

Tricity Bendix

Tricity Bendix SIE557 Guida del prodotto

Tricity Bendix

Tricity Bendix CSIE500 Manuale utente

Tricity Bendix

Tricity Bendix CSIE452 Guida del prodotto

Tricity Bendix

Tricity Bendix SIE323 Manuale utente

Tricity Bendix

Tricity Bendix SIE 252 Guida del prodotto

Tricity Bendix

Tricity Bendix RSE50M Manuale utente

Tricity Bendix

Tricity Bendix SI 321/2 Scheda tecnica

Tricity Bendix

Tricity Bendix 3000S Manuale utente

Manuali Fornello popolari di altre marche

Modena

Modena FC 7645 SGM Manuale del proprietario

Electrolux

Electrolux Insight EKG6049 Manuale utente

Stanley

Stanley Donard 60 Manuale utente

Bartscher

Bartscher 201TC Manuale utente

Parkinson Cowan

Parkinson Cowan 50 GR/BU Manuale utente

Siemens

Siemens HK9P00020U Manuale utente

Creda

Creda S150E Guida

Creda

Creda HB48309 Manuale utente

Bosch

Bosch HCE743220F Manuale utente

NEFF

NEFF E1461A2/01 Manuale utente

Zanussi

Zanussi ZCM 700 X Manuale utente

Smeg

Smeg SNL61MA9 Manuale utente

RiverGrille

RiverGrille TF2002501-RG Manuale utente

Vollrath

Vollrath 69504F Manuale utente

AEG

AEG Competence 5731 V Manuale utente

Euromaid

Euromaid ES60 Manuale utente

Hotpoint

Hotpoint HUI 62 TP Manuale utente

Bosch

Bosch HGX5G7W50 Series Manuale utente
