Trion FM 1000E Manuale utente

Delivering Clean Air to Public Places

The Trion FM 1000 was specifically designed to

clean the air in rooms where people work or relax,

such as restaurants, bars, taverns, offices, conference

or computer rooms, waiting rooms, or designated

smoking areas. Because of its smart design, it fits in a

2' x 4' (610 x 1219 mm) ceiling panel, so it’s an easy

solution for most any situation.

The FM 1000 Provides:

•Multiple Model Selection — There are two models to choose from: the FM 1000E

(electronic air cleaner) and the FM 1000M (media air cleaner). So, there’s an

FM 1000 that can meet virtually any scenario.

•Easy Installation — These units feature a low-profile design that is not only appealing

to the eye, but requires no elaborate ductwork or installation.

•High Performance — Each of these units is capable of removing up to 95% of tobacco

smoke, dust, pollen, lint, bacteria, and mold spores from indoor air.

•Flexible Performance — Each unit features three convenient speeds, ranging from

400 to 1100 cfm (680 – 1879 m3/hr) to quickly and easily meet the demands of the

environment.

•Affordable Operation — Because these units recirculate indoor air, there’s no expense

to reheat or cool air. And the FM 1000E features a Forever Filter®that never needs to

be replaced; just clean, dry, and reinstall.

•Additional Odor Control — The optional charcoal after-filter helps control the smell of

gas and other odors.

•Super-Effective Air Cleaning — The optional remote discharge allows wider separation

between intake and discharge areas. This means more effective air cleaning.

Powerfully-Effective

Airflow Pattern

The FM 1000E and FM 1000M models feature

“center suction” dirty air intake and discharge

returned clean air in six directions, so clean air

circulates faster. That means happier, more

comfortable patrons, employees, or guests.

FM 1000

ELECTRONIC / MEDIA AIR CLEANERS

FM 1000 ELECTRONIC / MEDIA AIR CLEANERS

FM 1000E

The Trion FM 1000E utilizes the principle of

“electrostatic precipitation.” Dirty air is drawn

into the center intake by the motor/blower,

and is moved through the washable, alu-

minum mesh pre-filter where lint and large

dust particles are trapped. The remaining

particles, some as small as .01 micron, pass

into a strong electrical field (ionizing section)

where each particulate receives an electrical

charge. These charged particles then pass

into a collector plate section made up of a

series of equally-spaced parallel plates. Each

alternate plate is charged with the same

polarity as the particles, which are repelled,

while the interleaving plates are grounded,

and attract and collect the particles. Clean air

is then discharged in six directions back into

the area.

FM 1000M

The Trion FM 1000M utilizes a principle

called “interception filtration.” In the first

stage of this two-stage process, dirty, polluted

air is drawn into the center intake by the

motor/blower and is moved through the

washable, aluminum mesh pre-filter to

remove lint and larger dust particles. In the

second stage, the micro-glass deep pocket

media filter strips smoke and other

submicron particles from the air stream by

interception. The small diameter fibers in the

filter intercept and retain these small

particles while the large surface area of the

filter provides long life and low pressure drop.

Clean air is then discharged in six directions

back into the area. The quiet blower is

designed specifically to handle the two-stage

filtration system at rated CFM (m3/hr) over

the useful life of the filter.

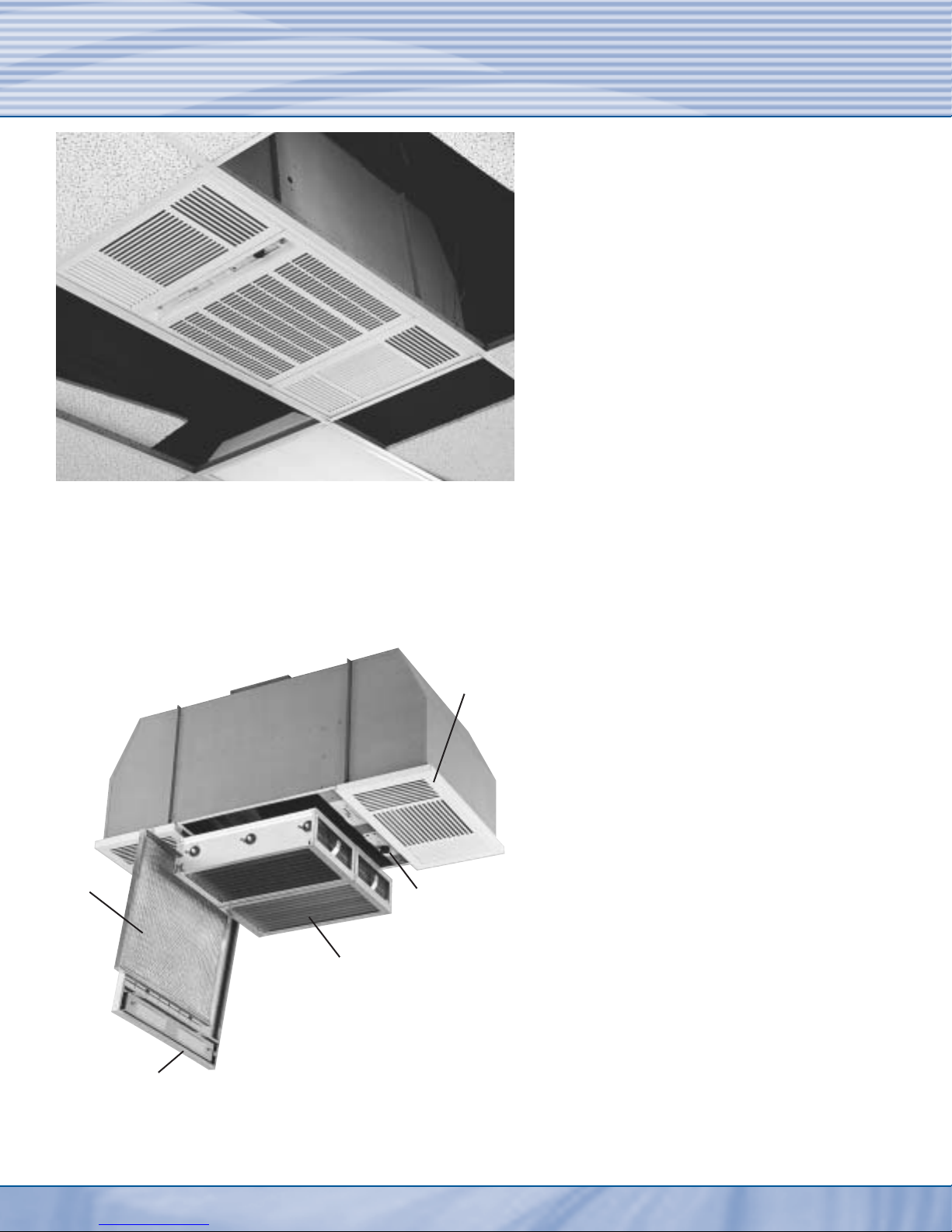

Aluminum Mesh

Pre-Filter

Removable

FilterAccess

Door

6-Way

Air Discharge

3-Speed

Switch

FM 1000E

Ionizer-

Collector

FM 1000M

Media Filter

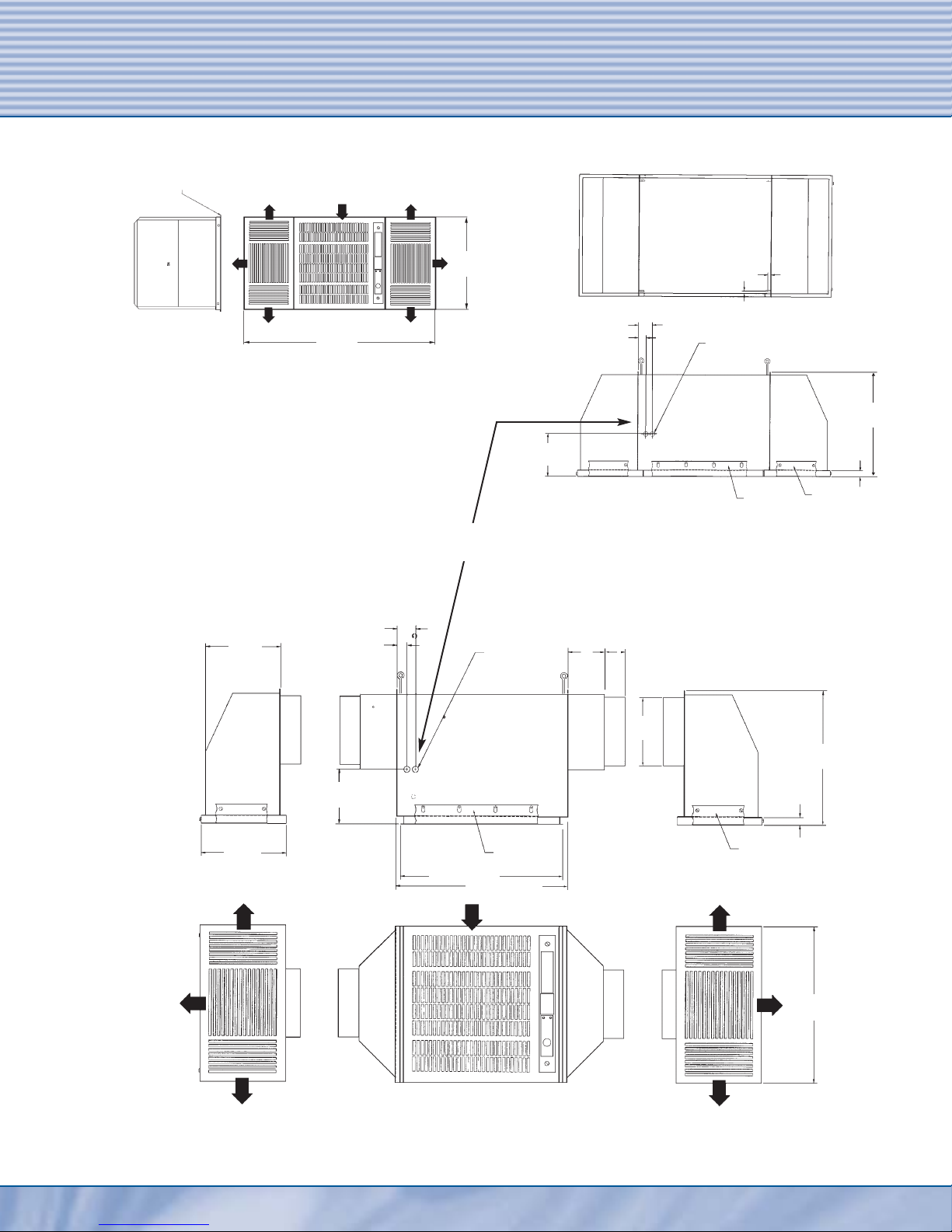

FM 1000 DIMENSIONS

REMOTE DISCHARGE OPTION

POSITIONING BRACKET

& FILLER STRIP

KNOCKOUTS FOR

POWER CONNECTION

7/8”(22 mm) DIA.

POSITIONING

BRACKET

2 REQUIRED

POSITIONING

BRACKET

2 REQUIRED

POSITIONING

BRACKET

2 REQ’D @ EACH END

POSITIONING

BRACKET

2 REQ’D @

EACH END

AIR

FLOW AIR

FLOW

AIR

INLET

AIR

FLOW AIR

FLOW

AIR

FLOW

END

47.25”

(1200 mm)

.50”

(13 mm)

TYP.

2.75”

(70 mm)

1.50”

(38 mm)

2.75”

(70 mm)

1.50”

(38 mm)

5.38”

137 mm 2.90”

(74 mm)

10.00”

DIA.

1.125”

(29 mm)

TOP

SIDE

22.88”

(581 mm)

AIR

FLOW

AIR

FLOW

AIR

FLOW

AIR

INLET

AIR

FLOW

AIR

FLOW

AIR

FLOW

22.88”

(581 mm)

KNOCKOUTS FOR

POWER CONNECTION

7/8”(22 mm) DIA.

8.00”

(203 mm)

8.00”

(203 mm)

0.54”

(14 mm)

12.25”

(311 mm)

FIELD WIRING

COMPARTMENT

COVER

19.63”

(499 mm)

1.125”

(29 mm)

19.63”

(499 mm)

AIR

FLOW

24.25” (616 mm)

25.08” (637 mm)

FM 1000 ELECTRONIC / MEDIA AIR CLEANERS SPECIFICATIONS

MODEL FM AIDEM•M0001MFCINORTCELE•E0001

PART NO. 200-515044100-515044

DIMENSIONS 47 1/2L x 22 7/8W x 19 5/8D(1207 x 581 x 499) 47 1/2L x 22 7/8W x 19 5/8D(1207 x 581 x 499)

INSTALLATION tnuomhsulf/gniliecevobAtnuomhsulf/gniliecevobA

WEIGHT 108 (49) / shipping 240 (109) 88 (40) / shipping 160 (72.6)

ELECTRICAL spma0.4-hp1,zH06,V021spma1.3-hp1,zH06,V021

MOTOR

1/3hp (.25 kW) ball bearing, direct drive, thermally protected 1/3hp (.25 kW) ball bearing, direct drive, thermally protected

BLOWER P nafrelleporPnafrellepor

AIR VOLUME 600, 800, 1100 cfm (1020, 1360, 1870 m 3/hr) 400, 500, 650 cfm (680, 850, 1105 m 3/hr)

CONTROLS 3-speed, power “ON” light, “to cell” light 3-speed, power “ON” light

SOUND RATING Bd96,46,55Bd56,65,94

FILTER EFFICIENCY

Up to 95% per ASHRAE 52.1 / dust spot 95% per ASHRAE 52.1 / dust spot

PRE-FILTER hsemmunimulAhsemmunimulA

PRIMARY FILTER Forever Filter®– permanent aluminum collector cell Multi-pleat lter module

Standard Specications For Each Unit

CABINET 20-Gauge (1.0 mm) galvanized steel

FINISH Almond epoxy powder-coat paint

AIR FLOW 6-Way discharge, Coanda ow

FILTER ACCESS Hinged, removable lter access door

MOUNTING Four eyebolts

HARDWARE Six trim brackets

SAFETY DEVICE Access door safety switch

ACCESSORIES Disposable charcoal after-lter

(OPTIONS) Remote ON/OFF switch

Remote air discharge

INCHES (mm)

LBS (kg)
