Tripp Lite B003-HC2-DOCK1 Manuale utente
1
2-Port USB-C KVM
Docking Station
4K @ 30 Hz, USB 3.2 Gen 1
Model: B003-HC2-DOCK1
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2020 Tripp Lite. All rights reserved.
USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum
Owner's Manual
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR®
surge protector in our monthly drawing!
tripplite.com/warranty
Este manual esta disponible en español en la página
deTripp Lite: tripplite.com/support
Ce manuel est disponible en français sur le site Web
deTripp Lite : tripplite.com/support
Русскоязычная версия настоящего руководства представлена на
веб-сайте компании Tripp Lite по адресу: tripplite.com/support
2
• 2-Port USB-C KVM Docking Station
• (x2) USB-C to USB-C Cables (M/M), 3.3 ft. (1 m)
• Remote Port Selector
• Owner’s Manual
• P569-XXX-CERT Series High-Speed HDMI Cables
• M100-Series USB-A to Lightning Sync/Charge Cables
• U428-Series USB 3.1 Gen 1 USB-A to USB-C Cables
Package Contents
Optional Accessories
3
• Windows®10 and above, computer with USB-C port and
USB-C DisplayPort Alternate Mode
Note: With Intel 7th-gen Core Processor (Kaby-Lake) and above.
More info about CPU generation, please reference https://www.intel.
com/content/www/us/en/processors/processor-numbers.html
• Mac®OS X 10.12 and above, computer with USB-C port
• Android™8.0 and above, smartphone with USB-C port and
USB-C DisplayPort Alternate Mode
Note: Only Samsung and Huawei®support PC-like operation.
Others only support mirror mode. Apple®iPhones are not supported.
• iOS 12.1 and above, iPad Pro®3rd generation (2018)
Note: For better HID experience, iPad OS 13 and above is
recommended.
System Requirements
Supporting Mobile Devices
Samsung Huawei HTC LG
Galaxy S8 P20 U11 V20
Galaxy S8+ P20 Pro U Ultra
Galaxy S9
Galaxy S9+
Galaxy S10
Galaxy S10+
Galaxy S10e
Galaxy Note 8
Galaxy Note 9
4
• Allows a USB-C laptop and a USB-C smartphone* to share one
monitor, keyboard and mouse, as well as USB peripherals.**
• HDMI port supports crystal-clear 4K resolutions up to 3840 x
2160 @ 30 Hz.
• Provides USB PD 3.0 for laptop/computer charging up to 85W
at power profiles of 5/9/15/20V.
• Supports Samsung DeX mode and Huawei Desktop mode.***
• Video DynaSync™ allows continuous real-time switching with
EDID/HDCP monitors and computers.
• Switches between ports using the included remote port
selector.
• Plug-and-play operation with no extra software or external
power supply required
* Apple iPhones are not supported.
** For video output to work through a USB-C port, it must support USB-C
DisplayPort Alternate Mode.
*** Compatible with smartphones launched in 2018 or later that support
USB-C DisplayPort Alternate Mode.
Product Features
5
Front Panel
Feature Identification
FPO
1USB 3.2 Gen 1 Type-A Ports:
Connects to USB-A peripherals, such as a keyboard,
mouse or thumb drive.
1
USB
HO ST
HD M I O UTREM OTE
USB PD
B003-HC2-DOCK1
6
USB
HO ST
HD M I O UTREM OTE
USB PD
B003-HC2-DOCK1
Feature Identification
6

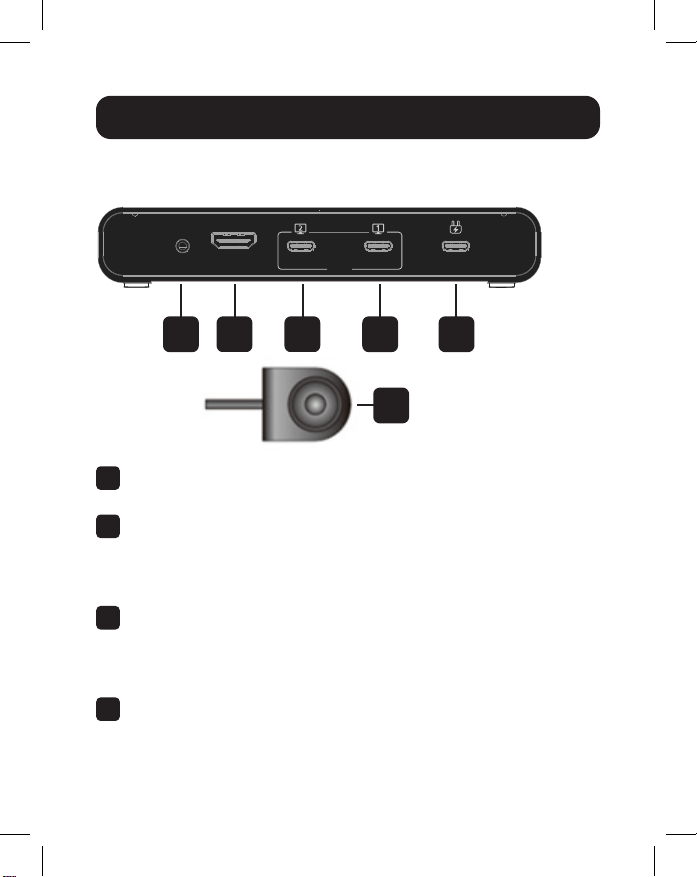

Rear Panel
1USB-C DC-In Port*:
Connects a USB-C power source.
2USB-C 3.2 Gen 1 Type-C Port 1 (Laptop)**:
Connects a computer with the included USB-C cable.
If you need PD laptop charging, connect your computer
to this port.
3USB-C 3.2 Gen 1 Type-C Port 2 (Android: Samsung
DeX or Huawei Desktop Mode)***:
Connects a laptop or Android mobile device with the
included USB-C cable.
4HDMI Output:
Connects to a monitor’s HDMI input with a user-supplied
HDMI cable.
12345
7
Feature Identification
52.5 mm Remote Port Selector Jack:
Connects the included Remote Port Selector.
6Remote Port Selector:
Press the button to switch to the next port when
connected to the unit.
* Supports maximum 100W USB-C PD power adapter input. For device
charging, a Limited Power Source (LPS) certified USB-C PD power
adapter over 65W is recommended. The minimum system power
requirement for basic USB functions and video output should be at
least 5V 3A. The first 15W will supply the B003-HC2-DOCK1. The
next 10W will supply the USB-C device connected to the Android port.
The balance of power will supply the USB-C device connected to the
Laptop port.
** Supports USB-C PD laptop charging at 5/9/15/20V output.
*** Supports maximum 5V 2A output.
8
Feature Identification
Top Panel
1Console Indicator LED (Port 1):
Illuminates white when the corresponding console is in use.
2Console Indicator LED (Port 2):
Illuminates white when the corresponding console is in use.
1 2
USB
HO ST
HD M I O UTREM OTE
USB PD
B003-HC2-DOCK1
9
USB
HO ST
HD M I O UTREM O TE
USB PD
B003-HC2-DOCK1
USB
HO ST
HD M I O UTREM O TE
USB PD
B003-HC2-DOCK1
USB
HO ST
HD M I O UTREM O TE
USB PD
B003-HC2-DOCK1

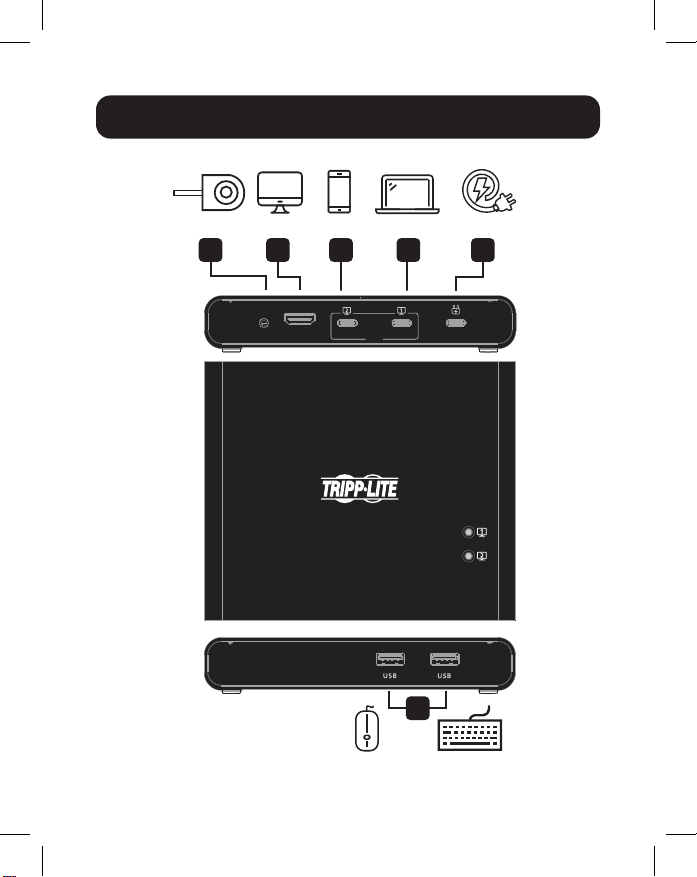

Installation and Operation
123 46
5
Keyboard
Mouse
Laptop
MonitorRemote Smartphone Power Adapter
10
Installation and Operation
1Connect a computer or laptop to Port 1 using an included
USB-C cable.
Note: Port 1 supports PD 3.0 charging up to 85W at power
profiles of 5/9/15/20V.
2Connect a mobile device, computer or laptop to Port 2
using an included USB-C cable.
Note: Port 2 supports charging up to 10W (5V 2A). It is
recommended to charge laptops using Port 1 and mobile devices,
such as Android smartphones, using Port 2.
3Connect an HDMI-compliant display with a user-supplied
HDMI cable.
4(Optional) Connect a USB-C power adapter, such as the
adapter than came with your laptop.
Note: This port supports up to 100W (20V 5A) maximum input.
A USB-C PD power adapter over 65W is recommended. The first
15W will supply the B003-HC2-DOCK1 itself. The next 10W will
supply the USB-C device connected to Port 2. The balance of
power will supply the USB-C device connected to Port 1.
5Connect up to two USB peripherals, such as thumb drives.
6Connect the included Remote Port Selector.
