Owner’s Manual

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

3-Phase Monitored & Switched

0U Power Distribution Units

(Phase, Bank, Outlet Measurements*)

208V MONITORED MODELS SERIES NO.

PDU3EVN3L2130 AG-00B9

PDU3EVN10L2130 AG-00B9

PDU3EVN3L2120 AG-00B8

PDU3EVN6L2120 AG-00B8

PDU3EVN10L2120 AG-00B8

PDU3EVN6L2130 AG-00B9

208V SWITCHED MODELS SERIES NO.

PDU3EVSR6G60A AG-0063

PDU3EVSR6H50A AG-0065

200 – 240V MONITORED MODELS SERIES NO.

PDU3EVN6G30B AG-00BA

PDU3EVN10G30B AG-00BA

PDU3EVN3G60B AG-00BA

PDU3EVN6G60B AG-00BA

PDU3EVN10G60B AG-00BA

PDU3EVN3H50B AG-00BA

PDU3EVN6H50B AG-00BA

PDU3EVN6H50BA AG-00BA

PDU3EVN10H50B AG-00BA

PDU3EVN3L1520 AG-00BA

PDU3EVN6L1520 AG-00BA

PDU3EVN10L1520 AG-00BA

PDU3EVN3L1530B AG-00BA

PDU3EVN6L1530B AG-00BA

PDU3EVN10L1530B AG-00BA

PDU3EVN3L2130B AG-00BA

PDU3EVN6L2130B AG-00BA

PDU3EVN10L2130B AG-00BA

PDU3EVN2 AG-00BA

PDU3EVN6G60C AG-00BB

200 – 240V SWITCHED MODELS SERIES NO.

PDU3EVSR6H50 AG-00BA

PDU3EVSR10H50 AG-00BA

PDU3EVSR6L1530 AG-00BA

PDU3EVSR10L1530 AG-00BA

PDU3EVSR6L2130 AG-00BA

PDU3EVSR6G60 AG-00BA

PDU3EVSR10L2130 AG-00BA

PDU3EVS6H50 AG-00BA

PDU3EVS6L2130 AG-00BA

PDU3EVS6L2120 AG-00BC

PDU3EVSR6L2120 AG-00BC

PDU3EVSR6L1520 AG-00BC

380 – 415V MONITORED MODELS SERIES NO.

PDU3XEVN6G20 AG-00BD

380 – 415V SWITCHED MODELS SERIES NO.

PDU3XEVSR6G20 AG-00BD

PDU3XEVSR6G30A AG-0096

PDU3XEVSR6G30B AG-0096

PDU3XEVSR6G32A AG-0080

PDU3XEVSR6G32B AG-0080

PDU3XEVSR6G60A AG-0093

PDU3XEVSR6G60B AG-0093

PDU3XEVSR6G63A AG-0094

PDU3XEVSR6G63B AG-0094

PDU3XEVSR6L230B AG-0056

PDU3XEVSR6L2230 AG-0056

PDU3XEVSRHWA AG-0057

PDU3XEVSRHWB AG-0057

*Varies by product.

Español 18 • Français 35 • Русский 52

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during

the installation, operation, and storage of this product. Failure to heed these

instructions and warnings may affect the product warranty.

• The PDU provides the convenience of multiple outlets, but DOES NOT provide surge or line

noise protection for connected equipment.

• The PDU is designed for indoor use only, in a controlled environment, away from excess

moisture, temperature extremes, conductive contaminants, dust or direct sunlight.

• Keep indoor ambient temperature between 32°F and 122°F (0°C and 50°C).

• The PDU must be installed by a qualiﬁed technician only.

• Do not attempt to mount the PDU to an insecure or unstable surface.

• Install in accordance with National Electrical Code standards. Be sure to use the proper

overcurrent protection for the installation, in accordance with the plug/equipment rating.

• Connect the PDU to an outlet that is in accordance with your local building codes and that is

adequately protected against excess currents, short circuits and earth faults.

• The electrical outlets supplying power to the equipment should be installed near the equipment

and easily accessible.

• Do not connect the PDU to an ungrounded outlet or to extension cords or adapters that

eliminate the connection to ground.

• Be sure to provide a local disconnect device on any models that are permanently installed

without a plug that is easily accessible.

• Never attempt to install electrical equipment during a thunderstorm.

• Individual equipment connected to the PDU should not draw more current than the individual

PDU’s outlet’s rating.

• The total load connected to the PDU must not exceed the maximum load rating for the PDU.

• Do not attempt to modify the PDU, input plugs or power cables.

• Do not drill into or attempt to open any part of the PDU housing. There are no user-serviceable

parts inside.

• Do not attempt to use the PDU if any part of it becomes damaged.

• Use of this equipment in life support applications where failure of this equipment can

reasonably be expected to cause the failure of the life support equipment or to signiﬁcantly

affect its safety or effectiveness is not recommended.

1-1 1-2

1-4

1-3

1-5

Installation

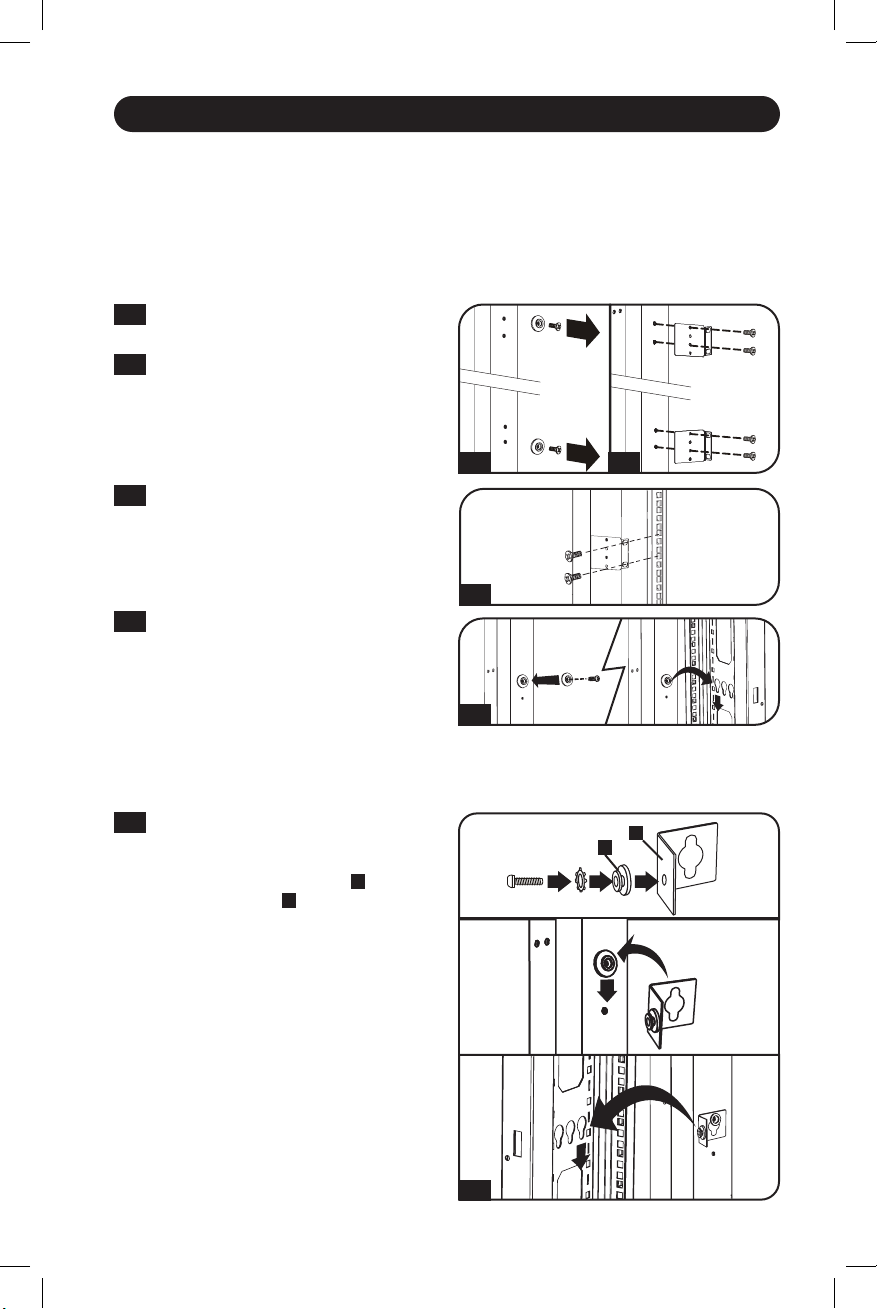

Mounting the PDU

Note: The illustrations may differ somewhat from your PDU model. Regardless of conﬁguration, the user must

determine the ﬁtness of hardware and procedures before mounting. The PDU and included hardware are designed

for common rack and rack enclosure types and may not be appropriate for all applications. Exact mounting

conﬁgurations may vary. Screws for attaching the mounting brackets to the PDU are included. Use only the screws

supplied by the manufacturer or their exact equivalent.

Note: Mounting buttons come preinstalled to the PDU for toolless mounting.

1-1 To attach the mounting brackets to the

PDU, remove the mounting buttons.

1-2 Attach the mounting brackets to the

PDU with the included screws.

1-3 Attach the PDU to a vertical rail in

your rack or rack enclosure. (Use the

mounting hardware that came with your

rack or rack enclosure to attach the

mounting brackets to the rail.)

1-4 To reinstall the mounting buttons for

toolless mounting, remove the mounting

brackets then install the mounting

buttons onto the PDU. Position the PDU

as desired in the rack enclosure, align

the buttons with the rack mounting

slots, and slide the PDU into position.

Note: Be sure to insert the 2 buttons into either

the upper hole at each end of the PDU or into

the lower hole at each end of the PDU.

1-5 To install the PDU with its outlets facing

the rear of the rack, use the included

PDUMVROTATEBRKT accessory. First,

attach the mounting button Ato the

V-shaped bracket Busing the included

screw and washer. Then, use the

button-mount slot to attach the bracket

to the PDU and the mounting button to

attach the PDU to the rack. The bracket

effectively repositions the mounting

brackets allowing for the PDU outlets to

face the rear of the rack.

Installation

Connecting the PDU

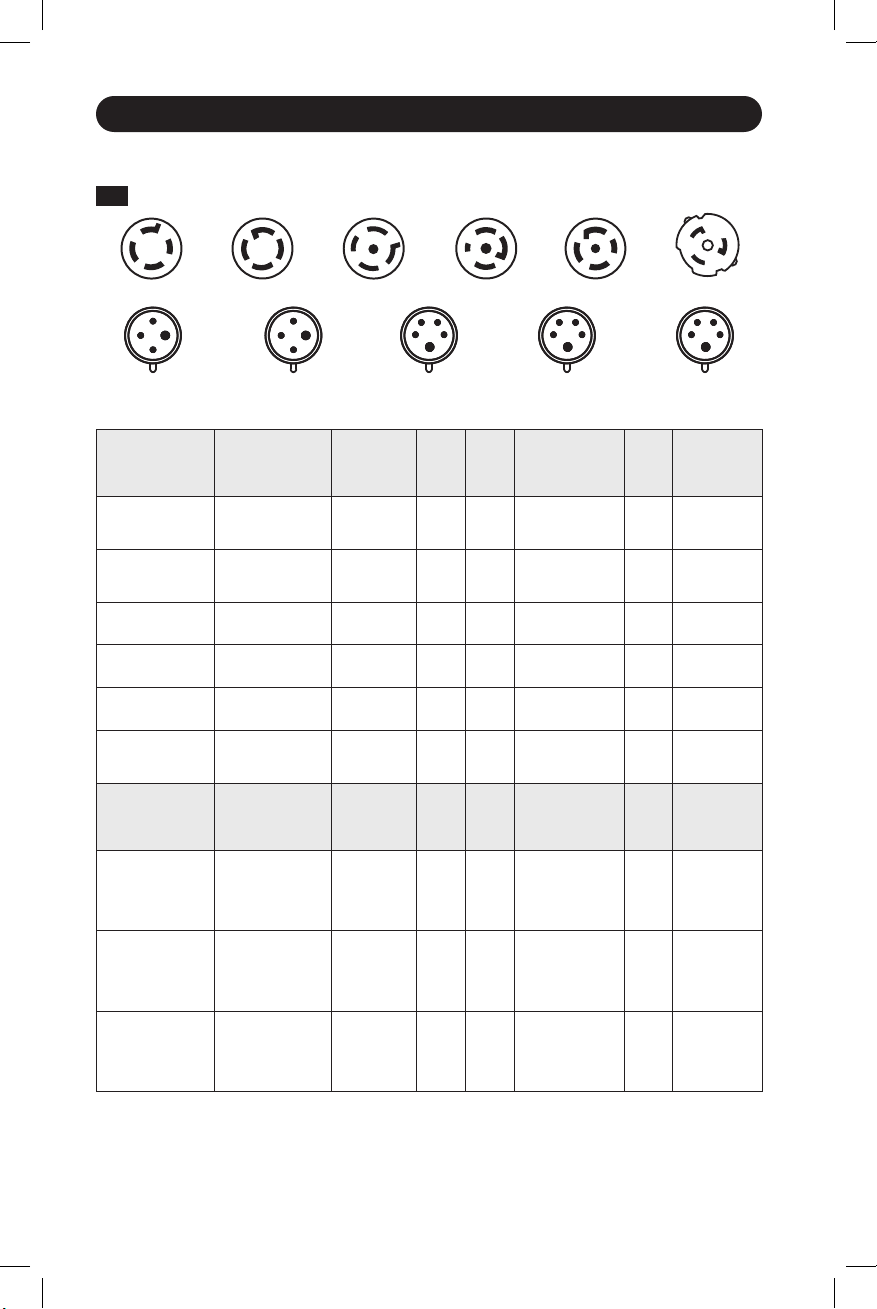

2-1 Each model is equipped with 1 of 8 different input plugs.

208V

Monitored Models Input Plug

Max Input

Amps (Limited

by Input Cord

and Plug)

Input

Voltage

Range

Output

Voltage

Range Breakers

Cord

Length Outlets

PDU3EVN3L2130 L21-30P 24A 208V 208V 3 x Double Pole,

20A Branch-Rated 3 ft.

(0.9 m)

36 x C13;

6 x C19;

3 x 5-15/20R

PDU3EVN10L2130 L21-30P 24A 208V 208V 3 x Double Pole,

20A Branch-Rated 10 ft.

(3 m)

36 x C13;

6 x C19;

3 x 5-15/20R

PDU3EVN3L2120 L21-20P 16A 208V 208V N/A 3 ft.

(0.9 m) 42 X C13;

6 X C19

PDU3EVN6L2120 L21-20P 16A 208V 208V N/A 6 ft.

(1.8 m) 42 X C13;

6 X C19

PDU3EVN10L2120 L21-20P 16A 208V 208V N/A 10 ft.

(3 m) 42 X C13;

6 X C19

PDU3EVN6L2130 L21-30P 24A 208V 208V 3 x Double Pole,

20A Branch-Rated 6 ft.

(1.8 m)

36 x C13;

6 x C19;

3 x 5-15/20R

208V

Switched Models Input Plug

Max Input

Amps (Limited

by Input Cord

and Plug)

Input

Voltage

Range

Output

Voltage

Range Breakers

Cord

Length Outlets

PDU3EVSR6G60A IEC 309 60A Blue

(3P + E); IP44 45A 208V 208V

6 x Low-Proﬁle

with Safety Lock,

Double Pole,

Magnetic,

Branch-Rated

6 ft.

(1.8 m) 6 x C13;

12 x C19

PDU3EVSR6G60A IEC 309 60A Blue

(3P + N + E), IP67

N Not Used 45A 208V 208V

6 x Low-Proﬁle

with Safety Lock,

Double Pole,

Magnetic,

Branch-Rated

6 ft.

(1.8 m) 6 x C13;

12 x C19

PDU3EVSR6H50A Hubbell CS8365C 40A 208V 208V

6 x Low-Proﬁle

with Safety Lock,

Double Pole,

Magnetic,

Branch-Rated

6 ft.

(1.8 m) 6 x C13;

12 x C19

L15-20P L15-30P L21-20P L21-30P L22-30P Hubbell CS8365C

IEC 309

30A Blue

(3P + E)

IEC 309

60A Blue

(3P + E)

IEC 309

32A

Red

(3P + N + E)

IEC 309

63A Red

(3P + N + E)

IEC 309

60A Blue

(3P + N + E)

Installation

200 – 240V

Monitored Models Input Plug

Max Input

Amps (Limited

by Input Cord

and Plug)

Input

Voltage

Range

Output

Voltage

Range Breakers

Cord

Length Outlets

PDU3EVN6G30B IEC 309 30A Blue

(3P + E); IP44 24A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 6 ft.

(1.8 m) 42 x C13;

6 x C19

PDU3EVN10G30B IEC 309 30A Blue

(3P + E); IP44 24A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 10 ft.

(3 m) 42 x C13;

6 x C19

PDU3EVN3G60B IEC 309 60A Blue

(3P + E); IP44 35A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 3 ft.

(0.9 m) 42 x C13;

6 x C19

PDU3EVN6G60B IEC 309 60A Blue

(3P + E); IP44 35A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 6 ft.

(1.8 m) 42 x C13;

6 x C19

PDU3EVN10G60B IEC 309 60A Blue

(3P + E); IP44 35A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 10 ft.

(3 m) 42 x C13;

6 x C19

PDU3EVN3H50B Hubbell CS8365C 35A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 3 ft.

(0.9 m) 42 x C13;

6 x C19

PDU3EVN6H50B Hubbell CS8365C 35A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 6 ft.

(1.8 m) 42 x C13;

6 x C19

PDU3EVN6H50BA Hubbell CS8365C 35A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 6 ft.

(1.8 m) 30 x C13;

12 x C19

PDU3EVN10H50B Hubbell CS8365C 35A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 10 ft.

(3 m) 42 x C13;

6 x C19

PDU3EVN3L1520 L15-20 16A 200-

240V 200-

240V —3 ft.

(0.9 m) 42 x C13;

6 x C19

PDU3EVN6L1520 L15-20 16A 200-

240V 200-

240V —6 ft.

(1.8 m) 42 x C13;

6 x C19

PDU3EVN10L1520 L15-20 16A 200-

240V 200-

240V —10 ft.

(3 m) 42 x C13;

6 x C19

PDU3EVN3L1530B L15-30P 24A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 3 ft.

(0.9 m) 42 x C13;

6 x C19

PDU3EVN6L1530B L15-30P 24A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 6 ft.

(1.8 m) 42 x C13;

6 x C19

PDU3EVN10L1530B L15-30P 24A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 10 ft.

(3 m) 42 x C13;

6 x C19

PDU3EVN3L2130B L21-30P 24A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 3 ft.

(0.9 m) 42 x C13;

6 x C19

PDU3EVN6L2130B L21-30P 24A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 6 ft.

(1.8 m) 42 x C13;

6 x C19

PDU3EVN10L2130B L21-30P 24A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 10 ft.

(3 m) 42 x C13;

6 x C19

PDU3EVN2 Hardwire 35A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated N/A 42 x C13;

6 x C19

PDU3EVN6G60C IEC 309 60A Blue

(3P + E); IP44 45A 200-

240V 200-

240V

6 x Low-Proﬁle

with Safety Lock,

Double Pole,

Magnetic,

Branch-Rated

6 ft.

(1.8 m) 36 x C13

Installation

200 – 240V

Switched Models Input Plug

Max Input

Amps (Limited

by Input Cord

and Plug)

Input

Voltage

Range

Output

Voltage

Range Breakers

Cord

Length Outlets

PDU3EVSR6H50 Hubbell CS8365C 35A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 6 ft.

(1.8 m) 24 x C13;

6 x C19

PDU3EVSR10H50 Hubbell CS8365C 35A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 10 ft.

(3 m) 24 x C13;

6 x C19

PDU3EVSR6L1530 L15-30P 24A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 6 ft.

(1.8 m) 24 x C13;

6 x C19

PDU3EVSR10L1530 L15-30P 24A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 10 ft.

(3 m) 24 x C13;

6 x C19

PDU3EVSR6L2130 L21-30P 24A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 6 ft.

(1.8 m) 24 x C13;

6 x C19

PDU3EVSR10L2130 L21-30P 24A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 10 ft.

(3 m) 24 x C13;

6 x C19

PDU3EVSR6G60 IEC 309 60A Blue

(3P + E), IP44 35A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 10 ft.

(3 m) 24 x C13;

6 x C19

PDU3EVSR6G60 IEC 309 60A Blue

(3P + N + E), IP67

N Not Used 35A 200-

240V 200-

240V 3 x Double Pole,

20A Branch-Rated 10 ft.

(3 m) 24 x C13;

6 x C19

PDU3EVS6H50 Hubbell CS8365C 35A 200-

240V 200-

240V

3 x Low Proﬁle

with Safety Lock,

Double Pole,

Magnetic,

Branch-Rated

6 ft.

(1.8 m) 24 x C13;

6 x C19

PDU3EVS6L2130 L21-30P 24A 200-

240V 200-

240V

3 x Low Proﬁle

with Safety Lock,

Double Pole,

Magnetic,

Branch-Rated

6 ft.

(1.8 m) 24 x C13;

6 x C19

PDU3EVS6L2120 L21-20P 16A 200-

240V 200-

240V —6 ft.

(1.8 m) 24 x C13;

6 x C19

PDU3EVSR6L2120 L21-20P 16A 200-

240V 200-

240V —6 ft.

(1.8 m) 24 x C13;

6 x C19

PDU3EVSR6L1520 L15-20P 16A 200-

240V 200-

240V —6 ft.

(1.8 m) 24 x C13;

6 x C19

380 – 415V

Monitored Models Input Plug

Max Input

Amps (Limited

by Input Cord

and Plug)

Input

Voltage

Range

Output

Voltage

Range Breakers

Cord

Length Outlets

PDU3XEVN6G20 IEC 309 20A Red

(3P + N + E); IP44 16A 380-

415V 380-

415V —6 ft.

(1.8 m) 42 x C13;

6 x C19

Installation

380 – 415V

Switched Models Input Plug

Max Input

Amps (Limited

by Input Cord

and Plug)

Input

Voltage

Range

Output

Voltage

Range Breakers

Cord

Length Outlets

PDU3XEVSR6G20 IEC 309 20A Red

(3P + N + E); IP44 16A 380-

415V 380-

415V —6 ft.

(1.8 m) 24 x C13;

6 x C19

PDU3XEVSR6G30A IEC 309 32A Red

(3P + N + E); IP44 24A 380-

415V 380-

415V

6 x Low-Proﬁle

with Safety Lock,

Single Pole,

Magnetic,

Branch-Rated

6 ft.

(1.8 m) 12 x C13;

12 x C19

PDU3XEVSR6G30B IEC 309 32A Red

(3P + N + E); IP44 24A 380-

415V 380-

415V 6 x Double Pole,

20A Branch-Rated 6 ft.

(1.8 m) 24 x C13;

6 x C19

PDU3XEVSR6G32A IEC 309 32A Red

(3P + N + E); IP44 32A 380-

415V 380-

415V

6 x Low-Proﬁle

with Safety Lock,

Single Pole,

Magnetic,

Branch-Rated

6 ft.

(1.8 m) 12 x C13;

12 x C19

PDU3XEVSR6G32B IEC 309 32A Red

(3P + N + E); IP44 32A 380-

415V 380-

415V 6 x Double Pole,

20A Branch-Rated 6 ft.

(1.8 m) 24 x C13;

6 x C19

PDU3XEVSR6G60A IEC 309 63A Red

(3P + N +E); IP44 35A 380-

415V 380-

415V

6 x Low-Proﬁle

with Safety Lock,

Single Pole,

Magnetic,

Branch-Rated

6 ft.

(1.8 m) 12 x C13;

12 x C19

PDU3XEVSR6G60B IEC 309 63A Red

(3P + N +E); IP44 35A 380-

415V 380-

415V 6 x Double Pole,

20A Branch-Rated 6 ft.

(1.8 m) 24 x C13;

6 x C19

PDU3XEVSR6G63A IEC 309 63A Red

(3P + N +E); IP44 40A 380-

415V 380-

415V

6 x Low-Proﬁle

with Safety Lock,

Single Pole,

Magnetic,

Branch-Rated

6 ft.

(1.8 m) 12 x C13;

12 x C19

PDU3XEVSR6G63B IEC 309 63A Red

(3P + N +E); IP44 40A 380-

415V 380-

415V 6 x Double Pole,

20A Branch-Rated 6 ft.

(1.8 m) 24 x C13;

6 x C19

PDU3XEVSR6L230B L22-30P 24A 380-

415V 380-

415V 6 x Double Pole,

20A Branch-Rated 6 ft.

(1.8 m) 24 x C13;

6 x C19

PDU3XEVSR6L2230 L22-30P 24A 380-

415V 380-

415V

6 x Low-Proﬁle

with Safety Lock,

Single Pole,

Magnetic,

Branch-Rated

6 ft.

(1.8 m) 12 x C13;

12 x C19

PDU3XEVSRHWA Hardwire 40A 380-

415V 380-

415V

6 x Low-Proﬁle

with Safety Lock,

Single Pole,

Magnetic,

Branch-Rated

N/A 12 x C13;

12 x C19

PDU3XEVSRHWB Hardwire 40A 380-

415V 380-

415V 6 x Double Pole,

20A Branch-Rated N/A 24 x C13;

6 x C19

2-2A

A B

Remove Access Plate Screws

Ground Terminal

2-2B

Installation

2-2A Corded Models - Connect the input

plug to your facility’s compatible AC

power source and input connection.

Plug type may

vary by model.

2-2B Hardwire Models (PDU3XEVSRHWA and PDU3XEVSRHWB only)

WARNING

Only qualiﬁed personnel should perform hardwire installations. Wire codes and

requirements differ from area to area. Be sure to conform to local electrical

requirements. Use of copper wiring with ferrules is recommended for AC input

terminal connections. Each input terminal connection should be torqued to the

listed speciﬁcation. Improperly sized wiring, inadequate torque, or use of non-

copper wiring can result in overheating of input terminal connections.

These models do not come equipped with an input cable. Conduit and adapters are

installed to the endplate A, wires are channeled through the conduit and adapters to the

terminal block, located behind the access plate B.

Model Recommended Wire Gauge / Type Torque Speciﬁcations

PDU3XEVSRHWA #6 AWG Copper Wire (13.3 mm2) 12.2 in•lbf (1.38 N•m)

PDU3XEVSRHWB

To access the terminal block to make input wire connections, remove the access plate

located on the rear side of the PDU C. Ferruled wire ends are recommended. Secure

conduit and torque wire connections to listed torque speciﬁcations.

2-3

2-4

Installation

Networking the PDU

Your PDU can receive IP address assignments via DHCP server (dynamic) or static (manual)

addressing methods. See the LX Platform User’s Guide for an explanation of these methods. You

can ﬁnd the guide by going to tripplite.com/support and typing LX Platform in the search ﬁeld. If

you are uncertain which method to use, contact your network administrator for assistance before

continuing the conﬁguration process.

Note: The MAC address of the PDU (12-digit string in this format: 000667xxxxxx) is printed on a label attached

to the PDU enclosure.

2-3 Connect your equipment’s input plugs to

the appropriate outlets on the PDU. The

LED near each outlet illuminates when

the outlet is ready to distribute live

AC power.

Note: It is recommended that you do not

connect a live load to the PDU. If the load you

intend to connect has an ON/OFF switch, please

turn the switch to OFF prior to connection.

2-4 Optional Cord Retention Procedure

Option 1: Use the bridge lances located

near each receptacle to retain power

cords. Tie each equipment power cord

to a bridge lance by looping the cord

and securing it with one of the included

cable ties A.Make sure each cord can

be unplugged from the PDU without

removing the cable tie.

Option 2: Use the included C14 and

C20 plastic sleeves to secure plugs to

receptacles. Attach the sleeve to the

plug, making sure that the pull tabs B

remain outside the plug and that the ﬁt

is secure. To unplug equipment properly,

use the pull tabs to remove the plug

and sleeve from the receptacle.

Network

Input Phase

Load Bank

Outlet

Configuration

Environment

Mobile Access

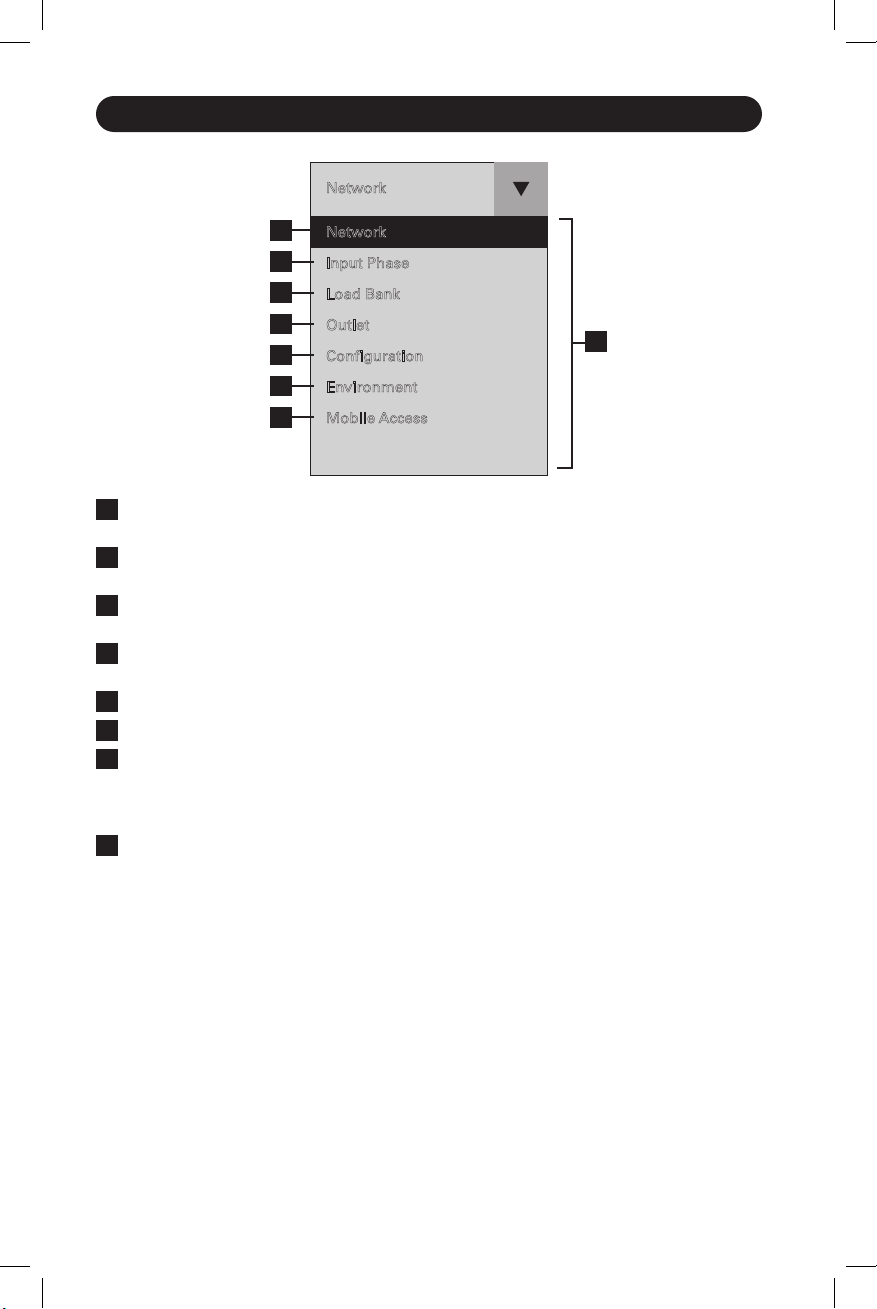

LCD Touchscreen

AMain Menu: Use the q on the touchscreen to toggle between the main menu and the

previously selected panel. Available options will vary based on the PDU and peripherals.

BNetwork: Displays the IP address, Subnet Mask, Gateway, MAC Address, Device Name,

Model and Serial Number.

CInput Phase: Displays the amperage and voltage for each phase, as well as the Unbalanced

Load %.

DLoad Bank: Displays the total amperage, wattage and voltage for each load bank as well as

the total power in Watts.

EOutlet: Displays the amperage and wattage per outlet.

FConﬁguration: Displays conﬁgurable settings for the LCD touchscreen.

GEnvironment: Displays the data and status of any EnviroSense2 (E2) modules connected

to the PDU. The information shown will vary depending on the E2 model (E2MT, E2MTDI,

E2MTD0, E2MTHDI). Parameters include temperature, RH% (relative humidity), and the

status of input and output dry contacts (open or closed).

HMobile Access: Generates a unique QR code to view the PDU’s details on a mobile device.

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Tripp Lite Unità di distribuzione dell'energia

Tripp Lite

Tripp Lite PDU3VN10L2120 Manuale utente

Tripp Lite

Tripp Lite SUPDM56HW Manuale utente

Tripp Lite

Tripp Lite PDUMH15ATNET Manuale utente

Tripp Lite

Tripp Lite PDUMH15AT Manuale utente

Tripp Lite

Tripp Lite PDUMNV30HVNET Manuale utente

Tripp Lite

Tripp Lite PDUMH20 Manuale utente

Tripp Lite

Tripp Lite PDUMH15AT Manuale utente

Tripp Lite

Tripp Lite PDU12IEC Manuale utente

Tripp Lite

Tripp Lite AGIB6098 Series Manuale utente

Tripp Lite

Tripp Lite AG-05F3 Series Manuale utente

Tripp Lite

Tripp Lite PDU3VSR6H50A Manuale utente

Tripp Lite

Tripp Lite PDUMVR20NET Manuale utente

Tripp Lite

Tripp Lite PDU40TDUAL Manuale utente

Tripp Lite

Tripp Lite PDUMNH15 Manuale utente

Tripp Lite

Tripp Lite PDU1215 Guida utente

Tripp Lite

Tripp Lite PDUMVR30NET (AG-0045) Manuale utente

Tripp Lite

Tripp Lite Power Distribution Unit (PDU) PDU6K Manuale utente

Tripp Lite

Tripp Lite Metered Rack PDU Manuale utente

Tripp Lite

Tripp Lite PDUMH20NET2 Guida alla configurazione

Tripp Lite

Tripp Lite PDUMV30HV Manuale utente

Tripp Lite

Tripp Lite PDUMH20HV Manuale utente

Tripp Lite

Tripp Lite PDUMNV20HV2 Manuale utente

Tripp Lite

Tripp Lite SUPDMB6KHW Manuale utente

Tripp Lite

Tripp Lite PDUV30-36 Manuale utente

Manuali Unità di distribuzione dell'energia popolari di altre marche

hager

hager SP 015 Manuale utente

Pakedge

Pakedge PowerPak 9 Manuale utente

Pts

Pts 9042 Series Manuale utente

Shure

Shure WA405 Manuale utente

CORNING

CORNING CCH 4U Manuale utente

Panamax

Panamax M4LT-EX Manuale utente

PANCONNECT

PANCONNECT FLAT 3M Manuale utente

Raytheon

Raytheon 138-118 Manuale utente

D&R ELECTRONICS

D&R ELECTRONICS PDU-6SS Manuale utente

Botex

Botex PSA 322-6 DL Manuale utente

GE QuiXtra 4000 Guida rapida

RDL

RDL EZ Series Manuale utente

StarTech.com

StarTech.com RKPW161915 Manuale del sistema

Vertiv

Vertiv Knürr DI-Strip Rack PDU Manuale utente

ABB

ABB PSBS0065 Manuale

Baumuller

Baumuller BFN 3-1-0007-001 Manuale

Eaton

Eaton StructuredWiringSolutions ESWT41600 Manuale

GE GEK-45404F Manuale utente
