SUDC Sequence Of Operation

SUDC208V42P30M,

SUDC208V42P40M

SUDC208V42P60M

& SUDC208V84P60M

1111 West 35th Street, Chicago, IL 60609 USA

773.869.1234 • www.tripplite.com

Copyright © 2010 Tripp Lite. All trademarks are the sole property of their respective owners.

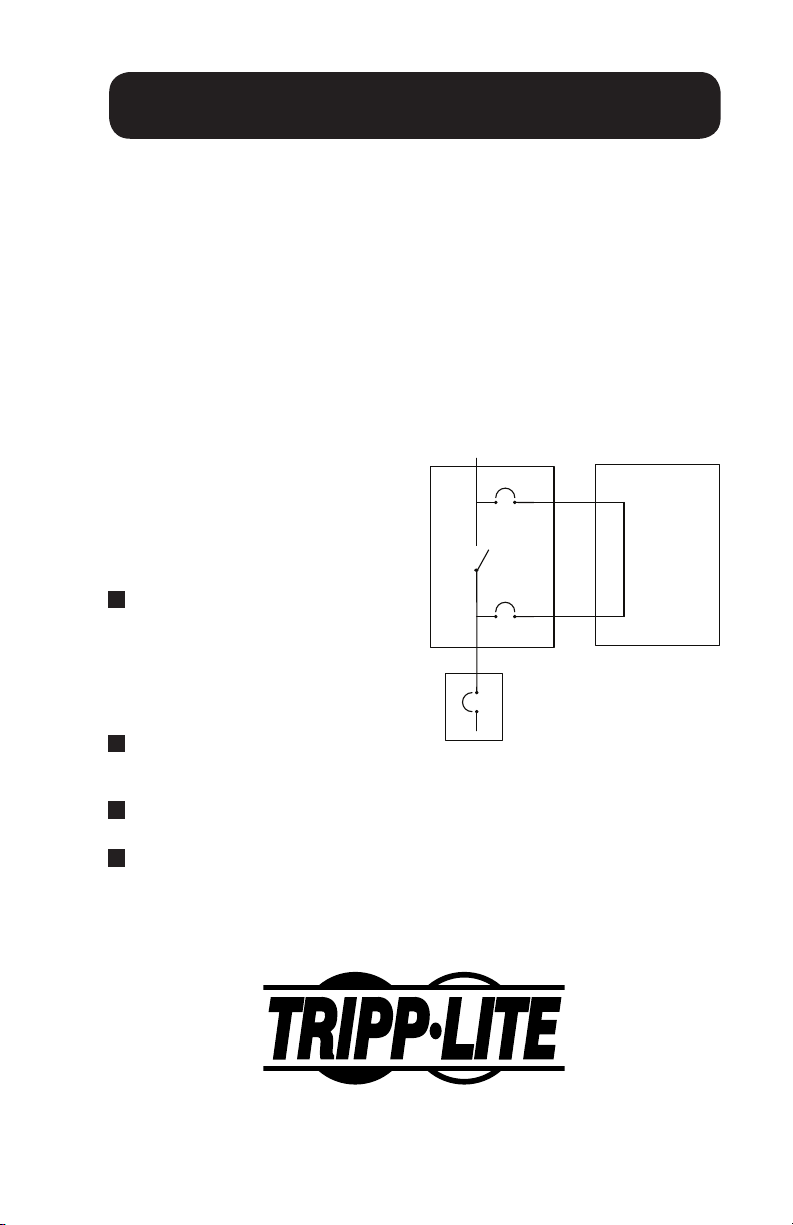

The drawing illustrates power ow

and sequence of operation of the

bypass switch. It is important to

follow the procedure correctly

to avoid damaging the UPS or

dropping the critical load.

1

Put the UPS into bypass by

turning o the inverter (press the

red button then turn the manual

rotary switch to bypass on the

back of the UPS)

2

Using the Key, retract SW2 bolt

and close SW2

UPS

Out to

Panel

Input Panel

SW2

SW3

SW1

Output

input

3

Using key, retract bolt and open SW3

4

Open SW1

The UPS is now in bypass. To return to normal operation, reverse the process.

The 30M/40M/60M sux in the distribution center part number indicates an integral 3

breaker maintenance bypass in the bottom of the cabinet. The feature enables make-

before-break isolation of the UPS from the critical load for maintenance of the UPS.

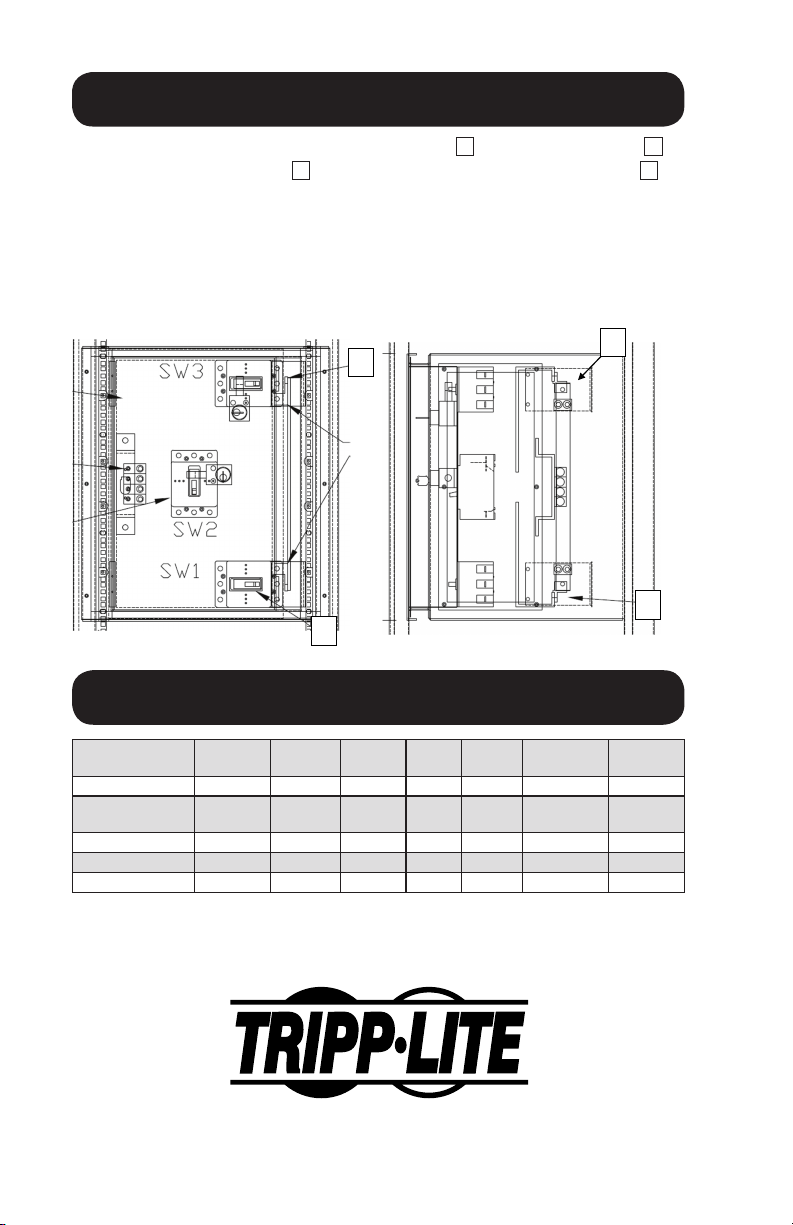

The drawing below shows bypass utility input A, UPS isolation input B

, and UPS isolation output C termination points. The bypass output Dis

prewired to the distribution panel, which reduces installation time. Use

the attached table as a wiring guideline subject to NEC and local codes.

Flexible cable and conduit is recommended for ease of installation.

Access panels are located on the side and rear of the bypass enclosure for

access to termination points.

Wiring

Front View Side View

C

B

A

D

Tripp Lite P/N Voltage DP Poles DP

Breaker MBP MBP

Breaker KAIC Rating Cable Size

SUDC208V42P 208Y/120V 42 225A - - 10 000 AWG

SUDC208V42P30M 208Y/120V 42 225A 20 &

30kVA 100A 18 4 AWG

SUDC208V42P40M 208Y/120V 42 225A 40kVA 150A 65 2 AWG

SUDC208V42P60M 208Y/120V 42 225A 60kVA 225A 65 000 AWG

SUDC208V84P60M 208Y/120V 84 225A 60kVA 225A 65 000 AWG

Wiring Guidelines
