Tripp Lite DWM1742S Manuale utente

Owner’s Manual

Full Motion

Flat Screen Wall Mount

MODEL: DWM1742S

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR

PROPERTY DAMAGE MAY OCCUR!

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

100x100

200x100

200x200

42”

MAX

20 kg

(44 lbs)

Este manual esta disponible en español en la página de Tripp Lite: tripplite.com

Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com

Русскоязычная версия настоящего руководства представлена на веб-сайте компании

Tripp Lite по адресу: tripplite.com

Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website verfügbar: tripplite.com

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

NOTE: Read the entire instruction manual before you start installation and assembly.

WARNING

• Do not begin the installation until you have read and understood the instructions

and warnings contained in this manual. If you have any questions regarding any

of the instructions or warnings, please visit tripplite.com/support.

• This mounting bracket was designed to be installed and utilized ONLY as

speciﬁed in this manual. Improper installation of this product may cause damage

or serious injury.

• This product should only be installed by someone of good mechanical ability,

with basic building experience and a full understanding of this instruction

manual.

• Make sure that the mounting surface can safely support the combined load of

the equipment and all attached hardware and components.

• If mounting to wood wall studs, make sure that mounting screws are anchored

into the center of the studs. The use of a stud ﬁnder is highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position

equipment.

• Tighten screws ﬁrmly, but do not over-tighten. Over-tightening can damage the

items, greatly reducing their holding power.

• This product is intended for indoor use only. Using this product outdoors could

lead to product failure and personal injury.

• Use of this equipment in life support applications where failure of this equipment

can reasonably be expected to cause the failure of the life support equipment or

to signiﬁcantly affect its safety or effectiveness is not recommended.

Warranty & Warranty Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects

in material and workmanship for a period of 5 years from the date of initial purchase. If the product should

prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole

discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE,

ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY

SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES,

INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY

PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL

DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not

allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions

may not apply to you. This warranty gives you speciﬁc legal rights, and you may have other rights which vary from

jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate

or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes

no representation or warranty as to the suitability or ﬁtness of these devices for any speciﬁc application.

PRODUCT REGISTRATION

Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a

drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Speciﬁcations are subject to change without notice. Photos and

illustrations may differ slightly from actual products.

Component Checklist

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to

installing. If any parts are missing or faulty, visit www.tripplite.com/support for service.

DWM1742S

4mm Hex Key (x1) 6mm Hex Key (x1)

Wrench (x1)

Nut (x1) M8 Hexagon Nut (x1) D8 Washer (x1)

D5 Washer (x4)

M4X14 (x4)

Anchor Bolt (x3) Concrete Anchor (x3)

D8 Washer (x4)

M5X14 (x4)

Small Spacer (x8)

M6X14 (x4) M8X20 (x4)

Package M

Package W

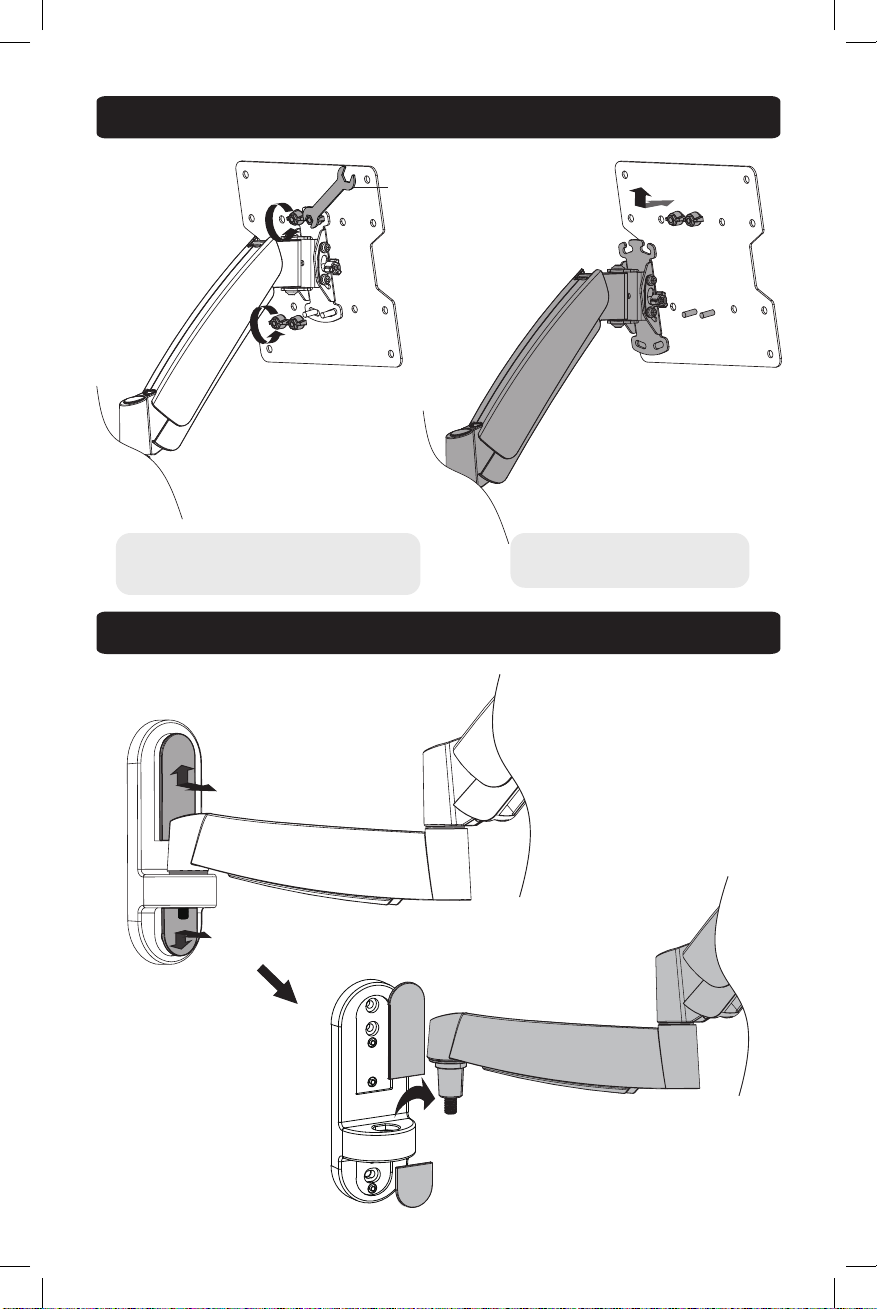

1. Separate VESA Plate from Wall Mount

2. Remove the Decorative Covers

• Using the supplied wrench, loosen the two

upper knobs

• Remove both lower knobs

• Remove VESA plate

Wrench

3a. Mount on Wood Stud Wall

Mark the exact location of the

mounting holes

Screw the wall

mount onto

the wall

Drill pilot holes

WARNING

• Make sure that mounting screws are anchored into the center of the studs.

Use of a stud ﬁnder is highly recommended.

• Installers are responsible to provide hardware for other types of mounting situations.

• Installers must verify that the supporting surface will safely support the combined

load of the equipment and all attached hardware and components.

Find a wood stud location for

mounting the wall mount

Anchor Bolt

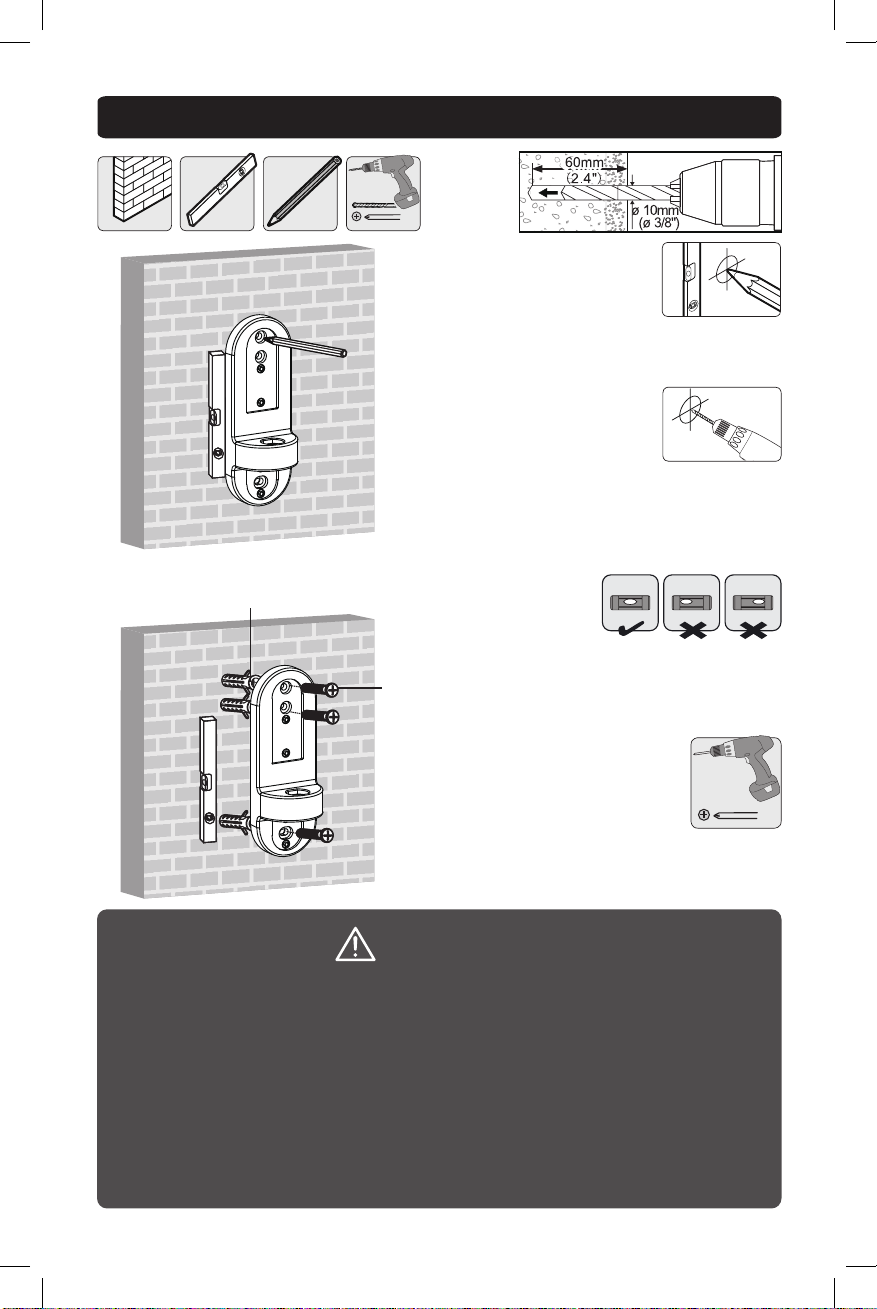

3b. Mount on Solid Brick and Concrete Block

WARNING

• When installing wall mounts onto a concrete masonry unit (also known as a CMU or

“cinder block”), verify that the actual concrete thickness is at least 35mm (1-3/8”)

in order to hold the concrete anchors. DO NOT DRILL INTO MORTAR JOINTS! Be sure

to mount the wall mount with the included concrete anchors and anchor bolts onto

solid sections of the blocks. The solid sections can generally be found 25mm (1”)

toward the middle of the block from either end. An electric drill on a slow setting is

suggested to drill the hole rather than a hammer drill so as to avoid breaking out the

back of the hole when entering a hollow section.

• Installers must verify that the supporting surface will safely support the combined

load of the equipment and all attached hardware and components.

Screw the wall

mount onto

the wall

Drill pilot holes

Find and mark the

exact location of

mounting holes

Concrete Anchor

Anchor Bolt

4. Install Decorative Covers

5. Install VESA Plate

Top of Display

Wrench

D8 Washer

Nut

M8 Hexagon Nut

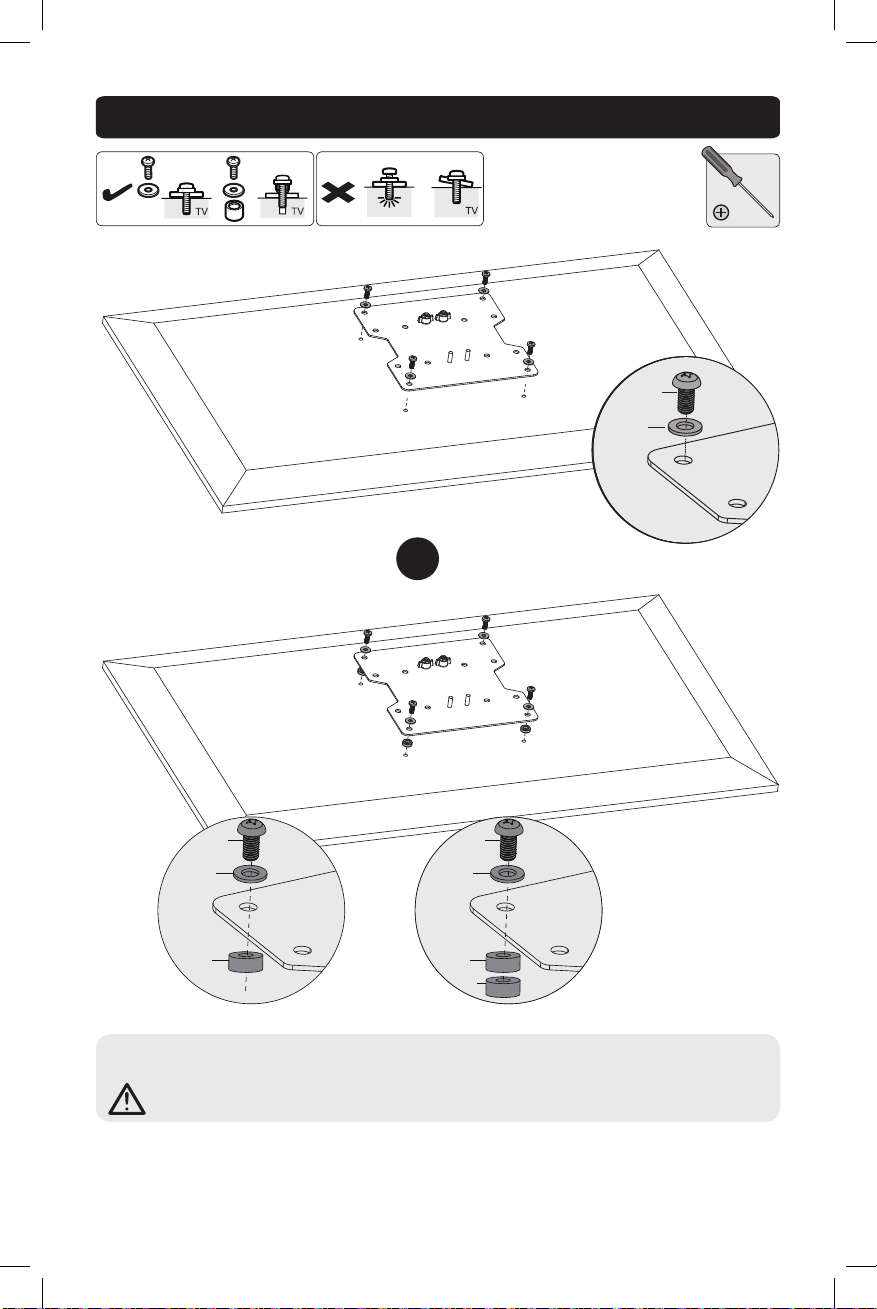

5. Install VESA Plate

Note: Firmly secure the VESA plate to the display using the appropriate screws, washers and spacers

(if necessary).

Do not over-tighten screws.

M8x20 M8x20

M4X14 / M5X14

M6X14 / M8X20

D5 Washer

D8 Washer

Small Spacer Small Spacer

Small Spacer

D8 Washer

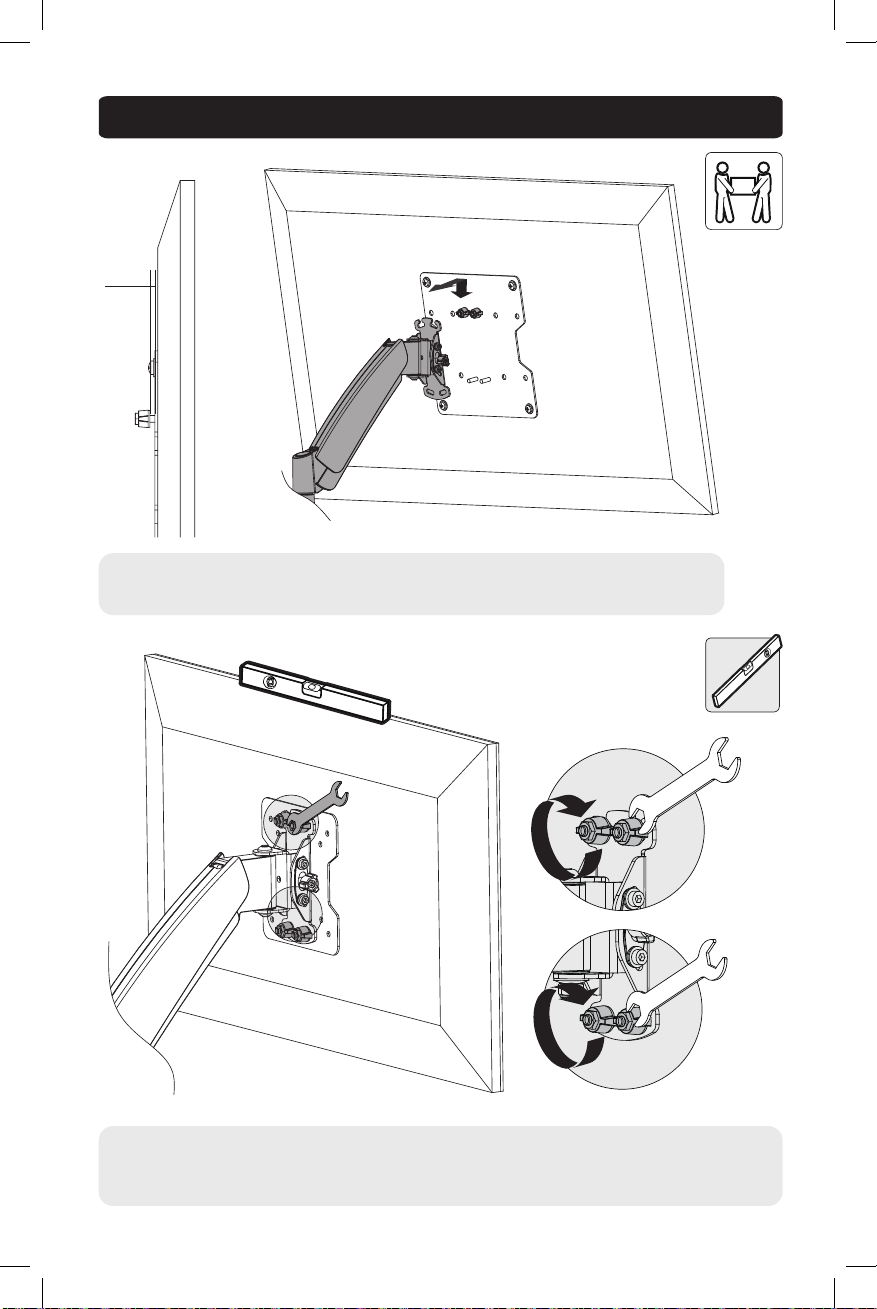

6. Hook the TV onto the Wall Mount

· Position a level on the horizontal and vertical sides of the display and adjust as needed.

· Reattach the lower knobs to the VESA mount (removed in step 1). Using the supplied wrench, tighten all

upper and lower knobs.

Using an assistant or mechanical lifting equipment, lift the display with attached VESA plate. Set the

VESA plate’s upper thumbscrews over the top ﬂange of wall plate arm. Make sure the VESA plate’s

lower screws ﬁt inside of the wall plate arm’s lower hole.

4mm
