Tripp Lite SR48UBEXPNDNR3 Manuale utente

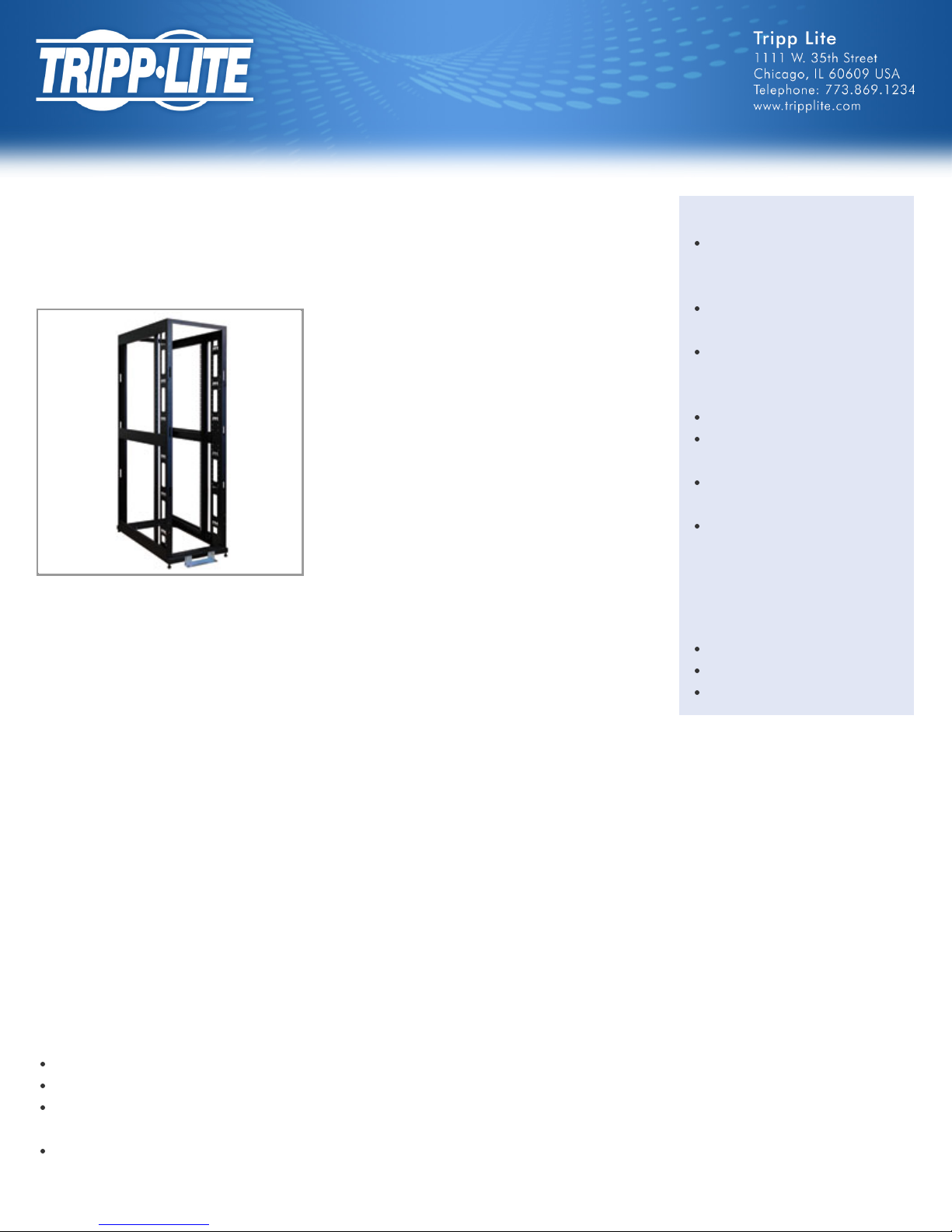

48U 4-Post SmartRack Premium Open Frame Rack
(no sides, doors or roof)
MODEL NUMBER: SR48UBEXPNDNR3
Description
The SR48UBEXPNDNR3 is an expansion model with no sides, doors or roof. An expansion model is useful
when baying together multiple enclosures. Its integrated baying tabs make it easy to combine multiple
enclosures in rows for data center applications.
The SR48UBEXPNDNR3 houses 3000 lb of standard 19-inch rack equipment in 48U. The front and rear pairs of
vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index
ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference and
supports tool-less button-mount 0U installation of up to four compatible PDUs and cable managers.
All components of the SR48UBEXPNDNR3 are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the
facility earth ground.
To simplify deployment, the SR48UBEXPNDNR3 comes with heavy duty 3" preinstalled casters that enable it to be easily maneuvered into the desired
location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for
moving the enclosure over long distances.
The SR48UBEXPNDNR3 comes with a 5-year product warranty. As part of the SmartRack family, the SR48UBEXPNDNR3 is compatible with Tripp Lite’s
extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement.
Features
Open frame rack with no sides, doors or roof
Ships fully assembled for rapid deployment and roll into place on 3" pre-installed casters (casters are removable)
Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures
consistent rail placement without requiring time-consuming measurements.
Tool-less accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting
slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable
Highlights
48U SmartRack Premium open
frame rack (no sides, doors or
roof)
4 interior vertical posts with
unthreaded square hole openings
Standard 24" (600mm) width and
42" (1050mm) depth for
optimizing floor space
Ships fully assembled
3000 lb stationary / 3000 lb rolling
load capacity
Preinstalled heavy duty 3"
casters and leveling feet
Includes 50 pieces of M6 cage
nuts and 50 pieces of M6 screws
(equipment mounting hardware)
Package Includes
SR48UBEXPNDNR3
Mounting Hardware
Owner's Manual
1 / 4
slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable
managers side-by-side (four items per enclosure).
Mounting hardware of 50 pieces of M6 cage nuts and 50 pieces of M6 screws included
Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses.
Maximum usable internal depth of 37 inches (front to rear rail).
Weight ratings of 3000 lb stationary and 3000 lb rolling.
Built in baying tabs allow premium open frame racks to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match
standard data center floor tiles.
Leveling feet extend to allow premium open frame racks to be positioned on uneven floors. Levelers are removable.
Convenient grounding system. All components are grounded to the premium open frame rack structure which includes multiple connections for facility
ground.
Included stabilizing brackets are used for shipment and can be reattached at the bottom of the premium open frame rack on the inside or outside of the
rack.
Compatibility with all cable management accessories.
Specifications
PHYSICAL
Installed whole system maximum
rack depth (inches) 37
Installed whole system minimum
rack depth (inches) 4
Rack Height 48U
Shipping Dimensions (HWD/in) 95 x 26 x 45
Shipping weight (lbs) 213
Unit Dimensions (in.) EXTERNAL DIMENSIONS: 89 x 23.63 x 43 (HWD)
Unit weight (lbs) 163
Color Black
Style 4-Post
Weight Capacity - Stationary (lbs) 3000
Weight Capacity - Rolling (lbs) 3000
Units per Pallet 1
SPECIAL FEATURES
Grounding lug Front and Back door frames
CERTIFICATIONS
Certifications UL60950; RoHS; CE
NOM (Mexico) Tested to NOM (Mexico)
2 / 4
Approvals EIA/ECA-310-A, IEC 60297-3-100, DIN 41494
WARRANTY
Product Warranty Period (Worldwide) 5-year limited warranty
Related Items
Optional Products
Model Number Description Qty.
SRFAN3U 3U Fan Panel, 120V (3 high-performance fans; 210 CFM; 5-15P plug.) 1
SRXFAN3U 3U Fan Panel, 230V (3 high-performance fans; 315 CFM; C14 inlet.) 1
UPSHDEARKIT Heavy-Duty 2-post Front Mounting Ear Kit 1
4POSTRAILKIT1U 1U Universal Adjustable Rackmount Shelf Kit 1
SR1UPANEL10 1U Blanking Panel Kit (10 pieces; toolless mounting.) 1
SR1UPANEL50 1U Blanking Panel Kit (50 pieces; toolless mounting.) 1
SRBOLTDOWN Bolt-Down Kit (Secures included stabilizing brackets or optional stabilizing plates to facility floor.) 1
SRCABLEDUCT1U 1U Horizontal Cable Manager (Finger duct with cover.) 1
SRCABLEDUCT1UHD 1U High Capacity Horizontal Cable Manager (Finger duct with dual-hinge cover) 1
SRCABLEDUCT2UHD 2U High Capacity Horizontal Cable Manager (Finger duct with dual-hinge cover) 1
SRCABLERING1U 1U Horizontal Cable Manager (Flexible ring type.) 1
SRCABLERING2U 2U Horizontal Cable Manager (Flexible ring type.) 1
SR48SIDE 48U SmartRack side panel with key locking latch 1
SRCABLELADDER 10-ft. x 1-ft. (3 m x 0.3 m) Cable Ladder (Includes 2 sections; requires SRCABLETRAY or
SRLADDERATTACH) 1
SRCABLETRAY Roof-Mounted Cable Trough (Provides cable routing and power/data cable segregation.) 1
SRCABLETRAYEXP Roof-Mounted Cable Trough Vertical Expansion (Requires SRCABLETRAY.) 1
SRCAGENUTS Square Hole Hardware Kit (Includes 50 M6 screws and washers.) 1
SRSHELF2P 2U Cantilever Fixed Shelf (60 lb / 27 kg capacity; 18-in. / 457 mm depth.) 1
SRSHELF2P1U 1U Cantilever Fixed Shelf (40 lb / 18 kg capacity; 12-in. / 305 mm depth.) 1
SRSHELF4PHD Heavy-Duty Fixed Shelf (250 lb / 113 kg capacity; 26 in / 660 mm depth.) 1
SRSHELF4PKYBD Keyboard Shelf (25 lb / 11 kg capacity; 16-in. / 406 mm depth.) 1
SRSHELF4PSLHD Heavy-Duty Sliding Shelf (200 lb / 91 kg capacity; 26 in / 660 mm depth.) 1
SRSTABILIZE Anti-Tip Stabilizing Plate Kit (Provides extra stability for standalone enclosures.) 1
3 / 4
More information, including related products, owner's manuals, and additional technical specifications, can be found online at:
http://www.tripplite.com/sku/SR48UBEXPNDNR3.
© 2014 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous improvement.
Specifications are subject to change without notice. Photos may differ slightly from final products.
4 / 4
