Tripp Lite B022-002-KT-R Manuale utente

1. Features 2

2. System Requirements 3

3. Components 4

3.1 Front View 4

3.2 Rear View 4

4. Installation 5

5. Operation 6

5.1 Manual Port Selection 6

5.2 Hotkey Port Selection 6

5.3 Auto Scan Mode 7

5.4 Skip Mode (B022-004-R only) 8

5.5 Hotkey Summary Table (for B022-004-R only) 9

5.6 LED Display 9

6. Speciﬁcations 10

7. Troubleshooting 11

8. Warranty 12

User’s Manual

owners. Technical specifications are subject to change without notice.

2- & 4-Port KVM Switches

Model #’s: B022-002-KT-R & B022-004-R

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

Note: Follow these installation and operating procedures to ensure correct performance and to

prevent damage to this unit or to its connected devices.

Warranty

Registration:

chance to win a FREE Tripp Lite

product—www.tripplite.com/warranty

Español 13

Français 25

201003195 93-2181.indb 1 4/23/2010 2:24:23 PM

1. Features

Compact design•

Works with all major operating systems•

PS/2 and USB compatible•

Easy to install—no software required—simple plug and play operation•

Easy to operate—computer selection via push-buttons or Hotkeys•

Power on detection—automatically switches to the first powered on port•

Auto scan function to monitor computer operation•

LED display for easy status monitoring•

Hot pluggable—add or remove computers without powering down the•

switch

Caps Lock, Num Lock, and Scroll Lock states are saved and restored when•

switching

Keyboard and mouse emulation for error-free computer booting•

Supports Microsoft• ®IntelliMouse®and the scrolling wheel on most mice

Superior video quality—up to 2048 x 1536; DDC2B•

Self-powered for any location•

Saves time, space, power, and equipment costs•

201003195 93-2181.indb 2 4/23/2010 2:24:23 PM

2. System Requirements

Console

A VGA, SVGA, or Multisync monitor capable of the highest resolution that•

you will be using on any computer in the installation

A PS/2 style keyboard•

A PS/2 style mouse•

Computers

The following equipment must be installed on each computer that is to be

connected to the system:

A VGA, SVGA, or Multisync port•

A PS/2 or USB keyboard port•

A PS/2 or USB mouse port•

Cables

A Console Connector Cable is provided with this package.•

[HD15 (F) and 2 PS/2 (F) connectors]

P774-series KVM cable kits - PS/2•

P776-series KVM cable kits - USB•

(2) P774-series KVM cable kits are included with the B022-002-KT-R. Use•

a B015-000 PS/2 to USB adapter (sold separately) to connect to a USB

computer.

201003195 93-2181.indb 3 4/23/2010 2:24:23 PM

B022-002-KT-R B022-004-R

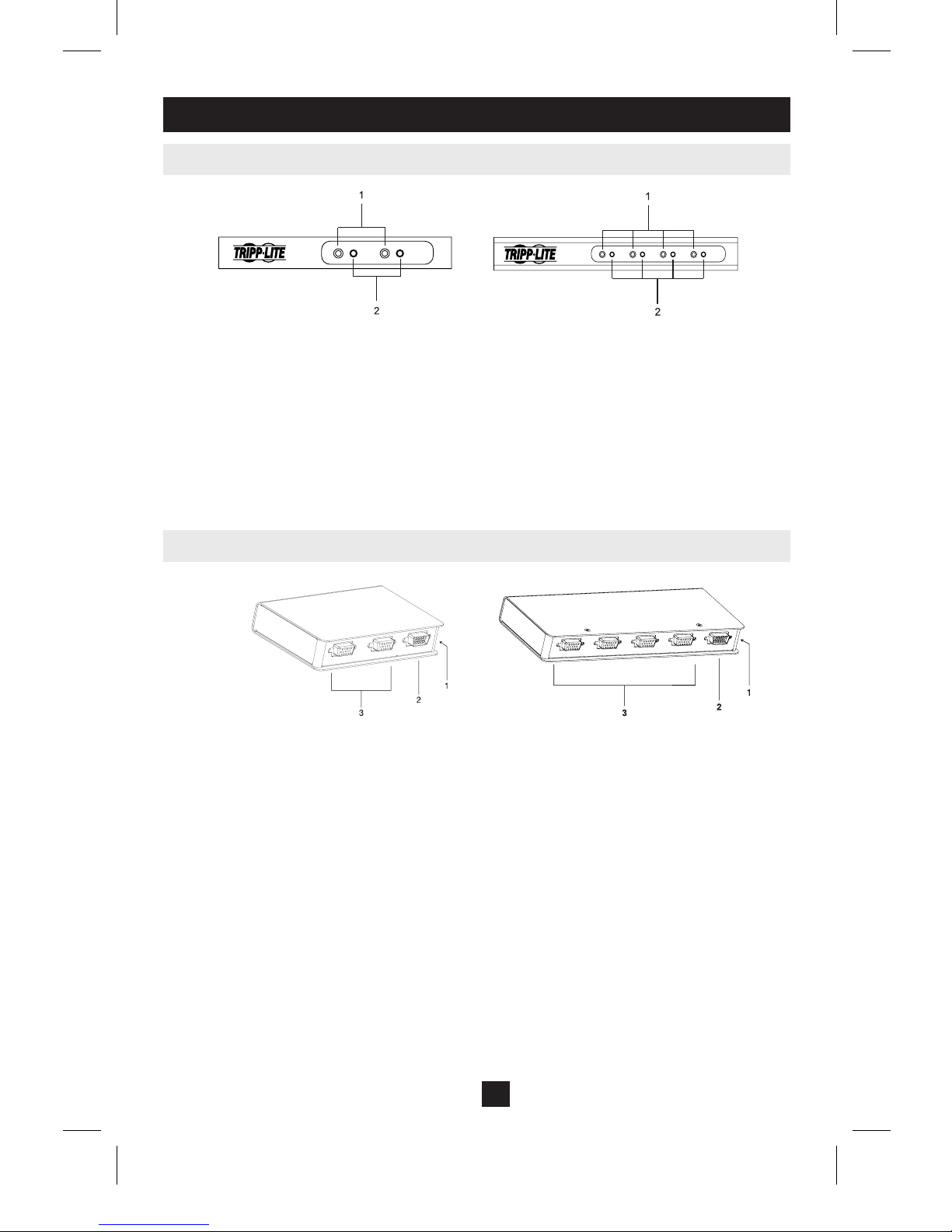

3. Components

3.1 Front View

3.2 Rear View

Port Selection Buttons1)

Press a button to select the corresponding port•

Port LEDs2)

The Port LEDs are built into the Port Selection Buttons. A lit LED indicates

that its corresponding Port is the one that has been selected. If flashing, the

corresponding port is being accessed in an auto scan.

Power Jack (not shown)1)

The power adapter cable plugs in here.

Note: The KVM switch does not require external power. Use of a power

adapter is optional, and requires a separate purchase.

Console Port Connector2)

The Console Adapter Cable plugs in here.

CPU Port Connectors3)

The KVM cables that connect the unit to the mouse, keyboard, and video ports

on the computers you are connecting can plug into any available port.

201003195 93-2181.indb 4 4/23/2010 2:24:24 PM

4. Installation

Note: Make sure all PS/2 computers are powered off prior to installation.

Refer to the diagrams as you do the following:1)

Plug the Console Adapter Cable into the Console Port Connector on the2)

rear panel of the KVM switch.

Plug your keyboard, monitor and mouse into their respective connectors on3)

the Console Adapter Cable. The connectors are color-coded and marked

with an appropriate icon for easy identification.

Use the Tripp Lite KVM cables (described in the4) Cables section on p. 3),

to connect the CPU Ports on the KVM switch to the monitor, keyboard

and mouse ports of the computers you are installing.

While power is rarely needed, if you choose to use external power, plug a5)

power adapter into an AC power source, then plug the power adapter cable

into the unit’s Power Jack.

Note: The power adapter should be DC9V with the inside positive and the

outside negative:

Turn on the power to the computers.6)

Note: The KVM’s default is to link to the first computer you turn on.

B022-002-KT-R B022-004-R

201003195 93-2181.indb 5 4/23/2010 2:24:24 PM

5. Operation

With Manual Port Selection, simply press the appropriate Port Selection button

on the unit’s front panel to select its corresponding port. The Port LED lights

to indicate that its port has been selected.

Hotkey port selection allows you to directly access a computer from the

keyboard, instead of having to manually switch to it with the Port Selection

button.

On the B022-002-KT-R:

Press and hold down the [1) Num Lock] key.

Press and release the [2) Asterisk] key or the [Minus] key.

Note: The [Asterisk]or [Minus]key must be released within one half

second, otherwise Hotkey activation is canceled, and it has no effect.

Release the [3) Num Lock] key.

The port will immediately switch.4)

On the B022-004-R:

Press and hold down the [1) Num Lock] key.

Press and release the [2) Asterisk] key or the [Minus] key.

Note: The [Asterisk]or [Minus]key must be released within one half

second, otherwise Hotkey activation is canceled, and it has no effect.

Release the [3) Num Lock] key.

The Caps Lock and Scroll Lock LEDs on the keyboard will flash in4)

succession. They stop flashing and revert to normal status when you exit

Hotkey Mode. Enter the number for the desired port (1, 2, 3 or 4).

5.1 Manual Port Selection

5.2 Hotkey Port Selection

201003195 93-2181.indb 6 4/23/2010 2:24:24 PM

5. Operation (continued)

The KVM Switch’s Auto Scan feature automatically cycles through the ports

at regular 5 seconds intervals so that you can monitor the computer activity

without having to take the trouble of switching manually.

Note: While Auto Scan Mode is in effect, ordinary keyboard and mouse

functions are suspended. You must exit Auto Scan Mode in order to regain

normal control of their use.

On the B022-002-KT-R:

Press and hold down both manual port switches on the front of the KVM1)

and hold down for 5 seconds. Auto Scan will be initiated.

Once scanning begins, it continues until you press one of the manual port2)

switches on the front of the KVM.

On the B022-004-R:

Press and hold down the [1) Num Lock] key.

Press and release the [2) Asterisk] key or the [Minus] key.

Note: The [Asterisk]or [Minus]key must be released within one half

second, otherwise Hotkey activation is canceled, and it has no effect.

The [Caps Lock]and [Scroll Lock]LEDs on the keyboard will flash in

succession. They stop flashing and revert to normal status when you

exit Hotkey Mode.

Release the [3) Num Lock] key.

Press and release4) [A].

Once scanning begins, it continues until you press [Esc] or [Spacebar]

to exit Auto Scan Mode. The Port that is active at the time scanning

stops remains active.

5.3 Auto Scan Mode

201003195 93-2181.indb 7 4/23/2010 2:24:24 PM

5. Operation (continued)

This feature allows you to skip from the currently active Port to the

Previous or Next one with a single keystroke. In contrast to Auto Scan

Mode (which switches Ports at a fixed interval), you can maintain

activation on a particular port for as long or as little as you like.

To activate Skip Mode:

Press and hold down the [1) Num Lock] key.

Press2) and release the [Asterisk] key or the [Minus] key

Note: The [Asterisk]or [Minus]key must be released within one half

second, otherwise Hotkey activation is canceled, and it has no effect.

The Caps Lock and Scroll Lock LEDs on the keyboard will flash in

succession. They stop flashing and revert to normal status when you

exit Hotkey Mode.

Release the [3) Num Lock] key.

Press4) [ ] to skip from the current port to the port that comes before it

(3 to 2; 2 to 1, etc.).

Press5) [ ] to skip from the current port to the port that comes after it (1

to 2; 2 to 3, etc.).

Note: Skip Mode remains in effect until you exit it. You can use [ ]

and [ ] as often as you like. Ordinary keyboard and mouse functions

are suspended— only [ ] and [ ] can be input. You must exit Skip

Mode in order to regain normal control of the console.

Pressing6) [Esc] or [Spacebar] exits both Skip Mode and Hotkey Mode.

5.4 Skip Mode (B022-004-R only)

201003195 93-2181.indb 8 4/23/2010 2:24:24 PM

5. Operation (continued)

Activate Hotkey mode using the [Num Lock] + [*]; or [Num Lock] + [-]

Hotkey command. Once Hotkey mode is activated, hit the keys in the table

below to perform the corrsponding action.

Combination Function

[Port ID Number] Switches the KVM selection to the

computer that corresponds to that Port ID.

[A] Activates Auto Scan Mode

[ ] Switches the KVM selection from the

current port to the previous port.

[ ] Switches the KVM selection from the

current port to the next port.

[Esc] or [Spacebar] Exits Hot Key, Auto Scan, and Skip Modes.

LED Off Port is not selected

LED On (Steady) Port is selected

LED Flashing Port has been selected in Auto Scan mode

5.5 Hotkey Summary Table (for B022-004-R only)

5.6 LED Display

201003195 93-2181.indb 9 4/23/2010 2:24:24 PM

B022-002-KT-R B022-004-R

CPU Ports 2 4

Port Selection

Push-Button

Switches;

Hotkeys

Push-Button

Switches; Hotkeys

Connectors CPU 2 x HD15 (F) 4 x HD15 (F)

Console 1 x HD15 (F) 1 x HD15 (F)

LEDs 2 Selected Port

(Green)

4 Selected Port

(Green)

Emulation Keyboard PS/2 PS/2

Mouse PS/2 PS/2

Scan Interval 5 secs. 5 secs.

Operating Temperature 32° F - 122° F 32° F - 122° F

Storage Temperature 4° F - 140° F 4° F - 140° F

Humidity 0 - 80% RH,

Noncondensing

0 - 80% RH,

Noncondensing

Housing Metal Metal

Weight 0.73 lbs. 1.1 lbs.

Dimensions (L x W x H) 4.9 x 3.1 x 1.0 in. 7.9 x 3.1 x 1.0 in.

6. Specifications

201003195 93-2181.indb 10 4/23/2010 2:24:24 PM

Altri manuali per B022-002-KT-R

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Tripp Lite Interruttore

Tripp Lite

Tripp Lite B051-000 IP Manuale utente

Tripp Lite

Tripp Lite B156-002-HDMI Manuale utente

Tripp Lite

Tripp Lite B004-002 Series Manuale utente

Tripp Lite

Tripp Lite B070-016-19-IP Manuale utente

Tripp Lite

Tripp Lite NG8POE Manuale utente

Tripp Lite

Tripp Lite U442-DOCK14-MS Manuale utente

Tripp Lite

Tripp Lite U230-204-R Manuale utente

Tripp Lite

Tripp Lite B006-004-R Manuale utente

Tripp Lite

Tripp Lite NetController B042-004 Manuale utente

Tripp Lite

Tripp Lite B072-008-1A Manuale utente

Tripp Lite

Tripp Lite B112-002-R Manuale utente

Tripp Lite

Tripp Lite B004-DUA2-K-R Istruzioni per l'installazione e il funzionamento

Tripp Lite

Tripp Lite U223-004-IND Manuale utente

Tripp Lite

Tripp Lite NetCommander B072-016-IP4 Manuale utente

Tripp Lite

Tripp Lite NetDirector B024-DPU08 Manuale utente

Tripp Lite

Tripp Lite NetController B042-004 Manuale utente

Tripp Lite

Tripp Lite NetDirector B022-U08-IP Guida all'installazione

Tripp Lite

Tripp Lite NetController B040-008-19 Guida rapida

Tripp Lite

Tripp Lite NetDirector B064-032-04-IPG Guida alla configurazione

Tripp Lite

Tripp Lite B043-DUA8-SL Manuale utente

Tripp Lite

Tripp Lite U460-004-2A2C-2 Manuale utente

Tripp Lite

Tripp Lite B119-002-UHD Manuale utente

Tripp Lite

Tripp Lite SU1000RT2U Manuale utente

Tripp Lite

Tripp Lite B030-002-R Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
