Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: [email protected]

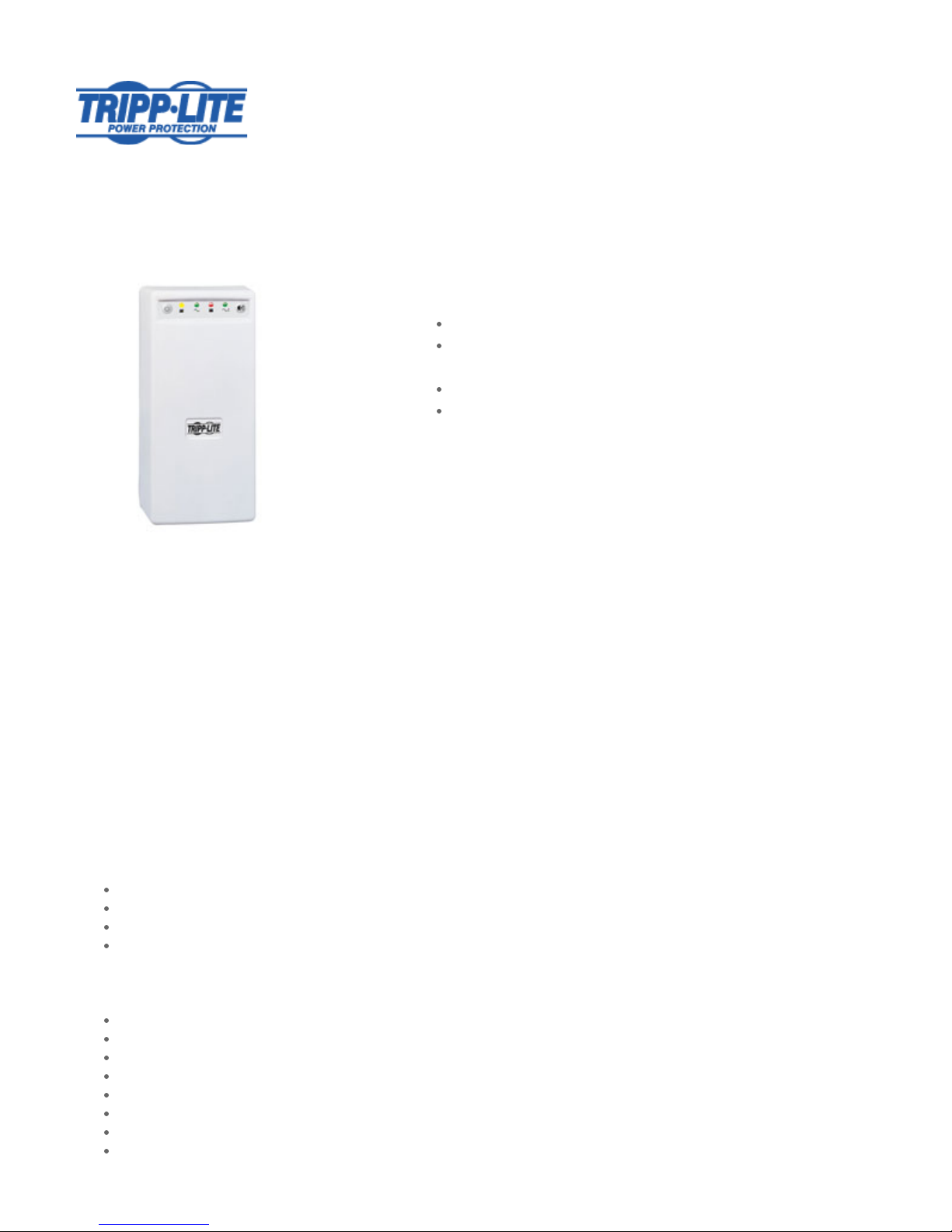

Model #: OMNIX350HG
OmniSmart 350VA Medical Grade Tower Line-Interactive 230V UPS with Serial port
Highlights
350VA line interactive tower UPS
Professional features include USB port, IEC320 plug & outlets, built-in
isolation transformer
Input: IEC320 C14 inlet (230V) / Output: 6 IEC320 C13 (230V)
2 line phone suppression for TEL/DSL line protection
Description
Tripp Lite's OMNIX350HG offers medical-grade UPS protection with built-in line interactive voltage regulation, intelligent monitoring and unattended
shutdown capability. IEC320 plug & outlets, plus built-in isolation transformer with Faraday shield offers full isolation and removes common mode
noise. Tested to CE/IEC 60601-1 as medical electrical equipment. 350VA power handling capacity supports computers, inter-networking equipment
and other critical loads during commercial power failures. Line interactive voltage regulation corrects brownouts as low as 159V back to normal 230V
levels, saving battery reserves for use only during complete power failures. Includes, 2 line phone surge suppression and built-in USB
communications port that works with PowerAlert Software and cabling to provide automatic unattended shutdown of connected network and PC
applications.
Applications
Ideal UPS for protection of patient point of care solutions, wireless communications systems, electronic prescribing applications, medical imaging,
telemedicine and laboratory equipment. Units tested to CE/IEC 60601-1 provides ultimate safety and reliability for computer equipment used in
patient care areas and mission critical equipment. (Not recommended for life support applications.)
Package Includes
OMNIX350HG Hospital Grade UPS System
USB communication and telephone cables included
Warranty information
Instruction manual
Features
Ideal UPS protection for applications in medical patient-care areas where CE/ IEC 60601-1 electrical medical equipment is required
Line-interactive voltage regulation corrects brownouts as low as 159V without using battery power
IEC320 plug and outlets offer added degree of safety and reliability to input/output connections
Full line isolation prevents shock potential and operational problems in sensitive electronic equipment
Resistant to electrostatic discharge
Supports loads up to 350VA/225 watts
37 minutes half load runtime (with 175VA load), 15.5 minutes full load runtime (with 350VA load)
6 protected outlets; 6-inch dongle with IEC C14 inlet
C14 inlet accepts user-supplied AC power cord with grounded country-specific plug
C14 inlet accepts user-supplied AC power cord with grounded country-specific plug
1-USB port for monitoring interface
Complete surge protection, line isolation and EMI/RFI noise filtering
2 phone line surge suppression for modems, fax machines and other phone accessories
Complete remote monitoring cabling included, PowerAlert UPS management software available via free download
4 diagnostic LEDs indicate AC present, on battery, voltage correction & battery low/replace
Battery replacement door
Specifications
OUTPUT
Output Volt Amp
Capacity (VA)
350
Output Watt Capacity
(watts)
225
Nominal Output
Voltage(s) Supported
220V; 230V; 240V
Nominal Voltage details 230v nominal inverter output voltage
Frequency compatibility 50 / 60 Hz
Frequency
compatibility details
Automatic frequency selection
Output voltage
regulation (line mode)
-18%, +8%
Built-in UPS output
receptacles
6 C13 outlet(s)
INPUT
Rated input current (at
maximum load)
1.8A
Nominal Input
Voltage(s) Supported
230V AC
UPS input connection
type
C14 inlet
UPS input connection
description
C14 inlet accepts user-supplied AC power cord with grounded country-specific plug
UPS Input cord length
(ft.)
6 inch dongle, 16 gauge
UPS Input cord length
(m)
1.83
Recommended
Electrical Service
10A 230V
Voltage compatibility
(VAC)
230
Phase Single-Phase
BATTERY
Full load runtime
(minutes)
15.5 min. (225w)
Half load runtime
(minutes)
37 min. (115w)
DC system voltage
(VDC)
12
Battery recharge rate
(included batteries)
Less than 7.2 hours from 10% to 90%
Replacement battery
cartridge (internal UPS
battery replacement)
RBC52 (quantity 2)
Battery Access Battery access door allows hot-swap battery replacement without powering connected equipment off
Typical battery lifespan 3-6 years, depending on usage
VOLTAGE REGULATION
Voltage regulation
description
Line interactive UPS offers a single boost level of brownout correction to maintain usable, computer grade output
Undervoltage correction Input voltages between 159 and 199 are boosted by 14%
Direct pass through Input voltages between 200and 266V AC are passed through unchanged
LEDS ALARMS & SWITCHES
LED Indicators 4 LEDs indicate line power, battery power, overload and battery low/replace status
Alarms Audible alarm indicates power failure conditions, silenceable via alarm cancel switch. Once cancelled, alarm will
resume when approximately 2 minutes of battery operation remain (assuming full load)
Switches Yes, includes 2 front panel mounted push-button switches for system enable, self-test and alarm cancel functions
SURGE / NOISE SUPPRESSION
EMI / RFI AC noise
suppression
Yes
AC suppression
response time
Instantaneous
Dataline suppression 2-Line Tel/DSL
PHYSICAL
Installation form
factors supported with
included accessories
Tower
Installation form
factors supported with
optional accessories
Wallmount (UPSWM - tower mounting kit)
UPS / Power Module
dimensions in primary
form factor (height x
width x depth / inches)
10.6 x 5.2 x 7.4
UPS / Power Module
dimensions in primary
form factor (height x
width x depth / cm)
26.9 x 13.1 x 18.8
UPS / Power Module
weight (lbs)
25.4
UPS / Power Module
weight (kg)
11.5
UPS Shipping
dimensions (height x
width x depth / inches)
14.1 x 10.4 x 8.2
UPS Shipping
dimensions (height x
width x depth / cm)
35.9 x 26.5 x 20.9
Shipping weight (lbs) 27.4
Shipping weight (kg) 12.3
Cooling method Convection
UPS housing material PVC
ENVIRONMENTAL
Operating Temperature
Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature
Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC mode BTU / hr. (full
load)
15.6
Battery mode BTU / hr.
(full load)
124.5
COMMUNICATIONS
Communications
interface
USB
Software and cabling
included
Ships with USB cable, PowerAlert software available via free download from www.tripplite.com
LINE / BATTERY TRANSFER
Transfer time 5 milliseconds AC to battery; 8 milliseconds battery to AC
Low voltage transfer to
battery power (setpoint)
159
High voltage transfer to
battery power (setpoint)
266
SPECIAL FEATURES
Cold Start (startup in
battery mode during a
power failure)
Cold-start operation supported
Appearance Attractive gray tower UPS
CERTIFICATIONS
Certifications Tested to CE/ IEC 60601-1 (Series AGOM6832), Class B (emissions)
WARRANTY
Product Warranty
Period (International)
2-year limited warranty
Product Warranty
Period (Mexico)
2-year limited warranty
Product Warranty
Period (Puerto Rico)
2-year limited warranty
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
www.tripplite.com/en/products/model.cfm?txtModelID=4027.
Copyright © 2013 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous
improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
