Tripp Lite SM750XLNAFTA Manuale utente
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail: [email protected]
Model #: SM750XLNAFTA

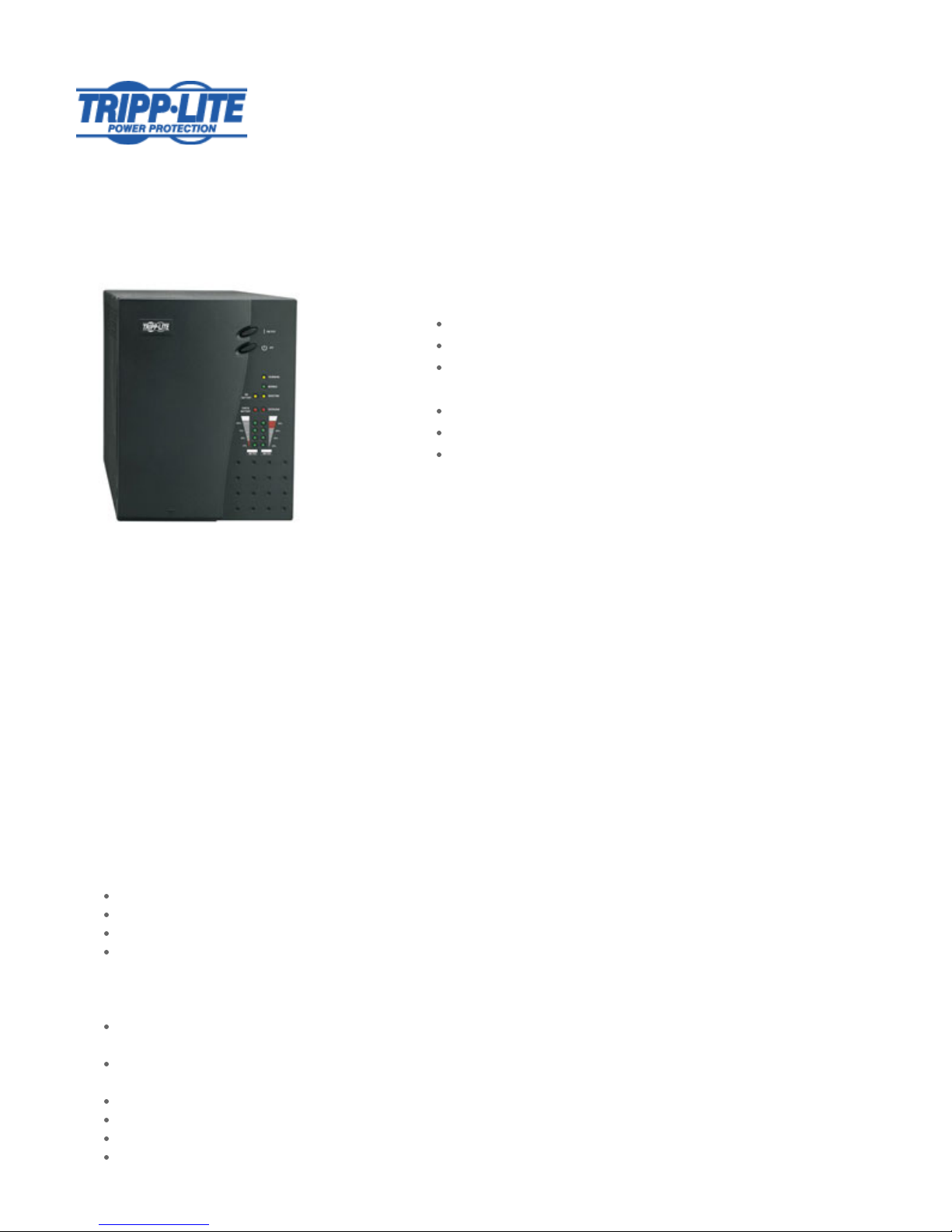

Smart Pro Expandable Tower UPS System - NAFTA assembled version of SMART750XL
Highlights
750VA line interactive, extended-run tower UPS
Maintains sine-wave 120V nominal output over an input range of 91 to 145V
Network communications supported via USB port, serial port, SNMP/Web card
slot
Current monitoring
Input: NEMA 5-15P (120V 15A) / Output: 8 NEMA 5-15R (120V)
2 year product warranty / $250,000 Ultimate Lifetime Insurance (USA, Puerto
Rico & Canada only)
Description
Tripp Lite's SM750XLNAFTA intelligent, line-interactive sine wave UPS system protects servers, networking accessories and telecommunications
equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 30 minutes half load runtime and 10 minutes fully
loaded. Runtime is expandable with optional BP36V15-2U (limit 1) or BP36V42-3U external battery packs. 750VA / 450 watt power handling
capability and full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic applications. Includes
8 protected NEMA 5-15R output receptacles. Supports simultaneous remote monitoring of UPS and site power conditions via built-in network
accessory card slot, USB and DB9 serial monitoring ports. Optional SNMPWEBCARD accessory enables remote monitoring of UPS as a managed
device via network management console applications. Communications interfaces support messaging of UPS and line power status, plus output
power control for delayed or immediate reboot of all connected devices at once. Includes PowerAlert UPS monitoring and unattended shutdown
software with management support for an unlimited number of network UPS systems. Built-in audible alarm and 15 LEDs provide graphical readout
of line power, battery power, battery charge level, load level, plus AVR boost and trim operational status information. Network grade AC surge
suppression protects equipment from damage and performance problems resulting from transient surges. Attractive, black tower housing in rugged
all-metal enclosure. Two year warranty with $250,000 Ultimate Lifetime Insurance.
Package Includes
SM750XLNAFTA UPS System
PowerAlert Software CD-Rom
USB and serial cabling
User manual with warranty information
Features
SM750XLNAFTA line-interactive UPS offers battery derived sine wave AC output during power outages, voltage regulation during
brownouts and overvoltages, plus network-grade AC surge suppression
750VA / 450 watt power handling capability with full-time sine wave output offers guaranteed compatibility with networking, telecom and
other sensitive electronic devices
Large internal batteries offer runtimes of 30 minutes at half load (375VA) and 10 minutes at full load (750VA)
Runtime is expandable with the addition of optional BP36V15-2U (limit 1) or BP36V42-3U external battery packs
Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
Automatic Voltage Regulation (AVR) circuits maintain user-selectable 100, 110, 120 or 127V nominal output over an input voltage range of
91-145V
Includes 8 fully-protected NEMA 5-15R output receptacles arranged in a single load bank that can be powered off and back on again via
software interface
PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, email notification,
event logging and running user-defined script commands
Offers simultaneous monitoring by up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional
SNMPWEBCARD), or the monitoring of any number of additional UPS systems over IP with included PowerAlert monitoring software.
Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage,
DC battery voltage and remaining battery capacity
Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for delayed or immediate reboot
of connected equipment
Supports Tripp Lite's WatchDog software application to restore unresponsive programs by systematically restarting applications, operating
systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again (requires
optional WATCHDOGSW)
15 LEDs offer continuous detailed status information of UPS operating parameters and site power quality
Hot-swappable batteries allow on-site battery replacement without powering off connected equipment
2 year warranty with up to $250,000 connected equipment insurance
Specifications
OUTPUT
Output Volt Amp Capacity
(VA)
750
Output Watt Capacity
(watts)
450
Output power factor 0.6
Nominal Output
Voltage(s) Supported
100V; 110V; 120V
Nominal Voltage details 120V default (voltage selection via back panel switches)
Frequency compatibility 60 Hz
Output voltage regulation
(line mode)
-13%, + 15%
Output voltage regulation
(Battery mode)
+/- 5%
Built-in UPS output
receptacles
8 5-15R outlet(s)
Basic PDU options PDU1215 (1U / 13 5-15R outlets); PDUNV (1U / 2 C19, 12 C13 outlets); PDU1415 (0U / 14 5-15R outlets);
PDUV15 (0U / 12 5-15R outlets)
Metered PDU options PDUMH15 (1U / 13 5-15R outlets); PDUMH15AT (1U / 8 5-15R outlets)*; PDUMV15 (0U / 16 5-15R outlets)
Switched PDU options PDUMH15ATNET (1U / 8 5-15R outlets)*; PDUMV15NET (0U / 16 5-15R outlets)
External PDU redundancy
options
*Auto Transfer Switch features utilizing the secondary PDU input cord are compatible with Smart Online UPS
models only
Output AC waveform (AC
mode)
Sine wave
Output AC waveform
(battery mode)
Pure Sine wave
INPUT
Rated input current (at
maximum load)
6.9A
Nominal Input Voltage(s)
Supported
100V AC; 110V AC; 120V AC
UPS input connection
type
5-15P
UPS Input cord length (ft.) 6
UPS Input cord length (m) 1.8
Recommended Electrical
Service
15A 120V
BATTERY
Full load runtime
(minutes)
10 min. (500w)
Half load runtime
(minutes)
30 min. (250w)
Expandable battery
runtime
Extended runtime supported via optional external battery packs
External battery pack
compatibility
BP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible)
DC system voltage (VDC) 36
Battery recharge rate
(included batteries)
Less than 4.5 hours from 10% to 90%
Replacement battery
cartridge (internal UPS
battery replacement)
RBC53
Battery Access Battery access door
Battery replacement
description
Hot-swappable, user replaceable batteries
VOLTAGE REGULATION
Voltage regulation
description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 95 to 145
(120v), 87 to 133 (110v), 83 to 121 (100v)
Overvoltage correction Voltage reduction of 12% applies when input is 127 to 145 (120v), 116 to 133 (110v), 111 to 121 (100v)
Undervoltage correction Voltage boost of 14% applies when input is 95 to 108 (120v), 87 to 99 (110v), 83 to 90 (100v)
LEDS ALARMS & SWITCHES
LED Indicators 9 LEDs indicate line power, battery power, AVR, overload and replace battery status - with a 3-LED level meter
for load and battery charge level
Site wiring fault indication Rear panel site wiring fault LED
Alarms Audible alarm indicates power failure and overload conditions
Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch
Switches 2 Switches control off/on power status and alarm-cancel/self-test operation; rear panel protected switches
support nominal voltage selection
SURGE / NOISE SUPPRESSION
UPS AC suppression
joule rating
480
UPS AC suppression
response time
Instantaneous
EMI / RFI AC noise
suppression
Yes
PHYSICAL
Installation form factors
supported with included
accessories
Tower
Primary form factor Tower
UPS / Power Module
dimensions in primary
form factor (height x
width x depth / inches)
8.8 x 6.8 x 16.8
UPS / Power Module
dimensions in primary
form factor (height x
width x depth / cm)
22.2 x 17.1 x 42.5
UPS / Power Module
weight (lbs)
45.5
UPS / Power Module
weight (kg)
20.7
UPS Shipping
dimensions (height x
width x depth / inches)
13 x 10 x 23.8
UPS Shipping
dimensions (height x
width x depth / cm)
33 x 25.4 x 60.3
Shipping weight (lbs) 50
Shipping weight (kg) 22.7
UPS housing material Steel
Cooling method Fan
ENVIRONMENTAL
Operating Temperature
Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature
Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC mode BTU / hr. (full
load)
97.7
Battery mode BTU / hr.
(full load)
270
Audible Noise Audible Noise < 50 dBA at Front Side 1 Meter
COMMUNICATIONS
Communications interface USB; DB9 Serial; Slot for SNMP/Web interface
Network monitoring port
description
Supports detailed monitoring of UPS and site power conditions
PowerAlert software Included
Communications cable USB and DB9 cabling included
WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer time 4-8 milliseconds
Low voltage transfer to
battery power (setpoint)
90
High voltage transfer to
battery power (setpoint)
145
SPECIAL FEATURES
Cold Start (startup in
battery mode during a
power failure)
Cold-start operation supported
High availability UPS
features
Hot swappable batteries
CERTIFICATIONS
UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category B (EMI); ROHS (Restriction
of Hazardous Substances)
WARRANTY
Product Warranty Period
(Worldwide)
2-year limited warranty
Connected Equipment
Insurance (U.S., Canada
& Puerto Rico)
$250,000 Ultimate Lifetime Insurance
Related Items
Optional Products
Product Type Related Model Description Qty.
Audio Cables CT120 Instant-Read- AC Outlet Circuit Tester 1
Extended Warranties WEXT3-500-1500 3-Year Extended Warranty - For Smart Line-Interactive and Online
Tower or Rack models, 1500VA or less
1
Extended Warranties WEXT5-500-1500 5-Year Extended Warranty - For Smart Line-Interactive and Online
Tower or Rack models, 1500VA or less
1
Power Distribution PDU1215 Basic PDU / Power Distribution Unit - Safe, reliable power distribution
for critical networking equipment
1
SNMP Accessories ENVIROSENSE Monitors temperature, humidity and contact-closure inputs. (Requires
SNMPWEBCARD or switched PDU.)
1
SNMP Accessories SNMPWEBCARD For remote monitoring and control via SNMP, Web, or Telnet. 1
Surge Protectors DCATV Network Surge Suppressor - Essential protection for TV/VCR coaxial
lines
1
Surge Protectors DNET1 Network Surge Suppressor - Essential protection for data and
communication lines
1
Surge Protectors DTEL2 Network Surge Suppressor - Essential protection for data and
communication lines
1
USB Hubs/Accessories U022-010 10-ft. USB2.0 A/B Gold Device Cable
(A Male to B Male)
1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
www.tripplite.com/en/products/model.cfm?txtModelID=3549.
Copyright © 2012 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous
improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.
