Owner's Manual

SmartPro®450 RT

Intelligent Network UPS System (120V)

ESPAÑOL: p. 9

FRANÇAIS: p. 17

9904216 Smart 450 RT Owners Manual [120 Volt].p65 3/13/00, 3:02 PM1

This manual contains important instructions and warnings that should be

followed during the installation, operation and storage of all Tripp Lite UPS

Systems.

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, dust or

direct sunlight.

• For best performance, keep the indoor temperature between 32° F and

104° F (between 0° C and 40° C).

• Leave adequate space around all sides of the UPS for proper ventilation.

UPS Connection Warnings

• Connect your UPS to a three-wire, grounded AC power outlet. Do not

remove or modify the ground pin of the UPS's plug.

• Do not use two-prong adapters with the UPS's plug. Do not plug your UPS

into itself; this will damage the UPS and void your warranty.

• If you are connecting your UPS to a motor-powered AC generator,

the generator must provide clean, filtered computer-grade output.

• Use only the power supply cord provided with this unit. The power cord for

the UPS is wired in accordance with National Electrical Code (NEC) specifi-

cations. Be sure that your wall outlet is also wired to these specifications.

Equipment Connection Warnings

• Do not use Tripp Lite UPS Systems for life support applications in which

a malfunction or failure of a Tripp Lite UPS System could cause failure or

significantly alter the performance of a life-support device.

Battery Warnings

• Your UPS does not require routine maintenance. Do not open your UPS

for any reason. There are no user-serviceable parts inside.

• Battery replacement must be performed by qualified service personnel.

Because the batteries present a risk of electrical shock and burn from high

short-circuit current, qualified service personnel should observe proper

precautions: Unplug and turn off the UPS before performing battery

replacement. Use tools with insulated handles and replace the existing

batteries with the same number and type of new batteries (Sealed Lead-

Acid). Do not open the batteries. Do not short or bridge the battery termi-

nals with any object.

• The UPS batteries are recyclable. Refer to local codes for disposal require-

ments or call 1-800-SAV-LEAD (1-800-728-5323) for complete recycling

information. Do not dispose of the batteries in a fire.

• Do not attempt to add external batteries.

Safety

9904216 Smart 450 RT Owners Manual [120 Volt].p65 3/13/00, 3:02 PM2

Mounting

Note: When removing the mounting bracket screws to change the mounting profile of your UPS, do not remove the

screws which secure the UPS cabinet. Two of these screws are located at each end of the UPS, between the four holes

used for the mounting brackets.

Rackmount

Your UPS’s mounting brackets are pre-set at a standard depth for 19-in. rack

installation.* Additional bracket holes allow you to mount the UPS at additional

depths. To adjust the depth: Remove mounting bracket screws; adjust brackets

to the desired depth; replace screws.

Desktop/Under-Monitor

Remove mounting brackets (if desired). Place on your desktop or under your com-

puter monitor. CAUTION: Do not place more than 50 lb. (22.7 kg) on your UPS.

Vertical Tower

Remove mounting bracket screws. Position brackets as shown in Figure 1 to serve

as stabilizers for the UPS in a vertical position. Install 2 mounting screws in each

bracket. Make sure the control and LED panel is UP when you are finished.

Wallmount

Remove mounting bracket screws. Position brackets as shown in Figure 2 to

mount the UPS perpendicular to a wall along a straight, vertical line. Adjust

bracket to desired distance from wall. Install 4 mounting screws in each bracket.

Mount UPS to the wall.* Make sure the control and LED panel is UP when you

are finished. Additional bracket holes allow you to mount up to two UPSs side-

by-side on the same set of brackets (Figure 3).**

* Using screws and appropriate hardware (user supplied) to mount to rack, wall or other surface.

** CAUTION: each UPS weighs 15-1/2 lbs. (7 kg). Ensure adequate wall fasteners are used.

Installation

Figure 1 – Vertical Tower Figure 2 – Wallmounting

One UPS Figure 3 – Wallmounting

Two UPSs

9904216 Smart 450 RT Owners Manual [120 Volt].p65 3/13/00, 3:02 PM3

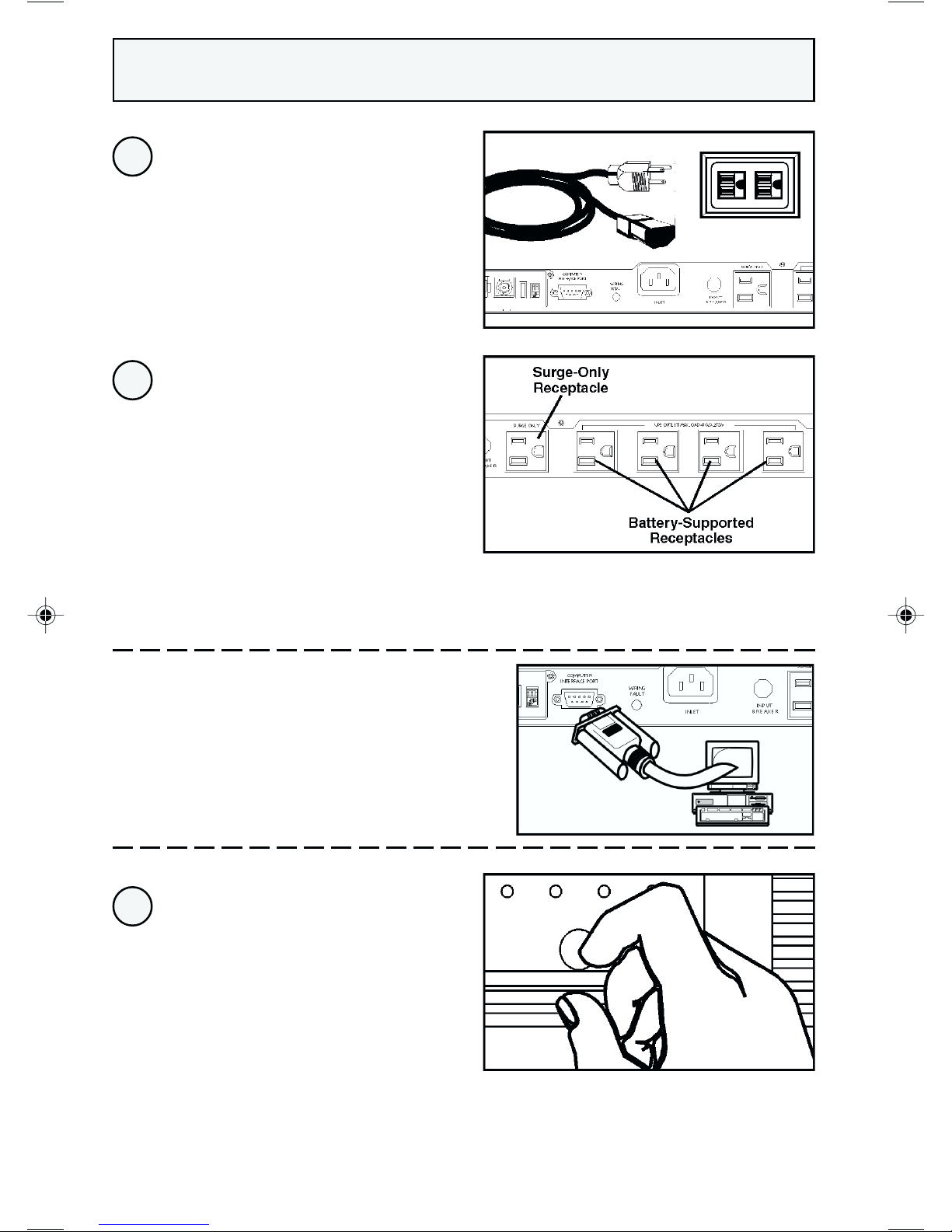

Plug one end of the

detachable line cord

into your UPS's AC

Inlet Receptacle and

the other end into an

electrical outlet.

Plug your computer,

monitor and other

critical devices into your

UPS's Battery-Supported

Receptacles.*

Plug a printer or other

peripheral equipment

into your UPS's Surge-

Only Receptacle.

–Optional–

Using Tripp Lite cable, connect

the serial port of your computer

to the serial port of your UPS.**

Load software and run

installation program appropriate

to your operating system.

Turn your UPS ON

by pressing the Main

Power Switch, holding

it for 3 seconds and

releasing it.***

* Your UPS is designed to support only computer equipment. You will overload your UPS if you connect household

appliances, laser printers or surge suppressors to the UPS's Battery-Supported Outlets. ** DB9 port connection is

optional. Your UPS will function properly without this connection. *** The UPS will execute a 10-second self-test.

The "Normal" LED will illuminate and the UPS will emit one beep to indicate normal operation.

Connection

9904216 Smart 450 RT Owners Manual [120 Volt].p65 3/13/00, 3:02 PM4

Switch

1. Main Power Switch

This switch activates three separate UPS functions:

UPS Power

Press the switch, hold it for 3 seconds and release it to turn the UPS

ON or OFF.*

Alarm Silence

Press the switch and immediately release it to silence the UPS Alarm.

UPS Cold Start

Press the switch, hold it for 5 seconds and release it to turn your UPS

ON and to use it as a stand-alone power source (operating from the

battery without AC input).**

* The UPS will execute a 10-second self-test when you turn it on. The “Normal" LED will illuminate, and

the UPS will beep once to indicate the UPS is turned ON. If the UPS alarm sounds and the "Replace Battery" LED

illuminates, turn your UPS OFF, let your UPS charge its batteries for 12 hours and turn UPS back ON to repeat the

automatic self-test. If alarm still sounds, contact Tripp Lite for service. CAUTION: Do not unplug your UPS to test its

batteries. This will remove safe electrical grounding and may introduce a damaging surge into your network

connections.

** The "Backup" LED will illuminate since your UPS will operate from battery power.

Basic Operation

234 5

12 8

Front

Back

13 1

9904216 Smart 450 RT Owners Manual [120 Volt].p65 3/13/00, 3:02 PM5

Indicator Lights

The SmartPro 450 RT utilizes dual function Indicator Lights that alert you to

different information depending on whether they illuminate constantly or are

flashing. All Indicator Light Descriptions refer to when the UPS is connected to

the wall outlet and turned ON.

2. "AC Normal/AVR" LED

This green light will illuminate constantly to indicate the utility-supplied AC

line voltage at your wall outlet is normal. It will flash to indicate your UPS is

automatically correcting high or low AC line voltage (AVR=Automatic Voltage

Regulation). The longer the UPS is correcting voltage, the longer the LED will

flash. This is a normal, automatic operation of your UPS, and no action is required

on your part.

3. "Backup/Low Batt" LED

This yellow light will illuminate constantly to indicate your UPS is providing

your equipment with battery power. (The UPS's Alarm will sound once every

15 seconds.) The light will flash when the UPS's battery is low and the UPS

is initiating an automatic system shutdown. (The UPS's Alarm will sound once

every second for approximately 2 minutes, depending on load, prior to shut-

down).

4. "Fault/Overload" LED

This red light will illuminate constantly to indicate a short circuit in the UPS

or other fault. The light will illuminate and the UPS's Alarm will sound constantly

for 30 seconds before the UPS automatically shuts down. The light

will flash (and the UPS's Alarm will sound once each second) when the UPS's

capacity has been exceeded while it is operating from battery power. Immediately

remove overload from battery-supported outlets.

5. "Replace Batt" LED

This red light will illuminate constantly if your UPS fails the automatic self-test

(after you turn your UPS ON) and the UPS battery is less than fully charged.

Turn the UPS OFF and let it charge for 12 hours and turn it back ON to perform

a second automatic self-test. If the light continues to stay on, contact Tripp Lite

for service.

6. "Fault" LED

This red light shines constantly when your UPS detects a wiring fault in your

wall outlet (reversed phases, missing ground, etc.) Have an electrician fix the

fault immediately. Your UPS will identify the presence of most (but not all) wir-

ing faults.

9904216 Smart 450 RT Owners Manual [120 Volt].p65 3/13/00, 3:02 PM6

Other UPS Features

7. AC Receptacles (Battery Backup Supported)

These receptacles provide your connected equipment with AC line power during

normal operation and battery power during blackouts and brownouts. They also

protect your equipment against damaging surges and line noise. Connect com-

puter, monitor and other essential equipment to these receptacles.

8. AC Receptacle (Surge-Only)

This receptacle provides equipment that does not require battery backup (such

as printers) with complete surge and line noise protection. Do not connect

computers or other essential equipment to this receptacle.

9.“SMART” RS-232 Port

The RS-232 port connects your UPS to any PC or workstation. Use with Tripp Lite

software and cabling to monitor and manage network power and automatically

save open files and shut down equipment during a blackout. This port uses

RS-232 communications to transmit UPS and power conditions.

10. Accessory Slot

Contact Tripp Lite Customer Support for more information and a list of available

SNMP, network management and connectivity products.

11. Mounting Brackets

The mounting brackets are already set for mounting in standard 19 in. racks.

See Installation section for using the mounting brackets to suit under-monitor,

tower and wallmount applications.

12. AC Inlet Receptacle

Connect one end of the detachable line cord into this receptacle and the other end

into your wall outlet.

13. Battery Replacement Door

Under normal conditions, the original battery in your UPS will last several years.

Battery replacement should be performed only by qualified service personnel.

Refer to “Battery Warnings” in the Safety section. When replacing batteries,

qualified service personnel should follow this procedure: 1) turn UPS OFF; 2)

remove the snap-on battery replacement door, on left front of unit; 3) pull

batteries partially out of case; 4) make a detailed sketch of the batteries and the

polarity, color and connection of all cables; 5) disconnect battery terminals; 6)

dispose of used batteries; 7) reconnect replacement batteries exactly as original

batteries were; 8) push batteries back into case and replace cover.*

* You may not receive full runtime until your replacement batteries have fully charged.

9904216 Smart 450 RT Owners Manual [120 Volt].p65 3/13/00, 3:02 PM7

Specifications

Storage & Service

Storage

First turn your UPS OFF and disconnect its power cord from the wall outlet.

Then disconnect all equipment to avoid battery drain. If you plan on storing

your UPS for an extended period of time, fully recharge the UPS batteries once

every three months by plugging the UPS into a live AC outlet, turning the Power

Switch ON and letting the UPS charge for 4-6 hours. If you leave your UPS

batteries discharged for an extended period of time, they will suffer permanent

loss of capacity.

Service

If returning your UPS to Tripp Lite, please carefully pack the UPS using the

ORIGINAL PACKING MATERIAL that came with the unit. Enclose a letter

describing the symptoms of the problem. If the UPS is within the 2 year warranty

period, enclose a copy of your sales receipt.

Model SMART 450 RT

Output Capacity (VA/Watts): 450/270

Battery Runtime (Half Load/Full Load) Min.: 12/3

Battery Recharge Rate: 2-4 hrs.

Approvals: UL 1778, cUL, FCC Class B

Input Voltage (120V); Input Frequency (50/60 Hz Auto-Selecting); On-Line Input Voltage Range (86 - 147 volts); Voltage-Regulated

Output Voltage Range (120V +/- 10%); On Battery Output Voltage Range (120V +/- 5%); Output Waveform Line Mode (filtered

sinewave); Output Waveform Battery Mode (PWM sine wave); AC Surge Suppression (exceeds IEEE 587 Cat. A & B standards);

AC Noise Attenuation (>40 dB); AC TVSS Protection Modes (H to N, H to G, N to G).

FCC Radio/TV Interference Notice

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction

manual, may cause interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference using one or more of the following measures: reorient

or relocate the receiving antenna; increase the separation between the equipment and receiver; connect the equipment into an outlet

on a circuit different from that which the receiver is connected; consult the dealer or an experienced radio/television technician for help.

The user must use shielded cables and connectors with this product. Any changes or modifications to this product not expressly

approved by the party responsible for compliance could void the user's authority to operate the equipment.

9904216 Smart 450 RT Owners Manual [120 Volt].p65 3/13/00, 3:02 PM8

1111 W. 35th Street

Chicago, IL 60609 USA

www.tripplite.com

Manual de Operación

SmartPro®450 RT

Sistema UPS/No-break Inteligente

para Redes (120 V)

Instalación: páginas 11 - 12

Operación Básica: páginas 13 - 15

Almacenaje y Servicio: página 16

Especificaciones: página 16

Seguridad: página 10

9904216 Smart 450 RT Owners Manual [120 Volt].p65 3/13/00, 3:02 PM9

Este manual contiene instrucciones y advertencias importantes que deben seguirse durante

la instalación, operación y almacenaje de todos los Sistemas UPS/No-breaks de Tripp Lite.

Advertencias sobre la Instalación del Sistema UPS/No-break

• Instale el Sistema UPS/No-break bajo techo en un lugar sin humedad, calor excesivo,

polvo o luz solar directa.

• Para obtener el mejor rendimiento, mantenga la temperatura ambiente entre 32º F y

104º F (entre 0º C y 40º C).

• Mantenga suficiente espacio en todos los lados del Sistema UPS/No-break para

permitir la ventilación apropiada de la unidad

Advertencias sobre la Conexión del Sistema UPS / No-break

• Conecte el Sistema UPS/No-break a un enchufe de tres alambres con conexión a tierra. No

remueva o modifique el alambre de conexión a tierra del enchufe del Sistema UPS/No-

break.

• No use adaptadores de dos alambres con el enchufe del Sistema UPS/No-break. No enchufe

el Sistema UPS/No-break a sí mismo, esto causará daños al Sistema UPS/No-break y

anularará su garantía.

• Si usted desea conectar este Sistema UPS/No-break a un generador motorizado de CA, el

generador debe suministrar energía limpia y filtrada.

• Use solamente el cable principal suministrado con esta unidad. El cable principal de este

Sistema UPS/No-break ha sido diseñado de acuerdo a las especificaciones del Código

Eléctrico Nacional de EE.UU. (NEC). Asegúrese de que el enchufe de la pared también

cumpla con esta normas.

Advertencias sobre la Conexión de Equipos

• No use los Sistemas UPS/No-breaks de Tripp Lite en aplicaciones de soporte

de la vida humana donde el funcionamiento defectuoso o falla del Sistema UPS/No-

break de Tripp Lite pueda causar la falla o significativamente alterar las funciones de

dispositivos para el soporte de la vida humana.

Advertencias sobre la Batería

• Este Sistema UPS/No-break no requiere mantenimiento rutinario. No abra este

Sistema UPS/No-break bajo ninguna circumstancia. No hay partes internas que

puedan ser reparadas por el usuario.

• El reemplazo de la batería debe ser realizado por personal técnico capacitado.

Debido al riesgo de choques eléctricos y quemaduras causadas por altas corrientes

internas de la batería, el personal técnico capacitado debe observar las precauciones

apropiadas: Desconecte y apage el Sistema UPS/No-break antes de realizar el

reemplazo de su batería. Use herramientas con asas aisladas y reemplace la batería

con el mismo número y tipo de batería nueva (Sellada de Plomo y Acido). No abra la

batería. No conecte los bornes de la batería con ningún objeto.

• La batería de este Sistema UPS/No-break es reciclable. Refiérese al código

local para obtener instrucciones sobre la disposición de baterías. No exponga la

batería al fuego.

• No intente agregar baterías externas.

Seguridad

9904216 Smart 450 RT Owners Manual [120 Volt].p65 3/13/00, 3:02 PM10

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Tripp Lite UPS

Tripp Lite

Tripp Lite SUPDMB6KIEC Manuale utente

Tripp Lite

Tripp Lite SmartPro SMX5000XLRT3U Manuale utente

Tripp Lite

Tripp Lite SmartPro SMART1400RM2U Manuale utente

Tripp Lite

Tripp Lite SmartPro SMART1500 Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU80KX2 Guida all'installazione

Tripp Lite

Tripp Lite SmartOnline SU3000RTXLCD3U Guida alla configurazione

Tripp Lite

Tripp Lite SmartOnline SU8000RT4U Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU3000RTXL3UHV Manuale utente

Tripp Lite

Tripp Lite RBC5A Manuale utente

Tripp Lite

Tripp Lite SMART550USBWD Manuale utente

Tripp Lite

Tripp Lite SmartPro XL INT Manuale utente

Tripp Lite

Tripp Lite SmartOnline Single-Phase 10kVA Manuale utente

Tripp Lite

Tripp Lite SmartPro SLT Manuale utente

Tripp Lite

Tripp Lite SMART1200LCD Manuale utente

Tripp Lite

Tripp Lite SmartOnline SUPDMB5 Manuale utente

Tripp Lite

Tripp Lite 450-1400VA Manuale utente

Tripp Lite

Tripp Lite Audio/Video Pure Sine Wave UPS System Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU750RTXLCD2U Guida alla configurazione

Tripp Lite

Tripp Lite SmartOnline BP24V28-2U Manuale utente

Tripp Lite

Tripp Lite AVR Series Manuale utente

Tripp Lite

Tripp Lite SMART3000NET Manuale utente

Tripp Lite

Tripp Lite SmartPro SMART1500SLTXL Manuale utente

Tripp Lite

Tripp Lite AGOM5515 Manuale utente

Tripp Lite

Tripp Lite SmartPro 3U Manuale utente

Manuali UPS popolari di altre marche

Pylontech

Pylontech Victron & Pylontech US5000 Manuale utente

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuale utente

Mecer

Mecer ME-1000-WTU Manuale utente

Mustek

Mustek PowerMust 530(B) Plus Manuale di installazione e funzionamento

Emerson

Emerson Liebert NXL series Manuale utente

MAKELSAN

MAKELSAN BOXER SERIES Manuale utente

Block

Block PC-0524-400-0 Manuale utente

CyberPower

CyberPower CP585LCD Manuale utente

Eaton

Eaton 3S Istruzioni per il montaggio

CyberPower

CyberPower Office Tower Series UPS 1000 Manuale utente

CyberPower

CyberPower BM100 Manuale utente

Best Power

Best Power 610 Manuale utente

Best Power

Best Power Unity/I UT3K Manuale utente

Mustek

Mustek PowerMust 400 Offline Manuale utente

Xantrex

Xantrex Trace 512 UR-UPS Manuale utente

Forza

Forza SL-1501UL Manuale utente

LEGRAND

LEGRAND keor 310081 Manuale utente

ABB

ABB Conceptpower DPA 500 Manuale utente
