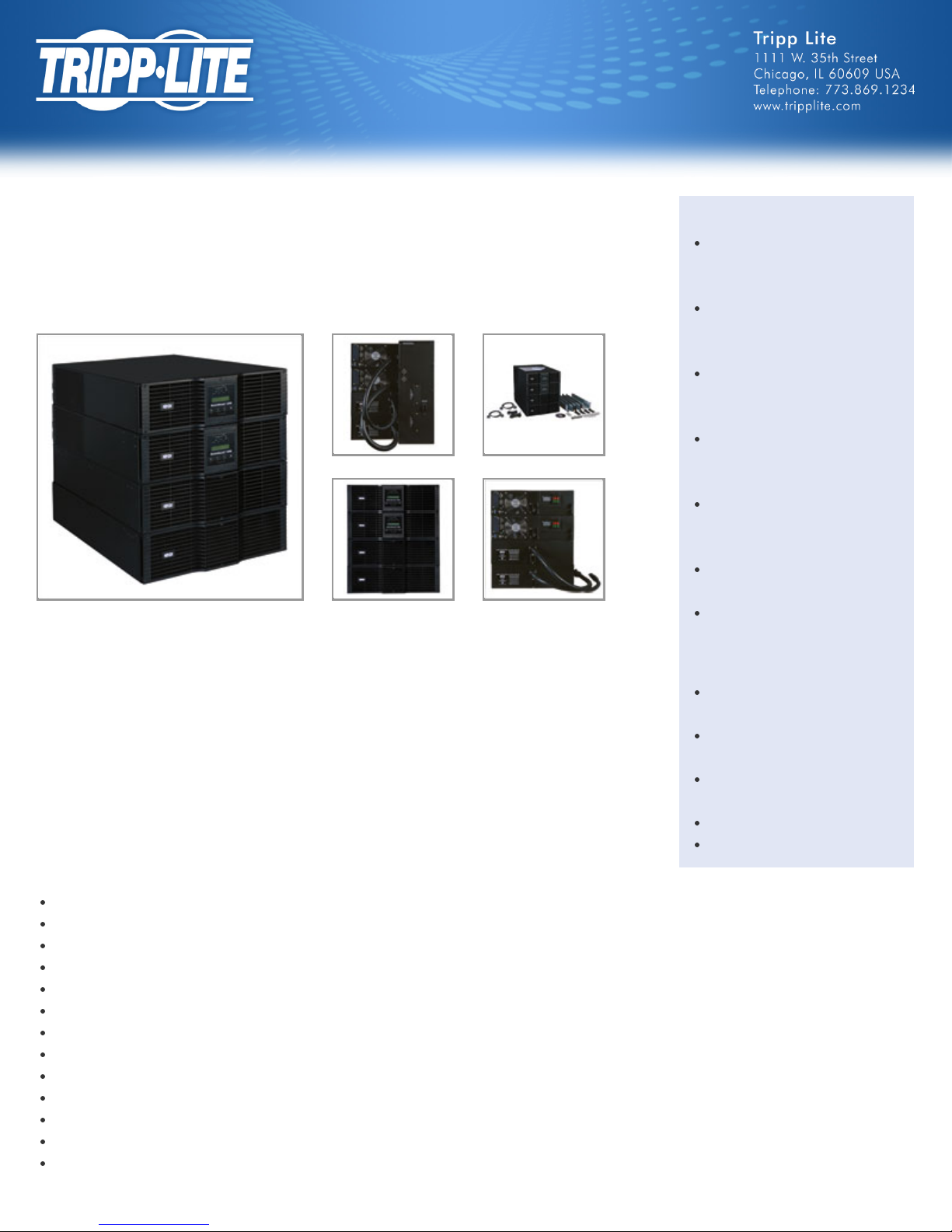

Tripp Lite SmartOnline SU16KRTHW Guida all'installazione
SmartOnline 16kVA On-Line Double-Conversion
UPS, N+1, 12U Rack/Tower, 200-240V Hardwire
output
MODEL NUMBER: SU16KRTHW
Description
Tripp Lite SU16KRTHW 16,000VA / 16kVA / 14,400 watt online, double-conversion UPS system offers complete
power protection for critical server, network and telecommunications equipment in a 12U rack/tower
configuration. This system delivers complete N+1 redundancy when used at loads up to 8kVA, and
non-redundant operation at loads between 8 and 16kVA. Fault-tolerant auto-bypass prevents unexpected
service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass
switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined
operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS
ideal for advanced networking applications in data centers, computer rooms, network closets and rugged
industrial locations.
Features
Tripp Lite SU16KRTHW 16kVA, 16,000VA / 14,400 watt on-line, double-conversion UPS system in 12U total rack/tower configuration
Unique configuration offers 16kVA non-redundant operation and automatic N+1 redundancy at load levels of 8kVA and under
Included Parallel PDU with manual bypass switch enables hot-swap replacement power modules at any supported load level
Hardwire input and output connections
Maintains full-time sine wave output within 2% of selectable 200/208/220/230/240V nominal
Supports 50/60Hz operation for worldwide frequency compatibility
Expandable runtime with optional external battery packs
Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
Battery independent restart
Highly efficient economy mode option
Optional SNMPWEBCARD, RELAYIOCARD and RELAYIOMINI interface modules available (RELAYIOMINI requires removal of USB interface module)
Applications utilizing the optional network communications card require two SNMPWEBCARD accessories (install one per included power module)
HID-compliant USB interface
Highlights
16kVA / 16,000VA / 14,400W
on-line double-conversion UPS,
0.9 power factor
200/208/220/230/240V +/-2%
50/60Hz output, Economy mode
option
Hot-swap power & battery
modules, N+1 fault tolerance at
loads up to 8kVA
USB, RS232 & EPO ports,
support for SNMP/WEB & other
card options
Front panel LEDs with detailed
LCD monitoring and control
screen
Expandable runtime with optional
external battery packs
Hardwire input (3 wire), Hardwire
output
Package Includes
Two SU8000RT3UPM UPS
power modules
Two BP240V10RT3U battery
packs
SUPDMB20KHW PDU with
Bypass switch
4 post rackmount installation rails
PowerAlert software and cabling
1 / 6
Includes Free PowerAlert monitoring software; PowerAlert LOCAL, PowerAlert NSA and PowerAlert NMS for monitoring up to 250 SNMP-enabled UPS,
PDU and other networking devices
Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks (4 required)
Optional 2-9USTAND supports upright tower placement (2 required)
Supports Emergency Power Off (EPO) via built-in interface
Front panel LEDs and LCD readout with scroll controls
LED / LCD display panel rotates for viewing in rackmount or tower configurations
External battery packs are field replaceable and hot swappable
Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating)
Specifications
OUTPUT
Output Volt Amp Capacity (VA) 16000
Output kVA capacity (kVA) 16
Output Watt Capacity (watts) 14400
Output kW capacity 14.4
Output power factor 0.9
Output Capacity Details
Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30
seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power;
Double conversion mode is automatically restored as load levels are reduced to 95% or less
Nominal Output Voltage(s)
Supported 200V; 208V; 220V; 230V; 240V
Nominal Voltage details Voltage selection via front panel LCD interface
Frequency compatibility 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
Frequency compatibility details Output frequency matches input nominal on startup; Frequency conversion mode enables conversion of 60Hz to
50Hz or 50Hz to 60Hz (no de-rating)
Output voltage regulation (line mode) +/- 2%
Output voltage regulation (Economy
line mode) +/- 10%
Output voltage regulation (Battery
mode) +/- 2%
Built-in UPS output receptacles Hardwire
Output AC waveform (AC mode) Sine wave
Output AC waveform (battery mode) Pure Sine wave
INPUT
Rated input current (at maximum
load) 92A (200V), 88.4A (208V), 83.6A (220V), 80A (230V), 76.6A (240V)
Nominal Input Voltage(s) Supported 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
2 / 6
UPS input connection type Hardwire
UPS input connection description 3 wire single phase input (L1, L2, G)
Recommended Electrical Service 100A @ 200V-240V (L, N, PE), or 100A @ 200V, 208V, or 240V (L1, L2, G)
Phase Single-Phase
BATTERY
Full load runtime (minutes) 5.5 minutes (14,400 watts)
Half load runtime (minutes) 13.5 minutes (7200 watts)
Expandable battery runtime Runtime is expandable with external battery packs
External battery pack compatibility BP240V10RT3U; BP240V557C-1PH; BP240V787C-1PH; BP240V1037C-1PH; BP240V1407C-1PH
Expandable runtime description For best results, add external batteries in multiples of two so that both included 8kVA power modules have an equal
number and type of connected battery packs
DC system voltage (VDC) 240
Battery recharge rate (included
batteries) Less than 8 hours from 10% to 90%
Battery replacement description Hot-swappable, user replaceable external battery packs
VOLTAGE REGULATION
Voltage regulation description 2% output voltage regulation in standard online, double-conversion mode
Overvoltage correction Corrects overvoltages up to 300V
Undervoltage correction Corrects undervoltages as low as 100V
LEDS ALARMS & SWITCHES
LED Indicators 6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status; LCD
screen offers additional information and control options
Front panel LCD display Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options;
LED/LCD panel rotates for viewing in rack/tower formats (see manual)
Alarms Unique audible alarms for all major UPS, environmental and power conditions (see manual)
Alarm cancel operation Alarm cancel switch
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation; 2 additional switches support set and
execute scrolling LCD functions; bundled PDU includes bypass switch to enable hot-swap UPS power module
replacement
SURGE / NOISE SUPPRESSION
UPS AC suppression response time Instantaneous
EMI / RFI AC noise suppression Yes
PHYSICAL
Included mounting accessory
description 4 sets of adjustable 4 post rack rails included (one for each included 3U module)
3 / 6
Installation form factors supported
with optional accessories 2 post rackmount (2POSTRMKITHD); Tower (2-9USTAND)
Optional mounting accessory notes Qty 4 2POSTRMKITHD required; Qty 2 2-9USTAND required
Primary form factor Rackmount
UPS / Power Module dimensions in
primary form factor (height x width x
depth / inches)
5.14 x 17.5 x 25.82
UPS / Power Module dimensions in
primary form factor (height x width x
depth / cm)
13.1 x 44.5 x 65.6
Installed whole system maximum
rack depth (inches) 32.5
Installed whole system maximum
rack depth (cm) 82.6
Rack Height 12U
Secondary form factor Tower
UPS / Power Module weight (lbs) 43
UPS / Power Module weight (kg) 19.5
UPS dimensions details Includes 2 SU8000RT3UPM UPS/Power modules and 2 BP240V10RT3U Battery packs; Listed weights and
dimensions for UPS/Power module and Included battery pack each refer to a single unit
Included battery pack dimensions
(height x width x depth / inches) 5.25 x 17.5 x 25
Included battery pack dimensions
(height x width x depth / cm) 13.3 x 44.5 x 63.5
Included battery pack weight (lbs) 158.7
Included battery pack weight (kg) 72
UPS Shipping dimensions (height x
width x depth / inches) 36 x 40.25 x 51
UPS Shipping dimensions (height x
width x depth / cm) 91.4 x 102.2 x 129.5
Shipping weight (lbs) 600
Shipping weight (kg) 272.4
Cooling method Fans
UPS housing material Steel
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
Relative Humidity 0 to 95%, non-condensing
AC mode BTU / hr. (full load) 5464
4 / 6
AC economy mode BTU / hr. (full
load) 2040
AC mode efficiency rating (100%
load) 91%
AC economy mode efficiency rating
(100% load) 96%
Operating Elevation (ft.) 0-3000m (0 to 10,000 ft.)
Audible Noise 60 dBA at front side 1 meter
Operating Elevation (m) 0-3000 m
COMMUNICATIONS
Communications interface USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Network monitoring port description
Applications utilizing the optional network communications card require two SNMPWEBCARD accessories (install
one per included power module);Additional contact closure support with optional RELAYIOCARD and
RELAYIOMINI interface cards; RELAYIOMINI installation requires removal of panel containing USB ports
PowerAlert software Included
Communications cable USB, DB9 serial and EPO cables included
WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer time No transfer time (0 ms.) in online, double-conversion mode
Transfer time (economy mode) 8 milliseconds typical power failure response in optional economy mode
Low voltage transfer to battery
power (setpoint) 100V
High voltage transfer to battery
power (setpoint) 300V
SPECIAL FEATURES
Cold Start (startup in battery mode
during a power failure) Cold-start operation supported
Economy mode operation
Optional economy mode enables high efficiency bypass operation with a maximum output voltage variation of
+/-10%. Double conversion mode is automatically restored as mains voltage varies beyond +/-10% with less than 1
millisecond transfer time between modes.
High availability UPS features Automatic inverter bypass; Manual bypass switch; Detachable hot-swap PDU; Hot swappable UPS power module;
Hot swappable batteries
Green & high efficiency features High efficiency economy mode operation; Support for daily startup and shutoff; Schedulable daily hours of economy
mode operation
CERTIFICATIONS
UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); CE; Meets FCC Part 15 Category A (EMI); ROHS (Restriction
of Hazardous Substances)
UPS Certification details IEC 61000-4-5 1995 B Surge Immunity
5 / 6
WARRANTY
Product Warranty Period (Worldwide) 2-year limited warranty
Related Items
Optional Products
Model Number Description Qty.
WEXT3-SU16-20K 3-Year Warranty (1-Year Extension) - For SU16K through SU20K Single-Phase UPS Models 1
WEXT5-SU16-20K 5-Year Warranty (3-Year Extension) - For SU16K through SU20K Single-Phase UPS Models 1
SNMPWEBCARD For remote monitoring and control via SNMP, Web, or Telnet. 1
RELAYIOCARD Programmable Relay I/O Card 1
RELAYIOMINI 3 Relay I/O Mini-module 1
MODBUSCARD For remote monitoring and control via MODBUS protocol 1
2-9USTAND Enables Tower Placement of Rackmount UPS Systems 1
2POSTRMKITHD Enables 2-Post Rackmount Installation of 3U and Larger UPS, Transformer and Battery Pack
Components 1
BP240V10RT3U External Battery Pack and Cable. 3U, Expandable, Black 3-Point Connector 1
BP240V557C-1PH External battery pack for use with select Tripp Lite UPS Systems 1
BP240V787C-1PH External battery pack for use with select Tripp Lite UPS Systems 1
BP240V1037C-1PH External battery pack for use with select Tripp Lite UPS Systems 1
BP240V1407C-1PH External battery pack for use with select Tripp Lite UPS Systems 1
SU20KXFMRT4U 18kVA / 18kW Step-down Isolation Transformer - Converts 208 or 240V UPS, utility or generator
power to 120V 1
More information, including related products, owner's manuals, and additional technical specifications, can be found online at:
http://www.tripplite.com/sku/SU16KRTHW.
© 2014 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous improvement.
Specifications are subject to change without notice. Photos may differ slightly from final products.
6 / 6
Indice
Altri manuali Tripp Lite UPS
Tripp Lite
Tripp Lite SmartPro SMART2200RMXL2UP Manuale utente
Tripp Lite
Tripp Lite OMNIPOWER PRO550 Manuale utente
Tripp Lite
Tripp Lite SmartOnline SU1000RT2UHV Manuale utente
Tripp Lite
Tripp Lite OMNI1500XLNAFTA Manuale utente
Tripp Lite
Tripp Lite SmartPro 1050RM Istruzioni per l'installazione e il funzionamento
Tripp Lite
Tripp Lite Line-Interactive UPS System SMART750USB Manuale utente
Tripp Lite
Tripp Lite Line-Interactive UPS System SMART750USB Manuale utente
Tripp Lite
Tripp Lite SmartPro XL INT Manuale utente
Tripp Lite
Tripp Lite Internet Office 700 Manuale utente
Tripp Lite
Tripp Lite OMNIVS1500XL Manuale utente
Tripp Lite
Tripp Lite ECO550UPS Manuale utente
Tripp Lite
Tripp Lite INTERNET550SER Guida
Tripp Lite
Tripp Lite Smart INT 1000 Manuale utente
Tripp Lite
Tripp Lite SmartOnline SU3000RTXR3UHW Guida all'installazione
Tripp Lite
Tripp Lite SMART5000XFMRXL Manuale utente
Tripp Lite
Tripp Lite AGOM8265 Manuale utente
Tripp Lite
Tripp Lite 450-1400VA Manuale utente
Tripp Lite
Tripp Lite ECO1000LCD Manuale utente
Tripp Lite
Tripp Lite SmartOnline SU1000RTXLCD2U Guida alla configurazione
Tripp Lite
Tripp Lite SmartOnline SU10KRT3/1X Manuale utente
Manuali UPS popolari di altre marche
Pylontech
Pylontech Victron & Pylontech US5000 Manuale utente
Tecnoware
Tecnoware EVO DSP PLUS MM 6.8 Manuale utente
Mecer
Mecer ME-1000-WTU Manuale utente
Mustek
Mustek PowerMust 530(B) Plus Manuale di installazione e funzionamento
Emerson
Emerson Liebert NXL series Manuale utente
MAKELSAN
MAKELSAN BOXER SERIES Manuale utente
