Tripp Lite SmartOnline 200703028 Manuale utente

Owner’s Manual

1111 W. 35th Street Chicago, IL 60609 USA

Customer Support: (773) 869-1234 • www.tripplite.com

Important Safety Instructions 2

Installation 3

Basic Operation 7

Battery Replacement 13

Storage and Service 14

SmartOnline™

Rack/Tower Mount On-Line UPS Systems

Pure Sine Wave Output • 220/230/240V Input/Output

Español

Français 29

Troubleshooting 11

Not suitable for mobile applications.

Ðóññêèé 44

200703028--SMARTONLINE UPS OM.qxd 4/13/2007 10:56 AM Page 1

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, conductive contaminants,

dust or direct sunlight.

• For best performance, keep the indoor temperature between 32º F and 104º F (0º C and

40º C).

• Leave adequate space around all sides of the UPS for proper ventilation.

• Do not mount unit with its front or rear panel facing down (at any angle).

Mounting in this manner will seriously inhibit the unit's internal cooling, eventually

causing product damage not covered under warranty.

UPS Connection Warnings

• Connect your UPS directly to a properly grounded AC power outlet. Do not plug the

UPS into itself; this will damage the UPS.

• Do not modify the UPS's plug, and do not use an adapter that would eliminate the UPS’s

ground connection.

• Do not use extension cords to connect the UPS to an AC outlet. Your warranty will be

voided if anything other than Tripp Lite surge suppressors are used to connect your UPS

to an outlet.

• If the UPS receives power from a motor-powered AC generator, the generator must

provide clean, filtered, computer-grade output.

Equipment Connection Warnings

• Do not use Tripp Lite UPS Systems for life support applications in which a malfunction

or failure of a Tripp Lite UPS System could cause failure or significantly alter the

performance of a life-support device.

• Do not connect surge suppressors or extension cords to the output of your UPS. This

might damage the UPS and will void the surge suppressor and UPS warranties.

Battery Warnings

Batteries can present a risk of electrical shock and burn from high short-circuit current.

Observe proper precautions. Do not dispose of the batteries in a fire. Do not open the UPS

or batteries. Do not short or bridge the battery terminals with any object. Unplug and turn

off the UPS before performing battery replacement. Use tools with insulated handles.

There are no user-serviceable parts inside the UPS. Battery replacement should be

performed only by authorized service personnel using the same number and type of

batteries (sealed Lead-Acid). The batteries are recyclable. Refer to your local codes for

disposal requirements. Tripp Lite offers a complete line of UPS System Replacement

Battery Cartridges (R.B.C.). Visit Tripp Lite on the Web at

www.tripplite.com/support/battery/index.cfm to locate the specific replacement battery

for your UPS.

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during the

installation, operation and storage of all Tripp Lite UPS Systems. Failure to heed these

warnings will void your warranty.

Important Safety Instructions

200703028--SMARTONLINE UPS OM.qxd 4/13/2007 10:56 AM Page 2

Mount your equipment in either a 4-post or 2-post rack or rack enclosure (see next page for 2-

post mounting). The user must determine the fitness of hardware and procedures before

mounting. If hardware and procedures are not suitable for your application, contact the

manufacturer of your rack or rack enclosure. The procedures described in this manual are for

common rack and rack enclosure types and may not be appropriate for all applications.

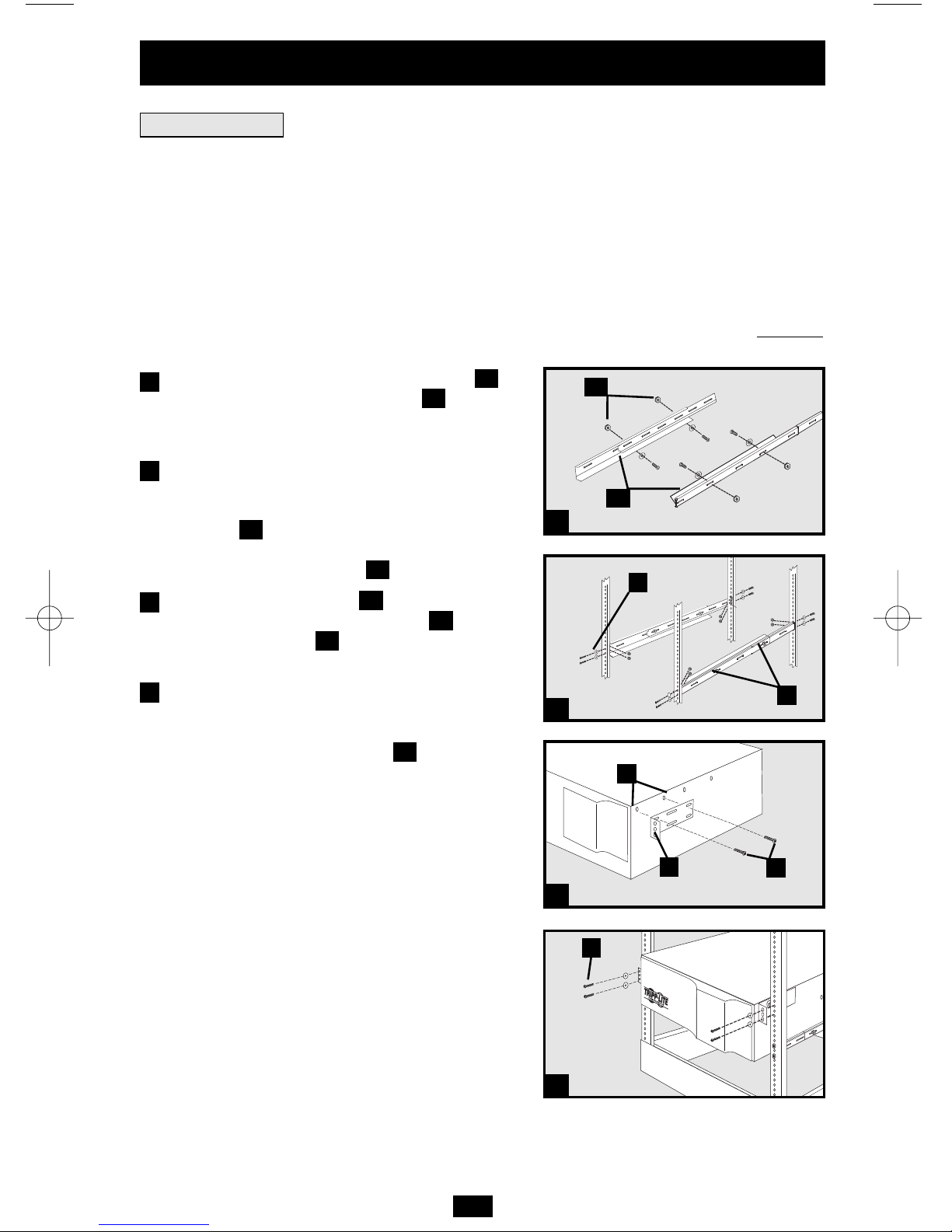

4-Post Mounting

All UPS models include hardware required to mount in a 4-post rack. Select models include an

adjustable rackmount shelf kit to provide additional support. If your UPS model does not

include an adjustable rackmount shelf kit, skip steps 1 and 2.

Connect the two segments of each shelf

using the included screws and nuts . Leave

the screws slightly loose so that the shelves

can be adjusted in the next step.

Adjust each shelf to fit your rack, then mount

them in the lowest available space of your

rack with the screws, nuts and washers

provided . Note that the support ledges

should face inward. Tighten the screws that

connect the shelf segments .

Attach mounting ears to the front

mounting holes of your equipment using

the screws provided . The ears should face

forward.

Using an assistant if necessary, lift your

equipment and slide it onto the mounting

shelves. Attach your equipment to the rack by

using the appropriate hardware through its

mounting ears and into the rack rails.

Mounting Rack

Installation

200703028--SMARTONLINE UPS OM.qxd 4/13/2007 10:56 AM Page 3

INPUT

BREAKER

INPUT

BREAKER

ACC. SLOT

LOAD 1

PHONE / DATA PROTECTION

OUT EPO

LOAD 2

OUT

RS-232 USB

CAUTION

Risk of electric s

See top of unit fo

cautionary marki

Your model may differ.

2a Your model may differ.

Installation

(continued)

2-Post (Telecom) Mounting

If you mount 2U UPS models in 2-post racks, they require the addition of a Tripp Lite 2-Post

Rackmount Installation Kit (model: 2POSTRMKITWM, sold separately). See Installation Kit

owner’s manual for installation procedure for 2U UPS models.

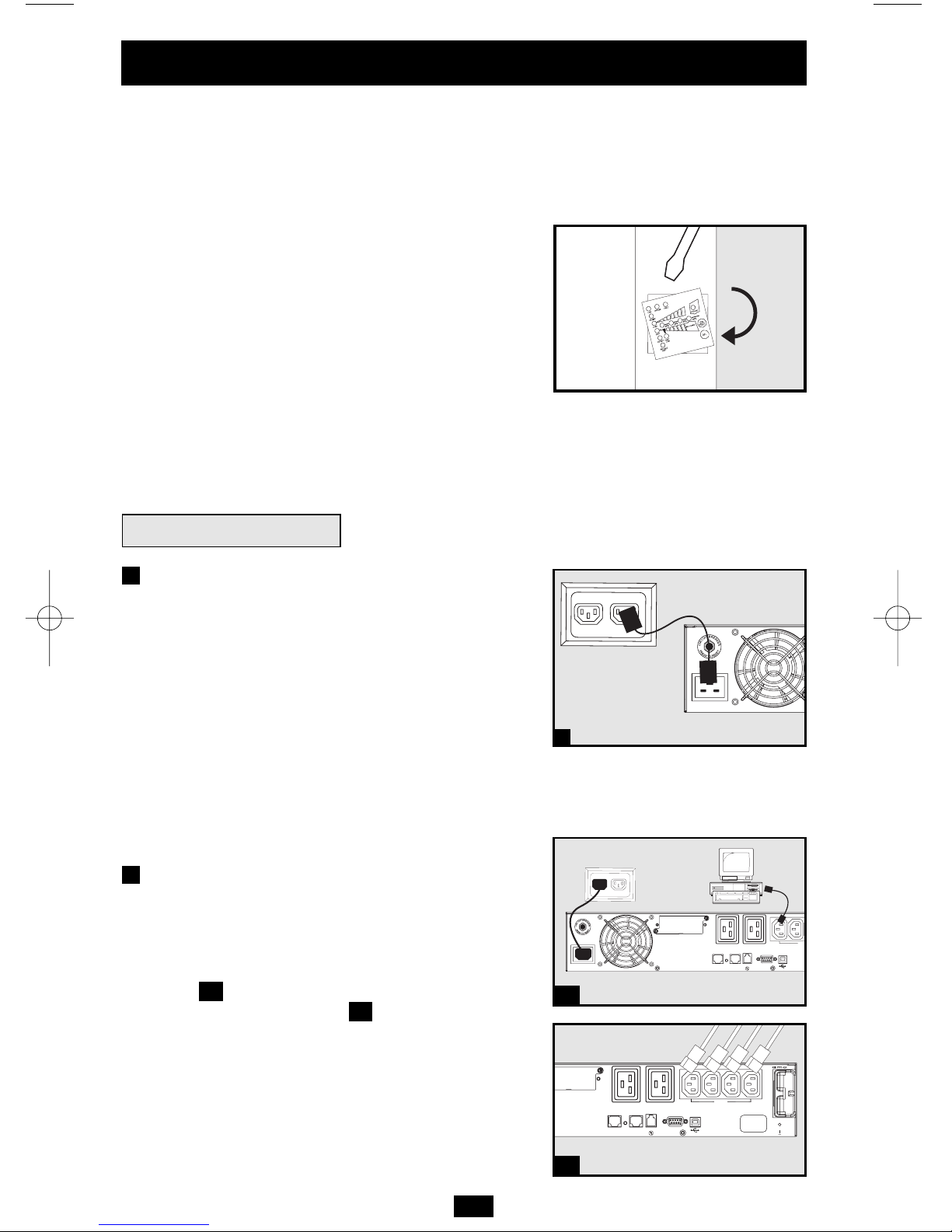

Mounting (Tower)

Your UPS can be mounted in an upright tower

position with optional base stands sold separately by

Tripp Lite (Model # 2-9USTAND). When mounting

the UPS on adjustable base stands, make sure that the

control panel is toward the top. The control panel may

be rotated to make it easier to read. Insert a small

screwdriver or similar tool in the slots on either side of

the panel, pop it out, rotate it, and pop it back into

place as shown.

WARNING!

All UPS systems are extremely heavy. Use caution when lifting and mounting. User must

properly stabilize the UPS when lifting and mounting.

Connection and Start-Up

Connect a user-supplied power cord

to the UPS input receptacle.

The power cord should have a plug appropriate

for your local site's utility outlets. Plug the cord

directly into a properly grounded, 3-wire, AC

outlet that does not share a circuit with a heavy

electrical load (air conditioner, refrigerator, etc.).

The outlet must have an amp rating equal to or

greater than the input breaker rating of the UPS.

Note: Once your UPS is plugged in, the fan and all Indicator

Lights will turn ON. The LINE and LOAD ACTIVE METER

LEDs will illuminate and the UPS will beep to indicate normal

operation. However, power is not supplied to the AC outlets

until the UPS is turned on.

Using the included power cords,

connect your equipment to the AC

outlets of the UPS System.

Connect the female plug to your equipment's

AC input. Connect the male plug to any UPS AC

outlet . Repeat with additional cords to

connect all your equipment .

Note: Additional interconnection cords C13 to C14 and C19 to

C20) are available from Tripp Lite. For more information, call

773-869-1234.

Caution: Your UPS is designed to support computer equipment

only. You will overload the UPS if you connect devices with

high power demands such as household appliances or laser

printers to UPS AC outlets.

ACC. SLOT

LOAD 1

PHONE / DATA PROTECTION

OUT EPO

LOAD 2

OUTPUT

RS-232 USB

CAUTION

Risk of electric shock

See top of unit for

cautionary markings

WARNING

CONNECT 48 VDC

BATTERYSYSTEMS ONLY

CONNECTING OTHER

SYSTEMS WILL VOID

WARRA NTY

2b Your model may differ.

200703028--SMARTONLINE UPS OM.qxd 4/13/2007 10:56 AM Page 4

Important Safety Instructions

Connection and Start-Up (continued)

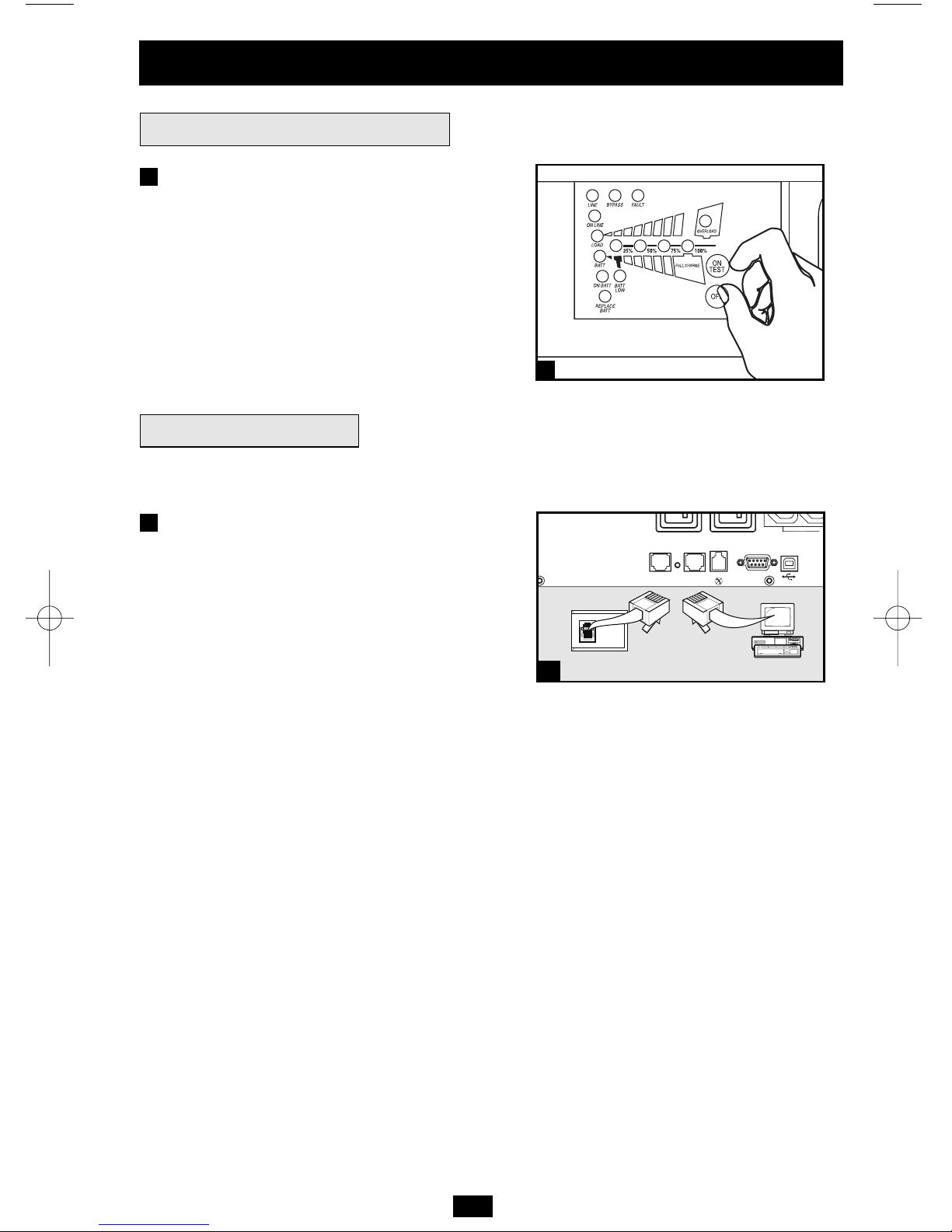

Turn the UPS ON:

• Press the ON/TEST Switch and hold it for

several seconds until you hear a beep

• Release the ON/TEST Switch. The ON

LINE LED will illuminate, and your UPS

will begin providing power to its AC outlets

Note: After initial installation of the UPS or after

prolonged storage, the internal batteries must charge for 2-

4 hours before the UPS can support connected equipment

during a power failure.

Your UPS will function properly without these

connections.

Phone/Network Line

Suppression

Your UPS has jacks which protect

against surges on a telephone line or telephone/

network data line.* Using appropriate

telephone or network cords connect your wall

jack to the UPS jack marked “IN.” Connect

your equipment to the UPS jack marked

“OUT.” Make sure the equipment you connect

to the UPS's jacks is also protected against

surges on the AC line.

* Not compatible with PoE (Power Over Ethernet) applications.

Installation

(continued)

Optional Connections

ACC. SLOT

LOAD 1

PHONE / DATA PROTECTION

OUT EPO

LOAD 2

RS-232 USB

CAUTIO

Risk of ele

See top of

cautionary

1Your model may differ.

200703028--SMARTONLINE UPS OM.qxd 4/13/2007 10:56 AM Page 5

Optional Connections

(continued)

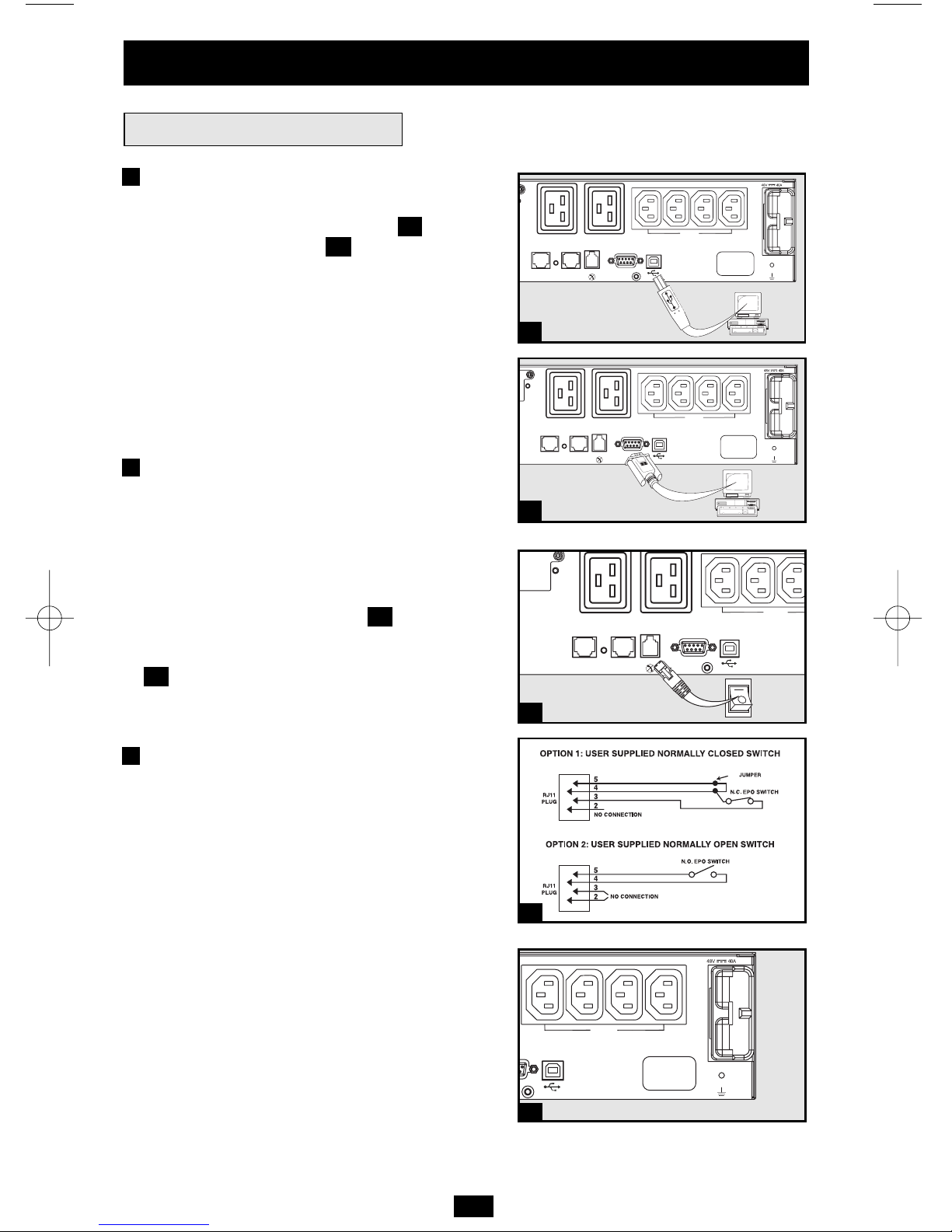

USB and RS-232 Serial

Communications

Use the included USB cable (see ) and/or

DB9 serial cable (see ) to connect the

communication port of your computer to the

communication port of your UPS. Install on

your computer the Tripp Lite PowerAlert

Software appropriate to your computer's

operating system. Your UPS may feature

additional communications ports; these ports

may be connected to additional computers that

have PowerAlert Software installed. Consult

your PowerAlert manual for more information.

EPO Port Connection

This optional feature is only for those

applications that require connection to a

facility's Emergency Power Off (EPO) circuit.

When the UPS is connected to this circuit, it

enables emergency shutdown of the UPS's

inverter. Using the cable provided, connect the

EPO port of your UPS (see ) to a user-

supplied normally closed or normally open

switch according to the circuit diagram (see

). The EPO port is not a phone line surge

suppressor; do not connect a phone line to

this port.

External Battery Connection

Check to ensure that the external batteries

you are connecting match the voltage listed

on your UPS's battery connector. All UPS

models come with a robust internal battery

system; select models feature connectors that

accept optional external battery packs (sold

separately from Tripp Lite) to provide

additional runtime. Adding external batteries

will increase recharge time as well as

runtime. See the battery pack owner's manual

for complete installation instructions. Make

sure cables are fully inserted into their

connectors. Small sparks may result during

battery connection; this is normal. Do not

connect or disconnect battery packs when the

UPS is running on battery power.

LOAD 1

PHONE / DATA PROTECTION

OUT EPO

LOAD 2

OUTPUT

RS-232 USB

CAUTION

Risk of electric shock

See top of unit for

cautionary markings

WARNING

CONNECT 48 VDC

BATTERY SYSTEMS ONLY

CONNECTING OTHER

SYSTEMS WILL VOID

WARRANTY

OUTPUT

USB

CAUTION

Risk of electric shock

See top of unit for

cautionary markings

WARNING

CONNECT 48 VDC

BATTERY SYSTEMS ONLY

CONNECTING OTHER

SYSTEMS WILL VOID

WARRANTY

Your model may differ.

Installation

(continued)

LOAD 1

PHONE / DATA PROTECTION

OUT EPO

LOAD 2

OUTPUT

RS-232 USB

CAUTION

Risk of electric shock

See top of unit for

cautionary markings

WARNING

CONNECT 48 VDC

BATTERY SYSTEMS ONLY

CONNECTING OTHER

SYSTEMS WILL VOID

WARRANTY

2a Your model may differ.

LOAD 1

PHONE / DATA PROTECTION

OUT EPO

LOAD 2

OUTPUT

RS-232 USB

CAUTION

Risk of electric shock

See top of unit for

cautionary markings

3a Your model may differ.

4-5

200703028--SMARTONLINE UPS OM.qxd 4/13/2007 10:56 AM Page 6

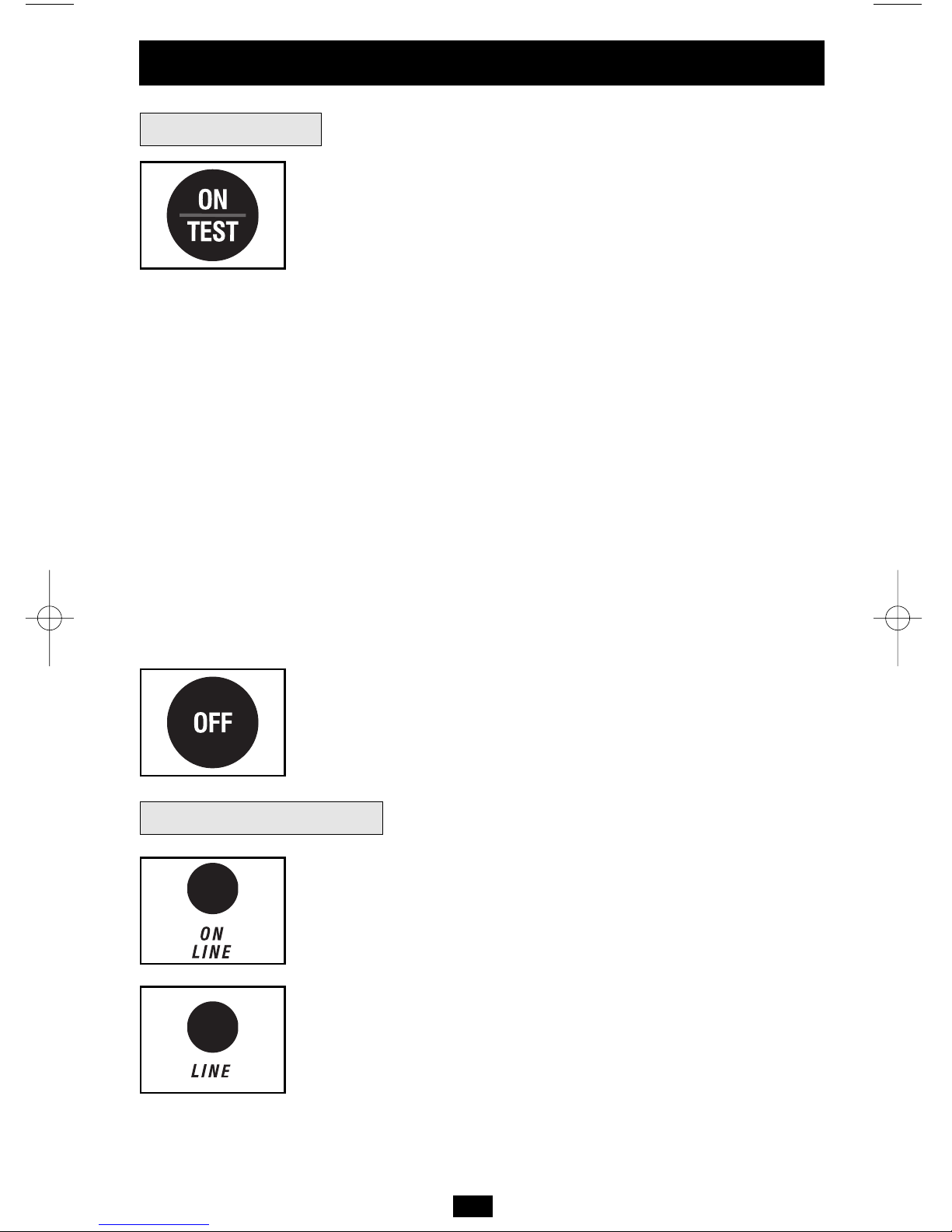

Front Panel Switches

“ON/TEST” Button: This switch controls four separate UPS functions:

UPS Power ON

To turn the UPS on, press this button, hold it for several seconds until

you hear a beep, then release it. The “ON LINE” LED will illuminate.

UPS Self-Test

During normal on-line operation, press this button and hold it until

you hear a beep. This initiates a 10-second self-test of the battery. The

UPS will shift to battery power (all LEDs will illuminate) for ten

seconds.

Alarm Silence

To silence the UPS “on-battery” alarm, press this button and hold it

until you hear a beep.

UPS Cold Start

To use your UPS as a stand-alone power source when AC power is

unavailable (i.e. during a blackout), press this button and hold it until

you hear a beep. The UPS will then provide battery power to its outlets.*

* The “ON BATT” Indicator Light will be illuminated since your UPS will be operating

from battery power.

“OFF” Button: This button turns power OFF at the UPS receptacles.

Press this switch, hold it until you hear a beep, then release it. The

UPS will continue charging and the fan will continue to cool internal

components even after you turn the UPS receptacles off. To turn the

UPS OFF completely, including the charger, disconnect the UPS’s

power cord after pressing the “OFF” switch.

“ON LINE” LED: This green light will illuminate constantly to indicate

the UPS is performing normal on-line operation (filtering and

resynthesizing incoming AC line voltage to provide pure sine wave

output). When this light is illuminated, you can monitor the load level

of your UPS on the “LOAD ACTIVE METER” LEDs.

“LINE” LED: This green light will illuminate constantly to indicate

the utility supplied AC line voltage at your wall outlet is nominal. It

will flash if the line voltage is outside the nominal range (either too

low or two high). No action is required on your part when the LED

flashes; the UPS continuously and automatically filters AC line

power to provide your equipment with pure sine wave AC power,

regardless of brownout or overvoltage conditions. If this light is off,

then AC line voltage is not present (blackout) or is at an extremely

high voltage, and the UPS will provide connected equipment with

power from battery.

Front Panel Indicator Lights

Basic Operation

200703028--SMARTONLINE UPS OM.qxd 4/13/2007 10:56 AM Page 7

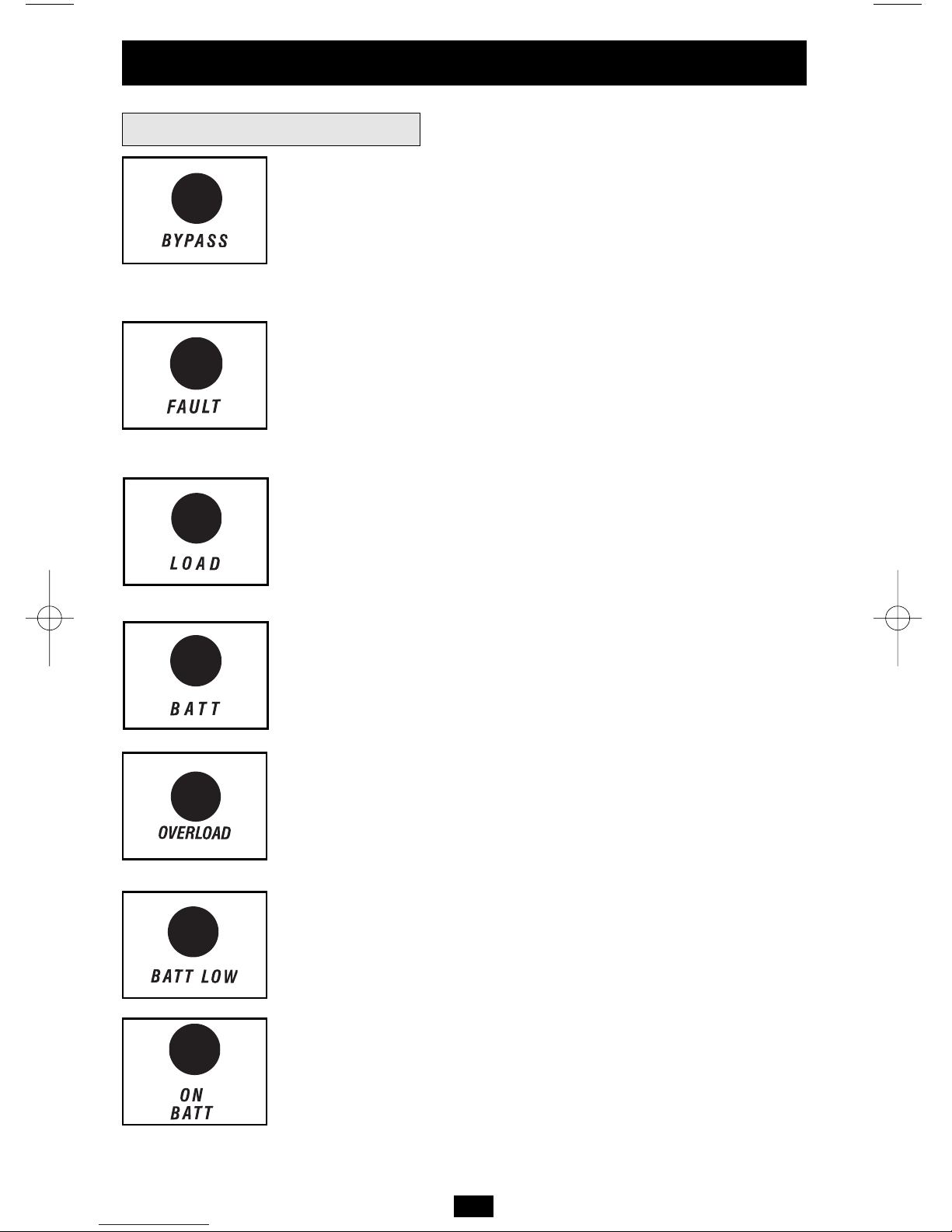

Front Panel Indicator Lights

continued

“BYPASS” LED: This yellow light will flash to indicate that the

UPS’s DC/AC inverter is deactivated and the UPS is in the “Bypass”

mode. During normal operation this LED will light briefly when the

unit is plugged in, but if an internal fault or overload occurs this light

will flash constantly to show that connected equipment will receive

filtered AC mains power, but will not receive battery power during a

blackout. In this case, contact Tripp Lite for service.

“FAULT” LED (select models only): This red light will flash when

your UPS detects an internal fault (overheating, overvoltages, etc.). If

the light persists after restarting the UPS, contact Tripp Lite for

service.

“LOAD ACTIVE METER” LED: This green light will illuminate

when your UPS is receiving AC power to indicate that the set of four

dual-function LEDs is displaying the load level of your UPS.

“BATT ACTIVE METER” LED: This green light will illuminate

when your UPS is operating from battery power to indicate that the

set of four dual-function LEDs is displaying the battery charge level

of your UPS. Note: the “ON BATT” LED will also be illuminated.

“OVERLOAD” LED: This red light will illuminate constantly to indicate

that your UPS’s capacity has been exceeded while it is in on-line operation.

The UPS alarm will beep continuously. Immediately remove overload

until light and alarm go off. If you do not immediately remove the

overload, the UPS will transfer from on-line to bypass operation.

“BATT LOW” LED: This yellow light will illuminate when your UPS’s

battery charge level is low. The UPS alarm will beep until either the

battery charge is depleted or the batteries are adequately recharged.

“ON BATT” LED: This green light will illuminate constantly to

indicate that AC line voltage is not present and your UPS is providing

your equipment with battery power. The UPS will also beep every two

seconds, unless silenced by the “ON/TEST” Button. When this light

is illuminated, you can monitor the battery charge level of your UPS

on the “BATT ACTIVE METER” LEDs.

Basic Operation

(continued)

200703028--SMARTONLINE UPS OM.qxd 4/13/2007 10:56 AM Page 8

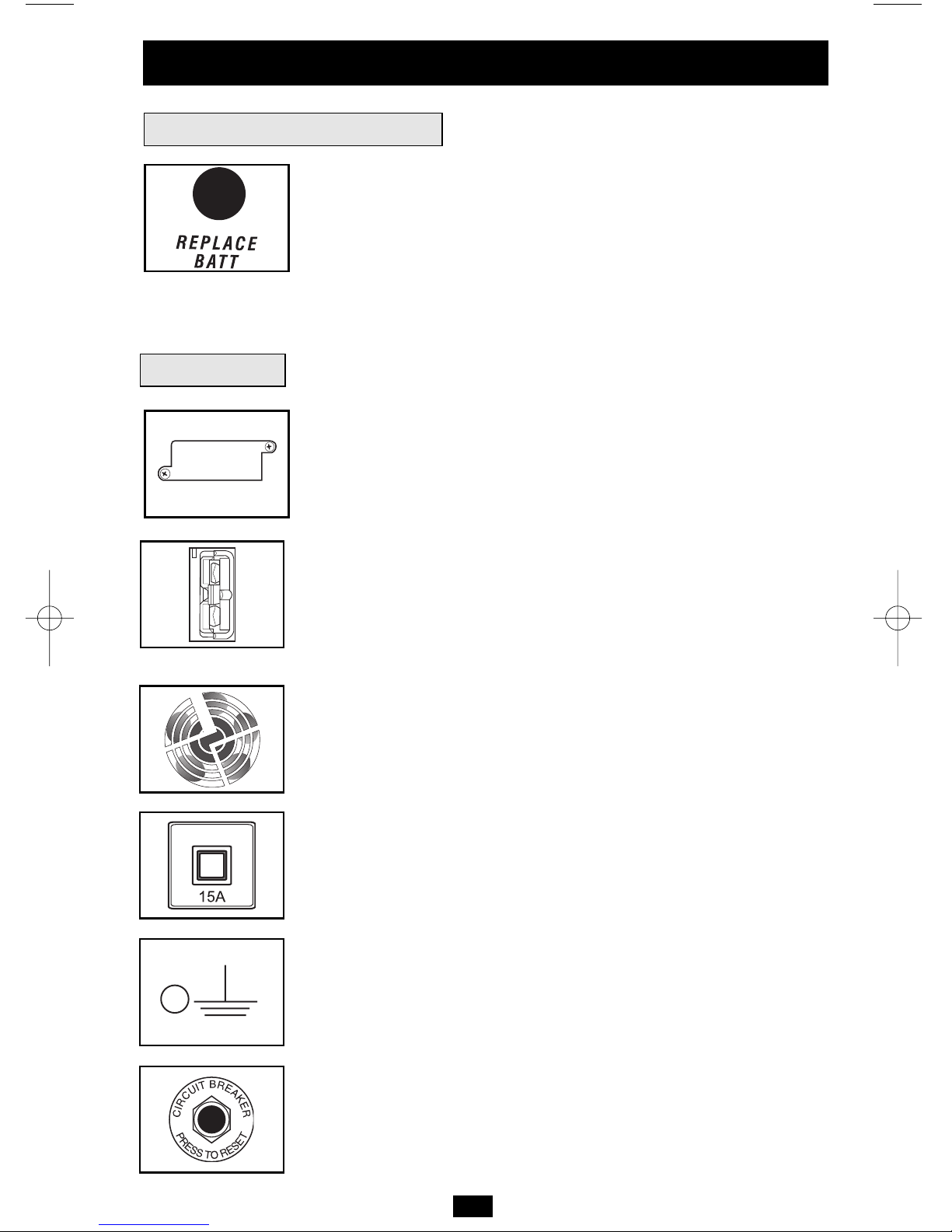

Rear Panel

“REPLACE BATT” LED: This red light will illuminate constantly

and the UPS alarm will beep every 2 seconds if your UPS’s

microprocessor detects a battery fault or if your UPS fails the

automatic self-test (after you turn your UPS ON) and the UPS battery

is less than fully charged. Let the UPS system charge for at least 12

hours and perform a self test using the “ON/TEST Button” as described

on page 7. If the light continues to stay on, contact Tripp Lite for

service.

Accessory Slot: Remove the small cover panel from this slot to use

optional accessories to remotely monitor and control your UPS.

Contact Tripp Lite Customer Support at (773) 869-1234 for more

information, including a list of available SNMP, network management

and connectivity products.

External Battery Pack Connector (configuration varies by model):

Use to connect optional Tripp Lite Battery Packs for additional

runtime. Contact Tripp Lite Customer Support at (773) 869-1234 for

the appropriate Tripp Lite battery pack to connect. Refer to

instructions available with the Battery Pack for complete connection

information and safety warnings.

Fan: The fan cools the UPS’s internal components. It is always on

when line power is present.

Input Circuit Breaker Switch: This resettable breaker prevents high

input current from damaging the UPS or the attached load. If this

breaker trips, make sure your UPS is connected to AC power of the

proper voltage before resetting the circuit breaker by pushing the

breaker switch in.

Ground Screw: Use this to connect any equipment that requires a

chassis ground.

Output Circuit Breakers Switches: These resettable circuit

breakers protect your UPS from output overload. If one or both

breakers trip, remove some of the load on the circuit(s) and allow the

UPS to cool before pressing the breaker switch(es) in to reset.

Front Panel Indicator Lights

continued

Basic Operation

(continued)

200703028--SMARTONLINE UPS OM.qxd 4/13/2007 10:56 AM Page 9

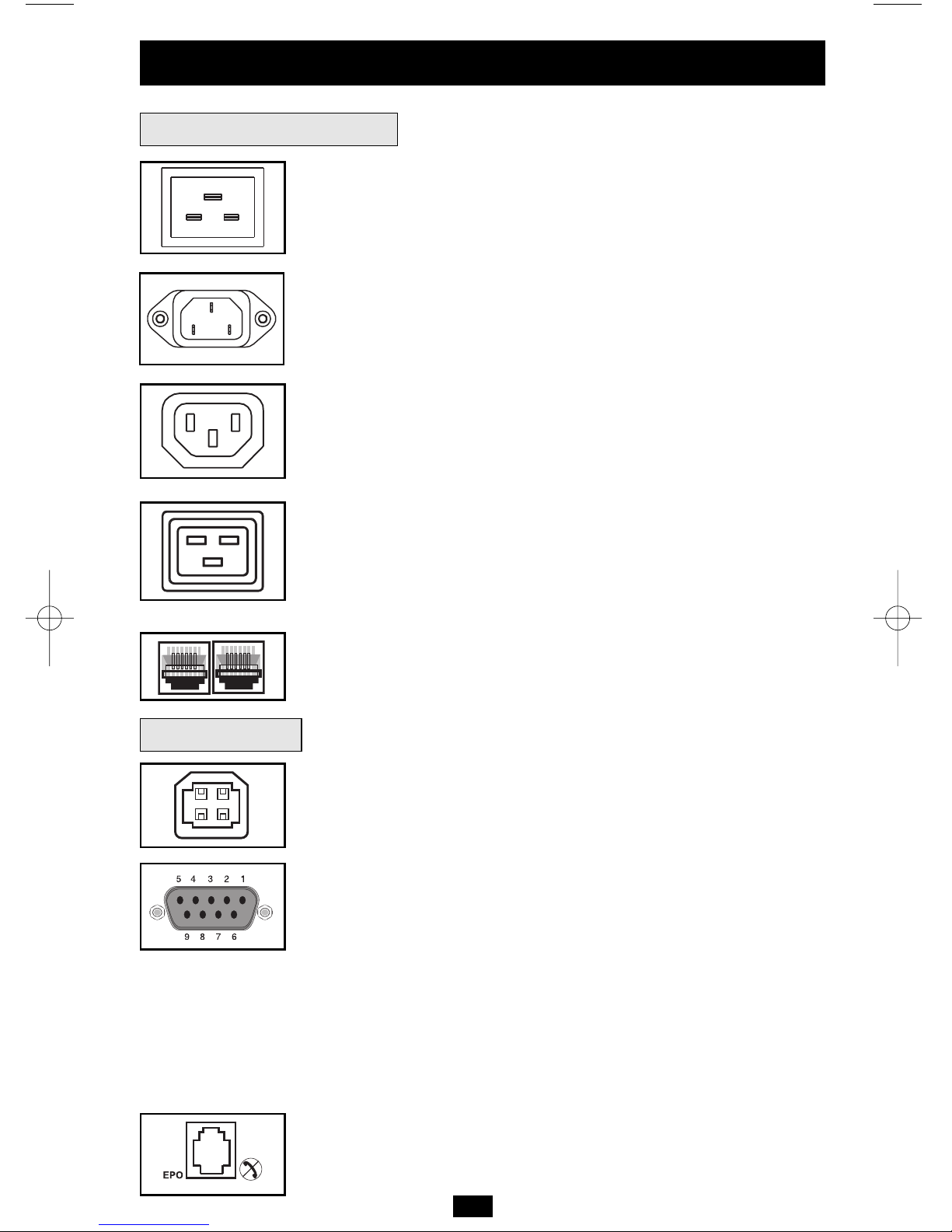

Rear Panel

continued

Input Cord Connection: This IEC320-C20 or IEC320-C14 inlet

enables the UPS to be connected to an AC power source via a

user-supplied cord with country-specific plug. See "Connection and

Start-Up".

AC Receptacles (Varied by Model): These receptacles provide your

connected equipment with pure sine-wave AC output from the AC

line during normal operation and from battery power during blackouts

and severe brownouts. Power provided at these outlets is filtered to

protect connected equipment against damaging surges and line noise.

Select models feature receptacles arranged in numbered load banks,

as labelled on the unit. Using PowerAlert software and cabling, load

banks can be individually turned off and on from a remote location,

allowing users to reset or reboot connected equipment.

Telephone/Network Protection Jacks: These jacks protect your

equipment against surges over a telephone line or telephone/network

data line. Connecting your equipment to these jacks is optional. Your

UPS will work properly without this connection. Not compatible with PoE

(Power Over Ethernet) applications.

Communications Ports (USB or RS-232): These ports connect your

UPS to any workstation or server. Use with Tripp Lite’s PowerAlert

Software and included cables to enable your computer to

automatically save open files and shut down equipment during a

blackout. Also use PowerAlert Software to monitor a wide variety of

AC line power and UPS operating conditions. Consult your

PowerAlert Software manual or contact Tripp Lite Customer Support

for more information. See “USB and RS-232 Serial

Communications” in the “Optional Connections” section for

installation instructions.

Dry contact communications are simple, but some knowledge of

electronics is necessary to configure them. The DB9 port's pin

assignments are shown in the diagram. If the UPS battery is low, the

UPS sends a signal by bridging pins 1 and 5. If utility power fails, the

UPS sends a signal by bridging pins 8 and 5. To shut the UPS down

remotely, short pin 3~pin 9 for at least 3.8 seconds.

EPO (Emergency Power Off) Port: Your UPS features a EPO port

that may be used to connect the UPS to a contact closure switch to

enable emergency inverter shutdown. See "Optional Connections."

IEC320-C13

IEC320-C19

Communications

Basic Operation

(continued)

IEC320-C20

IEC320-C14

200703028--SMARTONLINE UPS OM.qxd 4/13/2007 10:56 AM Page 10

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Tripp Lite UPS

Tripp Lite

Tripp Lite S3M100KX Manuale utente

Tripp Lite

Tripp Lite SMX1500LCD Manuale utente

Tripp Lite

Tripp Lite SUPDM15 Manuale utente

Tripp Lite

Tripp Lite HTR15-2U Guida alla configurazione

Tripp Lite

Tripp Lite OmniSmart OMNISMART1050 Manuale utente

Tripp Lite

Tripp Lite SMART750XLA Manuale utente

Tripp Lite

Tripp Lite SmartPro Rackmount Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU1000XLA Manuale utente

Tripp Lite

Tripp Lite SMART1500CRMXL Manuale utente

Tripp Lite

Tripp Lite SmartPro SMART1500 Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU80KX2 Guida all'installazione

Tripp Lite

Tripp Lite SmartPro AG-0019 Manuale utente

Tripp Lite

Tripp Lite OMNIVSINT800 Manuale utente

Tripp Lite

Tripp Lite OmniSmart OMNIVS800 Manuale utente

Tripp Lite

Tripp Lite SU2200RTXL2UN Manuale di installazione e funzionamento

Tripp Lite

Tripp Lite SmartPro SMART700RT1U Manuale utente

Tripp Lite

Tripp Lite OMNI1500XLNAFTA Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU16KRTHW Guida all'installazione

Tripp Lite

Tripp Lite SmartOnline SU10000RT3U Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU30K3/3 Manuale utente

Tripp Lite

Tripp Lite RBC24-SUTWR Manuale utente

Tripp Lite

Tripp Lite ECO-UPS ECO650LCD Manuale utente

Tripp Lite

Tripp Lite SmartOnline Manuale utente

Tripp Lite

Tripp Lite SmartPro SMART3000RM2UN Guida all'installazione

Manuali UPS popolari di altre marche

Pylontech

Pylontech Victron & Pylontech US5000 Manuale utente

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuale utente

Mecer

Mecer ME-1000-WTU Manuale utente

Mustek

Mustek PowerMust 530(B) Plus Manuale di installazione e funzionamento

Emerson

Emerson Liebert NXL series Manuale utente

MAKELSAN

MAKELSAN BOXER SERIES Manuale utente

Block

Block PC-0524-400-0 Manuale utente

CyberPower

CyberPower CP585LCD Manuale utente

Eaton

Eaton 3S Istruzioni per il montaggio

CyberPower

CyberPower Office Tower Series UPS 1000 Manuale utente

CyberPower

CyberPower BM100 Manuale utente

Best Power

Best Power 610 Manuale utente

Best Power

Best Power Unity/I UT3K Manuale utente

Mustek

Mustek PowerMust 400 Offline Manuale utente

Xantrex

Xantrex Trace 512 UR-UPS Manuale utente

Forza

Forza SL-1501UL Manuale utente

LEGRAND

LEGRAND keor 310081 Manuale utente

ABB

ABB Conceptpower DPA 500 Manuale utente
