Tripp Lite SmartOnline SU8000RT3U1TF Manuale utente

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +(773) 869 1234

E-mail: [email protected]

Model #: SU8000RT3U1TF

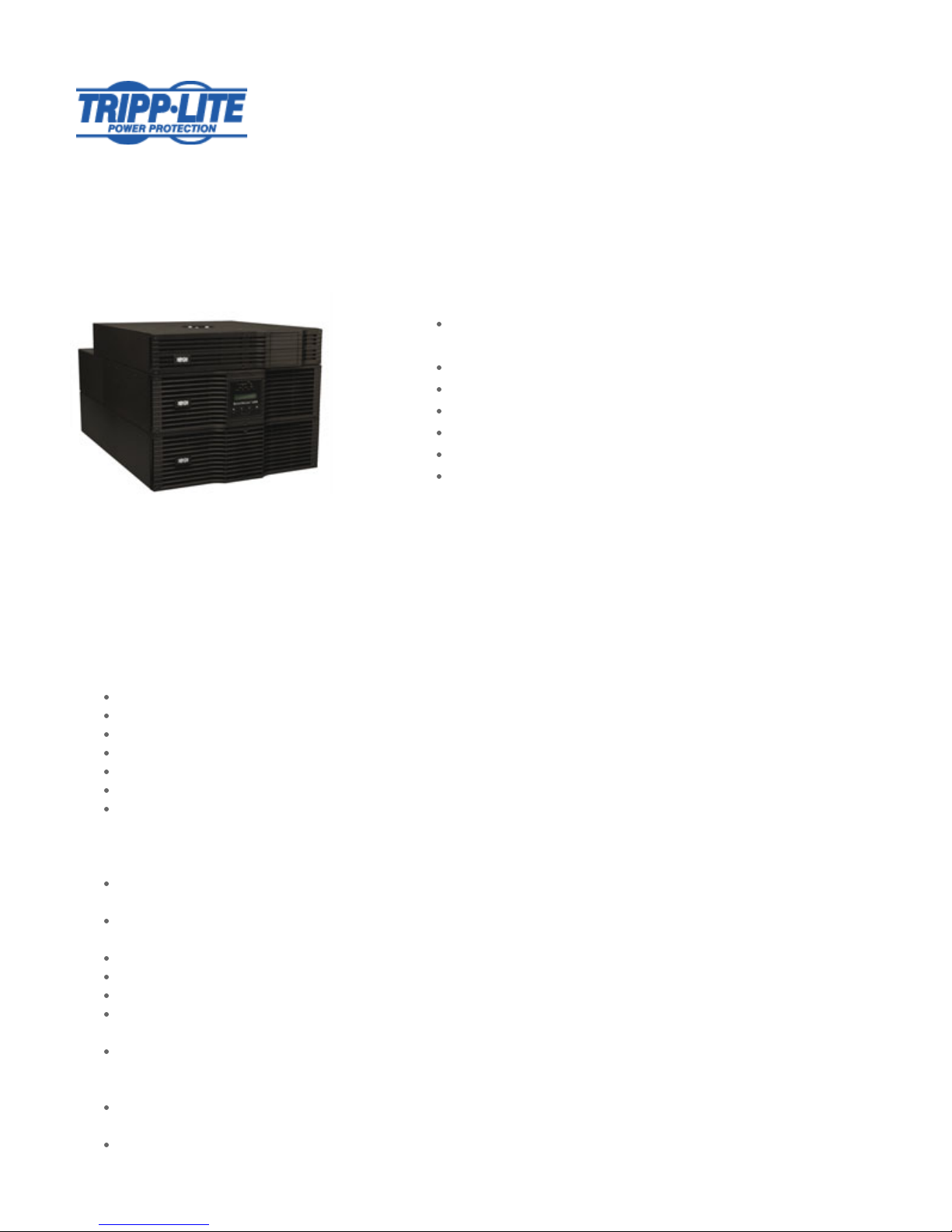

SmartOnline 8kVA On-Line Double-Conversion UPS, 8U Rack/Tower, 208/120V NEMA outlets

Highlights

8kVA / 8000VA / 7200W on-line double-conversion UPS, 0.9 output power

factor

208/120V +/-2% output at 60Hz, High efficiency economy mode option

8U Rack/Tower compatible, Hot-swap power and battery modules

USB, RS232, EPO ports, Support for SNMP/WEB and other card options

Front panel LEDs with detailed LCD monitoring and control screen

Expandable runtime with optional external battery packs

Hardwire input (3 wire), L6-30R, L6-20R & 5-15/20R outlets

Description

Tripp Lite SU8000RT3U1TF 8000VA / 8kVA / 7200 watt online, double-conversion UPS system offers complete power protection for critical network

applications. This system delivers online, double-conversion UPS protection with zero transfer time, suitable for advanced networking applications.

Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included detachable PDU with

manual bypass switch enables hot-swappable replacement of entire UPS power module with no interruption to connected equipment. Enhanced

availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers,

computer rooms, network closets and rugged industrial locations.

Package Includes

SU8000RT3UPM 3U UPS power module

BP240V10RT3U external battery pack

SU5000XFMRT2U step down transformer

SUPDMB710 Detachable PDU with manual bypass switch

Four post compatible rack rail kit (3 sets)

Tower stands for upright tower configuration

PowerAlert software, complete data cabling and user manual

Features

Tripp Lite SU8000RT3U1TF 8kVA / 8000VA / 7200 watt on-line, double-conversion UPS system in 8U total rack/tower configuration (3U

UPS power module, 3U external battery pack and 2U step-down transformer)

Detachable PDU with manual bypass switch enables hot-swappable UPS power module replacement with no interruption in output power to

connected networking equipment

Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions

Hardwire input; 2 L6-30R, 4 L6-20R and 12 5-15/20R outlets

Maximum installed rack depth of only 32.5 in. / 82.6cm inches

Full-time active power conditioning provides clean, continuous dual-conversion AC output free of voltage fluctuations, power interruptions

and line noise

Double-conversion operation converts raw input from AC to DC, then re-synthesizes output power back to perfect sine wave AC with

enhanced protection from harmonic distortion, fast electrical impulses and other hard-to-solve power problems not addressed by other UPS

types

Maintains full-time sine wave output within 2% of 208/120V nominal at 60Hz during brownouts as low as 100V and overvoltages as high as

300V

Expandable runtime is supported with optional BP240V10RT3U; BP240V557C-1PH; BP240V787C-1PH; BP240V1037C-1PH;

BP240V1407C-1PH external battery packs

Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)

Highly efficient operation in optional economy mode significantly reduces BTU heat output and operating energy costs

Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries

are expired and require replacement

PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems as

UPS batteries become depleted

Includes Free PowerAlert monitoring software packages; PowerAlert LOCAL for desktops and small business networks, PowerAlert NSA

(Network Shutdown Agent) for larger networks and PowerAlert NMS (Network Management System) for monitoring up to 250

SNMP-enabled UPS, PDU and other networking devices

Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232 and USB interfaces

HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X

Optional SNMPWEBCARD offers communications and control via secure remote web and network interfaces

Optional RELAYIOCARD supports six configurable hard contact closure outputs for custom event notification

Optional RELAYIOMINI interface module offers three configurable hard contact closure outputs for custom event notification (requires

removal of USB interface module)

Supports Emergency Power Off (EPO) via built-in interface

Included rail kit supports 8U 19 inch rackmount installation in 4 post racks

Optional 2POSTRMKITHD supports installation in 2 post 19 inch racks

Optional 2-9USTAND supports upright tower placement

Front panel LEDs and LCD readout with scroll controls and password option supports visual monitoring of all major UPS functions and

advanced UPS settings for charge level, nominal voltage selection, frequency conversion and other operational parameters

LED / LCD display panel rotates for viewing in rackmount or tower configurations

Network-grade AC surge and noise suppression

Industrial mode option (factory preset) enables supports high current startup loads by momentarily switching to bypass mode in response to

short duration overload conditions

External battery packs are field replaceable and hot swappable

Specifications

OUTPUT

Output Volt Amp

Capacity (VA)

8000

Output kVA capacity

(kVA)

Output Watt

Capacity (watts)

7200

Output kW capacity 7.2

Output power factor 0.9

Output Capacity

Details

Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30

seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power;

Double conversion mode is automatically restored as load levels are reduced to 95% or less

Nominal Output

Voltage(s) Supported

120V; 208V

Nominal Voltage

details

7200 watts total output supported; 5000 watts maximum 120V output; add 1 additional SU5000XFMRT2U

transformer for full load 120V operation.

Frequency

compatibility

60 Hz

Frequency

compatibility details

Output frequency regulation +/- 0.05Hz (free running)

Output voltage

regulation (line

mode)

+/- 2%

Output voltage

regulation (Economy

line mode)

+/- 10%

Output voltage

regulation (Battery

mode)

+/- 2%

Built-in UPS output

receptacles

12 5-15/20R outlet(s); 4 L6-20R outlet(s); 2 L6-30R outlet(s)

Output circuit

breaker

20A double-pole (x2) protects 2 L6-20R outlets each, 30A double-pole (x2) protects 1 L6-30R outlets each, 20A

single-pole (x4) protect 3 5-15/20R outlets each

Output AC waveform

(AC mode)

Pure Sine wave

Output AC waveform

(battery mode)

Pure Sine wave

INPUT

Rated input current

(at maximum load)

44.2A (208V)

Nominal Input

Voltage(s) Supported

208V AC

UPS input

connection type

Hardwire

UPS input

connection

description

3 wire single phase input (L1, L2, G)

Recommended

Electrical Service

208V 50A

BATTERY

Full load runtime

(minutes)

5.5 min. (7200w)

Half load runtime

(minutes)

13.5 min. (3600w)

Expandable battery

runtime

Supports extended runtime with optional external battery packs

External battery

pack compatibility

BP240V10RT3U; BP240V557C-1PH; BP240V787C-1PH; BP240V1037C-1PH; BP240V1407C-1PH

DC system voltage

(VDC)

240

Battery recharge

rate (included

batteries)

Less than 6 hours from 10% to 90%

Battery replacement

description

Hot-swappable, user replaceable external battery packs

VOLTAGE REGULATION

Voltage regulation

description

2% output voltage regulation in standard online, double-conversion mode

Overvoltage

correction

Corrects overvoltages up to 300V

Undervoltage

correction

Corrects undervoltages as low as 100V

LEDS ALARMS & SWITCHES

LED Indicators 6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status; LCD

screen offers additional information and control options

Front panel LCD

display

Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options;

LED/LCD panel rotates for viewing in rack/tower formats; LCD Display supports ENGLISH, FRENCH, GERMAN,

ITALIAN, SPANISH and PORTUGUESE (see manual)

Alarms Unique audible alarms for all major UPS, environmental and power conditions (see manual)

Alarm cancel

operation

Alarm cancel switch

Switches 2 Switches control off/on power status and alarm-cancel/self-test operation; 2 additional switches support set and

execute scrolling LCD functions; bundled PDU includes bypass switch to enable hot-swap UPS power module

replacement

SURGE / NOISE SUPPRESSION

UPS AC

suppression

response time

Instantaneous

EMI / RFI AC noise

suppression

Yes

ISOLATION

Output isolation

transformer

120V output is isolation transformer protected

PHYSICAL

Installation form

factors supported

with included

accessories

Tower

Included mounting

accessory

description

3 sets of adjustable 4 post rack rails included; 2-9USTAND tower kit included (supports up to 9U in tower format)

Installation form

factors supported

with optional

accessories

2 post rackmount (2POSTRMKITHD)

Optional mounting

accessory notes

3 sets of 2POSTRMKITHD required for 2 post rackmount installation of separate power module, battery pack and

transformer

Primary form factor Rackmount

UPS / Power Module

dimensions in

primary form factor

(height x width x

depth / inches)

5.14 x 17.5 x 25.82

UPS / Power Module

dimensions in

primary form factor

(height x width x

depth / cm)

13.1 x 44.4 x 65.6

Installed whole

system maximum

rack depth (inches)

32.5

Installed whole

system maximum

rack depth (cm)

82.6

Installed whole

system total rack

space height (rack

spaces)

Secondary form

factor

Tower

UPS / Power Module

weight (lbs)

UPS / Power Module

weight (kg)

19.5

Stepdown

transformer

dimensions (height

x width x depth /

inches)

3.5 x 17.5 x 20.8

Stepdown

transformer

dimensions (height

x width x depth / cm)

8.9 x 44.4 x 63.5

Stepdown

transformer weight

(lbs)

Stepdown

transformer weight

(kg)

25.9

Included battery

pack dimensions

(height x width x

depth / inches)

5.25 x 17.5 x 25

Included battery

pack dimensions

(height x width x

depth / cm)

13.3 x 44.4 x 63.5

Included battery

pack weight (lbs)

158.7

Included battery

pack weight (kg)

UPS Shipping

dimensions (height

x width x depth /

inches)

49.25 x 23 x 31.5

UPS Shipping

dimensions (height

x width x depth / cm)

125.1 x 58.4 x 80

Shipping weight (lbs) 402.2

Shipping weight (kg) 182.6

UPS housing

material

Steel

Cooling method Fan

ENVIRONMENTAL

Operating

Temperature Range

+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage

Temperature Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC mode BTU / hr.

(full load)

2732

AC economy mode

BTU / hr. (full load)

1020

AC economy mode

efficiency rating

(100% load)

96%

Operating Elevation

(ft)

0-3000m (0 to 10,000 ft.)

Audible Noise 60 dBA at front side 1 meter

Operating Elevation

(m)

0-3000 m

COMMUNICATIONS

Communications

interface

USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

Network monitoring

port description

Additional contact closure support with optional RELAYIOCARD and RELAYIOMINI interface cards. RELAYIOMINI

installation requires removal of panel containing USB ports

PowerAlert software Included

Communications

cable

USB, DB9 serial and EPO cables included

WatchDog

compatibility

Supports Watchdog application, OS and hard-reboot restart options for remote applications

LINE / BATTERY TRANSFER

Transfer time No transfer time (0 ms.) in online, double-conversion mode

Transfer time

(economy mode)

8 ms. typical power failure response in optional economy mode

Low voltage transfer

to battery power

(setpoint)

100V

High voltage transfer

to battery power

(setpoint)

300V

SPECIAL FEATURES

Cold Start (startup in

battery mode during

a power failure)

Cold-start operation supported

Economy mode

operation

Optional economy mode enables high-efficiency bypass operation with a maximum output voltage variation of

+/-10%. Double conversion mode is automatically restored as mains voltage varies beyond +/-10% with less than 1

millisecond transfer time between modes.

High availability UPS

features

Automatic inverter bypass; Manual bypass switch; Detachable hot-swap PDU; Hot swappable UPS power module;

Hot swappable batteries

Green & high

efficiency features

High efficiency economy mode operation; Schedulable daily hours of economy mode operation

CERTIFICATIONS

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)

UPS Certification

details

IEC 61000-4-5 1995 B Surge Immunity

WARRANTY

Product Warranty

Period (Worldwide)

2-year limited warranty

Connected

Equipment

Insurance (U.S.,

Canada & Puerto

Rico)

$250,000 Ultimate Lifetime Insurance

Related Items

Optional Products

Product Type Related Model Description Qty.

Extended Warranties WEXT3-SU8000 3-Year Extended Warranty - For SU8000 models 1

Extended Warranties WEXT5-SU8000 5-Year Extended Warranty - For SU8000 models 1

External Battery Packs BP240V1037C-1PH External battery pack for use with select Tripp Lite UPS Systems 1

External Battery Packs BP240V10RT3U External Battery Pack and Cable. 3U, Expandable, Black 3-Point

Connector

External Battery Packs BP240V1407C-1PH External battery pack for use with select Tripp Lite UPS Systems 1

External Battery Packs BP240V557C-1PH External battery pack for use with select Tripp Lite UPS Systems 1

External Battery Packs BP240V787C-1PH External battery pack for use with select Tripp Lite UPS Systems 1

Power Cables P007-010 10-ft. Heavy-Duty 14AWG Power cord

(IEC-320-C13 to NEMA 5-15P)

Power Cables P011-006 6-ft. Heavy-Duty 14AWG Power cord

(IEC-320-C13 to NEMA L6-20P)

Power Cables P034-010 10-ft. 14AWG Heavy Duty Power cord

( IEC-320-C19 to NEMA 5-15P)

Power Cables P039-001-2 1-ft. 10AWG Heavy Duty Power Splitter Cord

(NEMA L6-20P to 2x NEMA L6-20R)

Power Cables P040-010 10-ft. 12AWG Heavy Duty Power cord

(IEC-320-C19 to IEC-320-L6-20P)

Power Cables P041-001-2 1-ft. 10AWG Heavy Duty Power Splitter Cable

(NEMA L6-30P to 2x NEMA L6-30R)

Power Cables P044-06I 6-inch 12AWG Heavy Duty Power Adapter cord

(NEMA-L5-20R to NEMA-5-20P)

Power Distribution PDUMNV20HV Monitored PDU / Power Distribution Unit supports real-time remote

monitoring of load level, voltage and frequency with options for remote

environmental and security monitoring

Power Distribution PDUMNV30HV Monitored PDU / Power Distribution Unit supports real-time remote

monitoring of load level, voltage and frequency with options for remote

environmental and security monitoring

Power Distribution PDUMV20HV Metered 0U Vertical Rack PDU - Metered Power Distribution Unit for

Network Applications

Power Distribution PDUMV20HVNET Switched, Metered PDU with Remote Monitoring - 0U Vertical

Rackmount Power Distribution Unit for Networks with Individually

Switchable Outlets, Current Metering, Remote Monitoring and Control

Power Distribution PDUMV30HV Metered 0U Vertical Rack PDU - Metered Power Distribution Unit for

Network Applications

Power Distribution PDUMV30HVNET Switched, Metered PDU with Remote Monitoring - 0U Vertical

Rackmount Power Distribution Unit for Networks with Individually

Switchable Outlets, Current Metering, Remote Monitoring and Control

Power Distribution PDUV30HV Basic 0U Vertical Rack PDU - Power Distribution Unit for Network

Applications

Rackmount/Wallmount Kits 2POSTRMKITHD Enables 2-Post Rackmount Installation of 3U and Larger UPS,

Transformer and Battery Pack Components

SNMP Accessories ENVIROSENSE Monitors temperature, humidity and contact-closure inputs. (Requires

SNMPWEBCARD or switched PDU.)

SNMP Accessories SNMPWEBCARD For remote monitoring and control via SNMP, Web, or Telnet. 1

UPS Accessories MODBUSCARD For remote monitoring and control via MODBUS protocol 1

UPS Accessories RELAYIOCARD Programmable Relay I/O Card 1

UPS Accessories RELAYIOMINI 3 Relay I/O Mini-module 1

More information, including related products, owner's manuals, and additional technical specifications, can be found online at

www.tripplite.com/en/products/model.cfm?txtModelID=3552.

improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.

Indice

Altri manuali Tripp Lite UPS

Tripp Lite

Tripp Lite SmartOnline SU16000RT4U Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU1500RTXL2U Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU1000XLCD Manuale utente

Tripp Lite

Tripp Lite INTERNET525U Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU750XL Manuale utente

Tripp Lite

Tripp Lite SmartPro SMART1500RMXL2Ua Manuale utente

Tripp Lite

Tripp Lite AVR550U Manuale utente

Tripp Lite

Tripp Lite BCPERS450 Manuale utente

Tripp Lite

Tripp Lite SmartPro Rackmount SMX500RT1U Guida alla configurazione

Tripp Lite

Tripp Lite SmartPro INT 450-1500VA Manuale utente

Tripp Lite

Tripp Lite RBC24-SLT Manuale utente

Tripp Lite

Tripp Lite SmartPro SLT Manuale utente

Tripp Lite

Tripp Lite TMU Series Manuale utente

Tripp Lite

Tripp Lite SmartPro 3U Rackmount Manuale utente

Tripp Lite

Tripp Lite SmartPro SMART700 Manuale utente

Tripp Lite

Tripp Lite OMNIVSX650A Manuale utente

Tripp Lite

Tripp Lite AVRX750UF Manuale utente

Tripp Lite

Tripp Lite SmartPro SLT Manuale utente

Tripp Lite

Tripp Lite Internet Office & BC Personal UPS System Manuale utente

Tripp Lite

Tripp Lite SmartOnline SU1000XL Manuale utente

Tripp Lite

Tripp Lite SM750XLNAFTA Manuale utente

Tripp Lite

Tripp Lite SMART1500CRMXL Manuale utente

Tripp Lite

Tripp Lite BCPRO1050 Manuale utente

Tripp Lite

Tripp Lite SMART2200NET Manuale utente

Manuali UPS popolari di altre marche

Pylontech

Pylontech Victron & Pylontech US5000 Manuale utente

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuale utente

Mecer

Mecer ME-1000-WTU Manuale utente

Mustek

Mustek PowerMust 530(B) Plus Manuale di installazione e funzionamento

Emerson

Emerson Liebert NXL series Manuale utente

MAKELSAN

MAKELSAN BOXER SERIES Manuale utente

Block

Block PC-0524-400-0 Manuale utente

CyberPower

CyberPower CP585LCD Manuale utente

Eaton

Eaton 3S Istruzioni per il montaggio

CyberPower

CyberPower Office Tower Series UPS 1000 Manuale utente

CyberPower

CyberPower BM100 Manuale utente

Best Power

Best Power 610 Manuale utente

Best Power

Best Power Unity/I UT3K Manuale utente

Mustek

Mustek PowerMust 400 Offline Manuale utente

Xantrex

Xantrex Trace 512 UR-UPS Manuale utente

Forza

Forza SL-1501UL Manuale utente

LEGRAND

LEGRAND keor 310081 Manuale utente

ABB

ABB Conceptpower DPA 500 Manuale utente
