Trojan Stamina 315 Manuale utente

USER MANUAL

STAMINA 315

TREADMILL LEG WORKOUT CARDIO

Visit facebook.com/trojanhealth

www.trojanhealth.co.za

www.instagram.com/trojanhealth

CAUTION

READ ALL PRECAUTIONS AND

INSTRUCTIONS IN THIS MANUAL

BEFORE USING THIS EQUIPMENT.

KEEP THIS MANUAL FOR

FUTURE REFERENCE.

INDEX

• Important Safety Instructions ________________________________ 3

• Pre Assembly Check List _____________________________________ 5

• Hardware & Tools List ________________________________________ 6

• Parts List ___________________________________________________ 7

• Exploded Drawing ___________________________________________ 9

• Assembly Steps _____________________________________________ 10

• Console Functions ___________________________________________ 13

• Exercise Instructions ________________________________________ 17

• Fitness Tips & Techniques ____________________________________ 19

• Conditioning Guidelines ______________________________________ 20

• Warm Up & Cool Down _______________________________________ 21

• Maintenance ________________________________________________ 22

• 2 Year Limited Warranty ______________________________________ 24

• Repairs Procedure ___________________________________________ 25

IMPORTANT SAFETY INSTRUCTIONS

It is the sole responsibility of the purchaser of Trojan products to read the owner’s manual, warning labels and

instruct all individuals, on proper usage of the equipment. Understanding each and every warning to the fullest

is important. If any of these instructions or warnings are unclear please contact Trojan Customer Services on

0861 TROJAN (0861 876526), within the Republic of South Africa. Customers residing outside South Africa

can contact us on +27 10 206 4405.

The equipment is only intended for home use and is not intended for commercial, institutional and/or studio

facilities use.

Contact Trojan with any questions regarding this classication. It is recommended that all users of Trojan be

informed of the following information prior to use.

HEALTH WARNING

• Before starting any exercise or conditioning program you should consult with your personal physician to

see if you require a complete physical exam. This is especially important if you are inactive, pregnant or

suffer from any illness.

• If at any time during exercise you feel faint, dizzy or experience pain, stop exercising immediately and

consult your physician.

• To avoid muscular pain and strain, begin each workout by stretching and warming up and end each session

by cooling down and stretching.

INSTALLATION

Trojan recommends that all equipment:

• Be secured to or set up on a solid, level surface to stabilise and eliminate rocking or tipping over

during training.

• Be set up inside your home away from moisture and dust (the equipment is not designed for outdoor use).

• Be set up with sufcient ventilation to ensure proper operation.

• Be set up with sufcient space around the equipment so that all exercises can be completed safely. It is

recommended that there should be at least 1 m of space around the equipment where access is required

to exercise.

PROPER USAGE

• Do not use the equipment in any way other than as designed or intended by the manufacturer. It is

imperative that Trojan equipment is used properly to avoid injury.

• Injuries may result from exercising improperly or excessively.

• Your Trojan equipment should only be used by 1 person at a time.

• Be careful to maintain your balance while using, mounting, dismounting or assembling your Trojan

equipment to avoid injury.

• Servicing other than the procedures in this manual should be performed by an authorised service

representative only.

ACCESS CONTROL

• Trojan recommends that all tness equipment be used in a supervised area. It is recommended that

the equipment be located in an access controlled area. Control is the responsibility of the owner.

Keep children away from all equipment.

• Parents or other supervising adults must provide close supervision of children if the equipment is used

in the presence of children.

INSPECTION

• Do not use or permit use of any equipment that is damaged, or has worn or broken parts. For all Trojan

equipment use only replacement parts supplied by Trojan.

• Always make sure that all nuts and bolts are tightened prior to each use.

• Maintain labels and nameplates – do not remove labels for any reason. They contain

important information.

• Equipment maintenance – preventative maintenance is the key to smooth operating equipment. Please

ensure that you follow our maintenance tips to ensure the continued correct function of your

Trojan equipment.

• Before any use, examine all accessories approved for use with the Trojan equipment for damage or wear.

• Should your Trojan equipment appear damaged or worn, do not attempt to use or repair the

equipment yourself.

• Please contact our service department on 0861 TROJAN (0861 876526) to arrange a repair.

Customers residing outside South Africa can contact us on +27 10 206 4405.

OPERATING WARNINGS

• It is the purchaser’s responsibility to instruct all users as to the proper operating procedures of all

Trojan equipment.

• Keep children away from all moving parts. Parents must provide close supervision of children if the

equipment is used in the presence of children.

• Do not wear loose tting clothing or jewellery when using the equipment. It is also recommended that

users tie up long hair to avoid contact with moving parts.

• Ensure that anyone not using the equipment stays clear of the user, accessories and moving parts while

the machine is in operation.

USER WEIGHT LIMITATIONS

• This Trojan Stamina 315 Treadmill may not be used by persons weighing more than 110 kg.

SAVE THIS INSTRUCTION MANUAL FOR FUTURE USE AND REFERENCE.

If any of these instructions or warnings are unclear please contact Trojan Customer Services on

0861 TROJAN (0861 876526) within the Republic of South Africa or visit www.trojanhealth.co.za.

Customers residing outside South Africa can contact us on +27 10 206 4405.

IMPORTANT SAFETY INSTRUCTIONS

PRE ASSEMBLY CHECK LIST

Thank you for choosing the Trojan Stamina 315 Treadmill. We take great pride in producing this product and

hope it will provide many hours of quality exercise to make you feel better, look better and enjoy life to its

fullest. Yes, it’s a proven fact that a regular exercise program can improve your physical and mental health. Too

often, our busy lifestyles limit our time and opportunity to exercise. The Trojan Stamina 315 Treadmill provides

a convenient and simple method to begin your assault on getting your body in shape and achieving a healthier

lifestyle. Before reading further, please review the drawing below and familiarise yourself with the parts that

are labelled.

Read this manual carefully before using the Trojan Stamina 315 Treadmill.

Console

Hand Pulse

Safety Key

Running

Belt

Main Frame

Wheels

Right

Upright

Left

Upright

Function Speed key, Incline key, Safety Key

User Weight 110 kg (maximum)

HARDWARE & TOOLS LIST

INSTRUCTIONS FOR ASSEMBLY

• Before you start to assemble, please check the hardware packaging to make sure all parts are included.

• Basic tools, such as spanners will be provided for assembly.

90. Flat Washer

(5/16” x 18 x 1.5T)

(8 PCS)

89. Button Head Socket Bolt

(5/16” x 16 x 15 mm)

(14 PCS)

91. Curved Washer

(5/16” x 23 x 1.5T)

(6 PCS)

36. Safety Key

(1 PC)

94. Lubricant

(1 PC)

92. Combination (M5) Allen Wrench &

Phillips Head Screwdriver

(1 PC)

PARTS LIST

No. Description Qty

1 Main Frame 1

2 Frame Base 1

3 Incline Bracket 1

4 Right Upright 1

5 Left Upright 1

6 Console Support 1

7 Outer Slide 1

8 Inner Slide 1

9 Locking Knob 1

10 Incline Motor 1

11 Drive Belt 1

12 Motor Bracket 1

13 Drive Motor 1

14 Running Belt 1

15 Running Deck 1

16 Front Roller W/Pulley 1

17 Rear Roller 1

18 Sleeve for Frame Base Front Wheel 2

19 Rear Wheel Sleeve 2

20 Console 1

20 - 1 Console Top Cover 1

20 - 2 Console Bottom Cover 1

20 - 3 Magnet Stop Plate 2

20 - 4 Safety Switch Module W/Cable (300 mm) 1

20 - 5 Console Display Board 1

20 - 7 Sheet Metal Screw (3 × 10 mm) 2

21 Button Head Plug 2

22 Frame Base Cover (L) 1

23 Frame Base Cover (R) 1

No. Description Qty

24 Motor Top Cover 1

25 Rear Adjustment Base (L) 1

26 Rear Adjustment Base (R) 1

27 Handpulse Assembly 2

27 - 3 Hand Pulse Sensor Assembly W/

Cable (1000 mm) 2

28 Motor Cover Anchor 1

29 Indentation End Cap 2

30 Wheel Cover 2

31 Frame Base Front Wheel 2

32 Frame Base Rear Wheel 2

33 Handgrip Foam 2

34 Foot Rail 2

35 Square End Cap (25 × 50 mm) 2

36 Quadrate Safety Key (800 mm) 1

37 Grommet 1

38 Breaker 1

39 On / Off Switch 1

40 Power Cord 1

41 Connecting Wire (White) (350 mm) 1

42 Connecting Wire (Black) (350 mm) 1

43 Connecting Wire (Black) (10 cm × 764 × 755) 1

44 Controller 1

45 Upper Console Cable (900 mm 10P) 1

46 Lower Console Cable (1900 mm 10P) 1

48 Sensor W/Cable (1000 mm) 1

49 Frame Cover 1

50 Square End Cap (21.4 × 21.4 mm) 1

51 Square End Cap (25.4 × 25.4 mm) 1

52 Hex Head Bolt (1/2” × 1-1/4”) 2

No. Description Qty

53 Hex Head Bolt (3/8” × 3-1/4”) 1

54 Hex Head Bolt (3/8” × 3/4”) 4

55 Hex Head Bolt (M8 × 60 mm) 1

56 Hex Head Bolt (M8 × 12 mm) 2

57 Button Head Socket Bolt (5/16” × 1 mm) 2

58 Hex Head Bolt (3/8” × 1-3/4”) 1

59 Flat Head Socket Bolt (3/8” × 2”) 2

60 Carriage Bolt (1/2” × 28 mm) 2

61 Socket Head Cap Bolt (1/4” × 60 mm) 2

62 Flat Head Socket Screw (M6 × 20 mm) 6

63 Phillips Head Screw (M5 × 10 mm) 3

64 Tapping Screw (5 × 16 mm) 7

65 Nyloc Nut (1/2” × 8T) 4

66 Nyloc Nut (3/8” × 7T) 4

67 Nyloc Nut (5/16” × 7T) 4

68 Nyloc Nut (M8 × 7T) 1

69 Hex Head Bolt (3/8” × 1-1/2”) 1

70 Hex Head Bolt (3/8” × 45 mm) 1

71 Split Washer (3/8” × 2T) 6

72 Split Washer (M8 × 1.5T) 2

73 Button Head Socket Bolt (5/16” × 1-3/4”) 2

74 Flat Washer (3/8” × 19 × 1.5T) 6

75 Flat Washer (3/8” × 25 × 2T) 5

76 Nylon Washer (Ø50 × Ø13 × 3T) 2

77 Nylon Washer (Ø10 × Ø25 × 3T) 2

78 Flat Washer (5/16” × 18 × 1.5T) 2

79 Star Washer (M5) 3

80 Sheet Metal Screw (3.5 × 12 mm) 5

No. Description Qty

81 Sheet Metal Screw (4 × 12 mm) 4

82 Belt Guide 2

83 Tapping Screw (5 × 16 mm) 20

84 Sheet Metal Screw (4 × 25 mm) 2

85 Cylinder 1

86 Split Washer (M5) 3

87 Hex Head Bolt (3/8” × 2-1/2”) 1

88 Wire Tie Mount 6

89 Button Head Socket Bolt (5/16” × 15 mm) 14

90 Flat Washer (5/16” × 18 × 1.5T) 8

91 Curved Washer (5/16” × 23 × 1.5T) 6

92 Combination (M5) Allen Wrench & Phillips

Head Screwdriver 1

94 Lubricant 1

95 Tapping Screw (5 × 19 mm) 6

96 Tapping Screw (3.5 × 16 mm) 6

97 Sensor Rack 1

98 Square End Cap (15 × 30 mm) 2

99 Rubber Foot 6

100 Rear Roller Cover 2

101 Tapping Screw (5 × 25 mm) 4

102 Nylon Washer (Ø10 × Ø25 × 0.8T) 2

103 Round Cap 2

104 Flat Head Socket Screw (M6 × 25 mm) 2

105 Connecting Cable Of Motor (400 mm) 1

106 Choke 1

107 Filter 1

108 Connecting Wire (White) (200 mm) 1

110 Tapping Screw (4 × 16 mm) 4

PARTS LIST

EXPLODED DRAWING

ASSEMBLY STEPS

1. PREPARATION

• Before assembling make sure that you will have enough space around the item.

• Use the supplied parts and hardware for the assembly.

• Before assembling, please check whether all the required parts have been supplied as per the exploded

drawing on the opposite page.

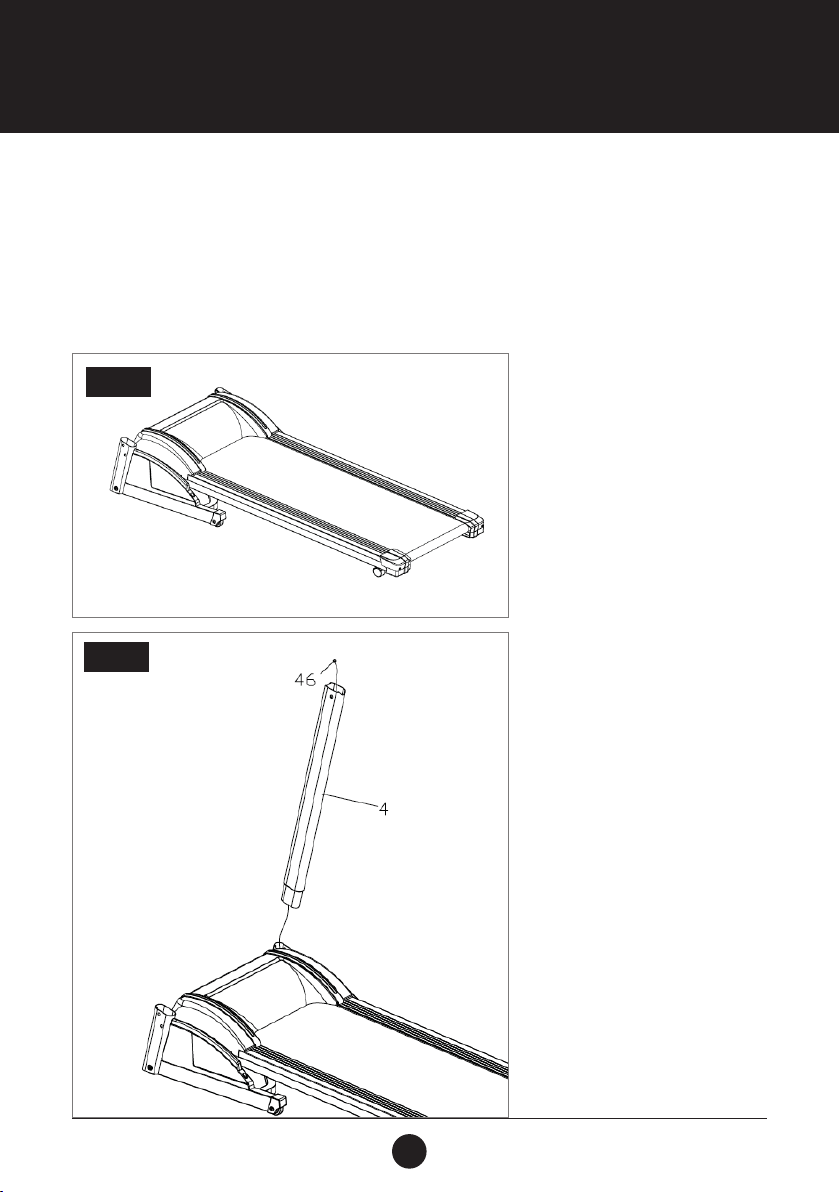

STEP 1: UNPACKING

Remove the Trojan Stamina 315

Treadmill from the carton and place

it on a smooth at surface.

STEP 2: LOWER CONSOLE

CABLE ASSEMBLY

Thread the Lower Console Cable

(1900 mm 10P) (46) through the Right

Upright (4).

STEP 1

STEP 2

Altri manuali per Stamina 315

Indice

Altri manuali Trojan Tapis roulant

Trojan

Trojan STAMINA 310 Guida all'installazione

Trojan

Trojan WALKER 110 Guida all'installazione

Trojan

Trojan IRONMAN 520 Guida all'installazione

Trojan

Trojan TR 300 Manuale utente

Trojan

Trojan MARATHON 210 Guida all'installazione

Trojan

Trojan IGNITE 350 Manuale utente

Trojan

Trojan CROSS WALK 340 Guida all'installazione

Trojan

Trojan STAMINA 320 Manuale utente

Trojan

Trojan IGNITE 350 Guida all'installazione

Trojan

Trojan MARATHON 210 Manuale utente

Trojan

Trojan TR105 Manuale utente

Trojan

Trojan Iginte 370 Manuale utente

Trojan

Trojan Pegasus Manuale utente

Trojan

Trojan Elite 2000 Manuale utente

Trojan

Trojan SUMMIT 300 Guida all'installazione

Trojan

Trojan MARATHON 200 Guida all'installazione

Trojan

Trojan MARATHON 220 Guida all'installazione

Trojan

Trojan TITAN 330 Manuale utente

Trojan

Trojan Inspire 330 Guida all'installazione

Trojan

Trojan STAMLINA 320 Guida all'installazione

Trojan

Trojan TR 1500 Manuale utente

Trojan

Trojan MOTION 360 Manuale utente

Trojan

Trojan IRON MAN 500 Guida all'installazione

Trojan

Trojan IGNITE 360 Manuale utente

Manuali Tapis roulant popolari di altre marche

Treadly

Treadly TREADLY 2 Manuale utente

HEALTH ONE

HEALTH ONE Walk Ro Manuale utente

NordicTrack

NordicTrack NTL12941 Manuale utente

NordicTrack

NordicTrack T7.5 S Manuale utente

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manuale utente

Merax

Merax MS282992 Manuale utente

FYTTER

FYTTER RU-2SX Manuale utente

Precor

Precor 903 Manuale utente

FitLogic

FitLogic freewill d225 Manuale utente

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manuale utente

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manuale utente

Stamia

Stamia InMotion II Manuale utente

Smooth Fitness

Smooth Fitness EVO 3i Manuale utente

NordicTrack

NordicTrack NETL81810.0 Manuale utente

Schwinn

Schwinn 830/Journey 8.0 Manuale utente

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manuale utente

Spirit

Spirit XT8 Manuale utente

NordicTrack

NordicTrack T 14.0 Treadmill Manuale utente
