OPERATING MANUAL
RADIAL FAN
2 EN
radial fan TFV 29 FS
Table of contents
Notes regarding the instructions ..........................................2
Safety .....................................................................................2
Information about the device................................................4
Transport and storage...........................................................5
Assembly and start-up..........................................................5
Operation ...............................................................................6
Available accessories............................................................6
Errors and faults....................................................................6
Maintenance ..........................................................................7
Technical annex.....................................................................7
Notes regarding the instructions
Symbols
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Caution
This signal word indicates a hazard with a low risk
level which, if not avoided, can result in minor or
moderate injury.
Note
This signal word indicates important information
(e.g. material damage), but does not indicate hazards.
Info
Information marked with this symbol helps you to carry
out your tasks quickly and safely.
Follow the manual
Information marked with this symbol indicates that the
instructions must be observed.
You can download the current version of the instructions and
the EUdeclaration of conformity via the following link:
TFV 29 FS
https://hub.trotec.com/?id=41880
Safety
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use!
Warning
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may
result in electric shock, fire and/ or serious injury.
Save all warnings and instructions for future
reference.
This appliance can be used by children aged from
8years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
• Do not use the device in potentially explosive rooms.
• Do not use the device in aggressive atmosphere.
• Set the device up in an upright and stable position.
• Let the device dry out after a wet clean. Do not operate it
when wet.
• Do not use the device with wet or damp hands.
• Do not expose the device to directly squirting water.
• Never insert any objects or limbs into the device.
• Do not cover or transport the device during operation.
• Do not sit on the device.
• This appliance is not a toy! Keep away from children and
animals. Do not leave the device unattended during
operation.
• Check accessories and connection parts for possible
damage prior to every use of the device. Do not use any
defective devices or device parts.
EN 3
radial fan TFV 29 FS
• Ensure that all electric cables outside of the device are
protected from damage (e.g. caused by animals). Never
use the device if electric cables or the power connection
are damaged!
• The electrical connection must correspond to the
specifications in chapter Technical data.
• Insert the mains plug into a properly secured mains
socket.
• Observe the technical data when selecting extensions to
the power cable. Completely unroll the extension cable.
Avoid electrical overload.
• Before carrying out maintenance, care or repair work on
the device, remove the mains plug from the mains socket.
Hold onto the mains plug while doing so.
• Switch the device off and disconnect the power cable from
the mains socket when the device is not in use.
• Do not under any circumstances use the device if you
detect damages on the mains plug or power cable.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Defective power cables pose a serious health risk!
• Observe the storage and operating conditions as given in
the Technical data chapter.
• Make sure that the air inlet and outlet are not obstructed.
• Make sure that there are no loose items or dirt located in
the immediate surroundings of air inlet and air outlet.
• Make sure that the suction side is kept free of dirt and
loose objects.
Intended use
The device TFV 29 FS may be used for generating a broad near-
ground air current with a high air circulation for the accelerated
drying of flooring or to assist in drying walls, floors and
stairwells after water damage or else for construction drying. All
other applications are considered improper use.
Improper use
The radial fan is not suited for installation in fluids or on flooded
or boggy grounds. Any unauthorised changes, modifications or
alterations to the device are forbidden.
Personnel qualifications
People who use this device must:
• have read and understood the instructions, especially the
Safety chapter.
Residual risks
Warning of electrical voltage
Work on the electrical components must only be
carried out by an authorised specialist company!
Warning of electrical voltage
Before any work on the device, remove the mains plug
from the mains socket!
Hold onto the mains plug while pulling the power cable
out of the mains socket.
Warning
Dangers can occur at the device when it is used by
untrained people in an unprofessional or improper way!
Observe the personnel qualifications!
Warning
The device is not a toy and does not belong in the
hands of children.
Warning
Risk of suffocation!
Do not leave the packaging lying around. Children may
use it as a dangerous toy.
Caution
Risk of injury due to parts being whirled up by the
strong air current.
Before switching the device on, make sure that there
are no loose parts (clothing, hair etc.) located near the
air inlet or outlet!
Note
Do not use abrasive cleaners or solvents to clean the
device.
Behaviour in the event of an emergency
1. In an emergency, disconnect the device from the mains
feed-in: Switch the device off and disconnect it from the
mains.
2. Remove persons from the danger area.
3. Do not reconnect a defective device to the mains.
4 EN
radial fan TFV 29 FS
Information about the device
Device description
The device TFV29FS was designed for a very high air flow rate.
It may be used for drying carpets, buildings or screed as well as
for the ventilation of poorly accessible intermediate spaces.
Owing to the high air circulation, the device can also be used to
control excessive humidity levels. The fan is also very effective
for the additional air circulation when heating large buildings,
e.g. in the months of winter.
The device can be set up in four drying positions for different
surface drying applications. The stand bar integrated at the
bottom can be folded out for tilting the device, thus permitting
the ventilation and drying of walls or entire stairwells. If the
device is positioned directly on the ground, the entire
discharged air is distributed at high speed in a broad, near-
ground air current, making this position ideal for accelerated
surface drying. In upright position, the device can be used for
well-directed ventilation and drying of the ceiling. When
positioned on the edge with the air outlet pointing to the side,
the device can be used for ventilation and drying of confined
spaces or extensive wall surfaces.
The device is further equipped with a service socket, which
means that you can operate additional devices via the same
socket. This socket is ready for operation for as long as the
device is connected to the mains – it does not need to be
switched on.
The devices can be stacked on top of one another for space-
saving storage. Do not exceed the maximum of five stacked
devices. Additionally, the device is fitted with integrated cable
holders allowing you to wind up the connection cable.

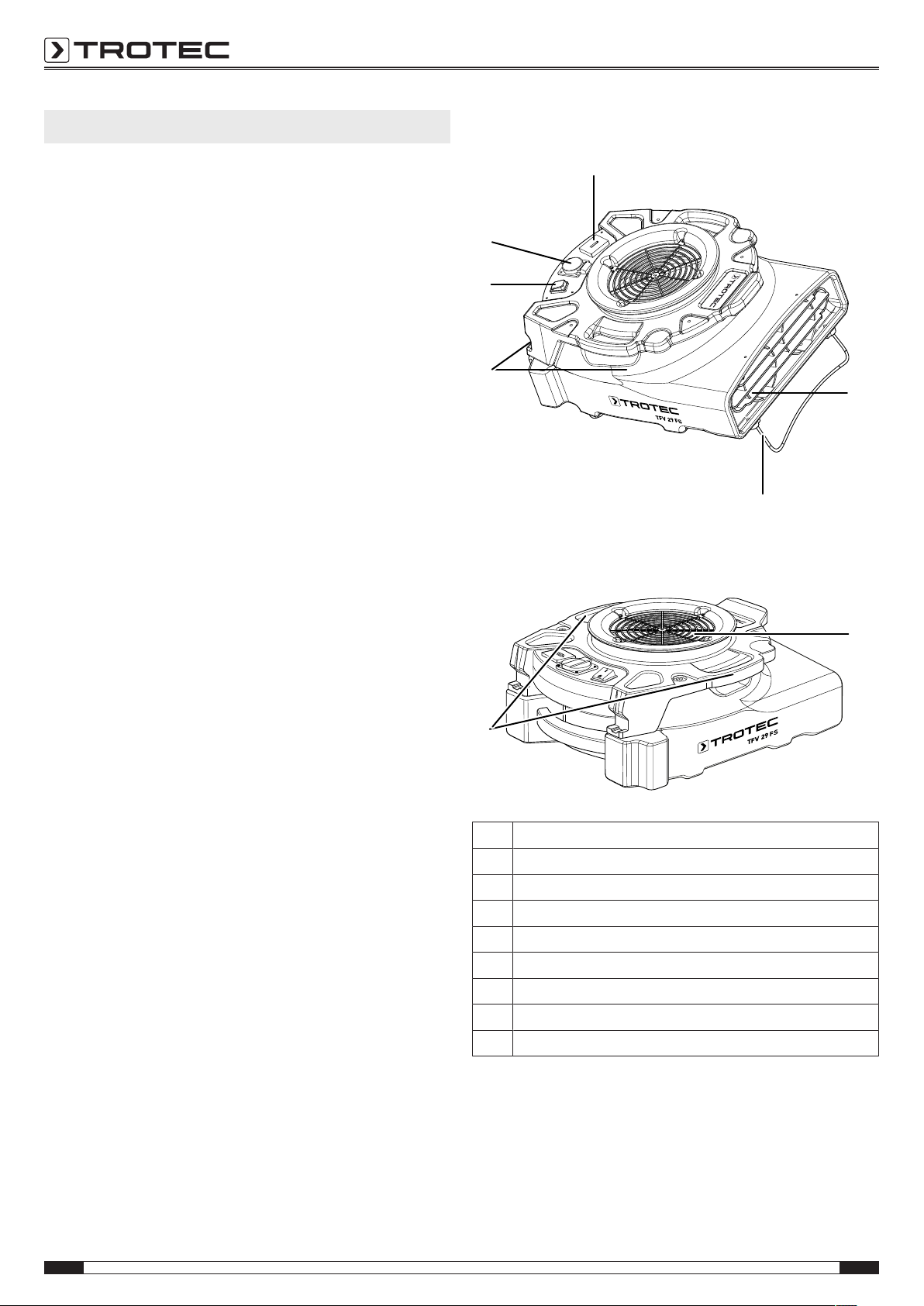

Device depiction
5
2
1
6
4
3
7
8
No. Designation
1 Operating hours counter
2 Air outlet
3 Fold-out stand bar
4 Cable holder
5 On/off switch
6 Service socket
7 Air inlet
8 Transport handles
EN 5
radial fan TFV 29 FS
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
Before transporting the device, observe the following:
• Switch off the device.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Do not use the power cable to drag the device.
After transporting the device, observe the following:
• Set up the device in an upright position after transport.
Storage
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• in an upright position where it is protected from dust and
direct sunlight
• with a cover to protect it from invasive dust, if necessary
• stackable: up to 5devices may be stacked on top of one
another
Info
Do not take the devices into operation when stacked.
Stacking rules out an efficient usage of the devices.
Assembly and start-up
Scope of delivery
• 1x Device
• 1x Manual
Unpacking the device
1. Open the cardboard box and take the device out.
2. Completely remove the packaging.
3. Fully unwind the power cable. Make sure that the power
cable is not damaged and that you do not damage it during
unwinding.
Start-up
Positioning
• Set the device up separately and in a stable position.

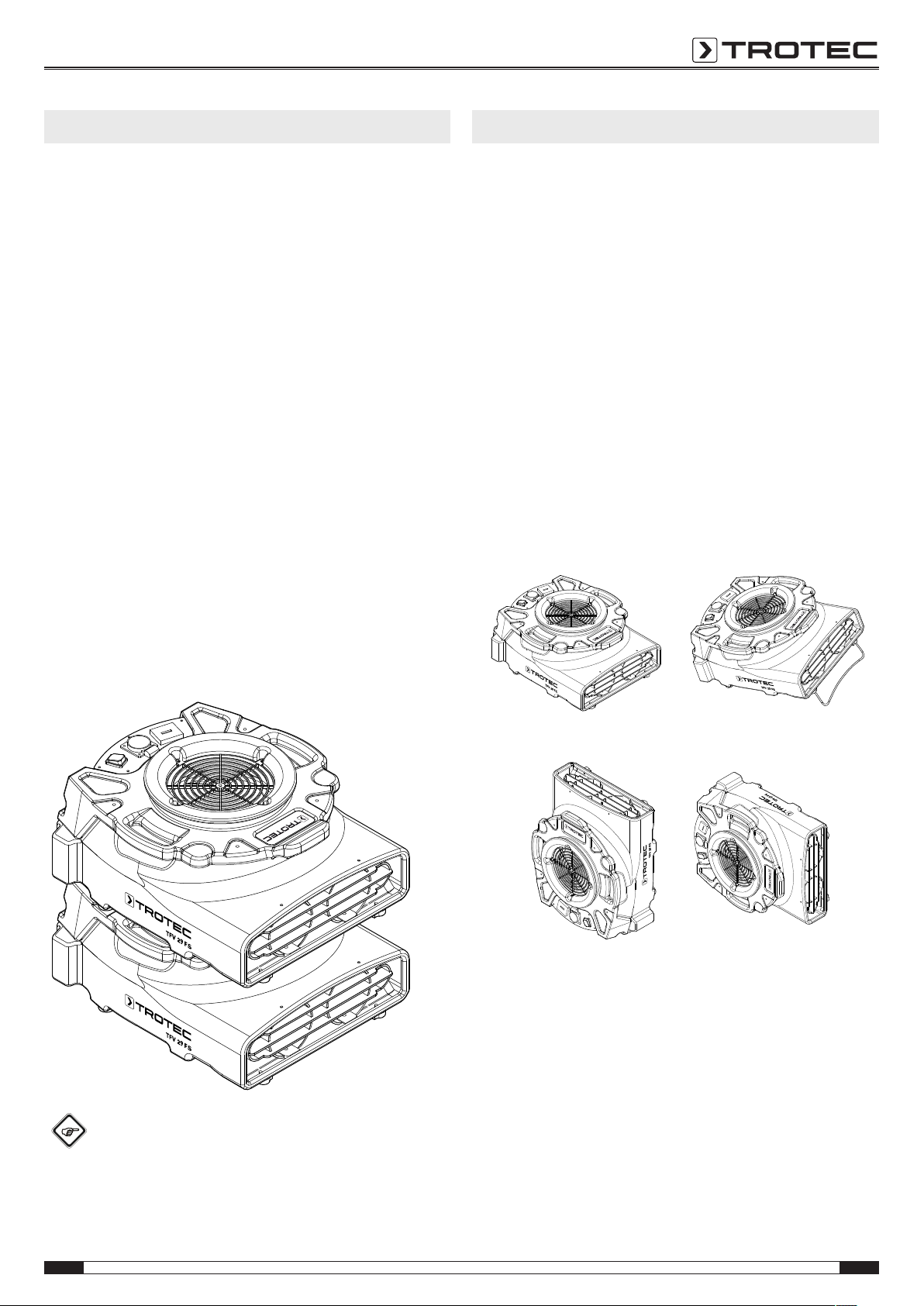

• The device can be variably positioned in a way to allow an
air discharge at an angle of 0° (horizontal), 20°, 90°
(vertical), or 0° with the air outlet placed in the upright
position.
Horizontal 20°
90° Upright
Connecting the power cable
• Insert the mains plug into a properly secured mains
socket.
6 EN
radial fan TFV 29 FS
Operation

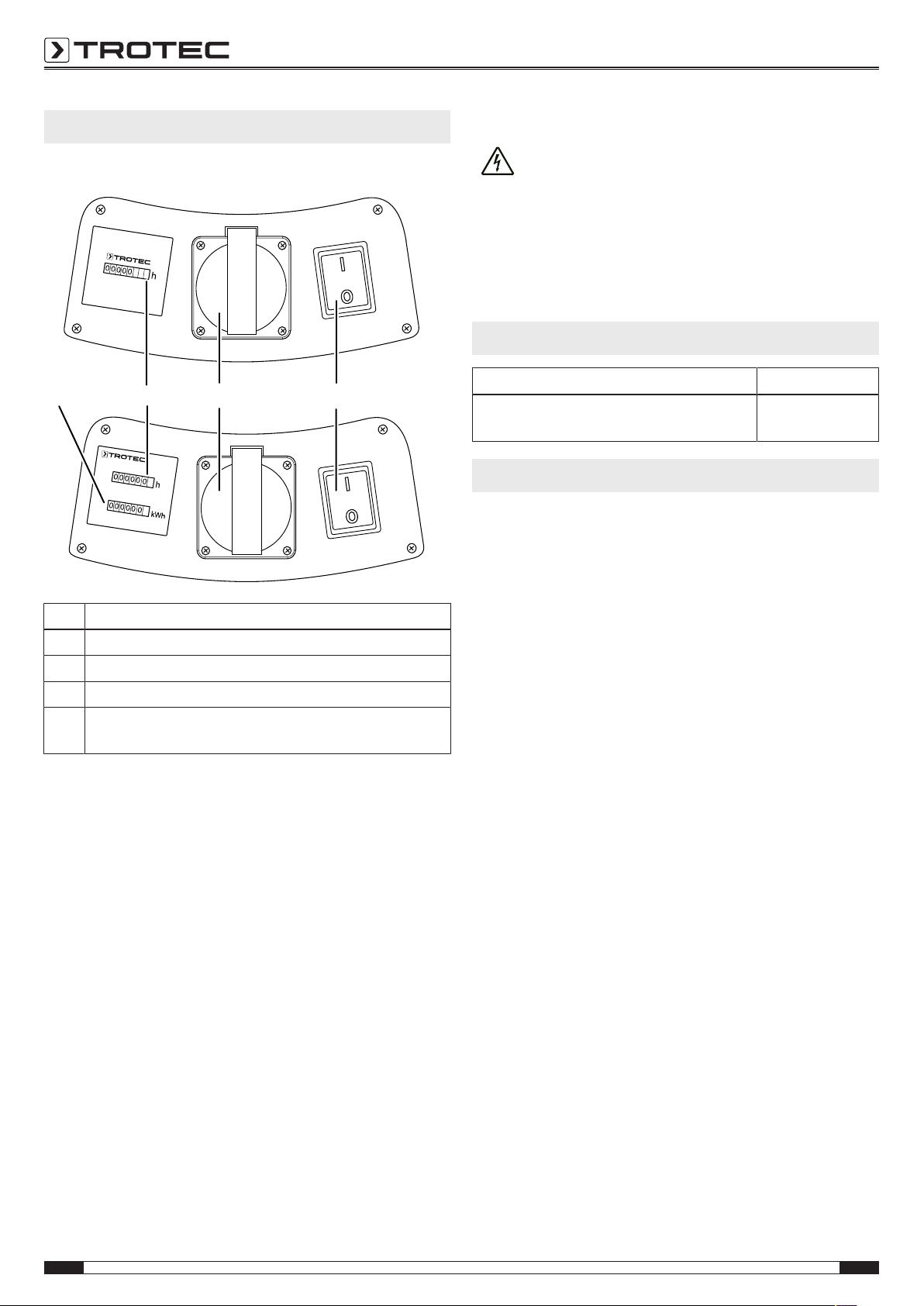

Operating elements
165
9
No. Designation
1 Operating hours counter
5 On/off switch
6 Service socket
9 Dual counter (operating hours counter and MID-certified
kilowatt hours counter) – (optional)
Switching the device on
Once you have completely installed the device as described in
the Start-up chapter, you can switch it on.
1. Set the on/off switch(5) to I.
Stage1 = I
ðThe device is switched on.
Dual counter (optional)
The device is optionally available with a control panel fitted with
a dual counter(9). The dual counter registers both the operating
hours and energy consumption, and is MID-compliant.
Using the service socket
The device TFV 29 FS is equipped with a service socket, which
means that you can operate another device via the same
socket. The service socket is ready for operation as soon as the
devices are connected to the mains – they do not need to be
switched on.
Shutdown
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Set the on/off switch(5) to 0.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
• Clean the device according to the Maintenance chapter.
• Store the device according to the Storage chapter.
Available accessories
Available accessories Article number
Dual counter, MID-compliant 7.140.000.903
Errors and faults
The device has been checked for proper functioning several
times during production. If malfunctions occur nonetheless,
check the device according to the following list.
The fan is not running:
• Check whether the device is switched on.
• Check the power connection.
• Check the power cable and mains plug for damages.
• Check the on-site fusing.
The fan operates only for a brief period, then switches off:
• Check whether the protective grid at the air inlet is
obstructed in some way. If applicable, remove foreign
objects.
• The motor bearing might be damaged. Please contact the
customer service.
The device is loud or vibrates:
• Check whether the device is set up in a stable and upright
position.
Note
Wait for at least 3 minutes after maintenance and
repair work. Only then switch the device back on.
Your device still does not operate correctly after these
checks?
Please contact the customer service. If necessary, bring the
device to an authorized specialist electrical company or to
Trotec for repair.
EN 7
radial fan TFV 29 FS
Maintenance
Activities required before starting maintenance
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
• Switch the device off.
• Hold onto the mains plug while pulling the power cable out
of the mains socket.
Cleaning the housing
Clean the housing with a soft, damp and lint-free cloth. Make
sure that no moisture enters the housing. Protect electrical
components from moisture. Do not use any aggressive cleaning
agents such as cleaning sprays, solvents, alcohol-based or
abrasive cleaners to dampen the cloth.
Cleaning the fan and device interior
Warning
Risk of injury caused by ejected compressed air upon
activation of the compressed air supply.
Hold the compressed-air hose away from your body.
Pointing the compressed-air hose at another person is
prohibited.
• Check fan and protective grid for perfect condition before
and after each application.
• Clean the fan after each operation.
• Use compressed air to remove particles, lint, dust and dirt
from motor, fan wheel and protective grid. Do not in any
event use a high-pressure cleaner to clean the fan.
• Other than that, the device does not require maintenance.
Technical annex
Technical data
Parameter Value
Model TFV29 FS
Air flow rate 1,150m³/h
Air discharge velocity 7 m/s
Stat. air pressure (freely
blowing)
max. 290Pa
Max. transport medium
temperature
60°C
Mains connection 1/N/PE ~ 230V/ 50Hz
Power consumption, max. 0.17 kW
Nominal capacity 0.74A
Connection cable 5m
Protection type IP44
Sound level (distance 3m) 64 dB(A)
Dimensions (L x W x H) 520x 450x 255(mm)
Weight 11kg
Trotec GmbH
Grebbener Str. 7
D-52525 Heinsberg
+49 2452 962-400
+49 2452 962-200
www.trotec.com
Indice
Altri manuali Trotec Fan
Trotec
Trotec TFV 30 S Manuale utente
Trotec
Trotec TTV 7000 Manuale utente
Trotec
Trotec TVE10 Manuale utente
Trotec
Trotec TFV PRO 1 Manuale utente
Trotec
Trotec TFV10S Manuale utente
Trotec
Trotec TTV 1500 Manuale utente
Trotec
Trotec TVE 31 T Manuale utente
Trotec
Trotec TVE 25 S Manuale utente
Trotec
Trotec TTW 25000 S Manuale utente
Trotec
Trotec TTV 4500 Manuale utente
Trotec
Trotec TTV 4500 Manuale utente
Trotec
Trotec TVE 8 Manuale utente
Trotec
Trotec TVE 29 T Manuale utente
Trotec
Trotec TVE 40 T Manuale utente
Trotec
Trotec TVE 29 T Manuale utente
Trotec
Trotec TVM 18 S Manuale utente
Trotec
Trotec TTW 25000 S Manuale utente
Trotec
Trotec TVM 11 Manuale utente
Trotec
Trotec TVM 11 Manuale utente
Trotec
Trotec TTV 1500 Manuale utente
