Servicing the Troy-Bilt Wide Cut 33” Combination Mower

TROY-BILT WIDE CUT MOWER

Model 12A-E753B063 (NEW)

• 9 hp briggs & Stratton I/C OHV engine

• Electric Start

• 33” Deck

• Self-Propelled Multiple Speed Gear Drive

• Peerless Transaxle

• BLade Brake Clutch

• Automatic Parking Brake

• Single Lever Height Adjustment

• 3-in-1 Capacity

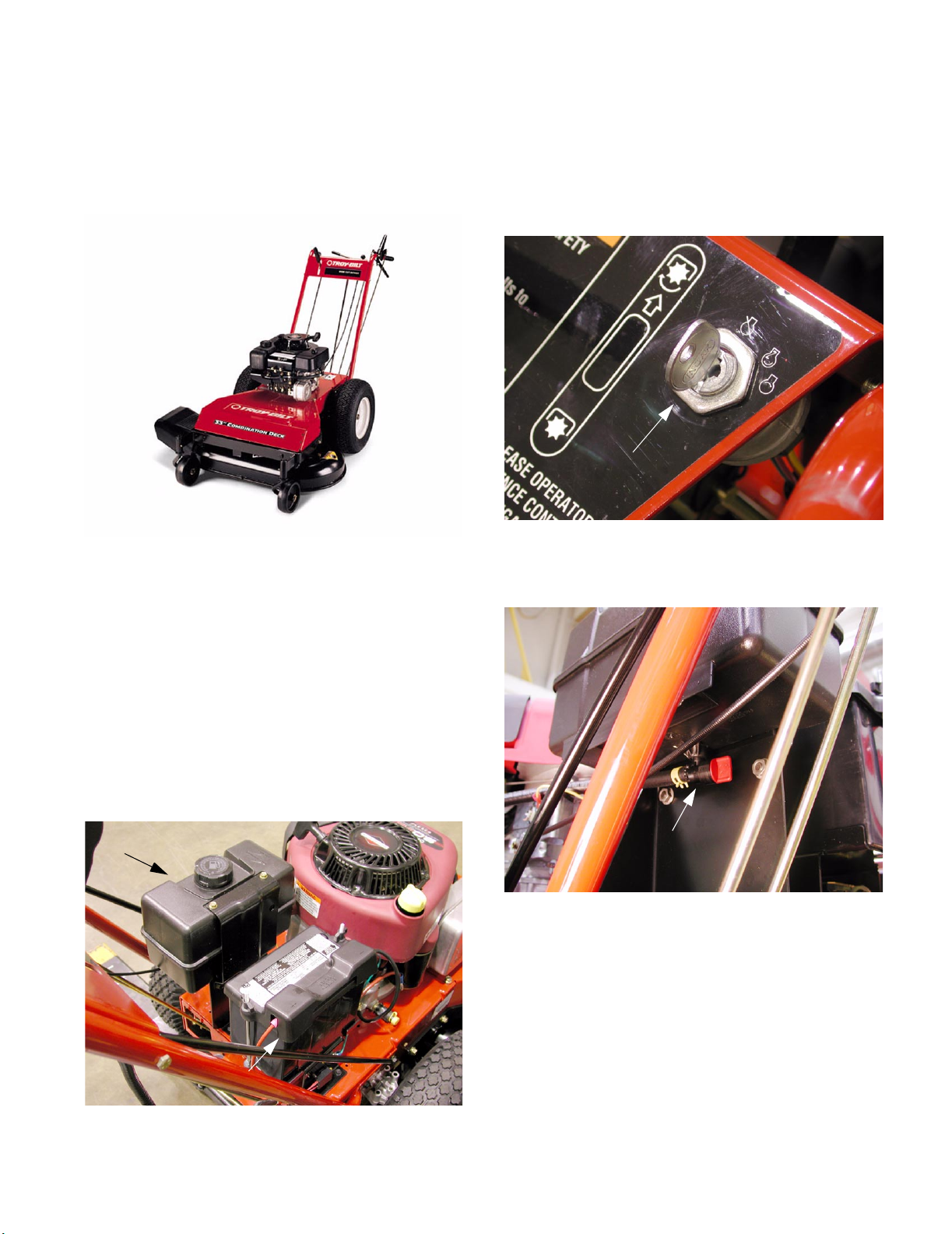

The Model E753B features a standard size battery and

electric start. See Figure 1.

OLDER STYLE ENGINE

Non Electric Start Unit

Figure 1

Gas Tank

Battery

The key switch is located on the right side of the con-

sole. See Figure 2.

The unit also features an oversize fuel tank with a man-

ual shutoff valve. See Figure 3.

Figure 2

Key Switch

Figure 3

Fuel Shutoff

Servicing the Troy-Bilt Wide Cut 33” Combination Mower

www.mymowerparts.com

K&T Saw Shop 606-678-9623 or 606-561-4983

Servicing the Troy-Bilt Wide Cut 33” Combination Mower

The fuse is located on the right side next to the battery

and the solenoid is mounted on the battery support

bracket under the battery. See Figure 4.

Most electrical problems can be diagnosed using a

ohm meter and checking continuity of the ignition

switch and wires to each component. See Figure 5.

NOTE: The Operator’s Manual that comes with

the unit has a wealth of information regarding

the setup, operation and servicing of this unit.

NOTE: This Service Manual is a supplement to

the Operator’s Manual.

IMPORTANT: Please read, understand and fol-

low all safety procedures listed in the Operator’s

Manual when working on this unit.

CAUTION: Before servicing the unit place it on a

level surface, turn off the engine and let the unit

cool, and disconnect the spark plug wire. On

electric start units, make sure the key is in the

“off” position.

1. BLADE DRIVE BELT REMOVAL

1.1. Make sure the blade drive control is disen-

gaged.

1.2. Using a ½ inch socket remove the four screws

securing the belt cover and removed the cover.

See Figure 6.

1.3. Using a ½ inch socket, remove the two screws

attaching the flap bracket to the frame. Remove

the flap bracket. See Figure 7.

Figure 4

Fuse

Starter Motor

Solenoid

Figure 5

Figure 6

Cover Screws (2 on each side)

Figure 7

Flap Bracket

Mounting Screws

www.mymowerparts.com

K&T Saw Shop 606-678-9623 or 606-561-4983

Servicing the Troy-Bilt Wide Cut 33” Combination Mower

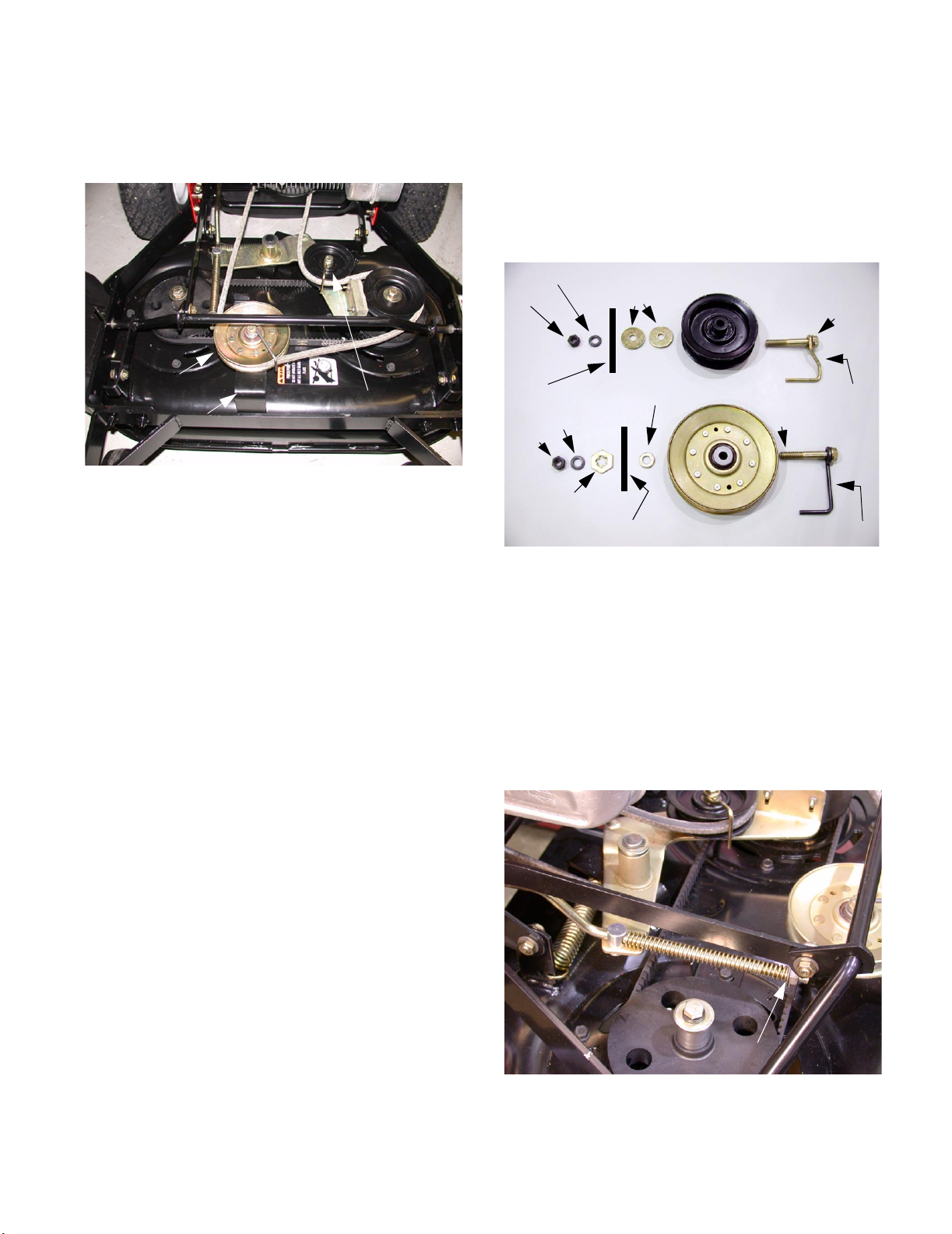

1.4. Using a 9/16 inch socket and opened end

wrench, remove the front idler pulley to allow the

belt to be removed from around the pulley. See

Figure 8.

NOTE: Maintain correct order of parts.

1.5. Using a 9/16 inch socket and opened end

wrench, remove the rear idler pulley to allow the

belt to be removed from around the pulley. See

Figure 8.

NOTE: Maintain correct order of parts. The pul-

ley mounts to the front hole in the idler arm.

1.6. Drop the belt off the engine pulley.

1.7. Replace the belt and assemble in the reverse

order.

NOTE: Maintain orientation of belt guides during

reassembly. See Figure 8.

Figure 8

Front Idler Pulley Rear Idler Pulley

Idler Pulley Mounting Bracket

2. DECK IDLER PULLEY INSPECTION

2.1. Using a 9/16 inch socket and opened end

wrench, remove the front and rear deck idler pul-

leys and inspect for wear.

NOTE: There is a pyramid washer under the

front mounting bracket that helps maintain the

position of the front idler pulley. See Figure 9.

3. BLADE DRIVE BELT ADJUSTMENT

3.1. Using a ½ inch socket remove the four screws

securing the belt cover and remove the cover.

3.2. With mower on level ground, adjust the blade

cutting height to about 3”.

3.3. With the blade drive control disengaged, set a

gap of 1/8” between the spring and the flat

washer on the end of the threaded portion of the

lift crank by adjusting the nut. See Figure 10.

Figure 9

Rear Idler Pulley

Front Idler Pulley

Nut

Lock Washer

Flat Washers

Flat Washer

Pyramid Washer

Hex Head

Belt Guide

Bracket Position

Cap Screw

Figure 10

1/8” Gap

www.mymowerparts.com

K&T Saw Shop 606-678-9623 or 606-561-4983

Servicing the Troy-Bilt Wide Cut 33” Combination Mower

3.4. With the engine OFF have a helper engage the

blade drive. Measure the distance between the

center of the idler pulley and the left drive pulley.

The measurement should be between 5 1/2” and

5 5/8”. See Figure 11.

NOTE: If the blade drive belt slips during opera-

tion it may be necessary to slide the idler pulley

forward in the slot on the idler arm. Loosen the

hardware on the idler pulley and slide the pulley

forward slightly. Tighten the hardware. See Fig-

ure 8.

IMPORTANT: The blades must come to a com-

plete stop when the blade engagement lever is

released.

4. BLADE DRIVE CONTROL LEVER ADJUST-

MENT

NOTE: Make the following adjustment if the

blade drive control lever releases during opera-

tion.

4.1. With the engine off, engage the operator pres-

ence control and the blade drive control. See

Figure 12.

4.2. Without releasing the controls, look inside the

cutout at the left rear of the frame and make sure

that the operators presence control latches are

fully engaged. See Figure 13.

4.3. To adjust, remove the hairpin clip on the upper

end of the operator presence control arm.

4.4. Loosen the hex nut and shorten the rod by one

or two turns. (Do not over adjust.) Tighten the

hex nut securely. See Figure 13.

4.5. If properly adjusted, the blade drive control will

disengage when the operators presence control

is released.

5. BLADE SPINDLE BELT REPLACEMENT

5.1. Using a ½ inch socket remove the four screws

securing the belt cover and removed the cover.

Figure 11

5-1/2” to 5-5/8”

Figure 12

Operator Presence Control

Blade Drive Control

Hairpin Clip

Figure 13

Latched Position

Hex Nut

www.mymowerparts.com

K&T Saw Shop 606-678-9623 or 606-561-4983

Servicing the Troy-Bilt Wide Cut 33” Combination Mower

5.2. Using a ½ inch socket loosen the screw securing

the belt tension adjustment bracket and turn it

out of the way. See Figure 14.

5.3. Align the sight holes in the right pulley with the

spindle housing mounting bolts. See Figure 15.

5.4. Using a ½ inch deep socket loosen the four

mounting bolts securing the spindle housing to

the deck. See Figure 15.

5.5. Slide the pulley assembly to the left to loosen

tension on the cogged belt.

5.6. Remove the cogged belt from around the right

cogged pulley.

Figure 14

Belt Tension Adjustment Bracket

Figure 15

Sight Holes (4)

5.7. Temporarily remove the blade drive belt from

around the left blade drive pulley. See Figure 16.

5.8. While holding the Idler arm and brake away from

the left blade drive pulley, remove the toothed

belt from around the left cogged pulley and up

and over the drive pulley. See Figure 17.

5.9. Replace the belt with a new belt.

Figure 16

Blade Drive Belt

Figure 17

Toothed Belt

www.mymowerparts.com

K&T Saw Shop 606-678-9623 or 606-561-4983

Servicing the Troy-Bilt Wide Cut 33” Combination Mower

IMPORTANT: Time the blades properly during

reassembly. Set the cutting blades perpendicular

to each other during installation of the toothed

drive belt.There are arrows cast into the cogged

pulleys to help align the blades. Offset these

arrows by 90 degrees. See Figure 18.

NOTE: The arrows do not indicate the blade

position. Blades are 90 degrees offset from the

arrow position.

5.10. Rotate the tension adjustment bracket into posi-

tion and apply tension to the spindle housing

and cogged belt.

5.11. Tighten the adjustment bracket screw.

5.12. Tighten the four spindle mounting bolts to 15 ft.

lbs.

NOTE: Proper belt tension is achieved when the

belt deflects approximately 1/2 inch at the mid-

point between the pulleys when applying moder-

ate finger pressure.

5.13. Reinstall the blade drive belt over the left drive

spindle.

5.14. Install the belt cover.

6. BLADE BRAKE REPLACEMENT

6.1. Using a ½ inch socket remove the four screws

securing the belt cover and removed the cover.

6.2. Secure the operator presence control lever to

the left handlebar using a plastic tie or tape. See

Figure 19.

6.3. Engage the blade control lever to move the

brake pad away from the drive pulley. See Fig-

ure 20.

Figure 18

Blade Alignment Arrow Figure 19

Operator Presence Lever

Plastic Tie

Figure 20

Blade Control Lever Engaged

www.mymowerparts.com

K&T Saw Shop 606-678-9623 or 606-561-4983

Altri manuali per 753

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Troy-Bilt Taglia erba

Troy-Bilt

Troy-Bilt TB WC33 XP Guida all'installazione

Troy-Bilt

Troy-Bilt TB320 Manuale utente

Troy-Bilt

Troy-Bilt LTX-2146 Manuale utente

Troy-Bilt

Troy-Bilt 26J Mini-Rider Manuale utente

Troy-Bilt

Troy-Bilt V809P Manuale utente

Troy-Bilt

Troy-Bilt Q92KP 60-1880 Manuale utente

Troy-Bilt

Troy-Bilt 12AI836 Series Guida

Troy-Bilt

Troy-Bilt 429 Manuale utente

Troy-Bilt

Troy-Bilt OG-4505 Manuale utente

Troy-Bilt

Troy-Bilt J860 Series Manuale utente

Troy-Bilt

Troy-Bilt 834 Manuale utente

Troy-Bilt

Troy-Bilt 13074-GTX 18 Manuale del proprietario

Troy-Bilt

Troy-Bilt Wide-Cut 34342 Manuale utente

Troy-Bilt

Troy-Bilt TB516 EC Manuale utente

Troy-Bilt

Troy-Bilt Mustang Series RZT Manuale utente

Troy-Bilt

Troy-Bilt 13027 Manuale del proprietario

Troy-Bilt

Troy-Bilt 13AP91KT563 Manuale utente

Troy-Bilt

Troy-Bilt 900 Series Manuale utente

Troy-Bilt

Troy-Bilt 556 Manuale utente

Troy-Bilt

Troy-Bilt 26J Mini-Rider Manuale utente

Troy-Bilt

Troy-Bilt 77T Series Manuale utente

Troy-Bilt

Troy-Bilt 52057 Manuale utente

Troy-Bilt

Troy-Bilt Mustang Series RZT Manuale utente

Troy-Bilt

Troy-Bilt 13076-GTX 20 Manuale di istruzioni

Manuali Taglia erba popolari di altre marche

RHINO

RHINO 1958 Manuale utente

Wolf Garten

Wolf Garten Compact plus 40 B Manuale utente

Cub Cadet

Cub Cadet LTX 1045 Manuale utente

Craftsman

Craftsman 917.378461 Manuale utente

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuale utente

Challenge

Challenge CH18V2 Istruzioni operative

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuale utente

DEWEZE

DEWEZE ATM-725 Manuale operativo

Weed Eater

Weed Eater 180083 Manuale utente

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuale utente

Better Outdoor Products

Better Outdoor Products Quick Series Manuale utente

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuale operativo

MTD

MTD 795, 792, 791, 790 Manuale utente

Toro

Toro Groundsmaster 3505-D Manuale utente

Dennis

Dennis FT 610 Manuale utente

AIRFORCE

AIRFORCE F-15 Gen 3 Manuale utente

MTD

MTD 126-220-000 Manuale utente

Toro

Toro 74806 Manuale utente
