Troy-Bilt TB E25 Manuale utente

TROY-BILT LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

Op e r a t O r ’sMa n u a l

Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty

WARNING

READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL

BEFORE ATTEMPTING TO OPERATE THIS MACHINE.

FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

3-in-1 Battery Mower — TB E25

Form No. 769-06399

(October 25, 2010)

Model TB E25

For a new battery pack, order part 725-05089.

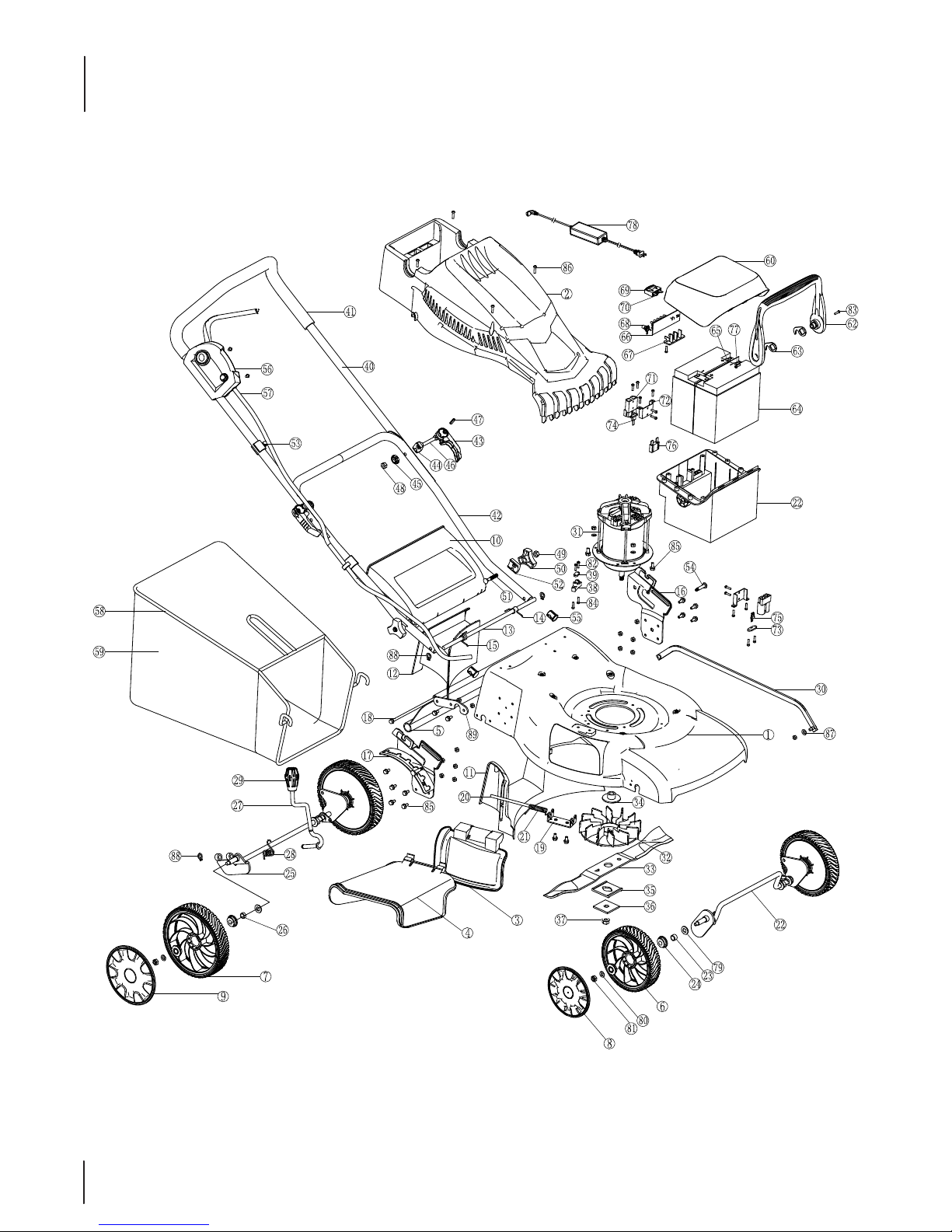

Ref. Part Number Description

1787-01839 Deck

2731-08261 Shroud

3 731-07619 Side Discharge Door

4 731-07620 Side Discharge Chute

5731-07621 TrailShield

6 734-04610 Front Wheel

7 734-04611 Rear Wheel

8 731-08262 Wheel Cap

9 731-08263 Wheel Cap

10 731-07622 Rear Door

11 731-07623 Rear Bae

12 731- 07624 Mulching Plug

13 711-05358 Rear Shaft

14 732-04733 Spring

15 732-04734 Spring

16 787-01824 Left Bracket

17 787- 08125 Right Bracket

18 711-05325 Trail Shield Pin

19 787-01813 Side Discharge Bracket

20 711-05326 Side Discharge Pin

21 732-04713 Spring

22 611-04176 Front Shaft Assembly

23 741-04464 Front Shaft Bushing

24 741-04474 Bearing

25 611-04177 Rear Shaft Assembly

26 741-04465 Rear Shaft Bushing

27 732-04735 Handle Adjust

28 732-04715 Handle Adjust Spring

29 720-04143 Handle Adjust Knob

30 787-01826 Link Bar

31 724-04095 Motor

32 731-07515 Fan

33 742-04321 Blade

34 736-04486 Flange

35 731-07598 Washer

36 736-04487 Washer

37 712-04237 Blade Nut

38 731-07672 Support

39 731-07673 Strain Relief

40 749-04670 Upper Handle

41 731-07522 Handle Grip

42 749-04688 Lower Handle

43 720-04145 Quick Release

44 736-04488 Washer

45 720-04146 Quick Release Knob

Ref. Part Number Description

46 710-05151 M8 Screw

47 715-04107 Quick Release Pin

48 712-04257 M8 Nut

49 712-04250 M6 Nut

50 720-04147 Wing Knob

51 710-05082 Screw

52 736-04489 Washer

53 731-07524 Cord Clip

54 714-04088 Pin

55 731-07513 Cap

56 625-04129 Switch Box

57 725-05156 Cord

58 747-05304 Clamp

59 764-04096 Grassbag

60 731-07674 Battery Pack Cover

61 731-07675 Battery Pack Housing

62 731-07676 Handle

63 787-01840 Hook

64 725-05157 Battery

65 725-05158 Connector

66 725-05159 PCB

67 725-05160 PCB Support

68 725-05161 Connector

69 725-05162 Safety Key

70 725-05163 Key Connector

71 725-05164 SA50 Connector

72 725-05165 Supporter

73 731-07678 Supporter

74 725-05170 Connector

75 725-05169 Connector

76 725-05168 Fuse

77 725-05167 Board

78 725-05068 Charger

79 736-04505 Spring Washer

80 736-04506 8mm Washer

81 712-04258 M8 Nut

82 710-05156 ST4.2x16 Screw

83 710-05155 ST4.2x25 Screw

84 710-05154 ST4.8x16 Screw

85 710-05153 M6x12 Screw

86 710-05118 M5 x 12 Screw

87 714-04086 Cotter Pin

88 716-04169 10mm Lock Ring

89 787-01841 Support

Model TB E25
