Troy-Bilt 1905 Manuale utente
Owner’s Manual / Manual del Propietario
Questions? Preguntas?
Helpline - 1-888-611-6708 M-F 8-5 CT
Manual No. 192114GS Revision 4 (05/15/2003)
Pressure Washer / Lavadora de Presión
Model / Modelo 01905
Printed in USA
BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC
JEFFERSON,WISCONSIN, U.S.A.
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
IMPORTANTE: LEYO LA SEGURIDAD LAS ORDENESY LAS INSTRUCCIONES DETENIDAMENTE
Troy-Bilt® is a registered trademark of MTD and is used under license to Briggs & Stratton Power Products.
Troy-Bilt® es una marca registrada registrada de MTD y se usa abajo licencia a Briggs & Stratton Power Products.
17
Item Part # Description
1 B191938GS BASE
2 B191942GS HANDLE
3 B4805GS HOSE
4 30809GS GROMMET
5 192134GS KIT, Engine Mounting Hardware
6 192132GS KIT, Pump Mounting Hardware
7 B2516GS VINYL CAP
8 B2203GS KIT, Handle Fastening
9 192310GS KIT,Vibration Mount
10 95458GS QUICK CONNECT
11 192135GS KIT, Garden Hose Inlet
Item Part # Description
12 191265GS E-RING
13 186301GS KIT, Nozzle
14 B1436BGS GUN
15 190779GS EXTENSION
16 192317GS KIT,Wheel
17 63281GS KEY
18 B2126AGS ASSY, Pump (see pages 18-21)
19 192796GS KIT, Chemical Hose/Filter
20 192136GS KIT,Thermal Relief
900 NSP ENGINE

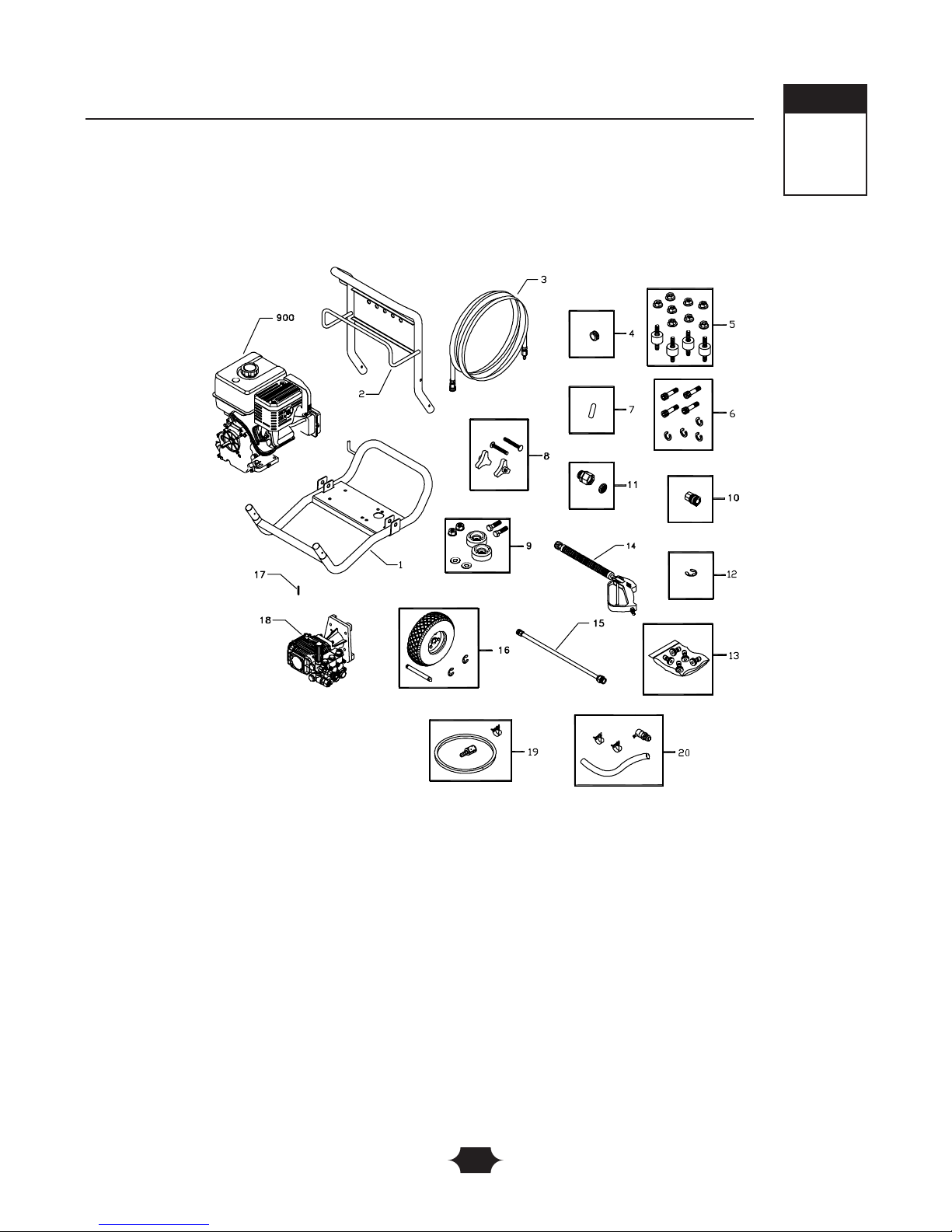

EXPLODED VIEW AND PARTS LIST — UNIT
8
Section
Exploded Views and Parts Lists
Items Not Illustrated:
Part # Description
192114GS MANUAL, Owner’s
192887GS KIT, Decals
BB3061GS OIL, Engine
191922GS KIT, O-RING MAINT & NZZL CLNNG
18
Section 8: Exploded Views and Parts Lists

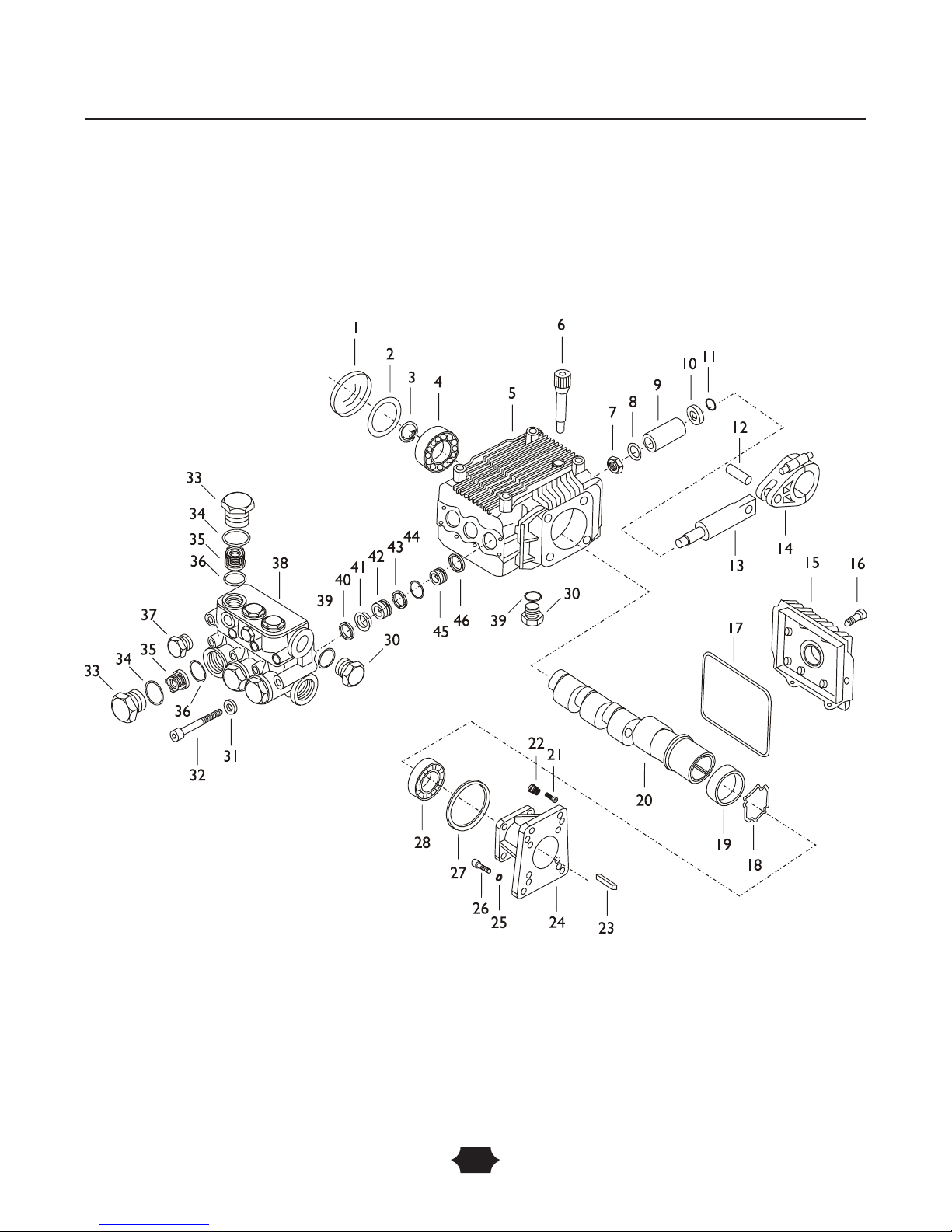

EXPLODED VIEW — PUMP
19
Section 8: Exploded Views and Parts Lists
PARTS LIST — PUMP
Item Part # Qty Description
1 110B2126GS 1 Cap
2 10887628PGS 1 Circlip
3 112B2126GS 1 Snap Ring
4 113B2126GS 1 Bearing
5 109B2126GS 1 Pump Body
6 11287628PGS 1 Oil Cap/Dipstick
7 11087822PGS 3 Nut
8 11187822PGS 3 Piston Washer
9 123B2126GS 3 Piston
10 11687628PGS 3 Spacer Disc
11 11587628PGS 3 O-Ring
12 115B2126GS 3 Piston Pin
13 120B2126GS 3 Guiding Piston
14 119B2126GS 3 Con Rod
15 118B2126GS 1 Complete Rear Cover
16 117B2126GS 6 Screw
17 116B2126GS 1 O-Ring
18 12687628PGS 1 Snap Ring
19 12587628PGS 1 Bearing
20 149B2126GS 1 Hollow Shaft
21 155B2327GS 4 Screw
22 152B2126GS 1 Grub Screw
23 63281GS 1 Key
Service Kits:
Item Part # Qty Description
24 150B2126GS 1 Gas Engine Flange
25 22237GS 4 Washer, Lock
26 23645GS 4 Screw
27 151B2126GS 1 Bushing
28 12187822PGS 1 Seal
30 10487628PGS 2 Plug
31 137B2126GS 8 Washer
32 10087822PGS 8 Screw
33 102B2126GS 6 Plug
34 10187822PGS 6 O-Ring
35 10287822PGS 6 Complete Valve
36 10387822PGS 6 O-Ring
37 11193360PGS 1 Plug
38 136B2126GS 1 Head
39 10387628PGS 2 O-Ring
40 106B2126GS 3 Support Ring
41 10587822PGS 3 Gasket
42 108B2126GS 3 Piston Guide
43 10393360PGS 3 Gasket
44 10493360PGS 3 O-Ring
45 131B2126GS 3 Rear Piston Guide
46 16593360PGS 3 Seal
A
B
C
D
E
500-87628PGS
Valve Kit
201-B2126GS
Piston Kit
202-B2126GS
Oil Seal Kit
203-B2126GS
Water Seal Kit
204-B2126GS
Support Ring
Kit
Item
Qty.
Item
Qty.
Item
Qty.
Item
Qty.
Item
Qty.
35
36
6
6
8
3
1
17
46
1
1
3
41
44
3
3
40
3
20
Section 8: Exploded Views and Parts Lists

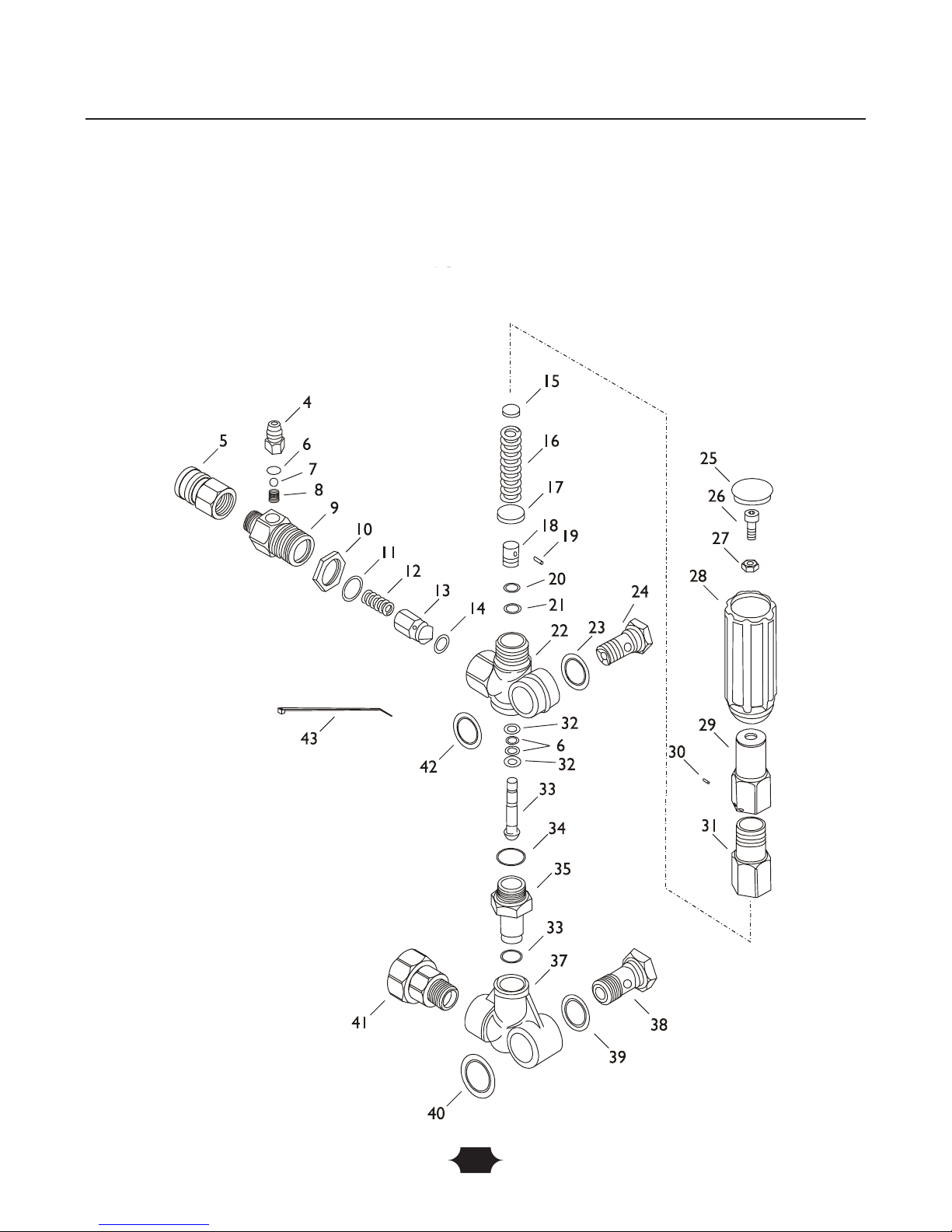

EXPLODED VIEW — UNLOADER
21
Section 8: Exploded Views and Parts Lists
PARTS LIST — UNLOADER
Item Part # Qty Description
0 153B2126GS 0 Complete Unloader
4 210B2327GS 1 Hose Tail
5 95458GS 1 Quic Disconnect
6 231B2327GS 3 O-Ring
7 211B2327GS 1 Stainless Ball
8 212B2327GS 1 Spring
9 186833GS 1 Injection Body
10 215B2327GS 1 Injector Nut
11 137B2327GS 1 O-Ring
12 216B2327GS 1 Spring
13 217B2327GS 1 Plunger
14 218B2327GS 1 O-Ring
15 220B2327GS 1 Spacer Plate
16 221B2327GS 1 Spring
17 222B2327GS 1 Spring, Spacer Plate
18 219B2327GS 1 Upper Piston
19 223B2327GS 1 Pin
20 224B2327GS 1 Ring
21 225B2327GS 1 O-Ring
22 228B2327GS 1 Valve Housing
23 227B2327GS 1 Washer
Service Kits:
Item Part # Qty Description
24 226B2327GS 1 Inlet Bolt
25 248B2327GS 1 Plug
26 155B2327GS 1 Screw
27 246B2327GS 1 Nut
28 245B2327GS 1 Knob
29 243B2327GS 1 Housing
30 244B2327GS 1 Pin
31 242B2327GS 1 Spring Guide
32 229B2327GS 2 Ring
33 232B2327GS 1 Lower Piston
34 234B2327GS 1 O-Ring
35 233B2327GS 1 Piston Guide
36 235B2327GS 1 O-Ring
37 238B2327GS 1 Bypass Fitting
38 236B2327GS 1 Inlet Bolt
39 237B2327GS 1 Washer
40 239B2327GS 1 Washer
41 95320GS 1 Conn, Gdn Hse
42 230B2327GS 1 Washer
43 28739GS 1 Wrap,Tie
250-B2327GS
Item
Qty.
Item
Qty.
Item
Qty.
6
8
15
20
3
1
1
1
21
23
32
34
1
1
2
1
36
39
40
42
1
1
1
1
