Troy Built Models Electric Beaver Manuale utente

Electric Beaver

Specification:

Length :958 mm(37.7")

Wing Span :1500 mm(59.1")

Wing Area :23.5 sq. dm

2.53 sq. ft

wing loading :89.4 g/sq. dm

29.3 oz/sq. ft

flying weight :2.1kg(4.62 lbs)

Radio :4ch& 4servos

Motor(KV)

Battery :Li-PoX4 (2000mAh)

Motor controller :45A

:600rpm/v

42x50mm

SAFETY PRECAUTIONS

INSTRUCTION MANUAL

First-time builders should seek advice from people having building

experience.If misused or abused,it can cause serious bodily injury

and damage to property.

Fly only in open areas and preferably at a dedicated R/C flying site.

We suggest having a qualified instructor carefully inspect your

airplane before its first flight.Please carefully read and follow all

instructions included with this airplane,your radio control system

and any other components purchased separately.

(The people under 18 years old is forbidden from flying this model)

This R/C airplane is not a toy!

: 4-cycle .120

15"X7

Spinner nut

(with 9 servos),

6 channel radio for aiplane is highly recommended for this model.

Warning

Remove the covering with proper

pressure to cut through only the covering itself.Otherwise,

cutting down into the balsa structure may weaken the

model part and cause accident.

The pre-covered film on ARF kits may wrinkle due to

variations of temperature.Smooth out as explained right.

Pre-cover the covering with clean cloth!

Start at low setting. Increase the setting if

necessary.If it is too high,you may damage

the film.

Iow setting

with cover(cloth)

53mm

Centre of Gravity.

The full model side view when install completion.

The side view when the model assemble completely.

Top view

Position for

right diagram.

ELEVATOR

Side View

25mm

30mm

Top view

RUDDER

Side View

15mm

AILERON

Side view

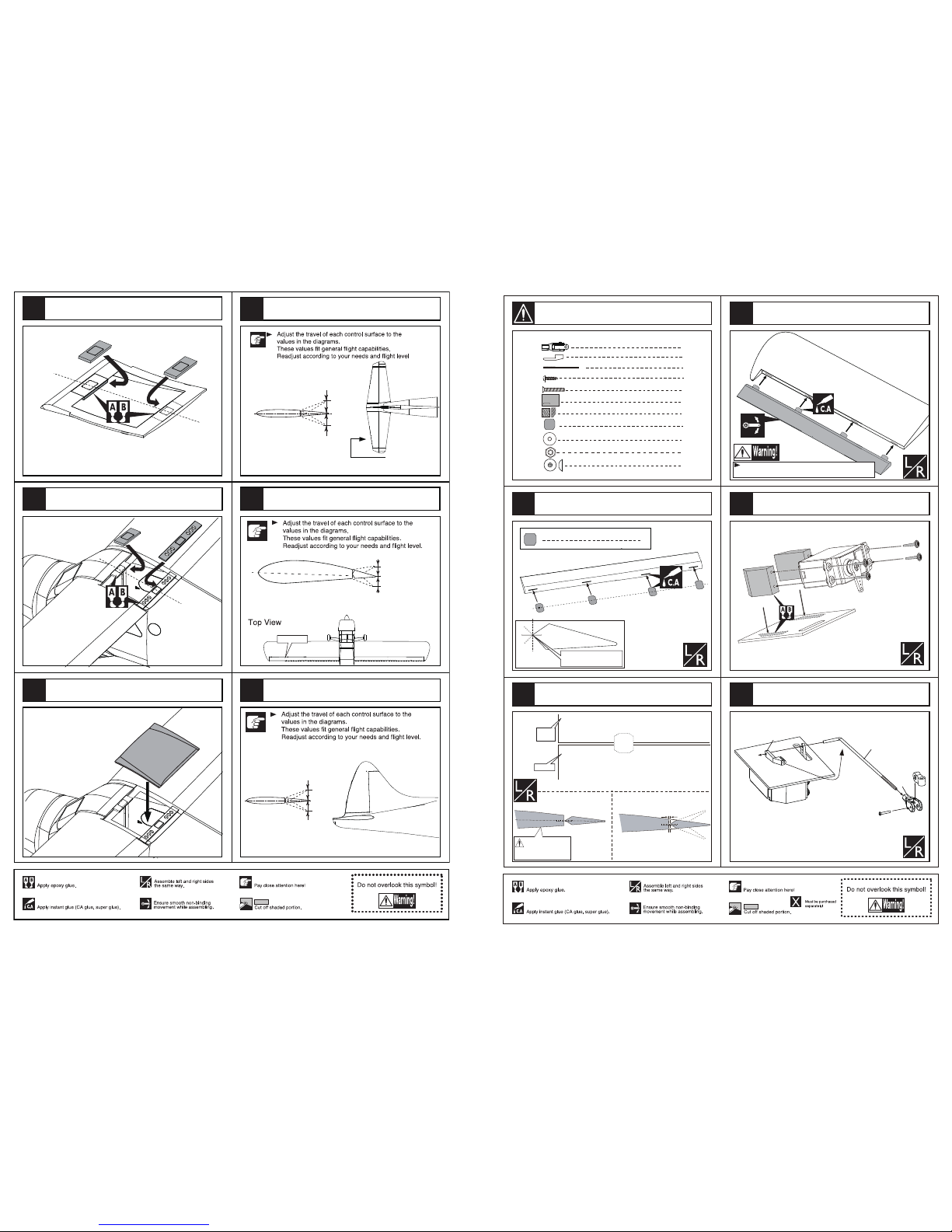

Adjustment.

Epoxy the wooden block to the fuselage

under the top hatch.

Adjustment.

Epoxy the wooden block to relevant position

in the fuselage.

Assemble the top hatch to the fuselage.

1mm

Aileron

Tailing

edge

Make sure they are in

the right position while

installing.

Make sure hinges are

mounted in the same line.

Pin hinge(24x24mm)

Clevis

Rod (2x300mm)

Retainer

TP Screw (2.3x12mm)

Wooden Block(20x20x8mm)

Servo tray(68.5x56.5x2mm)

Pin hinge(24x24mm)

Screw (3x35mm)

Washer(3x15mm)

Lock Nut (3mm )

Clevis

Retainer

Rod (2x300mm)

Securely glue together. If coming off during flights, you 'll

lose control of your airplane which leads to accidents!

Install the servo as the illustration below

Install the nylon control horn and connect the linkage.

Apply instant type CA glue to aileron and pin hinges.

Keep some space about 1mm width between

aileron and trailing edge.

Assemble the aileron to main wing with instant type CA glue. Be careful

to ensure the moving parts of the hinges are able to move freely.

Accessory list for the coming installation steps.

Screw (3x12mm)

Washer (3x6mm)

Linkage Stopper 2

Linkage Stopper

Washer (2mm)

Nut (2mm)

Set screw (3x4mm)

Washer (2mm)

Set screw (3x4mm)

Washer (2mm)

1.5mm

TP Screw(2.3x8mm)

Rudder servo

Elevator servo

Magnet (20x10x3mm)

Wooden block

Magnet (20x10x3mm)

Wooden block

TP Screw (2.3x8mm)

Ply (15x15x3mm) 8

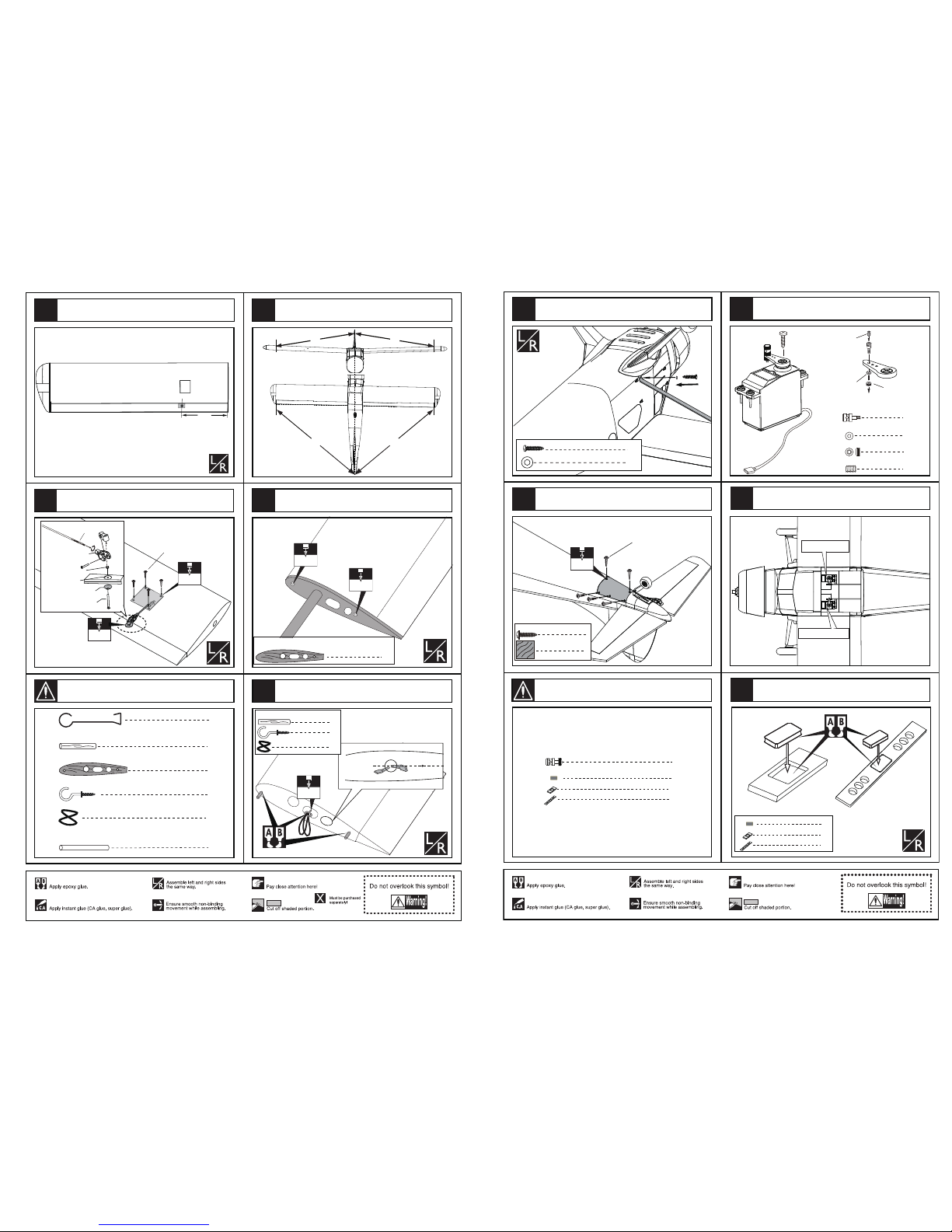

The servos installation finished sketch map.

Assemble the other side of the wing strut to the

fuselage with screw.

Assemble the tail cover to fuselage with TP screw.

Install the servo as illustration below.

Epoxy the magnet to the wooden block as bslow.

Accessory list for the coming installation steps.

165mm

Rod (2x300mm)

Clevis

Washer(3x15mm)

Washer

Lock Nut (3mm )

Screw (3x35mm)

TP Screw (2.3x12mm)

3mm

1.5mm

Secure the servo.Install the nylon control horn and

connect the linkage.

The position of the control horn in the aileron. The standard sketch map of the wings installation finished.

Accessory list for the coming installation steps.

Wood dowel (6x50mm)

Hook screw

Rib template (2mm ply)

Rubber band

Main wing joiner (12x540mm)

Hook

A = A"

B = B"

6mm

Rib template (2mm ply)

Set the rib templates to the appropriate position

and drill holes.

1.5mm

Hook screw

Wood dowel (6x50mm)

Rubber band

Epoxy the wood dowels into the holes and set the hook screw with

rubber band to the appropriate position into the main wing as below.

MarkedMarked

Marked

4.2mm

Blind Nut

Blind Nut (3mm)

Ply (25x25x6mm)

Velcro 1

Velcro

Screw (3x12mm)

Washer (3x6mm)

Mounting of the receiver and the battery.

Epoxy the PVC parts to the landing gear as below.

Epoxy velcro to the fuselage and PVC part as below.

Fix the PVC part on the fuselage.

According to the marked point on the wing ,fix one side

of the wing strut with screw as the illustration below.

Epoxy a ply to appropriate position inside the fuselage and set a

blind nut in it for assembling the other side of wing strut.

47 50

Pin hinge(24x24mm)

U-style wire(100x25mm)

Make sure hinges are

mounted in the same line.

Pin hinge(24x24mm)

Elveator

1mm

Tailing

edge

Make sure they are in

the right position while

installing.

Rib template (3mm ply) 1

Rib template (2mm ply)

6mm

Set the rib templates to the appropriate position on the

fuselage and drill holes as below.

Hook

Fix oneside of the main wing to the fuselage and take out

the rubber bands with tool.

Fix the other side of the wing to the fuselage steadily.

Accessory list for the coming installation steps.

Apply instant type CA glue to elevator and pin hinge.

Keep some space with about 1mm width between

tailing edge and elevator.

13 15

Sticker Sticker

50mm

Frame (3mm) 1

1.5mm

TP Screw(3x20mm) 4

TP Screw(3x20mm)

Washer (3x6mm) 4

5mm

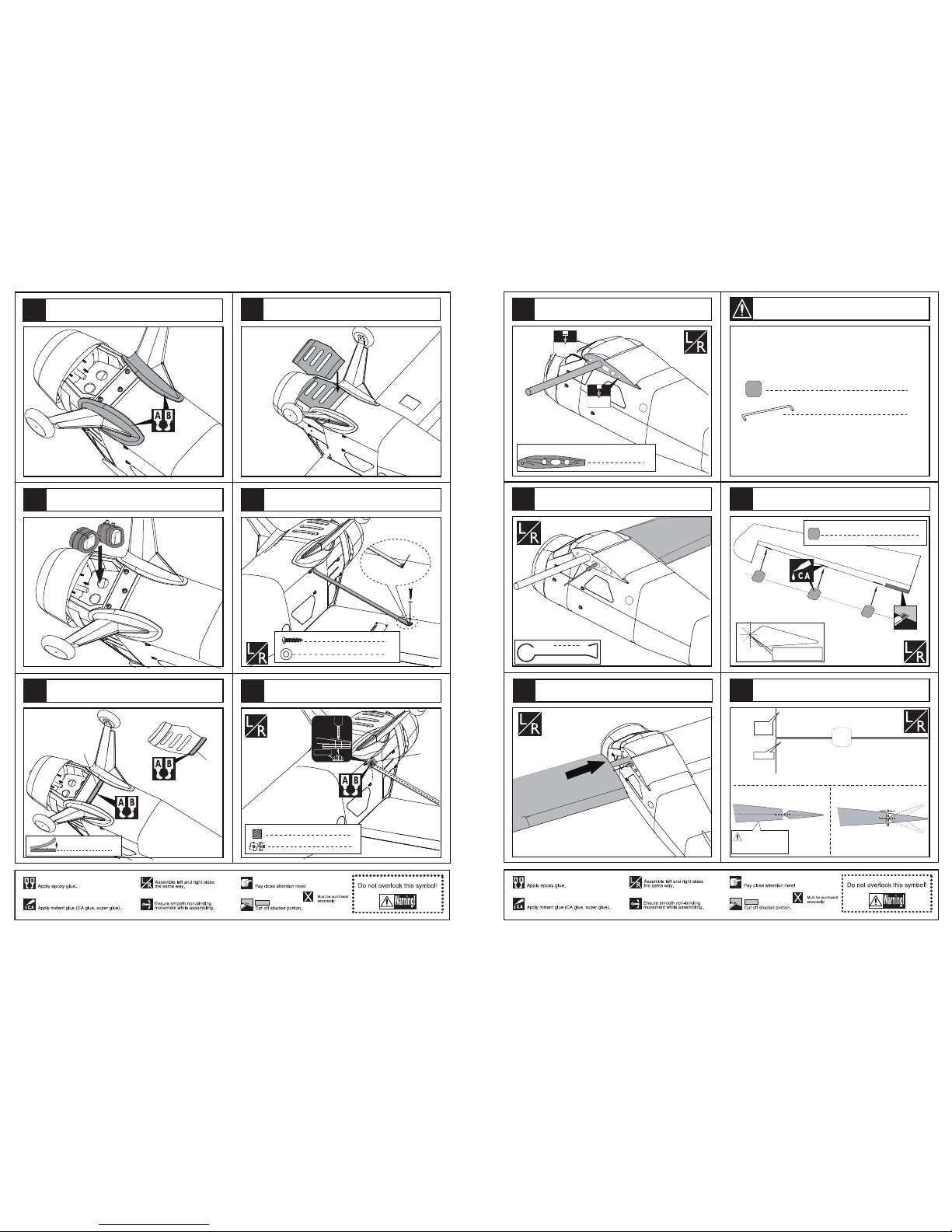

Epoxy the wheel pants to the main landing gear

steadily.

Cut away the surplus parts of canopy carefully along

the shade line.

Epoxy the canopy to the fuselage.

Cut away the surplus parts of canopy carefully along

the shade line.

Epoxy the frame to appropriate position in the cowl.

Stick the sticker to appropriate position in the

windshield and glue them to fuselage as below.

43 46

2mm

According to the 19th step

Make sure hinges are

mounted in the same line.

2.5mm

20mm

43mm

Pin hinge(2.5x48mm)

Drill holes to appropriate position in the rudder

and epoxy the pin hinge to them.

Trim a hole and slot for

the bend wire.

U-style wire(2mm)

2mm

Collar (2mm) 2

Tail landing gear(2mm)

Tail wheel (25mm)

TP Screw (2x20mm)

Wooden Block (60x20x3mm)

Tail gear supporter

Tail gear supporter Tail landing gear

Note:rudder wheel in optional.

Collar

Make sure to glue securely.

If not properly glued, a failure in flight may occur.

Temporarily fasten down the main wing and

check its correct position.

Securely glue together.If coming off during flihts,

you'll lose control of your airplane which leads

to accidents!

C= C"

D= D"

Pin hinge(2.5x48mm)

Securely glue together. If coming off during flights, you 'll

lose control of your airplane which leads to accidents!

TP Screw (2x15mm)

Washer(2x5mm)

aluminium plate (50X2mm)

Collar

Tail landing gear(2mm)

aluminium plate (50X2mm)

25mm

Assemble the tail landing gear as below.

Assemble the U-style wire to stabilizer as below.

Assemble the elevator to the stabilizer with CA glue and

AB glue.

The horizontal installation finished standard sketch map.

Assemble the tail wheel as below.

Accessory list for the coming installation steps.

According to the 27th step

According to the 20th step

Ply (60x20x3mm)

Epoxy ply to the inside of the fuselage where the tail

wheel will be and drill holes in appropriate position.

TP Screw (2x15mm)

1.5mm

2mm

1mm

Rudder

Tailing

edge

Cut away the rubber tube when

the epoxy glue dried.

Make sure they are in

the right position while

installing.

2.5mm

Notice the hole position for

thr bend wire.

2mm

TP Screw (2x15mm)

Washer(2x5mm)

Blind Nut (4mm)

Main landing gear

Washer (4x13mm) 6

Screw (4x25mm)

Wheel (65 mm)

Nut (4mm )

Self-tap Nut (4mm )

Washer(4x8mm) 3

Screw (4x40mm) 2

Accessory list for the coming installation steps.

The rudder installation finished standard sketch map.

Keep some space with 1mm width between the

tailing edge and rudder.

Assemble the tail wheel on the fuselage with TP screw.

Epoxy the rudder to the vertical tail edge.

9mm

85mm

pushrod(3x500mm)

10mm

Rod (1.8x800mm)

Clevis

Washer(3x15mm)

Washer

Lock Nut (3mm )

Screw (3x35mm)

Screw (2x10mm)

Ply (15x15x3mm) 8

sticker

Pvc part 2

Pvc part

Screw (3x20mm)

TP Screw (3x20mm)

Pvc part 1

Magnet (20x10x3mm)

Wooden block

Metal wire (2x20mm) 3

Blind Nut (3mm)

Washer (3x6mm) 4

Pvc part 2

Frame (3mm) 1

Velcro 1

3mm

Rod (1.8x700mm)

Clevis

Washer(3x15mm)

Washer

Lock Nut (3mm )

Screw (3x35mm)

20mm

Rod (1.8x700mm) 1

Rod (1.8x700mm)

Ply (25x25x6mm) 2

Drill holes to appropriate position in the fuselage

for assembling the fiberglass pushrod.

Assemble the pushrod pipe for rudder in the fuselage.

Install the control horn to the rudder.

Assemble the horn to the elevator and connect the

linkage to the servo.

Assemble the rod for rudder to the fuselage from the

pushrod tube in the fuselage as below.

36 39

Accessory list for the coming installation steps.

motor dimension 42x50mm

55mm

Screw(4x25mm)

Blind Nut (4mm)

Main landing gear

Washer (4x8mm) 3

4.2mm

Take 50th step as reference

Electric motor mount

Screw (3x10mm)

Blind Nut (4mm)

Screw (3x10mm)

Screw (4x16mm)

Drill holes and set blind nut in appropriate position and

assemble the main landing gear.

The front view of the motor install completion.

Assemble the motor mount to the relevant position in

the wing.

Washer (4x13mm)

Nut (4mm)

Screw (4x40mm)

Self-tap Nut (4mm)

Assemble the wheels to the landing gear.

The mail landing gear installation finished sketch map.

Accessory list for the coming installation steps.

Wheel (65 mm)

Clevis

Screw (3x35mm)

Washer(3x15mm)

Lock Nut (3mm )

pushrod(3x500mm)

TP Screw (4x16mm)

6.2mm

Blind Nut

Blind Nut (4mm)

Screw (4x16mm)

12mm

20mm

pushrod(3x500mm)

Rod (1.8x700mm) 2

Rod (1.8x800mm) 1

Rod (1.8x800mm)

Assemble the motor mount to the relevant position on

the firewall

Drill holes and set blind nut in appropriate position in

the firewall before install the motor mount.

Drill a hole to appropriate position and epoxy the

pushrod in it.

Assemble the pushrod pipe for elevator in the fuselage.

Assemble the rod for elevator to the fuselage from the

pushrod tube in the fuselage as below.

Accessory list for the coming installation steps.

Indice

Altri manuali Troy Built Models Giocattolo

Troy Built Models

Troy Built Models F86D DOG SABRE Manuale utente

Troy Built Models

Troy Built Models P-40 warhawk Manuale utente

Troy Built Models

Troy Built Models Bonanza V-35 Manuale utente

Troy Built Models

Troy Built Models Hawker Typhoon Manuale utente

Troy Built Models

Troy Built Models Do-335 Manuale utente

Troy Built Models

Troy Built Models ROBIN DR400 Manuale utente

Troy Built Models

Troy Built Models Aichi D3A1 Manuale utente

Troy Built Models

Troy Built Models Hawker hurricane MK.IIa Manuale utente

Troy Built Models

Troy Built Models 105” Curtiss JN-4 Manuale utente

Troy Built Models

Troy Built Models Fw-190 D9 Manuale utente

Troy Built Models

Troy Built Models T-28 Trojah Manuale utente

Troy Built Models

Troy Built Models Ki84 Hayate Manuale utente

Troy Built Models

Troy Built Models P-51B Mustang Manuale utente

Troy Built Models

Troy Built Models DC-3 Manuale utente

Troy Built Models

Troy Built Models P-47D Thunderbolt Manuale utente

Troy Built Models

Troy Built Models PA-25 Manuale utente

Troy Built Models

Troy Built Models SPITFIRE MK.XIV Manuale utente

Troy Built Models

Troy Built Models B-25 Mitchell Manuale utente

Troy Built Models

Troy Built Models Memphis Belle B-17 Manuale utente

Troy Built Models

Troy Built Models Stinson 108 Manuale utente

Troy Built Models

Troy Built Models ME - 109 Manuale utente

Troy Built Models

Troy Built Models F-4u Corsair Manuale utente

Troy Built Models

Troy Built Models FAIREY SWORDFLSH Manuale utente

Troy Built Models

Troy Built Models 50cc SPITFIRE Manuale utente

Manuali Giocattolo popolari di altre marche

marklin

marklin 37321 Manuale utente

Canon

Canon PAPER CRAFT Manuale utente

GREAT PLANES

GREAT PLANES Pitts M-12S Manuale utente

NOCH

NOCH 14261 Manuale utente

Hausler

Hausler 450 SE V2 Manuale utente

Dynaflite

Dynaflite Daydream Manuale utente

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuale

Kenner

Kenner Batman 63651 Manuale utente

LEGO

LEGO 8527 Manuale utente

iKarus

iKarus ECO 8 Manuale utente

Multiplex

Multiplex EasyStar II Manuale di istruzioni

Walkera

Walkera 38 Manuale di istruzioni

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuale utente

MD MXION SWD Manuale utente

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuale utente

marklin

marklin 39671 Manuale utente

Meccano

Meccano 15103 Manuale utente

LEGO

LEGO TECHNIC 8735 Manuale utente
