Troy Built Models Hawker Typhoon Manuale utente

Hawker Typhoon

Specification:

Length :1493 mm(60.9")

Wing Span :1860 mm(73.2")

Wing Area :55.3 sq. dm

5.95 sq. ft

Wing Loading :117.5 g/sq. dm

38.5 oz/sq. ft

Flying Weight :6.5 kg(14.3 lbs)

Radio :6ch&8 servos

Engine :108 2-cycle

120 4-cycle

SAFETY PRECAUTIONS

INSTRUCTION MANUAL

First-time builders should seek advice from people having building

experience.If misused or abused,it can cause serious bodily injury

and damage to property.

Fly only in open areas and preferably at a dedicated R/C flying site.

We suggest having a qualified instructor carefully inspect your

airplane before its first flight.Please carefully read and follow all

instructions included with this airplane,your radio control system

and any other components purchased separately.

(The people under 18 years old is forbidden from flying this model)

This R/C airplane is not a toy!

: 4-cycle .120

15"X7

(with 9 servos),

6 channel radio for aiplane is highly recommended for this model.

Warning

Remove the covering with proper

pressure to cut through only the covering itself.Otherwise,

cutting down into the balsa structure may weaken the

model part and cause accident.

The pre-covered film on ARF kits may wrinkle due to

variations of temperature.Smooth out as explained right.

4.5 in Spinner

Apply epoxy glue.

Pre-cover the covering with clean cloth!

Start at low setting. Increase the setting if

necessary.If it is too high,you may damage

the film.

Iow setting

with cover(cloth)

Pin hinge(24x24mm)

Make sure hinges are

mounted in the same line.

Securely glue together. If coming off during flights, you 'll

lose control of your airplane which leads to accidents!

Clevis

Rod (2x300mm)

Retainer

TP Screw (2.3x12mm)

Wooden Block

(20x20x8mm)

Servo tray(68.5x56.5x2mm)

Pin hinge(24x24mm)

Screw (3x35mm)

Washer(3x15mm)

Lock Nut (3mm )

Clevis

Retainer

Rod (2x300mm)

Screw (2x10mm)

Wood dowel (6x30mm)

Rib template (2mm ply)

Install the servo as the illustration below.

Install the nylon control horn and connect the linkage.

Apply instant type CA glue to aileron and pin hinge.

1mm

Aileron

Tailing

edge

Make sure they are in

the right position while

installing.

Keep some space about 1mm width between aileron

and trailing edge.

Assemble the aileron to main wing with instant type CA

glue. Be careful to ensure the moving parts of the hinges

are able to move freely.

Accessory list for the coming installation steps.

Air tank

Switch

Air inlet

3-way

pressure inlet

3-way

pressure inlet

3-way

pressure inlet

The status when the

gear up

Pull out length of 8mm

to make gear down

Air valve Air valve

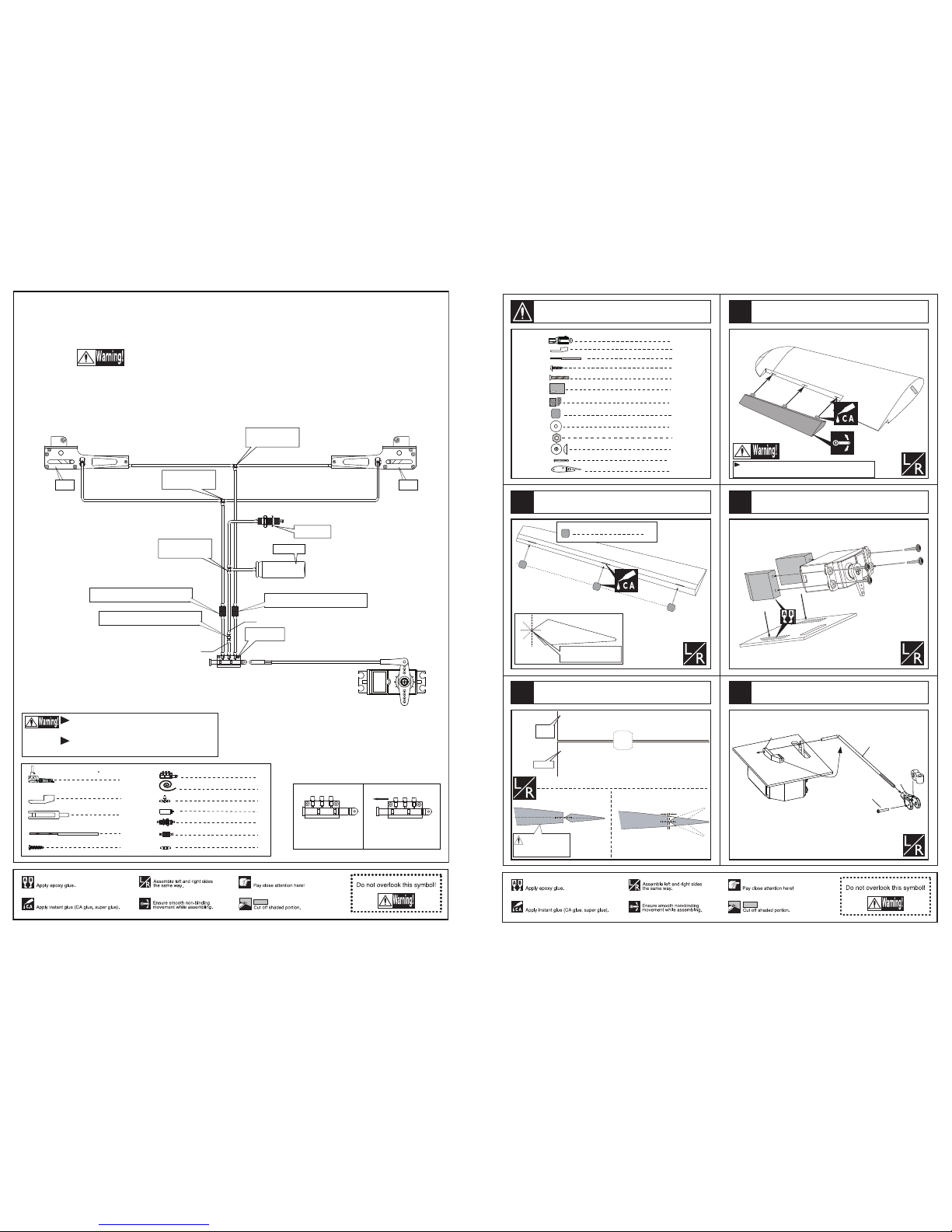

Make sure to assemble retracts as instructed below.

Two wheel retract system

Quick release connector

Pressure reduction inlet

Strut

3-way pressure inlet 3

Pressure reduction inlet 1

Air tank

Air inlet

Air line (3000mm)

Quick release connector

Strut

( 90 )

Switch

Clevis

Rod (2X300mm)

Retainer

TP Screw(2x14mm) 2

Ø1.7mm

Ø0.2mm

Pleas notice the inner diameter for each

side of the pressure reduction inlet.

Please insure the sealing of the retract

system before flight .

1.5mm

3mm

TP Screw (2.3x12mm)

Pin hinge(36x20x1mm)

Steel wire (1.5x200mm)

Pin hinge(36x20x1mm)

Clevis

Rod (2x300mm)

Retainer

TP Screw (2.3x12mm)

Wooden Block

(20x20x8mm)

Servo tray(68.5x56.5x2mm)

Screw (3x35mm)

Washer(3x15mm)

Lock Nut (3mm )

Rod (2x300mm)

Clevis

Washer(3x15mm)

Washer

Lock Nut (3mm )

Screw (3x35mm)

Screw (2x10mm)

6mm

Rib template (2mm ply)

Wood dowel (6x30mm)

Rib template (2mm ply)

6mm

Securely glue together. If coming off during flights, you 'll

lose control of your airplane which leads to accidents!

A A"

A = A"

Main wing joiner

Epoxy the pin hinges to the flap.

Secure the servo.Install the nylon control horn and

connect the linkage. Epoxy the main wing together.

Accessory list for the coming installation steps.

According to the rib template drill holes in one wing and

epoxy wood dowel in them.

According to the rib template drill holes to another

main wing.

Top view

Position for

right diagram.

ELEVATOR

Side View

25mm

100mm

Top view

Side View

20mm

RUDDER

20mm

30mm

AILERON

FLAP

AILERON

Side View

Centre of Gravity. The full model side view when install completion

Adjustment.

Epoxy the landing gear to the main wing steadily.

Adjustment.

TP Screw (2.3x12mm)

Steel wire

27mm

1.5mm

3mm

Steel wire (1.5x200mm)

Securely glue together. If coming off during flights, you 'll

lose control of your airplane which leads to accidents!

Rod (2x300mm)

Clevis

Washer(3x15mm)

Washer

Lock Nut (3mm )

Screw (3x35mm)

Clevis

Retainer

Rod (2x300mm)

Screw (2x10mm)

Flap

Trailing

edge

Make sure they are in

the right position while

installing.

1mm

Leave some space with width of 1mm between

trailing edge and flap.

Insert steel wire to inner and outer flaps for connection.

Epoxy the flap to the main wings steadily.

Install the servo as the illustration below.

Install the nylon control horn and connect the linkage.

Secure the servo.Install the nylon control horn and

connect the linkage.

TP Screw (2.6x14mm)

Wooden Block

TP Screw (2.6x14mm)

Collar (5mm)

Wooden supporter

1.5mm

TP Screw (2.3x8mm)

Ply (15x15x3mm) 8

Epoxy plies inside the fuselage under the cowing and

mount the cowing with TP screw as illustration.

2.6x14mm TP Screw

Landing gear straps 4

Collar 5mm 2

Wooden Block(43x28x26mm) 2

Wheel (100 mm)

Landing gear(5mm) 2

Gear door

Wooden Block

Washer(3x6mm) 8

Cut off the shaded portion of the canopy.

Cowling

25mm

TP Screw (2.3x8mm)

Ply (15x15x3mm) 7

1.5mm

Epoxy plies inside the fuselage under the cowing and

mount the cowing with TP screw as illustration.

Assemble the wheel and the gear door.

Epoxy the coolant radiator in the cowling steadily.

Assemble the cowing .

Assemble the canopy.

Accessory list for the coming installation steps.

72 74

B=B'

A=A'

Drill 6.2mm holes at the place

of main wing.

Install the wing to the fuselage

with 6x50mm screws as shown

in the diagrams below.

B`B

A`A

Screw (3x10mm)

Retracts strut

LockNut(4mm)

Wooden Block

Wood dowel (6x50mm)

Blind Nut (6mm)

Screw (6x50mm)

Gear door

Wheel (100mm)

Screw (3x10mm )

Landing gear straps

LockNut (4mm)

PVC

Bushing (8X4mm)

Reinforcement plate

Wooden Block(25x15x13mm)

Note:rubber wheels oleo struts

and retracts are optional.

Assembly of the main wings. Cut off the surplus PVC part carefully along the shaded

line

Cut away the film on the position for the air retract

landing.

Epoxy the wheel house to relevant position.

Assemble the gear doors and the wheels to the retracts.

Accessory list for the coming installation steps.

Pvc part

Canopy

Coolant radiator

TP Screw (2.3x8mm)

Ply (15x15x3mm) 15

15mm

Trim the coolant radiator.

Trim the cowling for engine muffler.

Be care to notice the distance between the wheel and

fuselage.

Accessory list for the coming installation steps.

Epoxy the exhaust to the cowling from inner of the cowing.

Cut off the surplus parts carefully along the shaded line.

150mm

50mm

Center

line

TP Screw (3x20mm)

The sketch maps when the retract up and down.

Assemble the retract

Drill two holes for pulling out the servo extension line.

70 mm

36 mm

Wood dowel (6x50mm)

6.2mm

Blind Nut

Blind Nut (6mm)

Screw(6x50mm)

6mm

70 mm

36 mm

5mm

C = C"

side wing centre wing

1.5mm

TP Screw(3x20mm)

Drill two holes to the appropriate in the middle wing and

mount the dowels in them .

Drill two holes to relevant position in the fuselage

Mount the wings to the fuselage with screw .

Retainer

Clevis 1

Retainer

Rod (2x260mm) 1

Connect the nose arm to the horn in the rudder.

3mm

15mm

Collar

Tail landing gear

Collar

Assemble the tail landing gear to the wheel steeling

mounts as below.

The sketch map when the tail landing gear be installed

to the fuselage.

TP Screw (2.3x12mm)

TP Screw(3x20mm)

Washer (3x6mm)

Nose arm(3mm)

Collar (3mm) 2

Tail landing gear(3mm)

Tail wheel (45mm)

Clevis 3

Retainer

Rod (2X257mm) 1

TP Screw(3x20mm)

Washer (3x6mm)

TP Screw (2.3x12mm)

20mm

2.6mm

Assemble the tail landing gear covering.to thefuselage

as below.

Assemble the wheel steeling mount to appropriate

position.

Accessory list for the coming installation steps.

Stab joiner

(16x280mm)

Pin hinge(24x24mm)

Make sure hinges are

mounted in the same line.

Pin hinge(24x24mm)

Pin hinge(2.5x48mm)

Using rubber tubu cover

the middle of the hinges

before installation in case

the epoxy glue get into.

Pin hinge(2.5x48mm)

Make sure hinges are

mounted in the same line.

1mm

Rudder

Tailing

edge

Cut away the rubber tube when

the epoxy glue dried.

Make sure they are in

the right position while

installing.

Steel wire (0.5x3000mm)

U-style wire (3mm)

Drill holes for easy

assembly of the

belly pants

2.5mm

Matal douel (4x30mm)

Rib template (3mm ply)

Epoxy the fibreglass tubes to appropriate position as

below and leave some space with width of 1mm between

tailing edge and rudder.

Accessory list for the coming installation steps.

Drill holes to appropriate position in the rudder and epoxy

the ping hinges in them

Epoxy the belly pant to appropiate position in the main

wing.

Apply instant type CA glue to elevator and pin hinge.

53mm 107mm 110mm

Drill holes to the relevant position in the tailing edge

and epoxy the rudder to them.

Add a rubber ring to the

clevis for insuring safety

Throttle servo

Elevator servo

switch servo Rudder servo

Clevis

Copper joiner

Aluminum tube(3x6mm)

Screw (2x10mm)

Nut (2mm )

Washer(2x5mm)

Steel wire

Copper joiner

Aluminum tube Lock Nut (2mm )

Screw (2x10mm)

Ball joint

Washer(2x5mm)

Install the servo of swith.

Install the servo of switch in the fuselage.

The sketch map when the servos install completion.

Mount the receiver and the battery in the fuselage.

Install the servo of elevator.

Assemble the elevator servo to appropriate in the

fuselage.

Elevator

1mm

Tailing

edge

Make sure they are in

the right position while

installing.

Keep some space about 1mm width between the

elevator and horizontal tail edge. The sketh map of the steel wires in the fuselage.

connect the fullarm for elevator with steel wire as below.

Steel wire (0.5x3000mm)

U-style wire (3mm)

4mm

Matal douel (4x30mm)

Rib template (3mm ply)

Set the U-style wire through the tail of fuselage as below. Drill two holes at the stabilizer root base on rib template

and epexy the metal dowel in them.

A ccording to thr rib template drill holes to the tail of

fuselage as below.

35mm

3mm

Rod (2x300mm)

Lock Nut (3mm )

Washer(3x15mm)

Clevis

Screw (3x65mm)

Linkage Stopper

Washer (2mm)

Nut (2mm)

Set screw (3x4mm)

Washer (

2mm

)

Set screw (3x4mm)

Rod (2x300mm)

Lock Nut (2mm )

Screw (2x10mm)

Ball joint

Washer(2x5mm)

Clevis

Aluminum tube(3x6mm)

Screw (2x10mm)

Nut (2mm )

Copper joiner

Washer(2x5mm)

Mount the rudder servo to appropriate position in the

fuselage.

The position of the control horn in the rudder.

Assemble the horn to the rudder and connect the linkage

to the servo.

Install the switch and the throttle servo

Install the throttle servo to appropriate position in the

fuselage.

Install the rudder servo.

153 mm

In case of 2-cycle & 4-cycle engine.

D D'

D=D'

E=E'

Make sure to glue securely.

If not properly glued, a failure in flight may occur.

Temporarily fasten down the main wing and

check its correct position.

Securely glue together.If coming off during flights,

you'll lose control of your airplane which leads

to accidents!

Blind Nut (4mm)

Engine mount (68x105mm)

Linkage Stopper

Washer(4x8mm)

Screw (4x35mm)

Spring Washer (4mm)

Nut (4mm)

Screw (4x25mm)

Plastic tube (2x400mm)

Fuel tank (550cc) 1

Clevis

Fiberglass pushrod(3x770mm)

Steel wire (0.5x3000mm)

Copper joiner

Aluminum tube(3x6mm)

Plastic tube(3x50mm)

Ply(20x16x2mm)

Clevis

Washer(3x15mm)

Lock Nut (3mm )

Screw (3x65mm)

Clevis

Copper joiner

Aluminum tube(3x6mm)

Screw (2x10mm)

Nut (2mm )

Securely glue together. If coming off during flights, you 'll

lose control of your airplane which leads to accidents!

2x7mm

Washer(2x5mm)

The front view of the engine install completion.

The side view of the engine install completion.

Accessory list for the coming installation steps.

Assembly of the stabilizer.

Drill holes to appropriate position in the stabilizer and

epoxy it to the fuselage as below.

Glue the elevator to the stabilizer by CA and epoxy.

Fuel supply line

Fuel spray line

Air pressure line

Fuel tank (550cc) 1

Set Screw (3x4mm)

Set Screw (2mm)

Rod (2x400mm)

Set Screw (2mm)

Washer (2mm)

Linkage Stopper

Washer (4x8mm)

Rod (2x400mm)

Blind Nut (4mm)

Screw (4x25mm)

Set Screw (3x4mm)

Washer (4x8mm)

Screw (4x35mm)

Screw (4x25mm)

Nut (4mm)

Spring Washer (4mm)

4mm

5.2mm

Blind Nut

Blind Nut (4mm)

The sketch map when the engine install completion.

Assembly of the fuel tank.

Epoxy the fuel tank in the fuselage.

Assemble the engine.

Drill four holes at the diameters as shown for engiine

mount.

Assemble the throttle linkage.

Indice

Altri manuali Troy Built Models Giocattolo

Troy Built Models

Troy Built Models Ki84 Hayate Manuale utente

Troy Built Models

Troy Built Models F86D DOG SABRE Manuale utente

Troy Built Models

Troy Built Models FAIREY SWORDFLSH Manuale utente

Troy Built Models

Troy Built Models Bonanza V-35 Manuale utente

Troy Built Models

Troy Built Models SPITFIRE MK.XIV Manuale utente

Troy Built Models

Troy Built Models 105” Curtiss JN-4 Manuale utente

Troy Built Models

Troy Built Models Fw-190 D9 Manuale utente

Troy Built Models

Troy Built Models Memphis Belle B-17 Manuale utente

Troy Built Models

Troy Built Models DC-3 Manuale utente

Troy Built Models

Troy Built Models Stinson 108 Manuale utente

Troy Built Models

Troy Built Models Aichi D3A1 Manuale utente

Troy Built Models

Troy Built Models BF-110C ZERSTORER Manuale utente

Troy Built Models

Troy Built Models F-4u Corsair Manuale utente

Troy Built Models

Troy Built Models P-39 Airacobra Manuale utente

Troy Built Models

Troy Built Models PA-25 Manuale utente

Troy Built Models

Troy Built Models P-51B Mustang Manuale utente

Troy Built Models

Troy Built Models B-25 Mitchell Manuale utente

Troy Built Models

Troy Built Models ME - 109 Manuale utente

Troy Built Models

Troy Built Models Hawker hurricane MK.IIa Manuale utente

Troy Built Models

Troy Built Models ROBIN DR400 Manuale utente

Troy Built Models

Troy Built Models T-28 Trojah Manuale utente

Troy Built Models

Troy Built Models P-40 warhawk Manuale utente

Troy Built Models

Troy Built Models Do-335 Manuale utente

Troy Built Models

Troy Built Models P-47D Thunderbolt Manuale utente

Manuali Giocattolo popolari di altre marche

marklin

marklin 37321 Manuale utente

Canon

Canon PAPER CRAFT Manuale utente

GREAT PLANES

GREAT PLANES Pitts M-12S Manuale utente

NOCH

NOCH 14261 Manuale utente

Hausler

Hausler 450 SE V2 Manuale utente

Dynaflite

Dynaflite Daydream Manuale utente

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuale

Kenner

Kenner Batman 63651 Manuale utente

LEGO

LEGO 8527 Manuale utente

iKarus

iKarus ECO 8 Manuale utente

Multiplex

Multiplex EasyStar II Manuale di istruzioni

Walkera

Walkera 38 Manuale di istruzioni

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuale utente

MD MXION SWD Manuale utente

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuale utente

marklin

marklin 39671 Manuale utente

Meccano

Meccano 15103 Manuale utente

LEGO

LEGO TECHNIC 8735 Manuale utente
