Trust SECURITY PLUS-LINE AGST-8800 Manuale utente

USER MANUAL

MULTI LANGUAGE

Outdoor wireless wall switch

SECURITY PLUS-LINE

AGST-8800

Item 71151 Version 1.0

Visit www.trust.com

for the latest instructions

OFF OFF

ON ON

OFF OFF

ON ON

O

AGST-8800 OUTDOOR WIRELESS WALL SWITCH

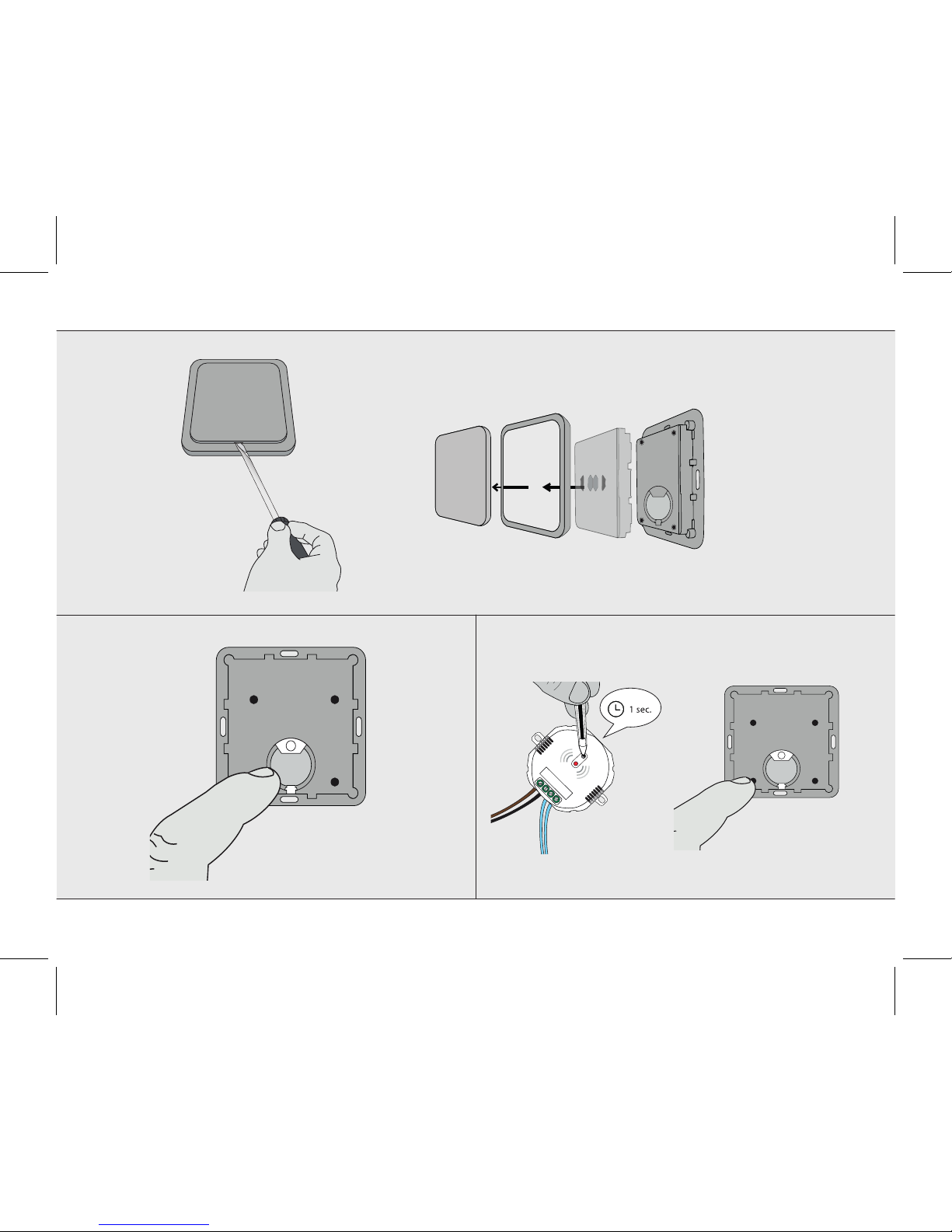

1. Open wall switch

At the bottom of the push-button is an opening. Use a ﬂat screwdriver to carefully remove the push

button. Remove the push button, the frame and the rubber plate of the wall switch.

2. Place battery

Insert the battery into the battery compartment. Note the + and - terminals of the battery with the +

and - symbols in the battery compartment.

3. Pair the wall switch with a receiver

To operate a receiver ﬁrst you must pair the wireless wall switch with the receiver. Put the receiver in

learning mode (see the manual of the receiver to activate the learning mode).

Give an ON signal on the wall switch when the learning mode of the receiver is active. The receiver

will give a conﬁrmation that the pairing of the wall switch has been successful.

4. Mount the wall switch

Place the backplate of the wall switch on a surface. Screw the backplate of the wall switch in place

using the supplied screws.

Place the rubber plate, the frame and the push button back on the backplate. Press the pushbutton

ﬁrmly in the frame of the AGST-8800 until a click is heard.

5. Operating the wall switch

5a. Dimming

1. Press the ON button to turn on the receiver.

2. Press the ON button again to activate the dimmode. The light will slowly dim in a cycle.

3. Press for the third time the ON button to secure the desired dim level.

4. Press the OFF button to turn o the receiver.

5b. Switching On/O

1. Press the ON button to turn on the receiver.

2. Press the OFF button to turn o the receiver.

AGST-8800 OUTDOOR WIRELESS WALL SWITCH

5c. Open/Stop/Close

1. Press the ON button to open the blinds. Press the ON button again to stop the blinds.

2. Press the OFF button to close the blinds. Press the OFF button again to stop the blinds.

Read the manual of the receiver to reverse the direction of the blinds.

5d. Activating wireless doorbell

Press the ON button to activate the melody of the wireless doorbell.

For more information, see the manual of the receiver

Unpair wireless wall switch

To unpair the wall switch put the receiver into learning mode. When the receiver is in learning mode

give an OFF signal with the wall switch. The receiver will give a conﬁrmation that the wall switch is

unpaired.

The receiver can no longer be operated with the wall switch.

Clear the memory of the receiver

Consult the manual of the receiver to erase its memory.

IMPORTANT INFORMATION

MULTI LANGUAGE

Outdoor wireless wall switch

SECURITY PLUS-LINE

AGST-8800

Item 71151 Version 1.0

Visit www.trust.com

for the latest instructions

AGST-8800 OUTDOOR WIRELESS WALL SWITCH

FUNCTIONALITY

This wireless wall switch allows receivers (for

lighting / blinds / equipment / wireless doorbell)

to be controlled wirelessly.

COMPATIBILITY

This transmitter can operate one or more

Trust Smart Home receivers (on / o, dimming,

open / close, melody activate wireless doorbell).

WIRELESS RADIO SIGNAL

• The 433.92 MHz radio signal passes through walls, windows and doors.

• Indoor 433.92 MHz range: up to 30 m. Outdoor 433.92 MHz range: up to 70 m (optimal conditions).

• The strength depends on local conditions, such as the presence of metals. The metal particles in for

example, double glazing (HR glass), can provide a reduction in the range of wireless signals.

• There may be restrictions on the use of this device outside the EU. Check, if applicable, whether this

device meets local regulations.

TECHNICAL SPECIFICATIONS

Codesystem Automatic

Number of channels 1

Protection class IP-44 splashproof

RF frequency 433,92 MHz RF

RF Range Indoors up to 30 m, Outdoors up to 70 m (under optimal conditions)

Power 3V lithium batterij CR2032 (included)

Dimensions HxWxD: 80 x 80 x 17 mm

Read these simple instructions. Failure to follow these instructions can be dangerous.

Incorrect installation will void any warranty on this product.

AGST-8800 OUTDOOR WIRELESS WALL SWITCH

LIFE SUPPORT

Never use Trust Smart Home products for life

support systems or other applications where

failures can have life-threatening consequences.

INTERFERENCE

Interference can aect the operation of all

broadcast transmitter and receivers negatively.

The distance between 2 receivers or transmitters

should be at least 50 cm.

REPAIRS

Do not try to repair this product yourself.

The device contains no serviceable parts for the

user.

WATER-RESISTANT

This product is IP-44 waterresistant.

CLEANING

Clean this product with a dry cloth.

Do not use harsh chemicals, cleaning solvents or

strong detergents.

HANDLING

Do not drop the device, bump the device

against something or shake it. Rough handling

can damage internal circuit boards and ﬁne

mechanics.

ENVIRONMENT

The product should not be exposed to extreme

heat or cold. This can damage the circuit boards

and batteries or shorten its life.

Legal information

CE: Trust declares this device complies with the Directives as listed in Section 2 of this document.

WEEE: Dispose of the device at a recycling centre. More information: www.trust.com

Warranty information: www.trust.com/warranty

AGST-8800 OUTDOOR WIRELESS WALL SWITCH

EN 301 489-1 V1.9.2 (2011-09)

EN 301 489-3 V1.6.1 (2013-08)

EN 300 220-1 V2.4.1 (2012-05)

EN 300 220-2 V2.4.1 (2012-05)

EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013

IEC 60529 Edition 2.2:2013

EN 50581:2012

Declaration of conformity

Trust International B.V. declares that the

TrusT smarT Home

-product:

model: AGST-8800 Outdoor wireless wall switch

item number: 71151

intended use: Outdoor

is in compliance with the essential requirements and other relevant provisions of the following directives:

EMC Directive (2014/30/EU), Low Voltage Directive (2014/35/EU), ROHS Directive (2011/65/EC), R&TTE

Directive (1999/5/EC). The product is compatible with the following norms/standards:

Manufacturer/Authorized representative,

H. Donker, Procurement Director

Dordrecht, April 19, 2016

Trust International B.V.

LAAN VAN BARCELONA 600

3317DD DORDRECHT

NETHERLANDS

www.trust.com
