Turbo air Speeds Up the Pace of Innovation

Part No. KUCTB2503

Refrigeration System

Installation & Operation Manual

Please read this manual completely before attempting to install or operate this equipment !

Unit Cooler

Condensing Unit

CONTENTS

Safety Information …………………………………… 3

Inspection ……………………………………………… 3

Locating Unit Cooler ………………………………… 4

Unit Cooler Piping …………………………………… 6

Expansion Valve Selection ………………………… 7

Defrost ………………………………………………… 10

Locating and Mounting Condensing Unit ……… 12

System Operation …………………………………… 13

Unit Cooler Troubleshooting ……………………… 15

System Troubleshooting …………………………… 17

Field Wiring …………………………………………… 19

Safety Information

Be sure all power sources are turned off before checking the electric wiring or

appliances to avoid electric shock.

Do not run fan if cover or case is removed. This is to avoid electric shock.

All units are pressurized with dry air or nitrogen gas. All units must be evacuated

before charging the system with refrigerant. Keep finger away from moving parts.

Avoid touching refrigerant lines. Some parts are very hot and can cause burns.

Avoid contacting sharp edges or coil surface that are a potential injury hazard.

Avoid touching the units or electric box in wet hands to prevent electric shock.

Please call the specialized installation company or trained personnel when you installing,

moving, operating of the unit.

Field wiring must confirm to the requirements of units’ electric specification.

Inspection

A person at the job site to receive material holds responsibility. Each shipment should

be carefully inspected against the bill of lading. The shipping receipt should not be

signed before careful inspection. Check carefully for concealed damage. Any shortage

or damages should be reported to the delivering carrier. Damaged material becomes the

delivering carrier’s responsibility, and should not be returned to Turbo air unless prior

approval is given. Check the serial tag information with invoice. Report any

discrepancies to Turbo air sales representatives.

Locating Unit Cooler.

Minimum space required for Unit Cooler.

Figure 1. One evaporator

Figure 2. Two or more evaporators

H2H

H H

※H=Space Required, Unit Cooler Height

Recommended location methods of Unit Cooler.

1. Avoid placing Unit Cooler close to doors. Install like Figure 3 or Figure 4.

2. Avoid having them face each other when installing multiple units. Install like Figure 5

3. Recommended placement when installing multiple units see Figure 6.

( H= Sapce Required, Unit Cooler Height )

Figure 3

door

Figure 4

door

Figure 5

door

Figure 6

door

Locate evaporators so that air pattern

covers all of the room. Do not restrict the

inlet or outlet air stream. When installed,

there should be 12”clearance from

bottom of the unit. Always avoid

placement of unit coolers directly above

doors and door openings.

Most evaporators can be mounted with

rod hangers, lag screws or bolts. (use

3/8” and 5/8” stainless steel bolts) Refer

to Figure 7. Mount the unit level so that

condensate drains properly. When using

rod hangers, allow adequate space

between the top of the unit and the

ceiling. (NSF Standard 7). The area

above the unit cooler must be sealed or

exposed in such away to allow hand

cleaning without the use of tools. When

lagging or bolting unit flush to the

ceilings, seal the joint between the top

and the ceiling with an NSF listed sealant.

Ends of open hanger channels must be

sealed to prevent accumulation of foreign

material.

Refer to Figures 1 through 4. Air flow

distance must be considered when

coolers or freezers will not accommodate

all required evaporators on one wall.

Refer to Figure 7. Traps on low

temperature units must be outside of

refrigerated enclosures. Traps subject to

freezing temperatures must be wrapped

with heat tape and insulated.

Figure 7. Unit Cooler Installation Diagram.

BOLTS

LOCK NUTS

NUTS

PIPE HEATER

Unit Cooler Piping.

When brazing refrigerant lines, an inert

gas should be passed through the line at

low pressure to prevent scaling and

oxidation inside the tubing. Dry nitrogen

is preferred.

Use only a suitable silver solder alloy on

suction and liquid lines. All piping must

be adequately supported to prevent

vibration and breaking.

Tube clamps should have a gasket

surface to prevent abrasion.

The system as supplied by Turbo air was

thoroughly cleaned and dehydrated at the

factory.

Foreign matter may enter the system by

way of the evaporator to condensing unit

piping.

Therefore, care must be used during

installation of the piping to prevent

entrance of foreign matter.

Use only refrigeration grade copper

tubing properly sealed against

contamination.

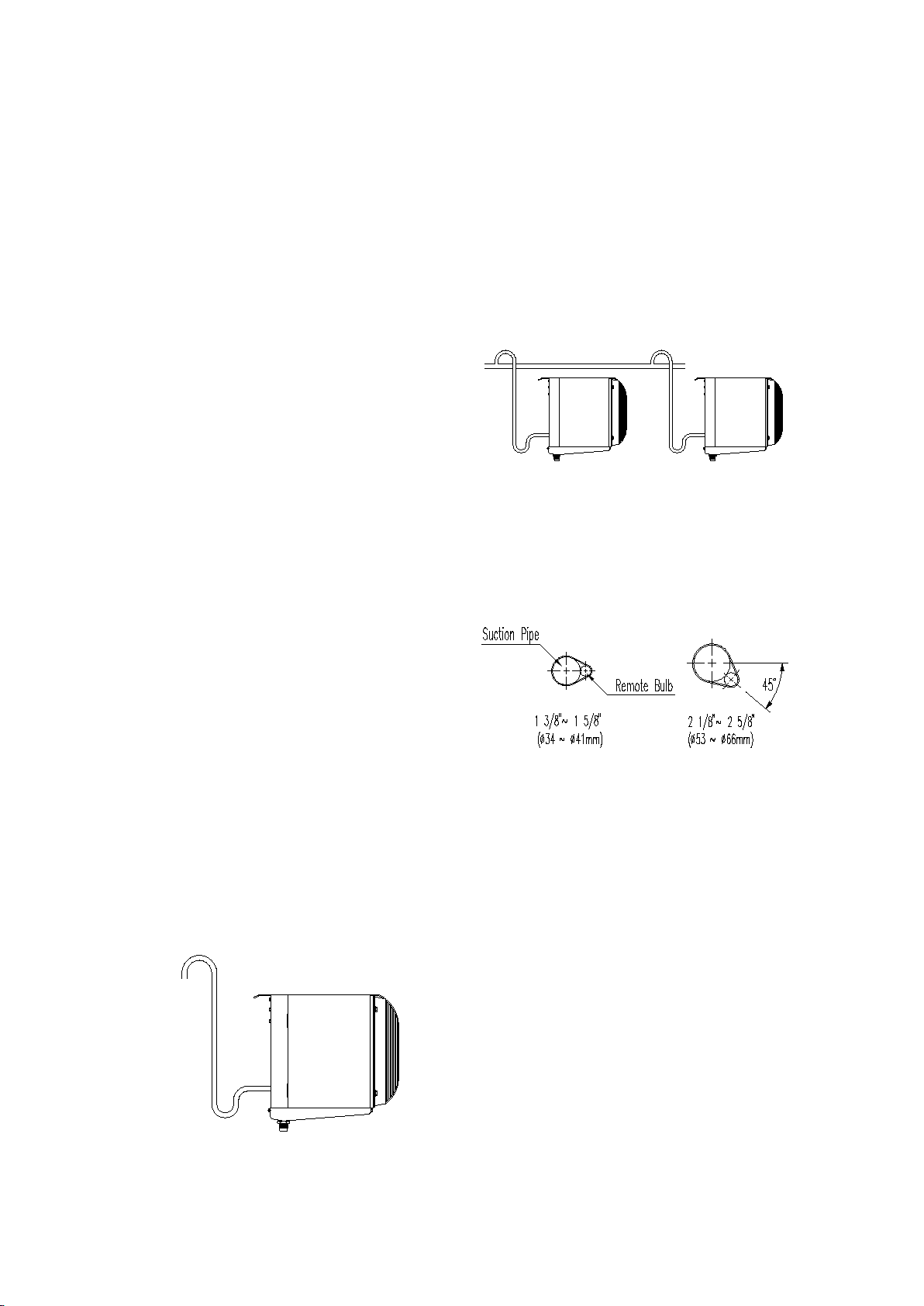

Figure 8. Suction piping installation on an

evaporator.

Figure 9. suction piping installation on

multiple evaporators.

Figure 10. Installation of expansion valve

bulb.

Refer to Figure 8 through 9. Suction line

risers must be carefully selected, have an

oil trap at the bottom and at 15 foot

intervals up the riser. They should be the

same size as the vertical riser connected

to its outlet. Riser should not be larger in

diameter than horizontal runs.

Refer to Figure 10.

Expansion valves are supplied with clamp

for securing bulb to the suction line. The

bulb must be secured at the evaporator

outlet, on the side of a horizontal run of

suction line, before any trap.

Do not over tighten bulb clamps or

deform the bulb in anyway. Install all

refrigeration system components in

accordance with applicable local and

national codes and in conformance with

good practice required for the proper

operation of the system.

All piping must be protected where it

passes through walls or ceilings.

Precautions should be taken to see that

the piping does not touch any structural

the transmission of vibration into the

building.

The piping chase must be thoroughly

sealed to protect the tube and prevent

ambient air from entering the refrigerated

space. Seal around the drain line where it

passes through the wall. Air leaks can

cause equipment problems. Damage the

structure and product, increase load,

increase operating cast, and can cause a

safely hazard. Eliminate all air leaks.

Expansion valve selection.

Expansion valve selection for each model (Table 1)

Table 1 refer to Sporlan and Alco, other expansion valve be referred to their catalogue.

Table 1. Expansion Valve Specs by Model.

MODEL

CAPACITY

(BTUH)

Refrigerant

Evap. Temp

(°F/°C)

EXPANSION VALVE

SPORLAN ALCO

ADR042 4200

R-404A 25 / -4

SBFSE-A-C HFESC-1/4-SC

ADR068 6800 SBFSE-A-C HFESC-1/2-SC

ADR073 7300 SBFSE-A-C HFESC-1/2-SC

ADR109 10900 SBFSE-A-C HFESC-1-SC

ADR136 13600 SBFSE-A-C HFESC-1 1/4-SC

ADR163 16300 SBFSE-B-C HFESC-1 1/4-SC

ADR196 19600 SBFSE-B-C HFESC-1 1/2-SC

ADR218 21800 SBFSE-B-C HFESC-1 1/2-SC

ADR273 27300 SBFSE-C-C HFESC-2-SC

ADR393 39300 SBFSE-C-C HFESC-3 1/2-SC

LED042 4200

R-404A -20 /-29

SBFSE-A-Z HFESC-1/2-SZ

LED068 6800 SBFSE-A-Z HFESC-1-SZ

LED082 8200 SBFSE-A-Z HFESC-1-SZ

LED094 9400 SBFSE-A-Z HFESC-1-SZ

LED126 12600 SBFSE-B-Z HFESC-1 1/4-SZ

LED147 14700 SBFSE-B-Z HFESC-1 1/2-SZ

LED168 16800 SBFSE-B-Z HFESC-2-SZ

LED189 18900 SBFSE-B-Z HFESC-2-SZ

LED210 21000 SBFSE-B-Z HFESC-2-SZ

LED252 25200 SBFSE-B-Z HFESC-3 1/2-SZ

LED300 30000 SBFSE-B-Z HFESC-3 1/2-SZ

MODEL

CAPACITY

(BTUH)

Refrigerant

Evap. Temp

(°F/°C)

EXPANSION VALVE

SPORLAN

ADM131 13100

R-404A 25 / -4

SBFSE-A-C

ADM162 16200 SBFSE-A-C

ADM248 24800 SSE3C

ADM321 32100 SSE3C

ADM370 37000 SSE4C

ADM480 48000 SSE4C

ADM567 56700 SSE6C

ADM638 63800 SSE6C

MED105 10500

R-404A -20 /-29

SBFSE-A-Z

MED144 14400 SBFSE-B-Z

MED207 20700 SSE-3-Z

MED275 27500 SSE-4-Z

MED317 31700 SSE-4-Z

MED410 41000 SSE-6-Z

MED513 51300 SSE-7-Z

MED547 54700 SSE-7-Z

MLD103 10300 SBFSE-A-Z

MLD165 16500 SBFSE-B-Z

MLD220 22000 SSE-3-Z

MLD253 25300 SSE-3-Z

MLD332 33200 SSE-4-Z

MLD388 38800 SSE-6-Z

MLD442 44200 SSE-6-Z

TTA056 5600

R-404A 25 / -4

SBFSE-A-C

TTA084 8400 SBFSE-A-C

TTA112 11200 SBFSE-A-C

TTA141 14100 SBFSE-B-C

TTA175 17500 SBFSE-B-C

TTE049 4900

R-404A -10 /-23

SBFSE-A-Z

TTE074 7400 SBFSE-A-Z

TTE099 9900 SBFSE-A-Z

TTE124 12400 SBFSE-B-Z

TTE138 13800 SBFSE-B-Z

MODEL

CAPACITY

(BTUH)

Refrigerant

Evap. Temp

(°F/°C)

EXPANSION VALVE

SPORLAN

TCA058 5800

R-404A 25 / -4

SBFSE-A-C

TCA087 8700 SBFSE-A-C

TCA106 10600 SBFSE-A-C

TCA140 14000 SBFSE-B-C

TCA178 17800 SBFSE-B-C

TCA197 19700 SBFSE-B-C

TCA213 21300 SBFSE-C-C

TCA284 28400 SBFSE-C-C

TCA356 35600 SBFSE-C-C

TCE058 5800

R-404A 25 / -4

SBFSE-A-Z

TCE087 8700 SBFSE-A-Z

TCE106 10600 SBFSE-A-Z

TCE140 14000 SBFSE-B-Z

TCE178 17800 SBFSE-B-Z

TCE197 19700 SBFSE-B-Z

TCE213 21300 SBFSE-B-Z

TCE284 28400 SBFSE-B-Z

TCE356 35600 SBFSE-B-Z

Table 2. Recommended line size for suction diameter. ( R-404A)

SYSTEM

CAPACITY

BTUH

SUCTION TEMPERATURE

+30。F +20。F +10。F -10。F

30’

75’

100’

150’

30’

75’

100’

150’

30’

75’

100’

150’

30’

75’

100’

150’

3000 3/8 3/8 1/2 1/2 3/8 1/2 1/2 1/2 1/2 1/2 1/2 5/8 1/2 5/8 5/8 5/8

4000 3/8 3/8 1/2 1/2 1/2 1/2 1/2 5/8 1/2 1/2 5/8 5/8 1/2 5/8 5/8 7/8

6000 1/2 1/2 5/8 5/8 1/2 5/8 5/8 7/8 1/2 5/8 5/8 7/8 5/8 5/8 7/8 7/8

9000 1/2 5/8 7/8 7/8 5/8 7/8 7/8 7/8 5/8 7/8 7/8 7/8 7/8 7/8 7/8 7/8

12000 1/2 5/8 7/8 7/8 5/8 7/8 7/8 7/8 5/8 7/8 7/8 7/8 7/8 7/8 7/8 1 1/8

15000 5/8 5/8 7/8 7/8 5/8 7/8 7/8 7/8 7/8 7/8 7/8 1 1/8 7/8 7/8 1 1/8 1 1/8

18000 5/8 7/8 7/8 7/8 7/8 7/8 7/8 1 1/8 7/8 7/8 1 1/8 1 1/8 7/8 1 1/8 1 1/8 1 1/8

24000 5/8 7/8 7/8 7/8 7/8 7/8 1 1/8 1 1/8 7/8 1 1/8 1 1/8 1 1/8 1 1/8 1 1/8 1 1/8 1 3/8

30000 7/8 7/8 7/8 1 1/8 7/8 1 1/8 1 1/8 1 1/8 1 1/8 1 1/8 1 1/8 1 3/8 1 1/8 1 1/8 1 3/8 1 3/8

36000 7/8 7/8 1 1/8 1 1/8 7/8 1 1/8 1 1/8 1 3/8 1 1/8 1 1/8 1 3/8 1 3/8 1 1/8 1 3/8 1 3/8 1 3/8

42000 7/8 1 1/8 1 1/8 1 3/8 1 1/8 1 1/8 1 3/8 1 3/8 1 1/8 1 3/8 1 3/8 1 3/8 1 3/8 1 3/8 1 3/8 1 5/8

48000 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8

54000 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8

60000 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8

66000 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8 1 5/8

SYSTEM

CAPACITY

BTUH

SUCTION TEMPERATURE

-20。F -30。F -40。F LIQUID LINE SIZE

30’

75’

100’

150’

30’

75’

100’

150’

30’

75’

100’

150’

30’

75’

100’

150’

3000 1/2 5/8 5/8 5/8 1/2 5/8 5/8 7/8 5/8 5/8 7/8 7/8 3/8 3/8 3/8 3/8

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Turboair Frigorifero

Turboair

Turboair J series Manuale utente

Turboair

Turboair TIDC-26 N Series Manuale utente

Turboair

Turboair TGM-72RS Manuale utente

Turboair

Turboair MUF-20S-N Manuale utente

Turboair

Turboair TST-28SD-12-D2-N Manuale utente

Turboair

Turboair TGM-5R Manuale utente

Turboair

Turboair TPR-44SD-D2 Manuale utente

Turboair

Turboair M3R24-1-N Manuale utente

Turboair

Turboair MST-28 Manuale utente

Turboair

Turboair Super Deluxe TSR-23SD Series Manuale utente

Turboair

Turboair MST-28 Manuale utente

Turboair

Turboair Super Deluxe TSR-35SD-N Manuale utente

Turboair

Turboair J series Manuale utente

Turboair

Turboair TGM-11R Manuale utente

Turboair

Turboair M3R19-1 Manuale utente

Turboair

Turboair J series Manuale utente

Turboair

Turboair MSF-23NM Manuale utente

Turboair

Turboair TGM-69R Manuale utente

Turboair

Turboair TGM-7SD Manuale utente

Turboair

Turboair TGM-10SD Manuale utente

Turboair

Turboair PRCBE-36R-N-FT Manuale utente

Turboair

Turboair TCBE-36SDR Manuale utente

Turboair

Turboair TGM-5SD Manuale utente

Turboair

Turboair TWR-28SD-D2 Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
