Turtle Beach Ear Force PX5 Manuale utente

TB521-2180-01

What’s in the Box

download advanced user’s guide at:

www.TurtleBeach.com/PX5

PDF

product support and warranty information:

www.TurtleBeach.com/support

PX5 Headset with

Removable Microphone

PX5 Wireless Digital RF

Transmitter

(2) AA Batteries

USB Power Cable Digital Optical Cable

XBOX LIVE®

Talkback Cable

USB Programming Cable

Turtle Beach Sticker

download PX5 software and additional presets at:

www.TurtleBeach.com

Table of Contents

About the Ear Force®PX5 pg 1

PX5 Headset

Overview pg 3

PX5 Transmitter

Overview pg 7

Using the Transmitter pg 9

Pairing the Headset and Transmitter pg 10

Setup

Transmitter Setup—PS3™

, XBOX 360®(slim) pg 11

Transmitter Setup—XBOX 360 (original) pg 11

PS3 Settings & Bluetooth Chat Setup pg 13

XBOX 360 Settings & XBOX LIVE Chat Setup pg 14

Home Theater Setup pg 15

Dolby®Processing pg 16

Digital Signal Processing pg 17

Presets pg 19

Bluetooth®

Pairing a Bluetooth-enabled Device pg 20

Dual Pairing pg 20

Making Phone Calls pg 21

Receiving Calls pg 21

Bluetooth Quick Reference pg 22

PX5 Headset and Transmitter Technical Specifications pg 23

Troubleshooting and Support pg 24

Important Safety Information pg 25

watch PX5 training videos at:

www.youtube.com/TurtleBeachVideos

About the Ear Force PX5

The Ear Force PX5 is the most technologically-advanced headset ever designed for PS3 and XBOX 360

gaming. To get the most from your PX5, please take a few minutes to review this introduction.

Digital RF Technology with Bluetooth

The Ear Force PX5 headset provides wireless CD-quality game sound via digital RF (radio frequency)

that communicates with the PX5 transmitter. In addition, the PX5 incorporates Bluetooth technology

which is used for communicating on the PlayStation Network (PSN) and optionally on XBOX LIVE.

The Bluetooth can also be paired to your mobile phone and digital music player. This means you can

use your PX5 to listen to your favorite music and accept phone calls–all while totally immersed in the

action of the game.*

PSN Chat via Bluetooth RF

Game sound via

digital optical cable

TRANSMITTER

Game sound in

Dolby Surround

via Digital RF

Stream Music

via Bluetooth

Mobile Phone

via Bluetooth

PS3

XBOX 360

Game sound via

digital optical cable

TRANSMITTER

Game sound in

Dolby Surround

via Digital RF

Stream Music

via Bluetooth

Mobile Phone

via Bluetooth

*Only 2 Bluetooth devices total can be paired to the headset at a time.

**For a wireless XBOX chat connection, the talkback cable can be replaced with an optional

Bluetooth adapter (sold separately) that inserts in the XBOX 360 controller. For further details,

please visit TurtleBeach.com.

wired

wireless

wired

wireless

XBOX LIVE chat via

Talkback Cable

or optional

Bluetooth adapter**

5.1/7.1 Dolby Surround Sound

The PX5 transmitter processes Dolby 7.1 Digital surround sound from your PS3 or XBOX 360 and sends

it to the headset via digital RF. The result is an immersive sound environment that makes you feel as

if you're right in the middle of the action. It also helps you react quicker by hearing exactly where the

sound cues in the game are coming from.

Digital Signal Processing (DSP)

The headset uses digital signal processing to customize the game, chat and microphone audio signals

to improve performance in specific gaming situations. These settings are stored as presets that can be

easily called up to change the characteristics of the game sound, voices from other players and even

your own voice. For example, you can use the PX5 to accentuate sounds like footsteps or enemies

reloading that might otherwise be difficult to hear with normal game audio.

Programmable Presets

The integrated USB port lets you connect your PX5 to a PC. Go to TurtleBeach.com and download new

presets, program your own custom presets and update your headset with new features and more.

That means you can customize your PX5 and turn it into your own “secret weapon” that’s unlike anyone

else’s headset!

Intuitive Voice prompts

The PX5 incorporates intuitive voice prompts that announce critical headset status. Press the preset

button and you'll hear the number. When the batteries need to be replaced, it tells you in advance.

When powering on or off, you’ll hear an announcement. You can even replace the voices by visiting

TurtleBeach.com and downloading new ones!

Designed for High-Quality Sound

The PX5 headset is designed to deliver high-quality audio that makes it ideal for gaming, movies

and digital music playback. The high-fidelity, 50mm speakers are encased in acoustically-tuned ear

cups with soft fabric cushions and deliver extended bass with extraordinary dynamic range for optimum

audio performance.

Want to learn even more about your PX5?

This user guide will help get you started, but if you’d like to know more, please download the

PX5 advanced user guide from our web site.

PX5 Headset —Left Ear Cup Controls

1. Main Power Button with LED

Powering ON: Press and hold until the headset announces “Powering On”.

Powering OFF: Press and hold until the headset announces “Powering Off”.

Automatic Power OFF: If the headset doesn’t detect any audio for more than 5 minutes,

it will automatically shut down to conserve battery power.

PS3/XBOX Mode: Press the Power Button twice quickly to switch between PS3 and XBOX 360 modes.

The headset will announce the selected mode. (See "Presets" on pg. 18 for further details)

Power Button LED Indicator: Flashes once per second when paired to the Transmitter

and flashes twice per second when not paired. (See “Pairing the Headset and Transmitter” on pg. 10

for further details)

Pairing Mode: Initiates pairing mode between the headset and transmitter. From a powered down state,

press and hold the power button for 6 seconds. The LED will begin to flash rapidly.

2. Removable Microphone with Adjustable Boom

The microphone can be removed from the headset when chat is not required by detaching

it from the boom. (See "Setup" on pg. 12 for further details)

3. Game Volume Control

Turn to adjust game volume level.

4. Presets Button

Press to select one of eight (8) alternate game audio presets. (See "Presets" on pg. 18 for further details)

5. XBOX 360 Controller Jack

Insert the straight connector on the XBOX Talkback Cable (included) into this jack when using

the PX5 with an XBOX.

NOTE: An optional Bluetooth adapter is available for a wireless connection between the PX5 headset and XBOX 360 controller.

See TurtleBeach.com for further details.

6. USB Input

Allows for headset programming by connecting to a USB port on a PC with the included USB cable.

(See the “Presets” on pg. 18 for further details)

12 13

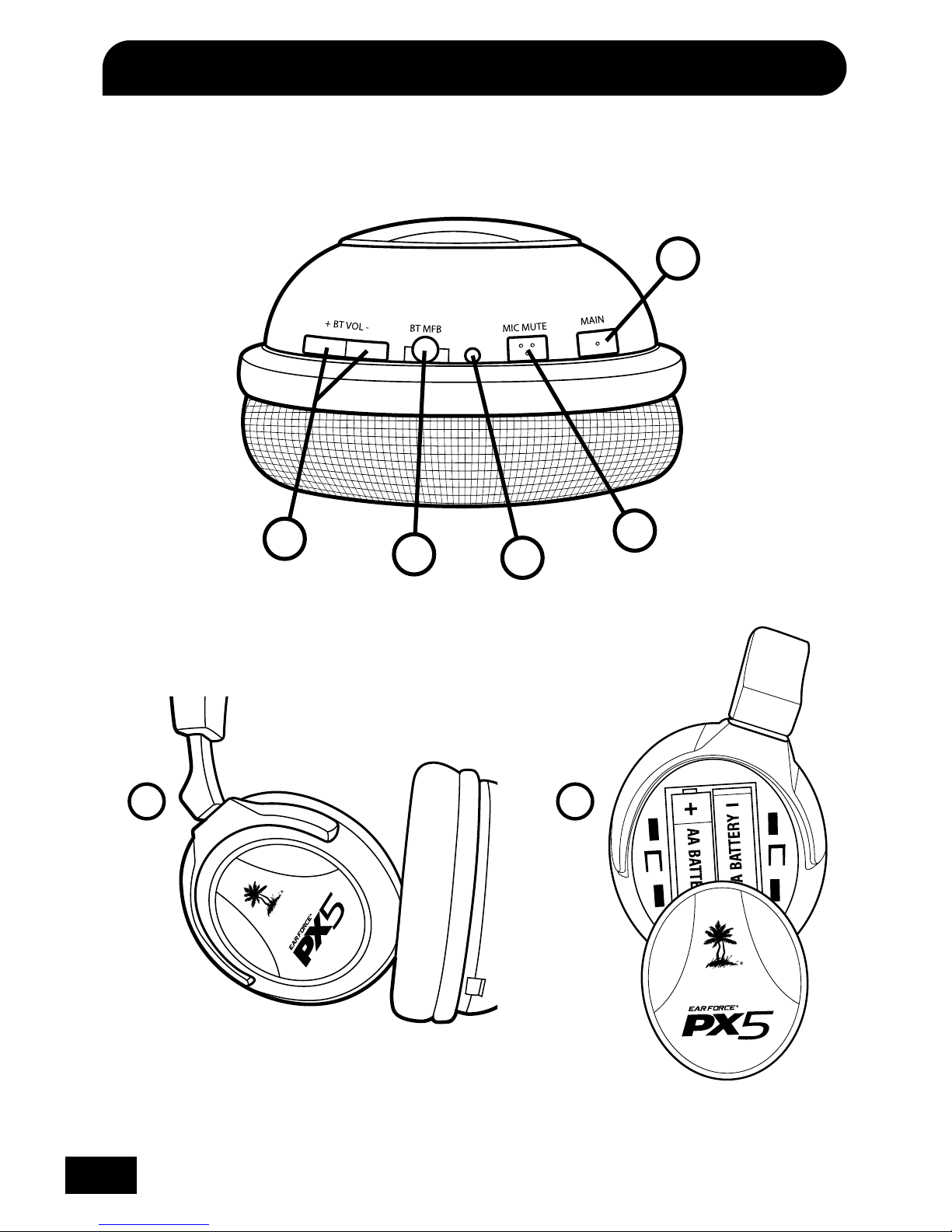

PX5 Headset —Right Ear Cup Controls

Be sure to

insert batteries

as shown.

7. Main (Main Preset Button)

Press to toggle between the selected (alternate) preset and the main (default) preset.

(See "Presets" on pg. 18 for further details)

8. Mic Mute Button

Press to toggle between muting and unmuting the microphone. A high tone will sound when the mic

is unmuted and a low tone will sound when the mic is muted. When using the XBOX Talkback cable,

the mic can be muted directly from the switch on the Talkback cable or by pressing the mic mute

button on the headset.

9. Bluetooth LED Indicator

Indicates when Bluetooth is active or in pairing mode. (see the “Bluetooth” section on pg. 19 for further details)

10. Bluetooth Multi-function Button

Powers on the Bluetooth and performs several other functions described in the “Bluetooth” section (pg. 19)

Note: The Bluetooth feature is normally powered off to conserve battery power and may need to be powered

on with the button when first using the headset.

11. Bluetooth Volume Control

Press (+) or (–) to adjust Bluetooth volume level. A tone will sound each time the

volume level changes.

12. Swivel Ear Cups

The ear cups may be turned 90 degrees to rest conveniently around your neck.

13. Battery Compartment Cover

Slide down to access the battery compartment. The headset is powered by (2) AA batteries (included)

which should provide up to 15 hours of use depending on headset settings (Bluetooth, game audio, etc).

Rechargeable NiMH batteries may also be used. The headset will announce when battery power is low.

PX5 Transmitter

Front View Rear View
